Abstract

The utility model discloses a mattress with an alarm, which comprises a mattress body and an alarm. The mattress body is provided with a pressure sensor, the pressure sensor is connected with an A/D converter, and the A/D The converter is connected with the single chip I, the clock chip of the alarm clock is connected with the single chip II; the mattress body is provided with a number of motors, the motors are connected with a relay, the relay is connected with a current transformer, and the current transformer is connected The device is connected to the single-chip microcomputer I. When the pressure sensor of the utility model feels the pressure, when the set time arrives, the circuit is connected, the motor and the alarm clock operate, and people are woken up. Once the pressure sensor does not sense pressure, the alarm clock and the motor will stop working, and they will not work at ordinary times to reduce power consumption. You can also run the motor alone to achieve a massage effect.

Description

A mattress with an alarm

technical field

The utility model relates to the technical field of mattresses, in particular to a mattress with an alarm.

Background technique

During the use of the mobile terminal, the alarm is a function that is frequently used. An alarm can sound or vibrate at a set trigger time to remind the user to do something when the alarm is triggered. For example, when the trigger time of the early wake-up alarm set by the user on the terminal arrives, the terminal will ring a bell to remind the user to get up early.

However, in the actual application process, the effectiveness of the alarm reminder is poor. For example, after the alarm sounds, the user is still drowsy, often turns off the alarm, stays in bed for a few minutes, and often oversleeps without being reminded by the alarm.

Utility model content

The utility model provides a mattress with an alarm to solve the deficiencies of the related art.

In order to solve the related problems, the utility model adopts the following technical solutions:

A mattress with an alarm includes a mattress body and an alarm, the mattress body is provided with a pressure sensor, the pressure sensor is connected with an A/D converter, and the A/D converter is connected with a single-chip microcomputer I, the clock chip of the alarm clock is connected with a single-chip microcomputer II; the mattress body is provided with a number of motors, the motors are connected with a relay, and the relay is connected with a current transformer, and the current transformer is connected with the single-chip microcomputer. I connection.

As a further description of the above technical solution: the single-chip microcomputer II is connected with a display screen for displaying time.

As a further description of the above technical solution: the A/D converter is connected with the single-chip microcomputer I; the control circuit of the relay is connected with the single-chip microcomputer I.

As a further description of the above technical solution: the single-chip microcomputer I communicates with the single-chip computer II in series.

As a further description of the above technical solution: the motor is connected with a massager.

As a further description of the above technical solution: the single-chip microcomputer II sets a button, and the single-chip microcomputer I is connected to the relay.

The utility model has the following beneficial effects:

When the pressure sensor of the utility model feels the pressure, when the set time arrives, the circuit is connected, the motor and the alarm clock operate, and people are woken up. Once the pressure sensor does not sense pressure, the alarm clock and the motor stop working, usually not working, reducing power consumption. It is also possible to run the motor alone to achieve a massage effect.

Description of drawings

Fig. 1 is the mattress structure schematic diagram of the present invention;

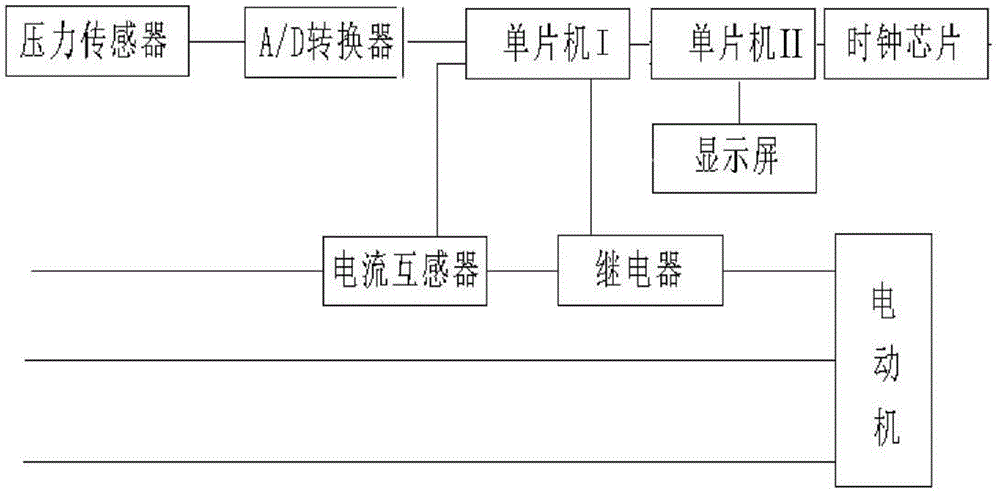

Fig. 2 is the connection flow chart of each component of the present utility model;

3 is a schematic diagram of an alarm clock and its display circuit;

Fig. 4 is the schematic diagram of the connection circuit of the pressure sensor and the A/D converter;

Fig. 5 is the schematic diagram of the connection circuit of relay, single chip I and A/D converter;

In the picture: 1-mattress body; 2-alarm; 3-pressure sensor; 4-motor.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-2, a mattress with an alarm includes a mattress body 1 and an alarm 2, the mattress body 1 is provided with a pressure sensor 3, and the pressure sensor 3 is connected with an A/ D converter, the A/D converter is connected with a single-chip microcomputer I, the clock chip of the alarm 2 is connected with a single-chip microcomputer II, and the single-chip microcomputer I communicates with the single-chip microcomputer II in series; the mattress body 1 has a built-in There are several motors 4, and the motors 4 are connected with relays, and the relays are connected with current transformers, and the current transformers are connected with the single-chip microcomputer I.

Please refer to Figure 3, 3-1 is the alarm circuit, 3-2 is the independent keyboard circuit, the clock chip selection is DS12C887 clock chip, the single chip selection is STC89C52 single chip, and equipped with 11.0592MHz crystal oscillator, the reset circuit adopts power-on reset , Display circuit selection using LCD1602 liquid crystal display, power selection using DC 5V power supply, the alarm circuit is composed of triode S8055, buzzer, resistor R4.

Please refer to Figure 5, 5-1 is the control circuit of the relay, which is composed of transistor Q1, 12V relay, and AC adapter, and 5-2 is the A/D converter ADC0808.

As shown in Figure 2, the relay is connected in series in the power supply circuit, and the microcontroller I and the relay form a micro-control circuit to control the on-off of the line between the motor and the power supply, thereby controlling the working state of the motor.

As shown in Figure 3, the microcontroller II is connected to the LCD1602 liquid crystal display, DS12C887 clock chip, and alarm circuit to realize the alarm function.

The pressure sensor is connected to the A/D converter to convert the analog quantity sent by the pressure sensor into digital quantity, and transmit it to the single-chip microcomputer I through the P1 port. When a person is lying in the sensor area, the single-chip microcomputer I will receive the signal, and if the set alarm clock rings, the single-chip microcomputer II will transmit the signal to the single-chip microcomputer I, and the single-chip computer I will control the relay to close and connect the motor circuit. When the set alarm clock does not sound, the button on the independent keyboard circuit in Figure 3-2 can be used to send a signal to the MCU II and transmit it to the MCU I to realize the operation of the motor and achieve the massage function.

When the pressure sensor of the present invention (as shown in Fig. 4) feels pressure, when the set time arrives, the circuit is turned on, and the motor 4 and the alarm clock 2 operate to wake people up. Once the pressure sensor 3 fails to sense the pressure, the alarm clock 2 and the motor 4 stop working, usually do not work, so as to reduce power consumption. It is also possible to operate the motor 4 alone to achieve the massage effect.

In some embodiments, the single-chip microcomputer II connected to the clock chip of the alarm clock 2 is connected with a display screen for displaying time; preferably, the display is powered by a lithium battery.

In some embodiments, the A/D converter is connected to the microcontroller I; the control circuit of the relay is connected to the microcontroller I. As a further description of the above technical solution: the single-chip microcomputer I communicates with the single-chip computer II in series. When the set time is reached, the alarm clock sounds and there is pressure, the single-chip microcomputer sends a signal to the relay through the current transformer to make it connect the circuit, and the motor runs to achieve the effect of calling people (generally, the relay is disconnected, and the motor does not operation, saving standby power).

In some embodiments, the motor is connected with a massager; the single-chip microcomputer II sets a button, and the single-chip microcomputer I is connected with the relay. After pressing the button, give a signal to the single-chip microcomputer I, and let the single-chip microcomputer I send a signal to the relay to make it turn on, so as to realize the massage operation of the single-running motor.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model, All should be included within the protection scope of the present invention.

Claims (6)

1. A mattress with an alarm clock is characterized in that: the mattress comprises a mattress body and an alarm, wherein a pressure sensor is arranged in the mattress body and connected with an A/D converter, the A/D converter is connected with a singlechip I, and a clock chip of the alarm is connected with a singlechip II; the mattress is characterized in that a plurality of motors are arranged in the mattress body and connected with relays, the relays are connected with current transformers, and the current transformers are connected with the single chip microcomputer I.

2. The mattress with alarm clock of claim 1, wherein: and the singlechip II is connected with a display screen.

3. The mattress with alarm clock of claim 1, wherein: the A/D converter is connected with the single chip microcomputer I; and a control circuit of the relay is connected with the singlechip I.

4. The mattress with alarm clock of claim 1, wherein: the single chip microcomputer I and the single chip microcomputer II are in serial communication.

5. The mattress with alarm clock of claim 1, wherein: the motor is connected with a massager.

6. The mattress with alarm clock of claim 4, wherein: the singlechip II is provided with a button, and the singlechip I is connected with the relay.
