Abstract

The utility model discloses a drying device for fused silica ceramics, which relates to the technical field of ceramics production. For the existing ceramics production, air-drying is used for drying, but the air-drying efficiency is low, especially the interior of the ceramics cannot be contacted with flowing air, thereby For the problem of affecting the drying efficiency of ceramics, the following solution is proposed, including a box body, a feeding mechanism is arranged inside the box body, and two push rod motors are fixedly connected to the top outer wall of the box body, and the push rod motors are The output shaft is fixedly connected with a movable plate, the bottom of the movable plate is welded with a plurality of baffle plates along its length direction, the top of the movable plate is welded with a fixed cover, the inner wall of the fixed cover is connected with electric heating wires, and the top of the fixed cover is A connecting plate which is movably sleeved on the outside of the push rod motor is welded. The utility model not only facilitates the drying of the outside of the ceramics, but also can quickly dry the inner walls of the ceramics, so that the overall drying efficiency of the ceramics can be improved conveniently and the production efficiency of the ceramics can be improved.

Description

A kind of drying device for fused silica ceramics

technical field

The utility model relates to the technical field of ceramic production, in particular to a drying device for fused silica ceramics.

Background technique

There are two kinds of quartz ceramics. One is produced with crystalline quartz (quartz sand or crystal) at 1600 degrees, and the other is quartz glass ceramics produced with 1200 degrees of quartz glass crushed.

During the production and processing of fused silica ceramics, the semi-finished fused silica ceramic green body can only be fired after drying. The traditional drying methods are mostly done by natural air drying. However, such drying efficiency is low, especially the internal contact of ceramics. There is less flowing air, which makes the internal drying of ceramics slower, which is not conducive to the efficient production of ceramics. For this reason, we propose a drying device for fused silica ceramics.

Utility model content

The utility model proposes a drying device for fused silica ceramics, which solves the problem that air drying is used for drying in the existing ceramic production, and the air drying efficiency is low, especially the interior of the ceramics cannot be contacted with the flowing air, thereby affecting the drying efficiency of the ceramics The problem.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A drying device for fused silica ceramics, comprising a box body, a feeding mechanism is arranged inside the box body, two push rod motors are fixedly connected to the top outer wall of the box body, and the output shafts of the push rod motors are fixed A movable plate is connected, the bottom of the movable plate is welded with a plurality of baffle plates along its length direction, the top of the movable plate is welded with a fixed cover, the inner wall of the fixed cover is connected with electric heating wires, and the fixed cover is The top is welded with a connecting plate that is movably sleeved outside the push rod motor, two sides of the connecting plates that are close to each other are fixedly connected with a biaxial motor, and the output shaft of the biaxial motor is fixedly sleeved with a fan blade. A windshield is fixedly connected to the top of the connecting plate, two hoses are fixedly connected to the top of the windshield, and one end of the hose away from the windshield is fixedly sleeved with a fixed pipe, and the bottom end of the fixed pipe Fixed connection with air nozzle.

Preferably, the feeding mechanism includes two conveying rollers, a conveying belt and a plurality of feeding rollers, the two conveying rollers are rotatably connected to the inner wall of the box body, the conveying rollers are sleeved with conveying belts, and the conveying belts are The inner sleeve is provided with a guide roller which is rotatably connected with the inner wall of the box body.

Preferably, the two side walls of the box body are provided with openings, and the air nozzles are fixedly connected to the openings, the top box walls of the box body are provided with movable holes, and the fixed cover penetrates the movable holes.

Preferably, the interior of the movable plate is provided with a cavity, the bottom array of the movable plate is provided with air outlet holes communicating with the cavity, the top of the movable plate is provided with air intake holes, and the fixed cover passes through the air intake. The hole communicates with the cavity.

Preferably, the connecting plate is provided with a guide hole, and the push rod motor penetrates the guide hole.

Preferably, support rods are welded on both outer walls of the windshield, and the bottom ends of the support rods are welded with the box body, and the top of the windshield is provided with a connection hole that communicates with the hose.

Compared with the existing technology, the beneficial effects of the present utility model are: the utility model is equipped with a feeding mechanism, a push rod motor, a movable plate, a baffle plate, a fixed cover, an electric heating wire, a biaxial motor, a fan blade, and a wind shield. Cover, hose, connecting plate, fixed pipe and air nozzle and other structures, in which the push rod motor can drive the movable plate to move up and down, and the movable plate will be blocked by the baffle plate, so as to facilitate the ceramic and the air outlet on the movable plate Correspondingly, it is convenient for the air outlet on the movable plate to blow air inside the ceramic, while the double-shaft motor drives the fan blade to rotate, and the rotation of the fan blade can blow the hot air into the ceramic through the movable plate, so as to facilitate the operation of the interior of the ceramic. Fast drying, and the wind is sprayed from the air nozzle with the help of the hose and the fixed tube, so as to facilitate the drying of the outer wall of the ceramic, thereby improving the overall drying efficiency of the ceramic. External blow drying, and the inner wall of the ceramic can also be quickly dried, which is convenient to improve the overall drying efficiency of the ceramic and improve the production efficiency of the ceramic.

Description of drawings

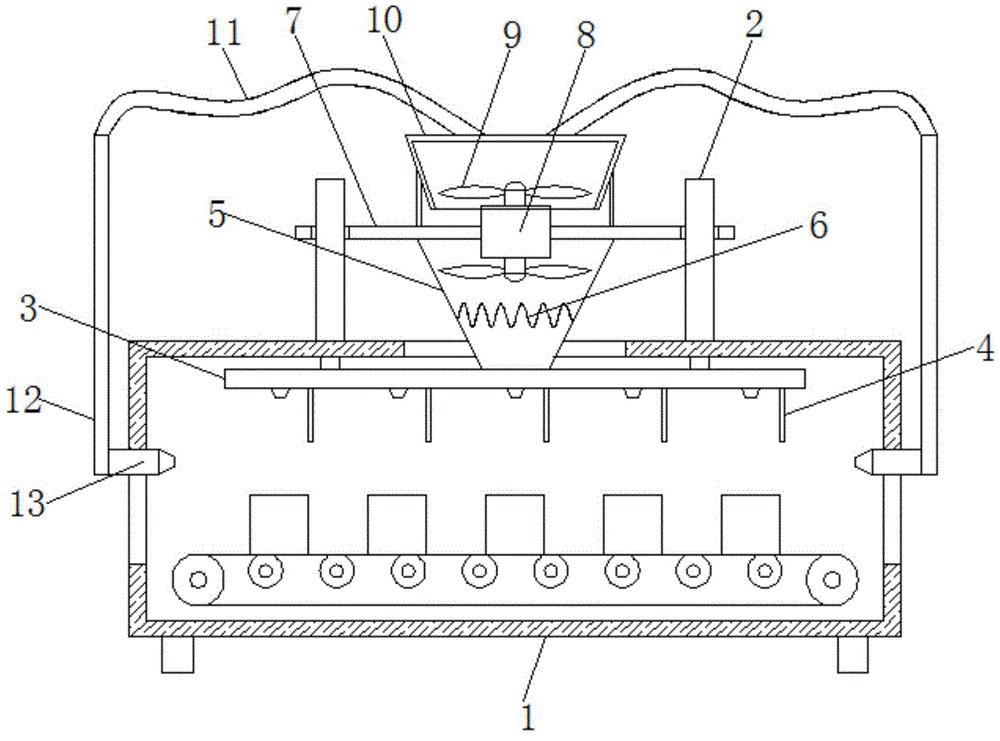

Fig. 1 is a kind of fused silica ceramic drying device proposed by the utility model not working front view structure schematic diagram;

FIG. 2 is a schematic front view of the structure of a drying device for fused silica ceramics proposed by the utility model when it is working.

In the picture: 1 box, 2 push rod motors, 3 movable plates, 4 baffles, 5 fixed covers, 6 heating wires, 7 connecting plates, 8 biaxial motors, 9 blades, 10 windshields, 11 hoses, 12 fixed tube, 13 air nozzle.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

Referring to Figure 1-2, a drying device for fused silica ceramics includes a box body 1, a feeding mechanism is arranged inside the box body 1, and two push rod motors 2 are fixedly connected to the top outer wall of the box body 1. The push rod motor The output shaft of 2 is fixedly connected with a movable plate 3, the bottom of the movable plate 3 is welded with a plurality of baffles 4 in an array along its length direction, the top of the movable plate 3 is welded with a fixed cover 5, and the inner wall of the fixed cover 5 is connected with an electric heating wire 6. , the top of the fixed cover 5 is welded with a connecting plate 7 that is movably sleeved on the outside of the push rod motor 2, the side of the two connecting plates 7 that are close to each other is fixedly connected with a biaxial motor 8, and the output shaft of the biaxial motor 8 is fixedly sleeved There are fan blades 9 , a windshield 10 is fixedly connected to the top of the connecting plate 7 , and two hoses 11 are fixedly connected to the top of the windshield 10 , and the end of the hose 11 away from the windshield 10 is fixedly sleeved with a fixed tube 12 . , the bottom end of the fixed pipe 12 is fixedly connected with the air nozzle 13 .

In this embodiment, the feeding mechanism includes two conveying rollers, a conveying belt and a plurality of feeding rollers. The two conveying rollers are rotatably connected to the inner wall of the box body 1. The conveying rollers are sleeved with conveying belts, and the interior of the conveying belts are sleeved with The inner wall of the box body 1 rotates and connects the guide rollers.

In this embodiment, the two side walls of the box body 1 are provided with openings, and the air nozzles 13 are fixedly connected to the openings. The top box wall of the box body 1 is provided with movable holes, and the fixed cover 5 penetrates the movable holes.

In this embodiment, the interior of the movable plate 3 is provided with a cavity, the bottom array of the movable plate 3 is provided with air outlet holes communicating with the cavity, the top of the movable plate 3 is provided with air intake holes, and the fixed cover 5 passes through the air intake. The hole communicates with the cavity.

In this embodiment, the connecting plate 7 is provided with a guide hole, and the push rod motor 2 passes through the guide hole.

In this embodiment, support rods are welded on both outer walls of the windshield 10 , and the bottom ends of the support rods are welded with the box body 1 .

Working principle, first of all, the push rod motor 2 can drive the movable plate 3 to move up and down, and the movable plate 3 moves down to block the ceramics with the help of the baffle 4, so as to facilitate the ceramics to correspond to the air holes on the movable plate 3, which is convenient for the movable plate. The air outlet on the 3 can blow air inside the ceramic, and the biaxial motor 8 drives the fan blade 9 to rotate, and the rotation of the fan blade 9 can blow the hot air heated by the heating wire 6 into the ceramic through the movable plate 3, so as to facilitate the cleaning of the ceramic. The inner part of the ceramic is dried quickly, and the upper fan blade blows the wind into the windshield 10, and the wind is sprayed from the air nozzle 13 through the hose 11 and the fixed pipe 12, so as to facilitate the drying of the outer wall of the ceramic, thereby improving the The overall drying efficiency of ceramics, the whole device is not only convenient for drying the outside of the ceramics, but also can quickly dry the inner walls of the ceramics, which is convenient to improve the overall drying efficiency of the ceramics and improve the production efficiency of the ceramics.

In the description of the present invention, it should be understood that the terms "center", "longitudinal", "lateral", "length", "width", "thickness", "upper", "lower", "front", "Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inner", "Outer", "Clockwise", "Counterclockwise" etc. Or the positional relationship is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed in a specific orientation and operation, so it cannot be construed as a limitation to the present invention.

In addition, the terms "first" and "second" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance or implying the number of indicated technical features. Thus, a feature defined as "first", "second" may expressly or implicitly include one or more of that feature. In the description of the present invention, "plurality" means two or more, unless otherwise expressly and specifically defined.

The above description is only a preferred embodiment of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. A drying device for fused silica ceramics, comprising a box body (1), characterized in that a feeding mechanism is provided inside the box body (1), and the top outer wall of the box body (1) is fixedly connected with Two push rod motors (2), the output shafts of the push rod motors (2) are fixedly connected with a movable plate (3), and a plurality of baffles ( 4), a fixed cover (5) is welded on the top of the movable plate (3), an electric heating wire (6) is connected to the inner wall of the fixed cover (5), and a movable sleeve is welded on the top of the fixed cover (5) A connecting plate (7) is provided outside the push rod motor (2), and a biaxial motor (8) is fixedly connected to one side of the two connecting plates (7) that are close to each other, and the output of the biaxial motor (8) The shaft fixing sleeve is provided with a fan blade (9), a windshield (10) is fixedly connected to the top of the connecting plate (7), and two hoses (11) are fixedly connected to the top of the windshield (10). A fixing pipe (12) is fixedly sleeved at one end of the hose (11) away from the windshield (10), and an air nozzle (13) is fixedly connected to the bottom end of the fixing pipe (12). 2 . The drying device for fused silica ceramics according to claim 1 , wherein the feeding mechanism comprises two conveying rollers, a conveying belt and a plurality of feeding rollers, and the two conveying rollers are connected to the box body. 3 . The inner wall of (1) is rotatably connected, the outside of the conveying roller is sleeved with a conveying belt, and the inside of the conveying belt is sleeved with a material guide roller that is rotatably connected to the inner wall of the box (1). 3. A kind of drying device for fused silica ceramics according to claim 1, is characterized in that, the two side walls of described box body (1) are provided with openings, and air nozzles (13) are fixedly connected with the openings, The top box wall of the box body (1) is provided with a movable hole, and the fixed cover (5) penetrates the movable hole. 4. A kind of drying device for fused silica ceramics according to claim 1, is characterized in that, the interior of described movable plate (3) is provided with cavity, and the bottom array of described movable plate (3) is provided with and An air outlet communicated with the cavity, the top of the movable plate (3) is provided with an air intake hole, and the fixed cover (5) is communicated with the cavity through the air intake hole. 5 . The drying device for fused silica ceramics according to claim 1 , wherein the connecting plate ( 7 ) is provided with a guide hole, and the push rod motor ( 2 ) penetrates the guide hole. 6 . 6. A kind of drying device for fused silica ceramics according to claim 1, is characterized in that, the outer walls of both sides of described windshield (10) are welded with support rods, and the bottom end of the support rod is connected to the box (10). 1) Welding, the top of the windshield (10) is provided with a connection hole communicating with the hose (11).
