Abstract
The utility model discloses a sludge discharge device for sewage treatment relates to sewage treatment technical field, including handling the case, the interior diapire fixedly connected with of handling the case handles the frame, the last fixed surface who handles the case is connected with electric putter, electric putter's flexible end runs through the inside of handling the case and extending to the case of handling. This sludge discharging device for sewage treatment passes through electric putter, the second connecting plate, the slide bar, cooperation setting between brush board and the first connecting plate, can effectually scrub each filter, thereby avoid the filter plate surface to cause blocking phenomenon, the efficiency to sewage treatment has been improved, and through advancing the mud hole, collect the cooperation setting between frame and the delivery pipe, can carry out effectual collection to mud, make the mud after the collection discharge, thereby carry out effectual sludge discharging to sewage treatment, and make each filter can convenient to detach, make the filter can obtain further cleanness.
Description
Technical Field
The utility model relates to a sewage treatment technical field specifically is a sludge discharge device for sewage treatment.
Background
The sewage treatment process can lead the sewage to reach the water quality requirement of discharging into a certain water body or reusing for purifying the sewage, and the sewage treatment process is widely applied to various fields of buildings, agriculture, traffic, energy, petrifaction, environmental protection, urban landscape, medical treatment, catering and the like and is also increasingly used in daily life of common people.
The mud mode is arranged to current sewage treatment will extract after deposiing mud usually, and such mud mode speed of arranging is slower, and easily makes the filter plate surface easily cause blocking phenomenon, is unfavorable for handling sewage, and general filter plate structure is fixed simultaneously, is difficult to carry out surface cleaning and dismantles the clearance to the filter to sewage treatment's work efficiency has been reduced.
SUMMERY OF THE UTILITY MODEL
An object of the utility model is to provide a pair of sludge discharge device for sewage treatment to solve the problem that proposes among the above-mentioned background art.
The utility model discloses a solve above-mentioned technical problem, provide following technical scheme: the utility model provides a sludge discharge device for sewage treatment, is including handling the case, handle the interior diapire fixedly connected with of case and handle the frame, the last fixed surface who handles the case is connected with electric putter, electric putter's flexible end runs through and handles the case and extend to the inside of handling the case, electric putter's output end fixedly connected with second connecting plate, two symmetrical slide bars of bottom surface fixedly connected with of second connecting plate, every the one end of slide bar all runs through and handles the frame and extend to the inside of handling the frame.
Furthermore, three groups of symmetrical sliding groove plates are fixedly connected to the inner bottom wall and the inner top wall of the processing frame, a filter plate is connected to the inside of each sliding groove plate in a sliding mode, a water inlet pipe is fixedly communicated with one side face of the processing box, a water outlet pipe is fixedly communicated with the other side face of the processing box, a collecting frame is fixedly connected to the bottom face of the processing box, a door frame is fixedly connected to the front face of the processing box, and a door is fixedly hinged to one side face of the door frame through a pin shaft.
Furthermore, four corners of the bottom surface of the treatment box are provided with support columns, and each support column is fixedly connected with the bottom surface of the treatment box.
Through adopting above-mentioned technical scheme, can carry out effectual support to the device to make mud can effectual discharge from the delivery pipe.
Furthermore, the inner bottom wall of the processing frame is provided with sludge inlet holes which are arranged at equal intervals, and the sludge inlet holes sequentially penetrate through the processing frame and the processing box and are communicated with the collecting frame.
Through adopting above-mentioned technical scheme, can be effectual collect the frame to collecting from advancing mud hole department with the mud in the sewage in to can make sewage obtain effectual processing.
Furthermore, the bottom surface of the collecting frame is fixedly communicated with a discharge pipe, and the outer surface of the discharge pipe is fixedly provided with a manual valve.
Through adopting above-mentioned technical scheme, can be effectual with the emission of control mud, when sewage carries out filtration treatment, can close the delivery pipe through manual valve, make sewage carry out normal processing, make simultaneously mud can collect in the collection frame.
Further, every a side of filter all is equipped with the handle, every the equal inequality of filtration pore bore value of filter.
Through adopting above-mentioned technical scheme, can effectually filter sewage layer upon layer, can filter the mud of not uniform size, make the filter can have convenient to detach's effect simultaneously.
Furthermore, the bottom surface of each slide bar is fixedly connected with a first connecting plate, two side surfaces of each first connecting plate are fixedly connected with brush plates, and the bristles of each brush plate are attached to the outer surface of the filter plate.
By adopting the technical scheme, the sludge on the surface of each filter plate can be effectively washed, the filter plates are prevented from being blocked for a long time, and the efficiency of sewage treatment is improved.
Further, the back of chamber door is fixed to be inlayed and is had the sealing washer, the observation window has been seted up in the front of chamber door, the positive one side of chamber door is equipped with the handle.
Through adopting above-mentioned technical scheme, can make when sewage handles, the portion that makes in the processing frame keeps the leakproofness to the internal conditions of processing frame can be observed constantly.
Compared with the prior art, this sludge discharging device for sewage treatment possesses following beneficial effect:
1. the utility model discloses an electric putter, the second connecting plate, the slide bar, the cooperation setting between brush board and the first connecting plate, can effectually scrub each filter, thereby avoid the filter plate surface to cause blocking phenomenon, the efficiency to sewage treatment has been improved, and through advancing the mud hole, collect the cooperation setting between frame and the delivery pipe, can carry out effectual collection to mud, make the mud after the collection discharge, thereby carry out effectual mud of arranging to sewage treatment, and make each filter can convenient to detach, make the filter can obtain further cleanness.
2. The utility model can effectively support the device through the arrangement of the supporting columns, and can effectively discharge the sludge from the discharge pipe, and can effectively collect the sludge in the sewage from the sludge inlet hole into the collection frame through the arrangement of the sludge inlet hole, thereby effectively treating the sewage, and can effectively control the discharge of the sludge through the arrangement of the discharge pipe, when the sewage is filtered, the discharge pipe can be closed through the manual valve, so that the sewage can be normally treated, and meanwhile, the sludge can be collected into the collection frame, through the arrangement of the filter plate, the sewage can be effectively filtered layer by layer, the sludge with different sizes can be filtered, and simultaneously, the filter plate can have the effect of convenient disassembly, through the arrangement of the first connecting plate and the brush plate, the sludge on the surface of each filter plate can be effectively washed, the filter plate is prevented from being blocked for a long time, the efficiency of sewage treatment is improved, and the sealing performance of the inner part of the treatment frame can be kept through the arrangement of the box door when sewage is treated, and the internal condition of the treatment frame can be observed constantly.
Drawings

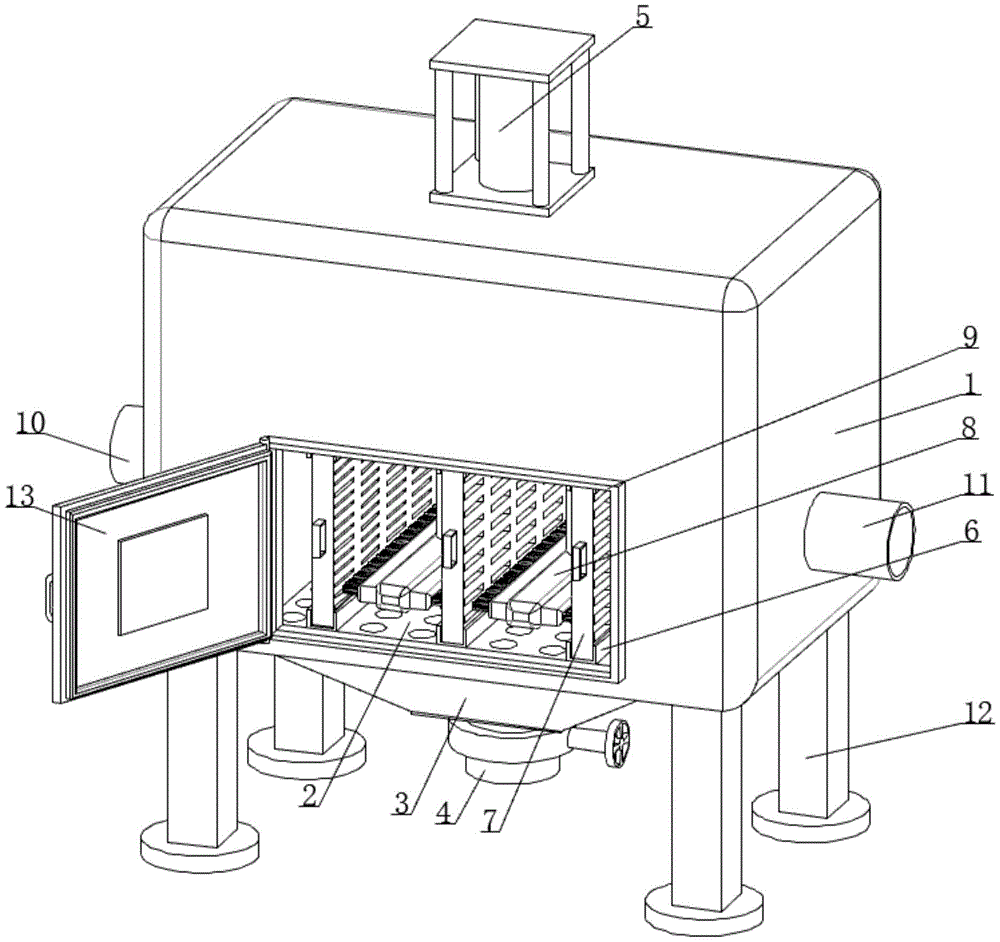

FIG. 1 is a schematic structural view of the present invention;
fig. 2 is a schematic view of the bottom view structure of the present invention;
FIG. 3 is a schematic sectional view of the present invention;
fig. 4 is an enlarged schematic structural view of a portion a in fig. 3 according to the present invention.
In the figure: 1. a treatment tank; 2. a processing frame; 3. a collection frame; 4. a discharge pipe; 5. an electric push rod; 6. a chute plate; 7. a filter plate; 8. a first connecting plate; 9. a door frame; 10. a water outlet pipe; 11. a water inlet pipe; 12. a support pillar; 13. a box door; 14. a slide bar; 15. a second connecting plate; 16. a mud inlet hole; 17. and (7) brushing the board.
Detailed Description
The technical solutions in the embodiments of the present invention will be described clearly and completely with reference to the accompanying drawings in the embodiments of the present invention, and it is obvious that the described embodiments are only some embodiments of the present invention, not all embodiments. Based on the embodiments in the present invention, all other embodiments obtained by a person skilled in the art without creative work belong to the protection scope of the present invention.
Referring to fig. 1-4, the present invention provides a technical solution: a sludge discharge device for sewage treatment comprises a treatment box 1, wherein support columns 12 are arranged at four corners of the bottom surface of the treatment box 1, the upper surface of each support column 12 is fixedly connected with the bottom surface of the treatment box 1 and can effectively support the device, a certain distance can be reserved between a discharge pipe 4 and the bottom surface, sludge can be effectively discharged from the discharge pipe 4, a treatment frame 2 is fixedly connected with the inner bottom wall of the treatment box 1, an electric push rod 5 is fixedly connected with the upper surface of the treatment box 1, the model of the electric push rod 5 is HTKC-55, the telescopic end of the electric push rod 5 penetrates through the treatment box 1 and extends to the inside of the treatment box 1, a second connecting plate 15 is fixedly connected with the output end of the electric push rod 5, two symmetrical slide rods 14 are fixedly connected with the bottom surface of the second connecting plate 15, one end of each slide rod 14 penetrates through the treatment frame 2 and extends to the inside of the treatment frame 2, every slide bar 14 and the sliding connection department who handles frame 2 all fixed the inlaying have the sealing washer, the inside leakproofness of handling frame 2 has been guaranteed, the first connecting plate 8 of the equal fixedly connected with in bottom surface of every slide bar 14, the equal fixedly connected with brush board 17 of the both sides face of every first connecting plate 8, and the brush hair of brush board 17 pastes with the surface of filter 7 mutually, can effectually wash each filter 7 mud on the surface, prevent that long-time filter 7 from appearing blocking phenomenon, the efficiency to sewage treatment has been improved.
The inner bottom wall and the inner top wall of the treatment frame 2 are fixedly connected with three groups of symmetrical chute plates 6, the inside of each group of chute plates 6 is connected with a filter plate 7 in a sliding way, one side surface of each filter plate 7 is provided with a handle, the diameter value of a filtering hole of each filter plate 7 is unequal, sewage can be effectively filtered layer by layer, sludge with different sizes can be filtered, meanwhile, the filter plates 7 can have the effect of convenient disassembly, one side surface of the treatment box 1 is fixedly communicated with a water inlet pipe 11, the other side surface of the treatment box 1 is fixedly communicated with a water outlet pipe 10, the bottom surface of the treatment box 1 is fixedly connected with a collection frame 3, the inner bottom wall of the treatment frame 2 is provided with sludge inlet holes 16 which are arranged at equal intervals, and the sludge inlet holes 16 sequentially penetrate through the treatment frame 2 and the treatment box 1 and are communicated with the collection frame 3, so that sludge in the sewage can be effectively collected into the collection, thereby can make sewage obtain effectual processing, the fixed intercommunication in bottom surface of collecting frame 3 has delivery pipe 4, the fixed surface of delivery pipe 4 installs manual valve, can effectually control the emission of mud, when sewage carries out filtration treatment, can close delivery pipe 4 through manual valve, make sewage carry out normal processing, make simultaneously in the collection frame 3 can be collected to mud, the positive fixedly connected with door frame 9 of processing case 1, a side of door frame 9 articulates through the round pin hub fixation has chamber door 13, the fixed embedding in the back of chamber door 13 has the sealing washer, the observation window has been seted up in the front of chamber door 13, the positive one side of chamber door 13 is equipped with the handle, can be when sewage is handled, make the portion in the processing frame 2 keep the leakproofness, and the internal conditions of processing frame 2 can be observed constantly.
When in use, the box door 13 is firstly closed, the sealing performance inside the treatment frame 2 is kept, the electric push rod 5 is communicated with a municipal power supply, at the same time, sewage is discharged into the treatment frame 2 through the water inlet pipe 11, the sewage can filter the filter plates 7, the sludge in the sewage can be filtered layer by layer, the sludge can be deposited to the inner bottom wall of the treatment frame 2 and flows into the collection frame 3 through the sludge inlet hole 16, at the same time, the brush hair on the brush plate 17 can brush the filter plates 7 due to the operation of the electric push rod 5, the sludge on the outer surfaces of the filter plates 7 is brushed, the cleaning effect on the filter plates 7 is improved, the sewage is conveyed to the water outlet pipe 10 through the filtration of the last filter plate 7, the condition inside the treatment frame 2 can be observed through the observation window at any time, after the sewage treatment is finished, can will open chamber door 13, can take out each filter 7 and carry out further washing, open the manual valve of discharge pipe 4 department simultaneously, will collect the mud that collects in the frame 3 and discharge can.
Claims (8)
1. The utility model provides a sewage treatment is with arranging mud device, is including handling case (1), its characterized in that: handle interior diapire fixedly connected with of case (1) and handle frame (2), the last fixed surface who handles case (1) is connected with electric putter (5), the flexible end of electric putter (5) runs through and handles case (1) and extend to the inside of handling case (1), the output fixedly connected with second connecting plate (15) of electric putter (5), the bottom surface fixedly connected with two symmetrical slide bars (14) of second connecting plate (15), the one end of every slide bar (14) all runs through and handles frame (2) and extend to the inside of handling frame (2).
2. The sludge discharging device for sewage treatment as claimed in claim 1, wherein: handle the symmetrical chute board of three groups (6) of the equal fixedly connected with of inner diapire and interior roof of frame (2), every group the equal sliding connection in inside of chute board (6) has filter (7), the fixed intercommunication of a side of handling case (1) has inlet tube (11), the fixed intercommunication of another side of handling case (1) has outlet pipe (10), the bottom surface fixedly connected with collection frame (3) of handling case (1), the positive fixedly connected with door frame (9) of handling case (1), a side of door frame (9) has chamber door (13) through the fixed hinge joint of round pin axle.
3. The sludge discharging device for sewage treatment as claimed in claim 1, wherein: four corners of the bottom surface of the treatment box (1) are provided with support columns (12), and each support column (12) is fixedly connected with the bottom surface of the treatment box (1) on the upper surface.
4. The sludge discharging device for sewage treatment as claimed in claim 2, wherein: the inner bottom wall of the processing frame (2) is provided with sludge inlet holes (16) which are arranged at equal intervals, and the sludge inlet holes (16) sequentially penetrate through the processing frame (2) and the processing box (1) and are communicated with the collecting frame (3).
5. The sludge discharging device for sewage treatment as claimed in claim 2, wherein: the bottom surface of the collecting frame (3) is fixedly communicated with a discharge pipe (4), and the outer surface of the discharge pipe (4) is fixedly provided with a manual valve.
6. The sludge discharging device for sewage treatment as claimed in claim 2, wherein: every a side of filter (7) all is equipped with the handle, every the equal inequality of filtration pore bore diameter value of filter (7).
7. The sludge discharging device for sewage treatment as claimed in claim 1, wherein: the bottom surface of each sliding rod (14) is fixedly connected with a first connecting plate (8), two side surfaces of each first connecting plate (8) are fixedly connected with brush plates (17), and bristles of the brush plates (17) are attached to the outer surface of the filter plate (7).
8. The sludge discharging device for sewage treatment as claimed in claim 2, wherein: the back of chamber door (13) is fixed to be inlayed and is had the sealing washer, the observation window has been seted up in the front of chamber door (13), one side that chamber door (13) is positive is equipped with the handle.
