Abstract

The utility model relates to the technical field of wood processing, in particular to a screening device for anti-corrosion wood processing scraps, comprising a screening and crushing box, a feeding funnel is arranged on the top of the screening and crushing box, and a first deflector and The second deflector, the top wall of the screening and crushing box and the bottom of the first deflector are hinged with dust baffles, the bottom of the second deflector is provided with a filter assembly, and the bottom of the filter assembly is provided with crushing rollers, The bottom of the screening and crushing box is provided with a wood chip recovery box and a leftover material recovery box; the utility model can reduce the dust escape of the leftover material during the dumping and screening process by setting the first deflector and the second deflector, and has a good anti-corrosion effect. The utility model can screen out the large corners and put them into the scrap recycling box, and the small scraps that cannot be directly recycled directly enter the crushing counter-roller, and crush them into wood chips for recycling, which avoids the need for screening and taking out them separately. The tedious operation of smashing.

Description

A screening device for preservative wood processing leftovers

technical field

The utility model relates to the technical field of wood processing, in particular to a screening device for leftover materials of anti-corrosion wood processing.

Background technique

Leftovers and scraps refer to the reasonable amount of residual waste that is not completely consumed in the original plan and design of the production raw materials and processing during the process of manufacturing a product, and cannot be used to process the finished products under the product. , scraps and scraps. Also known as "leftover material", leftover material generally refers to the flat plate and profile. For example: on a square plate, cut a circular surface to the maximum extent, and the remaining four right-angled sides and the middle part of the circle line are leftovers. Intangible residues of raw materials such as liquid, sand, and stones cannot be called leftovers and scraps.

The leftovers produced by the processing of anti-corrosion wood are of different sizes, so they need to be screened. However, after screening out the large-sized scraps that can be recycled, the existing scraps screening device needs to separately crush and recycle the small-sized and irregular scraps, which is cumbersome to operate. And in the screening process, the dust is easy to escape, causing damage to the user's health.

Based on this, the present utility model designs a screening device for processing leftovers of anti-corrosion wood, so as to solve the above problems.

Utility model content

The purpose of this utility model is to provide a screening device for the leftovers of anti-corrosion wood processing, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical scheme: a screening device for anti-corrosion wood processing scraps, including a screening and crushing box, the top of the screening and crushing box is provided with a feeding port, the bottom end is fixed with a supporting leg, and the The top is provided with a feeding funnel, the bottom end of the feeding funnel is connected and fixed with the screening and crushing box, and the interior of the screening and crushing box is provided with a first deflector and a second deflector, the first deflector and the second deflector Relatively inclined, the right end of the first deflector is fixedly connected to the top of the right wall of the screening and crushing box, the left end of the second deflector is fixedly connected to the left wall of the screening and crushing box, and the top wall of the screening and crushing box and the first guide The bottom of the plate is hinged with a dust-proof baffle, the bottom of the second deflector is provided with a filter assembly, and the bottom of the filter assembly is provided with a crushing roller, which is rotatably connected to the front and rear side walls of the screening and crushing box, and the screen is crushed. The bottom end of the box is connected with a sawdust recovery box, and the left side wall of the screening and crushing box is provided with a scrap recovery box.

Further, the filter assembly includes two communicating pipes, the two communicating pipes are respectively fixedly connected with the left and right side walls of the screening and crushing box, the top of the communicating pipe on the right is provided with a feeding through hole, and the two communicating pipes rotate between them. A rotating screening tube is connected, and a plurality of screening holes are evenly arranged on the rotary screening tube, and the left end is provided with tooth patterns along the circumferential direction. The top of the left connecting tube is fixed with a motor, and the output shaft of the motor is fixed with a gear. The tooth pattern on the pipe meshes, and the left side wall of the screening and crushing box is provided with a leftover material discharge port corresponding to the position of the connecting pipe.

Further, limit plates are fixed to the bottoms of the two communication pipes, and the limit plates are relatively inclined.

Further, the two ends of the rotating screening pipe are fixed with sliders, the communication pipe is provided with a chute corresponding to the position of the slider, and the slider extends into the chute and is slidably connected with the chute.

Further, both the wood chip recycling box and the scrap recycling box are detachably connected to the screening and crushing box through bolts.

Compared with the prior art, the beneficial effect of the present utility model is that the utility model can make the scrap material gradually move towards the first deflector and the second deflector by setting the first deflector and the second deflector. Downflow, which can further reduce the escape of dust during the dumping and screening process of the scraps, and the dust baffles are set on the first and second baffles, and the dust baffles will not affect the flow of the scraps. When it enters and the leftover material passes through, the dust-proof baffle will remain in a vertical state under the action of gravity, which can further block the escape of dust and has a good dust-proof effect. Screen the leftovers; screen out the large-sized corners that can be directly recycled into the scrap recycling bin, and the small-sized scraps that cannot be directly recycled directly into the crushing rollers, crushed into wood chips for recycling, avoiding screening After taking it out, it is a tedious operation to pulverize again separately.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings required for the description of the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

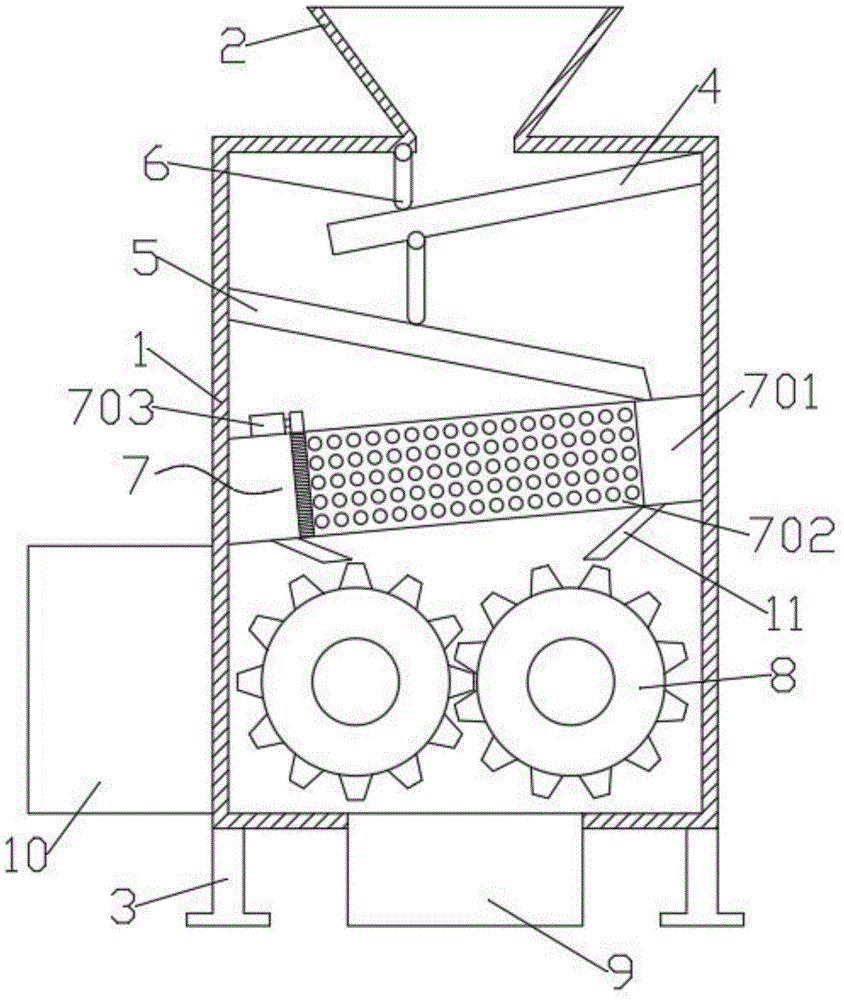

Fig. 1 is the structural representation of the utility model;

2 is a cross-sectional view of the filter assembly of the present invention;

3 is a schematic diagram of the structure of the slider at A of the present invention.

In the accompanying drawings, the list of components represented by each number is as follows:

1. Screening and crushing box; 2. Feeding funnel; 3. Supporting legs; 4. First deflector; 5. Second deflector; 6. Dust-proof baffle; 7. Filter assembly; 701. Connecting pipe; 702, rotating screening tube; 703, motor; 8, crushing rollers; 9, wood chip recycling box; 10, scrap recycling box; 11, limit plate.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-3, the present utility model provides a technical solution: a screening device for anti-corrosion wood processing leftovers, including a screening and crushing box 1, the top of the screening and crushing box 1 is provided with a feeding port, and the bottom end is fixed with a supporting leg 3. The top of the feeding port is provided with a feeding funnel 2, and the bottom end of the feeding funnel 2 is connected and fixed with the screening and crushing box 1. The interior of the screening and crushing box 1 is provided with a first deflector 4 and a second deflector 5 , the first deflector 4 and the second deflector 5 are arranged relatively inclined, the right end of the first deflector 4 is fixedly connected with the top of the right wall of the screening and crushing box 1, and the left end of the second deflector 5 is connected with the screening and crushing box. The left wall of 1 is fixedly connected, the top wall of the screening and crushing box 1 and the bottom of the first deflector 4 are hinged with a dust baffle 6, and the bottom of the second deflector 5 is provided with a filter assembly 7. The bottom is provided with a crushing roller 8, which is driven by a driving motor and is rotatably connected to the front and rear side walls of the screening and crushing box 1. The bottom end of the screening and crushing box 1 is connected with a wood chip recovery box 9. The screening and crushing box 1 The left side wall is provided with a scrap recycling box 10.

The filter assembly 7 includes two communication pipes 701, and the two communication pipes 701 are respectively fixedly connected with the left and right side walls of the screening and crushing box 1. The top of the communication pipe 701 on the right side is provided with a feeding through hole, and the two communication pipes 701 A rotating screening tube 702 is rotatably connected between them. The rotary screening tube 702 is evenly provided with a plurality of screening holes, and the left end is provided with tooth patterns along the circumferential direction. The top of the left communication tube 701 is fixed with a motor 703. A gear is fixed, and the gear meshes with the tooth pattern on the rotating screening tube 702. The left side wall of the screening and crushing box 1 is provided with a leftover discharge port at the position corresponding to the communication tube 701. The communication tube 701 and the rotating screening tube 702 maintain a certain inclination. Spend.

The bottoms of the two communication pipes 701 are fixed with limiting plates 11 , and the limiting plates 11 are relatively inclined. The limiting plates 11 can ensure that the leftovers screened on both sides enter the crushing roller 8 for crushing.

The two ends of the rotating screening tube 702 are fixed with sliders, and the communicating tube 701 is provided with a chute corresponding to the position of the slider, and the slider extends into the chute and is slidably connected with the chute.

Both the wood chip recovery box 9 and the leftover material recovery box 10 are detachably connected to the screening and crushing box 1 through bolts, and the entire wood chip recovery box 9 and the leftover material recovery box 10 can be easily disassembled for dumping and recycling.

A specific application of this embodiment is as follows: the leftover material of wood processing is put into the feeding funnel 2, and the leftover material enters the screening and crushing box 1 along with the feeding funnel 2;

It first falls on the first deflector 4, and flows to the lower left with the first deflector 4. During the flow of the scrap material, it hits the dust-proof baffle 6, and the dust-proof baffle 6 rotates and opens about the hinge point without blocking it. The flow of leftover material; the leftover material continues to flow, hits the left side wall of the screening and crushing box 1, and continues to flow downward to the right along with the second deflector 5 in the reverse direction, continues to knock open the dust baffle 6, and enters the inlet at the top of the communication pipe 701. material through hole;

The motor 703 is started, the output shaft drives the gear to rotate, the gear drives the rotating screening tube 702 meshed with it to rotate, the leftover material entering the communication tube 701 flows into the rotary screening tube 702, and continues to flow downward to the left along with the inclined rotary screening tube 702 , During the flow process, the rotating screening tube 702 drives the leftover material to turn up and down, which can achieve a better screening effect, and the flow speed of the leftover material can also be controlled by controlling the inclination of the rotating screening tube 702, so as to control the leftover material in the rotating screening tube 702. within the screening time to obtain a suitable screening effect;

After screening, the recyclable large scraps flow into the scrap recycling box 10 along the communication pipe 701 for recycling, and the small and irregular scraps are screened out through the screening holes and fall into the crushing roller 8 for crushing, and crushed into The wood chips of a uniform size are dropped into the wood chip recovery box 9, which is convenient for recycling.

By arranging the first deflector 4 and the second deflector 5 in the present invention, the scraps can gradually flow downward along with the first deflector 4 and the second deflector 5, thereby further reducing the dumping and screening of the scraps. Dust escapes during the process, and a dust-proof baffle 6 is set on the first deflector 4 and the second deflector 5, and the dust-proof baffle 6 will not affect the entry of the leftover material when it flows. The dust-proof baffle 6 will remain in a vertical state under the action of gravity, which can further block the escape of dust and has a good dust-proof effect; by setting a rotatable rotating screening tube 702, the leftover material can be screened more fully The large corners that can be directly recycled are screened out into the scrap recycling box 10, and the small scraps that cannot be directly recycled directly enter the crushing roller 8, and are crushed into wood chips for recycling, which avoids the need for separate screening and removal. The tedious operation of crushing is performed again.

It is worth noting that the motor 703 is controlled by the control button. Since the equipment matched with the control button is a common equipment and belongs to the existing mature technology, its electrical connection relationship and specific circuit structure will not be repeated here.

In the description of this specification, description with reference to the terms "one embodiment", "example", "specific example", etc. means that a specific feature, structure, material or characteristic described in connection with the embodiment or example is included in the present invention. in at least one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are only used to help illustrate the present invention. The preferred embodiments do not exhaustively describe all the details, nor do they limit the invention to specific embodiments only. Obviously, many modifications and variations are possible in light of the content of this specification. This specification selects and describes these embodiments in order to better explain the principle and practical application of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (5)

1. The utility model provides a sieving mechanism of anticorrosive wood working leftover bits, smashes case (1) including the screening, its characterized in that: the top of the screening and crushing box (1) is provided with a feed inlet, the bottom of the screening and crushing box (1) is fixedly communicated with a supporting leg (3), the top end of the feed inlet is provided with a feed hopper (2), the bottom end of the feed hopper (2) is fixedly communicated with the screening and crushing box (1), the screening and crushing box (1) is internally provided with a first guide plate (4) and a second guide plate (5), the first guide plate (4) and the second guide plate (5) are arranged in a relatively inclined manner, the right end of the first guide plate (4) is fixedly connected with the top end of the right wall of the screening and crushing box (1), the left end of the second guide plate (5) is fixedly connected with the left wall of the screening and crushing box (1), the top wall of the screening and crushing box (1) and the bottom of the first guide plate (4) are both hinged with a dustproof baffle (6), the bottom of the second guide plate (5) is provided with a filtering component (7), crushing pair roller (8) and the front and back both sides wall rotation of screening crushing case (1) are connected, the bottom intercommunication that the case (1) was smashed in the screening is equipped with saw-dust collection box (9), and the left side wall that the case (1) was smashed in the screening is equipped with leftover bits collection box (10).

2. The screening apparatus of the preserved wood processing leftover material according to claim 1, wherein: filter component (7) include two communicating pipes (701), and two communicating pipes (701) smash the left and right sides wall fixed connection of case (1) with the screening respectively, are located the right side the top of communicating pipe (701) is equipped with feed-through, two it is connected with rotation screening pipe (702) to rotate between communicating pipe (701), evenly be equipped with a plurality of screening holes on rotation screening pipe (702), and the left end is equipped with the insection along the circumferencial direction, the left side the top of communicating pipe (701) is fixed with motor (703), and the output shaft of motor (703) is fixed with the gear, the insection meshing on gear and rotation screening pipe (702), the left side wall that the case (1) was smashed in the screening corresponds the position of communicating pipe (701) and is equipped with the leftover bits discharge gate.

3. The screening apparatus of the preserved wood processing leftover material according to claim 2, wherein: limiting plates (11) are fixed at the bottoms of the two communicating pipes (701), and the limiting plates (11) are arranged in an inclined mode relatively.

4. The screening apparatus of the preserved wood processing leftover material according to claim 2, wherein: the two ends of the rotary screening pipe (702) are fixed with sliding blocks, the position of the communicating pipe (701) corresponding to the sliding blocks is provided with a sliding groove, and the sliding blocks extend into the sliding groove and are in sliding connection with the sliding groove.

5. The screening apparatus of the preserved wood processing leftover material according to claim 1, wherein: the sawdust recovery box (9) and the leftover material recovery box (10) are detachably connected with the screening and smashing box (1) through bolts.
