Abstract

The utility model discloses a pig-raising feed bucket, comprising a bottom plate, four corners of the upper side of the bottom plate are fixedly mounted with mounting plates, a stirring bucket is mounted on the upper side of the mounting plate, and a rotating shaft is rotatably connected to the middle of the stirring bucket , a first motor is installed on the upper side of the bottom plate, a first bevel gear is installed on the output shaft of the first motor, a second bevel gear is installed on the lower end of the rotating shaft, and the first bevel gear is connected with the second bevel gear. The bevel gears are meshed, a stirring impeller is installed on the rotating shaft, the inner cavity of the stirring barrel is fixedly connected with a cone, the bottom side of the stirring barrel is fixedly connected with a discharging barrel, and the inside of the discharging barrel is rotatably connected with a For the auger, a second motor is installed on the upper side of the mounting plate, and the output shaft of the second motor is connected with the central axis of the auger through a coupling. The material bucket can automatically mix and stir, and automatically extract and feed, which greatly reduces labor intensity and improves efficiency.

Description

A pig feed barrel

technical field

The utility model relates to the technical field of animal breeding, in particular to a pig raising feed bucket.

Background technique

Pig farming is an important industry in my country's agriculture. It plays an important role in ensuring the safe supply of meat food. my country's pig farming industry is transforming from a traditional pig farming industry to a modern pig farming industry. Significant changes are taking place in both the breeding model, regional layout, production method and production capacity. At present, when domestic pigs are fed, the feed is placed in a bucket, and then manually mixed with water and stirred into a paste, and then manually put into the trough of the pigsty. The whole process is labor-intensive and labor-intensive.

Utility model content

The purpose of the utility model is to provide a pig feed bucket to solve the problems raised in the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a pig feed bucket, comprising a bottom plate, four corners of the upper side of the bottom plate are fixedly installed with mounting plates, the upper side of the mounting plate is mounted with a mixing bucket, the The middle part of the mixing barrel is rotatably connected with a rotating shaft, a first motor is installed on the upper side of the bottom plate, a first bevel gear is installed on the output shaft of the first motor, and a second bevel gear is installed on the lower end of the rotating shaft, so The first bevel gear meshes with the second bevel gear, a stirring impeller is installed on the rotating shaft, a cone is fixedly connected to the inner cavity of the stirring barrel, and a discharge barrel is fixedly connected to the bottom side of the stirring barrel. An auger is rotatably connected inside the discharge cylinder, a second motor is installed on the upper side of the mounting plate, and the output shaft of the second motor is connected with the central axis of the auger through a coupling.

Preferably, casters are installed on the bottom four corners of the bottom plate, a handle is installed on the right end of the upper side of the installation plate, and the lower end of the rotating shaft penetrates the mixing barrel and the installation plate and is rotatably connected with it.

Preferably, a shaft sleeve is rotatably connected to the upper end of the rotating shaft, and a spoke rod is connected between the shaft sleeve and the inner wall of the mixing barrel. The stability of the upper end of the shaft is enhanced by the spokes.

Preferably, a battery box is installed on the upper side of the mounting plate, a battery is installed in the battery box, and the battery is electrically connected to the second motor by wires.

Preferably, the inner end of the discharge cylinder penetrates through the cone and is fixedly connected with it, and a circular cover is installed on the outer end of the discharge cylinder. The central axis of the auger is rotatably connected with the cover.

Preferably, a branch pipe is connected through the upper side of the left end of the discharge cylinder, and a hose is inserted into the branch pipe. When in use, the feed is discharged from the hose for feeding, which is convenient to use.

Compared with the prior art, the beneficial effect of the utility model is that: the utility model utilizes the first motor to drive the rotating shaft to rotate, and the stirring impeller installed on the rotating shaft rotates accordingly to stir and mix the feed. After stirring, push the material bucket to each pigpen, use the second motor to drive the auger to rotate, and pump the feed in the cone to the outside along the discharge barrel, and discharge it through the branch pipe and hose. To sum up, the material bucket can automatically mix and stir materials, and automatically extract and feed materials, which greatly reduces labor intensity and improves efficiency.

Description of drawings

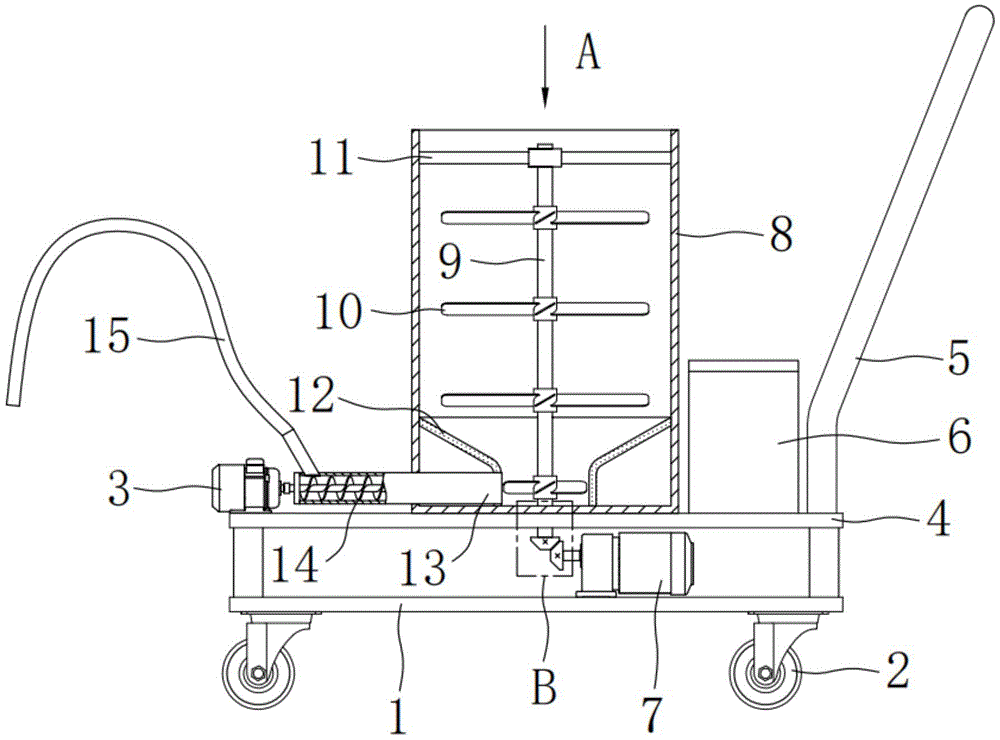

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the partial schematic diagram of the A direction in Fig. 1 of the utility model;

Fig. 3 is a partial enlarged view of B in Fig. 1 of the utility model.

In the figure: 1. Bottom plate; 2. Casters; 3. Second motor; 4. Mounting plate; 5. Handle; 6. Battery box; 7. First motor; 8. Mixing bucket; 9. Rotating shaft; 10. Mixing impeller ; 11, spoke rod; 12, cone bucket; 13, discharge barrel; 14, auger; 15, hose; 16, bushing; 17, first bevel gear; 18, second bevel gear.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-3, the present utility model provides a technical solution: a pig feed bucket, comprising a bottom plate 1, a mounting plate 4 is fixedly installed on the four corners of the upper side of the bottom plate 1, and the upper side of the mounting plate 4 A mixing barrel 8 is installed, and a rotating shaft 9 is rotatably connected to the middle of the mixing barrel 8 , a first motor 7 is installed on the upper side of the bottom plate 1 , and a first bevel gear 17 is installed on the output shaft of the first motor 7 , a second bevel gear 18 is installed on the lower end of the rotating shaft 9, the first bevel gear 17 is meshed with the second bevel gear 18, a stirring impeller 10 is installed on the rotating shaft 9, and the inner cavity of the stirring barrel 8 is fixed A cone 12 is connected, a discharge cylinder 13 is fixedly connected to the bottom side of the mixing barrel 8, a auger 14 is rotatably connected to the inside of the discharge cylinder 13, and a second motor is installed on the upper side of the mounting plate 4 3. The output shaft of the second motor 3 is connected with the central shaft of the auger 14 through a coupling.

Specifically, casters 2 are installed at the bottom four corners of the bottom plate 1 , a handle 5 is installed on the upper right end of the installation plate 4 , and the lower end of the rotating shaft 9 penetrates the mixing bucket 8 and the installation plate 4 and is rotatably connected with it.

Specifically, a shaft sleeve 16 is rotatably connected to the upper end of the rotating shaft 9 , and a spoke rod 11 is connected between the shaft sleeve 16 and the inner wall of the mixing barrel 8 . The spokes 11 support the upper end of the rotating shaft 9 to prevent the rotating shaft 9 from swinging during operation.

Specifically, a battery box 6 is mounted on the upper side of the mounting plate 4 , and a battery is mounted on the battery box 6 , and the battery is electrically connected to the second motor 3 by wires. The battery provides electrical energy for the operation of the second motor 3, and the first motor 7 has a large power for stirring and mixing materials. Generally, the capacity of the battery is difficult to meet, so the plug is connected to the mains for power supply.

Specifically, the inner end of the discharge cylinder 13 penetrates through the cone 12 and is fixedly connected with it, and a circular cover is installed on the outer end of the discharge cylinder 13 . When the auger 14 is running, the feed in the cone 12 is transported outward along the discharge barrel 13 .

Specifically, a branch pipe penetrating through is connected to the upper side of the left end of the discharge cylinder 13 , and a hose 15 is inserted into the branch pipe. The feed in the discharge barrel 13 is discharged through the branch pipe and the hose 15 .

Working principle: Add dry feed into the mixing barrel 8, and then add a certain amount of water in proportion. After the first motor 7 is powered on and started, the first bevel gear 17 drives the second bevel gear 18 to rotate, and then the shaft 9 rotates. The stirring impeller 10 rotates to fully mix the feed, and then pushes the feed bucket to each pigpen. After starting the second motor 3, the auger 14 rotates to pump the feed in the cone 12 to the outside along the discharge cylinder 13, and passes through The branch pipes and hoses are discharged, and the front end of the hose is aimed at the pig trough for feeding.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A pig feed bucket, comprising a bottom plate (1), characterized in that: a mounting plate (4) is fixedly installed on the four corners of the upper side of the bottom plate (1), and an upper side of the mounting plate (4) is mounted with a mounting plate (4). A mixing barrel (8), a rotating shaft (9) is rotatably connected to the middle of the mixing barrel (8), a first motor (7) is installed on the upper side of the bottom plate (1), and the first motor (7) is A first bevel gear (17) is mounted on the output shaft, a second bevel gear (18) is mounted on the lower end of the rotating shaft (9), and the first bevel gear (17) meshes with the second bevel gear (18), A stirring impeller (10) is installed on the rotating shaft (9), a cone (12) is fixedly connected to the inner cavity of the stirring barrel (8), and a discharge barrel is fixedly connected to the bottom side of the stirring barrel (8). (13), an auger (14) is rotatably connected inside the discharge cylinder (13), a second motor (3) is installed on the upper side of the mounting plate (4), and the second motor (3) The output shaft of the auger is connected with the central shaft of the auger (14) through a coupling. 2. A pig feed bucket according to claim 1, characterized in that: the bottom four corners of the bottom plate (1) are provided with casters (2), and the upper right end of the mounting plate (4) is provided with a handle (5), the lower end of the rotating shaft (9) penetrates through the mixing barrel (8) and the mounting plate (4) and is rotatably connected therewith. 3. A pig feed barrel according to claim 1, characterized in that: the upper end of the rotating shaft (9) is rotatably connected with a shaft sleeve (16), and the shaft sleeve (16) is connected to the mixing barrel (8) A spoke (11) is connected between the inner walls of the . 4. A pig feed bucket according to claim 1, characterized in that: a battery box (6) is installed on the upper side of the mounting plate (4), and a battery is installed in the battery box (6), so The battery is electrically connected with the second motor (3) by wires. 5. A pig feed barrel according to claim 1, characterized in that: the inner end of the discharge cylinder (13) penetrates the cone (12) and is fixedly connected with it, and the discharge cylinder (13) The outer end is fitted with a circular cover. 6 . The pig feed barrel according to claim 1 , wherein a branch pipe is connected to the upper side of the left end of the discharge cylinder ( 13 ), and a hose ( 15 ) is inserted into the branch pipe. 7 . .
