CN212175090U - A cotton blender with dust-proof cleaning function - Google Patents

Abstract

The utility model discloses a cotton blender with dust-proof cleaning function, which comprises a body, a feeding hopper is arranged on the upper part of the body, the feeding hopper is made of stainless steel, and the feeding hopper is fixed on the body by bolts and nuts The feeding hopper is used to facilitate feeding; the feeder is provided with a positive cotton roller and a reverse cotton roller; Cotton rollers, anti-cotton rollers, dial needles, cotton feeding curtains, cotton pressing roller curtains, spiked curtains, uniform cotton rollers, cotton strippers, dust grids, cotton outlets, fans, filters, dust discharge pipes and filter curtains The structure solves the problems of complex structure and low cotton mixing efficiency of the existing cotton blending machine. Through the cooperation of the positive cotton roller and the reverse cotton roller, the cotton mixing efficiency is greatly improved, and the separation type of dust and lint is realized. Dust removal and cleaning not only reduces the waste of lint, but also improves the dust removal efficiency and reduces pollution.

Description

A cotton blender with dust-proof cleaning function

technical field

The utility model relates to the field of cotton blending machines with dust-proof cleaning function, in particular to a cotton blending machine with dust-proof cleaning function.

Background technique

Cotton blended fabrics are made of cotton and other fibers blended and interwoven, collectively referred to as cotton blended and interwoven fabrics. This includes the combination of cotton and other natural fibers, as well as the combination of cotton and various chemical fibers. Usually, cotton and chemical fibers are combined into various varieties of practical fabrics with various advantages.

The existing cotton blending machine has the problems of complex structure and low cotton blending efficiency. When in use, the dust generated in the process of cotton blending and cotton cleaning cannot be cleaned well. The main reason is that the dust and lint cannot be cleaned. separation; this not only causes a certain amount of lint waste, but also causes the pollution of the mixed cotton; these problems make it necessary to invent a cotton mixing machine with a dust-proof cleaning function.

Utility model content

The purpose of this utility model is to provide a cotton blender with a dust-proof cleaning function, so as to solve the problems raised in the above-mentioned background technology.

To achieve the above object, the utility model provides the following technical solutions:

A cotton blending machine with dust-proof cleaning function includes a body, the upper part of the body is provided with a feeding hopper, and the feeding hopper is fixed on the body by bolts and nuts; the lower part of the feeding hopper is provided with a positive The cotton roller and the reverse cotton roller, the positive cotton roller and the reverse cotton roller are provided with spirally arranged needles; the needles on the positive cotton roller and the reverse cotton roller are cross-fitted; the lower part of the positive cotton roller and the reverse cotton roller A cotton feeding curtain is provided; the front side of the cotton feeding curtain is provided with a vertical stud curtain, the side opposite to the stud curtain is provided with a cotton pressing roller curtain, and a dial needle is arranged around the cotton pressing roller curtain; A uniform cotton roller is arranged above the stud curtain; a filter curtain is arranged above the gap between the stud curtain and the cotton pressing roller curtain; a fan is arranged above the filter curtain, and the fan is fixed on the fuselage by bolts and nuts A filter is arranged above the fan, and the filter is fixed on the fuselage by bolts and nuts; a dust outlet pipe is arranged on the rear side of the filter; The bottom of the cotton beater is provided with a dust grid; the top of the cotton stripper is provided with a cotton outlet.

As a further scheme of the present utility model: the feeding hopper is made of stainless steel; the dial needle, the positive cotton roller and the reverse cotton roller are integrally formed; the dial needle, the positive cotton roller and the reverse cotton roller are all made of stainless steel.

As a further solution of the present utility model: the distance between the positive cotton roller and the reverse cotton roller is equal to the thickness of the cotton block; the cotton feeding curtain is directly opposite to the positive cotton roller and the reverse cotton roller.

As a further scheme of the present utility model: the cotton pressing roller curtain is made of stainless steel.

As a further scheme of the present invention: the filter curtain is a stainless steel mesh structure.

Compared with the prior art, the beneficial effects of the present utility model are: the cotton blender with dust-proof and cleaning function is provided with a body, a feeding hopper, a positive cotton roller, a reverse cotton roller, a dial needle, and a cotton feeding curtain. , The structure of the cotton pressing roller curtain, the corner nail curtain, the uniform cotton roller, the cotton stripper, the dust grid, the cotton outlet, the fan, the filter, the dust discharge pipe and the filter curtain, which solves the complex structure of the existing cotton blending machine. , the problem of low cotton mixing efficiency, through the cooperation of positive cotton roller and reverse cotton roller, the cotton mixing efficiency is greatly improved, and the separate dust removal and cleaning of dust and lint is realized, which not only reduces the waste of cotton lint, but also improves the Improve dust removal efficiency and reduce pollution.

Description of drawings

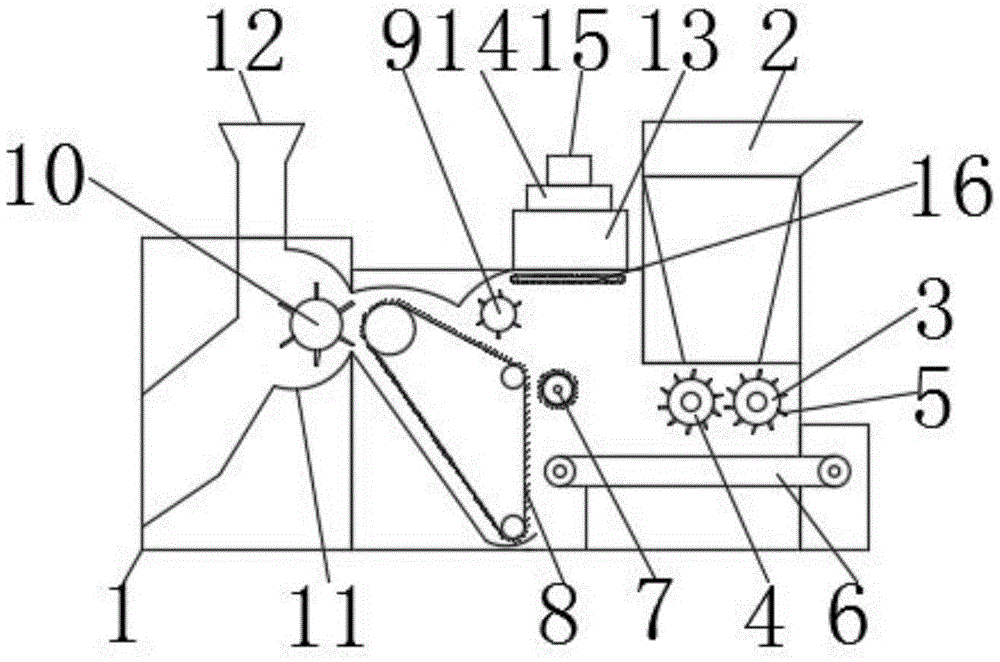

Figure 1 is a schematic structural diagram of a cotton blender with a dust-proof cleaning function.

Fig. 2 is a schematic diagram of the arrangement structure of a fan in a cotton blending machine with a dust-proof cleaning function.

Figure 3 is a schematic structural diagram of a positive cotton roller and a reverse cotton roller in a cotton blending machine with a dust-proof cleaning function.

Figure 4 is a schematic structural diagram of a cotton pressing roller curtain in a cotton blending machine with a dust-proof cleaning function.

In the picture: body 1, feeding hopper 2, positive cotton roller 3, reverse cotton roller 4, dial needle 5, cotton feeding curtain 6, cotton pressing roller curtain 7, corner nail curtain 8, cotton equalizing roller 9, cotton stripping beater 10. Dust grid 11, cotton outlet 12, fan 13, filter 14, dust outlet duct 15, filter curtain 16.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIG. 1 and FIG. 4. In the embodiment of the present utility model, a cotton mixer with dust-proof cleaning function includes a body 1. The upper part of the body 1 is provided with a feeding hopper 2. The feeding hopper 2 It is made of stainless steel, and the feeding hopper 2 is fixed on the fuselage 1 by bolts and nuts; The roller 3 and the anti-cotton roller 4 are provided with spirally arranged needles 5. The purpose of the spiral arrangement of the needles 5 is to realize the lateral transfer function of the cotton clumps, so as to facilitate the flattening of the cotton clumps; the needles 5 and the positive cotton The roller 3 and the anti-cotton roller 4 are integrally formed; the dial needle 5 and the positive cotton roller 3 and the anti-cotton roller 4 are all made of stainless steel; The purpose is to realize the overall transmission of the cotton block and increase the density of the transmission; the distance between the positive cotton roller 3 and the reverse cotton roller 4 is equal to the thickness of the cotton block, and the purpose of this setting is to facilitate the cotton block to fall;

Please refer to FIGS. 1 to 4. In the embodiment of the present utility model, a cotton feeding curtain 6 is arranged below the positive cotton roller 3 and the reverse cotton roller 4, and the cotton feeding curtain 6 is directly opposite to the positive cotton roller 3 and the reverse cotton roller 4. The purpose of this setting is to facilitate the laying of the cotton clumps on the cotton feeding curtain 6, so as to facilitate the transmission of the cotton clumps; The opposite side is provided with a cotton pressing roller curtain 7, the cotton pressing roller curtain 7 is made of stainless steel, and a dial needle 5 is arranged around the cotton press roller curtain 7, and the dial needle 5 is used to comb the open cotton; the brad nails The top of the curtain 8 is provided with an even cotton roller 9, and the even cotton roller 9 is used for evenly leveling the open cotton; a filter curtain 16 is arranged above the gap between the braided nail curtain 8 and the cotton pressing roller curtain 7, and the filter curtain 16 It is a stainless steel mesh structure, and the filter curtain 16 is used to filter the lint to prevent the lint from being drawn out with the dust, causing waste; a fan 13 is arranged above the filter curtain 16, and the fan 13 is fixed on the fuselage 1 by bolts and nuts. On the upper side, the fan 13 is used to remove the dust generated by cleaning the cotton; the top of the fan 13 is provided with a filter 14, the filter 14 is fixed on the fuselage 1 by bolts and nuts, and the filter 14 is used to filter the dust; The rear side of the filter 14 is provided with a dust outlet duct 15, and the dust outlet duct 15 is used to export the dust; the front side of the upper end of the braided nail curtain 8 is provided with a cotton stripper 10, and a dust stripper 10 is provided below the cotton stripper 10. The grid 11, the dust grid 11 is used to filter impurities; the top of the cotton stripper 10 is provided with a cotton outlet 12, and the cotton stripper 10 and the cotton outlet 12 are used to facilitate the outgoing of the mixed cotton;

When in use, put the cotton block into the feeding hopper 2 first, and then spread and mix the cotton block through the positive cotton roller 3 and the reverse cotton roller 4, so that the cotton block is evenly spread on the cotton feeding curtain 6; When the cotton roller 3 and the anti-cotton roller 4 are working, the cotton pieces are mixed and flattened by the cooperating spiral needle 5; then they are transported forward through the cotton feeding curtain 6, and then mixed through the brad nail curtain 8 and the cotton pressing roller curtain 7. The cotton is cleaned; at the same time, the generated dust is extracted by the fan 13, and the extracted lint is filtered through the filter curtain 16; the extracted dust is filtered through the filter 14, and finally the dust flows out through the dust outlet duct 15; The final blended cotton is output through the stripping beater 10 and the cotton outlet 12 .

Although the present invention has been described in detail with reference to the foregoing embodiments, for those skilled in the art, it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements for some of the technical features. Within the spirit and principle of the present utility model, any modifications, equivalent replacements, improvements, etc. made shall be included within the protection scope of the present utility model.

Claims (5)

1. A cotton mixer with a dustproof cleaning function comprises a machine body (1) and is characterized in that a feed hopper (2) is arranged at the upper part of the machine body (1), and the feed hopper (2) is fixed on the machine body (1) through bolts and nuts; a positive cotton roller (3) and a negative cotton roller (4) are arranged below the feed hopper (2), and the positive cotton roller (3) and the negative cotton roller (4) are provided with poking needles (5) which are spirally arranged; the poking needles (5) on the positive cotton roller (3) and the negative cotton roller (4) are in cross fit; a cotton conveying curtain (6) is arranged below the positive cotton roller (3) and the negative cotton roller (4); a vertically arranged brad curtain (8) is arranged at the front side of the cotton conveying curtain (6), a cotton pressing roller curtain (7) is arranged at one side opposite to the brad curtain (8), and poking needles (5) are arranged on the cotton pressing roller curtain (7) in a surrounding manner; a cotton homogenizing roller (9) is arranged above the corner nail curtain (8); a filtering curtain (16) is arranged above a gap between the angle nail curtain (8) and the cotton pressing roller curtain (7); a fan (13) is arranged above the filtering curtain (16), and the fan (13) is fixed on the machine body (1) through bolts and nuts; a filter (14) is arranged above the fan (13), and the filter (14) is fixed on the machine body (1) through bolts and nuts; a dust outlet pipeline (15) is arranged at the rear side of the filter (14); a cotton stripping beater (10) is arranged on the front side of the upper end of the angle nail curtain (8), and a dust grid (11) is arranged below the cotton stripping beater (10); a cotton outlet (12) is arranged above the cotton stripping beater (10).

2. The cotton mixer with the dustproof cleaning function according to the claim 1, wherein the feed hopper (2) is made of stainless steel; the poking needle (5), the positive cotton roller (3) and the negative cotton roller (4) are of an integrally formed structure; the poking needle (5), the positive cotton roller (3) and the negative cotton roller (4) are all made of stainless steel.

3. The cotton mixer with the dustproof cleaning function is characterized in that the distance between the positive cotton roller (3) and the negative cotton roller (4) is equal to the thickness of a cotton block; the cotton conveying curtain (6) is opposite to the positive cotton roller (3) and the negative cotton roller (4).

4. The cotton mixer with the dustproof cleaning function according to claim 1, wherein the cotton pressing roller curtain (7) is made of stainless steel.

5. The cotton blender with dustproof cleaning function according to claim 1, characterized in that the filtering curtain (16) is of stainless steel net structure.
