CN212173765U - A new type of telescopic frame for garment production line - Google Patents

Abstract

The utility model discloses a new type of telescopic frame for garment production line, which comprises a base, a production wire frame is arranged on the top of the base, a first station and a second station are respectively arranged on the top of the production wire frame, Fixing columns are arranged on both sides, the tops of the two fixing columns are fixedly connected with a fixing frame, the bottom of the fixing frame is provided with a first hydraulic cylinder, and the driving end of the first hydraulic cylinder is fixedly connected with a lifting frame . In the utility model, the first hydraulic cylinder drives the lifting frame to cooperate with the telescopic rod structure, so that the splint structure can perform stable lifting work, and the second hydraulic cylinder drives the moving frame to cooperate with the connecting rod structure, so that the splint structure can perform stable lateral movement work. , Through the motor-driven threaded rod and the connecting rod structure, the clamping plate can be clamped and loosened, and the whole structure can realize stable and fast clothing transfer work between stations, which can effectively improve the work efficiency of the clothing production line.

Description

A new type of telescopic frame for garment production line

technical field

The utility model relates to the technical field of garment production, in particular to a novel telescopic frame of a garment production line.

Background technique

Garment production is an important production item in the production industry. Therefore, the production line of garment production is also widely used in the garment production industry, and the structure of the production line is also varied, such as the telescopic frame structure in the production line. To many different functions, such as a telescopic frame that plays a role in transporting clothing in the production process;

The structure of the existing clothing production line is mostly fixed installation. Because the structure is not flexible enough and lacks transportation devices, in the process of clothing production steps, after each process on the production line is completed, most of the clothing is manually picked up and then transported to the next process. Production operation work, such an operation method is time-consuming and labor-intensive, which greatly consumes manpower and also affects the operation of production steps. When the production line is fast in production, such an operation method will greatly reduce the production efficiency of clothing .

Utility model content

The purpose of the utility model is to propose a new type of telescopic frame for garment production line in order to solve the shortcomings existing in the prior art.

In order to achieve the above purpose, the utility model adopts the following technical solutions: a new type of telescopic frame for garment production line, including a base, a production wire frame is arranged on the top of the base, and a first station and a second production wire frame are respectively arranged on the top of the production wire frame. Two workstations, the two sides of the production line rack are provided with fixed columns, the tops of the two fixed columns are fixedly connected with a fixed frame, and the bottom of the fixed frame is provided with a first hydraulic cylinder, the first hydraulic The driving end of the cylinder is fixedly connected with a lifting frame, and two sides of the top of the lifting frame are provided with sleeves, and two telescopic rods are nested in the two sleeves, and the tops of the two telescopic rods are fixed to each other. The bottom of the frame is fixedly connected, the bottom side of the lifting frame is fixedly connected to the position corresponding to the first station, and a fixing plate is fixedly connected, and the center of one side of the outer surface of the fixing plate is fixedly connected with a fixing seat, the fixing seat A second hydraulic cylinder is arranged on one side of the outer surface of the second hydraulic cylinder, the driving end of the second hydraulic cylinder is fixedly connected with a moving frame, and the bottom of one side of the outer surface of the fixed plate and the bottom of the side corresponding to the outer surface of the moving frame are both A first connecting rod is rotatably connected, and a second connecting rod is rotatably connected to the top of one side of the outer surface of the fixed plate and the top of the side corresponding to the outer surface of the moving frame, and the bottom of the moving frame corresponds to the first station A fixed block is fixedly connected to the position of the fixed block, and a first connecting rod is rotatably connected to both ends of the fixed block, and a motor is arranged at the bottom of the fixed block, and a threaded rod is fixedly connected to the driving end of the motor, and the thread The outer surface of the rod is threadedly connected with a threaded block, the two ends of the threaded block are rotatably connected to the positions corresponding to the two first connecting rods, and a second connecting rod is rotatably connected, and the bottom ends of the two second connecting rods are opposite to each other. One side is fixedly connected with a splint, and the inner surfaces of the two splints are provided with bump pads.

As a further description of the above technical solution:

The outer surfaces of the two sleeves are located at the bottom and are fixedly connected with mounting seats, the two mounting seats are symmetrically provided with threaded grooves, and the four threaded grooves are provided with fastening bolts. The mounting bases are fixedly connected to the lifting frame correspondingly through four fastening bolts.

As a further description of the above technical solution:

A first limiting block is fixedly connected to the bottom ends of the two telescopic rods and located in the sleeve.

As a further description of the above technical solution:

The two first connecting rods and the second connecting rods are respectively connected with one end of the moving frame away from the fixed plate and the moving frame through the corresponding rotation of the connecting shaft, and the position where the two first connecting rods and the two second connecting rods are connected All are connected in rotation through the connecting shaft.

As a further description of the above technical solution:

The bottom of the lifting frame is provided with a chute, a sliding block is slidably connected in the sliding groove, and the bottom of the sliding block is fixedly connected with the top of the moving frame.

As a further description of the above technical solution:

A second limiting block is fixedly connected to the bottom end of the threaded rod.

The utility model has the following beneficial effects:

The new type of clothing production line telescopic frame, through the set production line frame, the first station, the second station, the fixed frame, the first hydraulic cylinder, the lifting frame, the casing, the telescopic rod, the first limit block, the fixed plate, the first Two hydraulic cylinders, moving frame, first connecting rod, second connecting rod, chute, slider, fixed block, first connecting rod, motor, threaded rod, threaded block, second connecting rod, second limit block, The splint and the bump pad are used for garment production through the first station on the production line frame. After completion, the first hydraulic cylinder is activated, and the first hydraulic cylinder drives the lifting frame to descend, and at the same time, the telescopic rod moves in the casing, and the lifting frame drives the The splint structure moves to the garment placed at the first station, starts the motor, the motor drives the threaded rod to rotate, the threaded rod drives the threaded block to move the block, and the threaded block drives the second connecting rod to rotate with the first connecting rod. The coordination of the rod structure enables the second connecting rod to drive the splints to clamp each other, so that the garment can be clamped up, the second hydraulic cylinder is activated, and the second hydraulic cylinder drives the moving frame to move, and the moving frame drives the first connecting rod and the second connecting rod. The structure moves, the moving frame drives the splint to move, and the splint drives the garments that have completed the operation process in the first station to move to the second station, which can facilitate the next step in the production of garments. The whole structure, through the structure of the telescopic rod, the lifting frame and the connecting rod, and the structure of the hydraulic cylinder, can stably carry out the clothing transmission between the processes. The transfer work does not require manual operation, the structure connection is stable, and the operation is convenient, which greatly saves the time and physical strength of manual transportation operations, can adapt to the work of the clothing assembly line, can effectively improve the production efficiency, and solve the existing clothing production line structure. For fixed installation, due to the inflexible structure and lack of transportation devices, in the process of garment production, after each process on the production line is completed, most of the garments are manually picked up and then transported to the next process for production operations. Such an operation This method is time-consuming and labor-intensive, which greatly consumes manpower and also affects the operation of production steps. When the production line is fast in production, such an operation method will greatly reduce the production efficiency of clothing.

Description of drawings

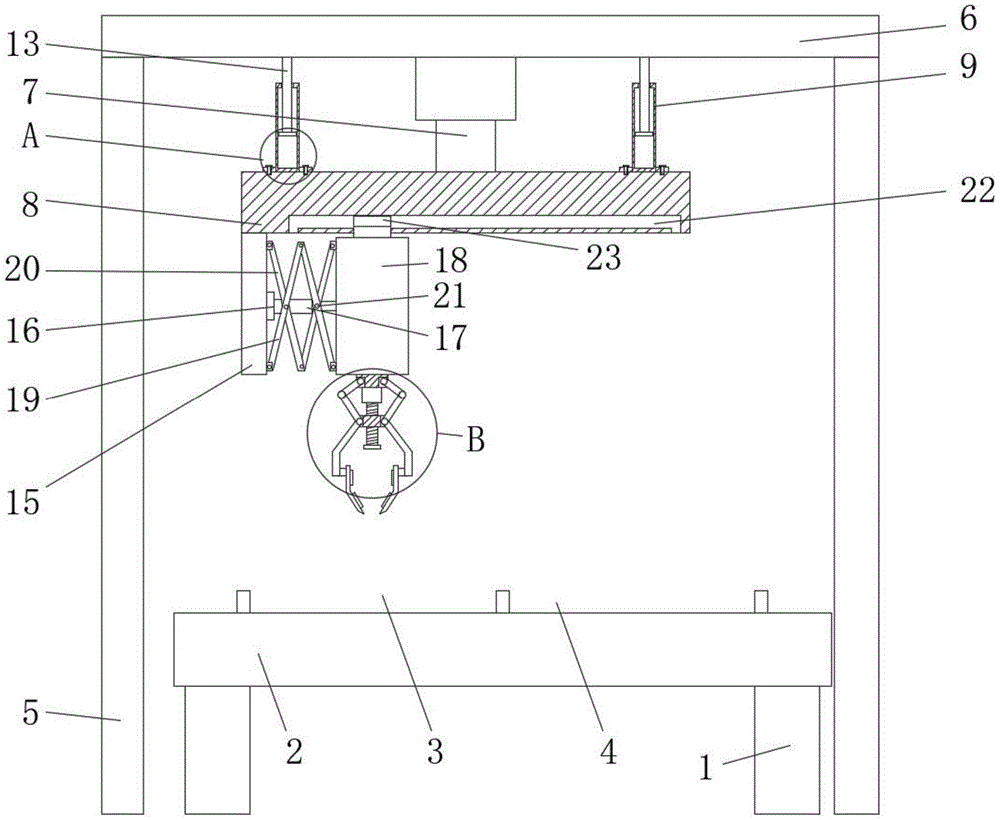

Fig. 1 is the structural representation of a kind of novel clothing production line telescopic frame proposed by the utility model;

Fig. 2 is the enlarged view of the place A in Fig. 1 of a new type of garment production line telescopic frame proposed by the utility model;

FIG. 3 is an enlarged view of the position B in FIG. 1 of a new type of clothing production line telescopic frame proposed by the utility model.

illustration:

1. Base; 2. Production line frame; 3. The first station; 4. The second station; 5. Fixed column; 6. Fixed frame; 7. The first hydraulic cylinder; 8. Lifting frame; 9. Casing; 10. Mounting seat; 11. Thread groove; 12. Fastening bolt; 13. Telescopic rod; 14. First limit block; 15. Fixed plate; 16. Fixed seat; 17. Second hydraulic cylinder; 18. Mobile frame ; 19, the first connecting rod; 20, the second connecting rod; 21, the connecting shaft; 22, the chute; 23, the slider; 24, the fixed block; 25, the first connecting rod; 26, the motor; 27, the threaded rod ; 28, threaded block; 29, the second connecting rod; 30, the second limit block; 31, the splint; 32, the bump pad.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner" and "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation to the present invention; the terms "first", "second" and "third" are only used for descriptive purposes, and should not be construed as indicating or implying relative importance. In addition, Unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral connection; it may be a mechanical connection, It can also be an electrical connection; it can be a direct connection, an indirect connection through an intermediate medium, or an internal connection between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

1-3, an embodiment provided by the present utility model: a new type of clothing production line telescopic rack, including a base 1, the top of the base 1 is provided with a production line rack 2, the top of the production line rack 2 is respectively provided with a first station 3 and the second station 4, the two sides of the production line rack 2 are provided with fixing columns 5, the tops of the two fixing columns 5 are fixedly connected with a fixing frame 6, and the bottom of the fixing frame 6 is provided with a first hydraulic cylinder 7, A lift frame 8 is fixedly connected to the driving end of a hydraulic cylinder 7. The top of the lift frame 8 is provided with sleeves 9 on both sides, and telescopic rods 13 are nested in the two sleeves 9. The top is fixedly connected with the bottom of the fixing frame 6, the bottom side of the lifting frame 8 is fixedly connected with the position corresponding to the first station 3, and the fixing plate 15 is fixedly connected, and the center of one side of the outer surface of the fixing plate 15 is fixedly connected. Seat 16, a second hydraulic cylinder 17 is arranged on the outer surface of the fixed seat 16, the driving end of the second hydraulic cylinder 17 is fixedly connected with a movable frame 18, and the bottom of the outer surface of the fixed plate 15 is connected to the outer surface of the movable frame 18. The bottom of the corresponding side is rotatably connected with the first connecting rod 19, and the top of the side of the outer surface of the fixed plate 15 and the top of the side corresponding to the outer surface of the movable frame 18 are rotatably connected with the second connecting rod 20. The bottom of the frame 18 is fixedly connected to the position corresponding to the first station 3 with a fixed block 24, the two ends of the fixed block 24 are rotatably connected with the first connecting rod 25, and the bottom of the fixed block 24 is provided with a motor 26, the motor The driving end of 26 is fixedly connected with a threaded rod 27, the outer surface of the threaded rod 27 is threadedly connected with a threaded block 28, and both ends of the threaded block 28 are rotatably connected to the positions corresponding to the two first connecting rods 25 with a second connecting rod. The rods 29 and the opposite sides of the bottom ends of the two second connecting rods 29 are fixedly connected with clamp plates 31 , and the inner surfaces of the two clamp plates 31 are provided with bump pads 32 .

The outer surfaces of the two bushings 9 are fixedly connected to the mounting bases 10 at the bottom positions. The two mounting bases 10 are symmetrically provided with threaded grooves 11, and the four threaded grooves 11 are provided with fastening bolts 12. The seat 10 is fixedly connected to the lifting frame 8 through four fastening bolts 12, and the structure of the telescopic rod 13 can be stably fixed on the lifting frame 8 through the arrangement of the structure, and the lifting work can be stably carried out with the hydraulic cylinder structure; The bottom ends of the two telescopic rods 13 and located in the sleeve 9 are fixedly connected with a first limit block 14. The arrangement of the first limit block 14 can protect the structure of the telescopic rod 13 and avoid derailment; the two The first connecting rods 19 and the second connecting rods 20 are respectively connected with one end away from the fixed plate 15 and the moving frame 18 through the connecting shaft 21. The connecting positions are connected through the rotation of the connecting shaft 21. The setting of the structure can ensure the stable operation of the connecting rod structure, and the hydraulic cylinder structure can stably drive the moving frame 18 to move; the bottom of the lifting frame 8 is provided with a chute 22. The chute A sliding block 23 is slidably connected in 22, and the bottom of the sliding block 23 is fixedly connected with the top of the moving frame 18. The arrangement of the sliding groove 22 and the sliding block 23 can ensure that the structure of the moving frame 18 can run stably; the bottom end of the threaded rod 27 A second limit block 30 is fixedly connected, and the structure of the threaded rod 27 can be protected by the arrangement of the second limit block 30 .

Working principle: When using the telescopic frame of the new garment production line, the garment production operation is carried out through the first station 3 on the production line frame 2. After completion, the first hydraulic cylinder 7 is activated, and the first hydraulic cylinder 7 drives the lifting frame 8 to descend, and at the same time The telescopic rod 13 is moved in the casing 9, the lifting frame 8 drives the splint 31 structure to move to the garment where the operation is completed in the first station 3, and the motor 26 is started, the motor 26 drives the threaded rod 27 to rotate, and the threaded rod 27 drives the threaded block 28 moves, and the threaded block 28 drives the second connecting rod 29 and the first connecting rod 25 to rotate with each other. Through the cooperation of the connecting rod structure, the second connecting rod 29 drives the splint 31 to clamp each other, so that the garment can be clamped and started. The second hydraulic cylinder 17, the second hydraulic cylinder 17 drives the moving frame 18 to move, the moving frame 18 simultaneously drives the first connecting rod 19 and the second connecting rod 20 to move structurally, the moving frame 18 drives the clamping plate 31 to move, and the clamping plate 31 drives the first connecting rod 19 to move. The garments that have completed the operation procedure in station 3 are moved to the second station 4, which can facilitate the next step of garment production.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model, All should be included within the protection scope of the present invention.

Claims (6)

1. A new type of clothing production line telescopic rack, comprising a base (1), characterized in that: the top of the base (1) is provided with a production line rack (2), and the top of the production line rack (2) is respectively provided with a first The station (3) and the second station (4), the two sides of the production line rack (2) are provided with fixing columns (5), and the tops of the two fixing columns (5) are fixedly connected with a fixing frame (6), the bottom of the fixing frame (6) is provided with a first hydraulic cylinder (7), the driving end of the first hydraulic cylinder (7) is fixedly connected with a lifting frame (8), the lifting frame (8) ) are provided with sleeves (9) on both sides of the top, two telescopic rods (13) are nested in the two sleeves (9), and the tops of the two telescopic rods (13) are fixed with The bottom of the frame (6) is fixedly connected, and the bottom side of the lifting frame (8) is fixedly connected with a fixing plate (15) at the position corresponding to the first station (3). A fixing seat (16) is fixedly connected to the center of one side of the outer surface, a second hydraulic cylinder (17) is arranged on one side of the outer surface of the fixing seat (16), and the driving end of the second hydraulic cylinder (17) is fixed A moving frame (18) is connected, and a first connecting rod (19) is rotatably connected to the bottom of one side of the outer surface of the fixed plate (15) and the bottom of the side corresponding to the outer surface of the moving frame (18), and is fixed A second connecting rod (20) is rotatably connected to the top of one side of the outer surface of the plate (15) and the top of the side corresponding to the outer surface of the moving frame (18), and the bottom of the moving frame (18) is connected to the first working frame. A fixing block (24) is fixedly connected to a position corresponding to the position (3), and a first connecting rod (25) is rotatably connected to both ends of the fixing block (24), and the bottom of the fixing block (24) is provided with a A motor (26), a threaded rod (27) is fixedly connected to the driving end of the motor (26), a threaded block (28) is threadedly connected to the outer surface of the threaded rod (27), and the threaded block (28) A second connecting rod (29) is rotatably connected to the positions corresponding to the two first connecting rods (25) at both ends, and the opposite sides of the bottom ends of the two second connecting rods (29) are fixedly connected There are clamping plates (31), and bump pads (32) are provided on the inner surfaces of the two clamping plates (31). 2. A new type of clothing production line telescopic frame according to claim 1, characterized in that: the outer surfaces of the two sleeves (9) are fixedly connected with mounting seats (10) at the bottom position, and the two The mounting seats (10) are symmetrically provided with threaded grooves (11), four of the threaded grooves (11) are provided with fastening bolts (12), and the two mounting seats (10) are provided with four tightening bolts (12). The fixing bolts (12) are correspondingly and fixedly connected with the lifting frame (8). 3. A new type of clothing production line telescopic frame according to claim 1, characterized in that: the bottom ends of the two telescopic rods (13) and located in the sleeve (9) are fixedly connected with a first limit block (14). 4. A new type of clothing production line telescopic frame according to claim 1, characterized in that: the two first connecting rods (19) and the second connecting rods (20) are respectively away from the fixed plate (15) and the moving frame One end of the (18) is connected by a corresponding rotation of the connecting shaft (21), and the positions where the two first connecting rods (19) and the two second connecting rods (20) are connected are connected by the connecting shaft (21) Turn the connection. 5. A new type of telescopic frame for garment production line according to claim 1, characterized in that: a sliding groove (22) is provided at the bottom of the lifting frame (8), and a sliding groove (22) is slidably connected in the sliding groove (22). A block (23), the bottom of the sliding block (23) is fixedly connected with the top of the moving frame (18). 6 . A new type of telescopic frame for garment production line according to claim 1 , characterized in that: the bottom end of the threaded rod ( 27 ) is fixedly connected with a second limiting block ( 30 ). 7 .
