Abstract

The utility model discloses a podium for English teaching, which belongs to the technical field of teaching appliances. There is a large rectangular hole on the left side of the horizontal desktop board, and an upper flap is arranged in the hole. The upper flap and the horizontal desktop board are connected by two combination pages, and there is a concave button right above it. , so that the upper flap can be lifted upwards; the side plate fixing parts of the upper air pressure rod are connected with the left side panel and the central control drawer cabinet through fixing screws respectively, and the door panel fixing parts are respectively connected with both sides of the upper flap. A liquid crystal display screen is fixed on the lower part of the board, and the liquid crystal display screen is provided with a data cable and a display screen power cable connected with the computer host; universal casters with foot brakes are connected under the two front and rear pillars. The utility model is convenient and practical, flexible in movement and unlimited.

Description

English teaching podium

technical field

The utility model relates to a podium for English teaching, which belongs to the technical field of teaching appliances.

Background technique

There are many differences between English teaching and teaching of other subjects. English teaching needs more multimedia methods. When using multimedia, you need to use computers, speakers and other equipment. English teachers need to put a lot of items on the podium during class. , How to reasonably plan and place it so that it is convenient for teachers to use it, which requires the podium to be set reasonably and easy to use. Existing lecterns are generally bulky, bulky, and difficult to move. The lectern cannot be easily moved when oral situational training is required, and it is time-consuming and labor-intensive to move.

Utility model content

In order to overcome the deficiencies of the prior art, the utility model provides a podium for English teaching, which is not only suitable for teaching in English classrooms, but also for office work, convenient and practical, and convenient to move.

The technical scheme adopted by the utility model to solve the technical problem is as follows: a podium for English teaching, comprising a horizontal table top board, two front uprights, two rear uprights, a left side panel, a right side panel, a rear side panel, and a central control panel. Drawer cabinets, chassis cabinets, tool placement boards, long cross bars and support boards, the horizontal desktop board is a rectangular board body, and the lower part of the board body is composed of two front uprights, two rear uprights, left side panel, right side panel and rear side panel The main frame of the horizontal desktop is fixedly connected, and a rectangular hole is opened on the left side of the horizontal desktop board, and an upper flap is arranged in the hole. The upper flap can be lifted up; the side panel fixing parts of the upper air pressure rod are respectively connected with the left side panel and the central control drawer cabinet through fixing screws, and the door panel fixing parts are respectively connected with the two sides of the upper flap. , a liquid crystal display screen is fixed on the lower body of the upper flap, and the liquid crystal display screen is provided with a data cable and a display power cable connected with the computer host; the two front and rear pillars are connected with a foot brake. to the casters.

The beneficial effects of the utility model are as follows: the utility model has the advantages of simple structure, convenient operation, small indoor space occupation, convenient movement, unrestricted, strong flexibility, and adapts to the teaching needs of English teachers. When used as a study table, put it in the office, remove the universal wheel with brake, and close the flip-top display, it can be used as a desk, suitable for ordinary English classrooms and offices.

Description of drawings

The present utility model will be further described below with reference to the accompanying drawings and specific embodiments.

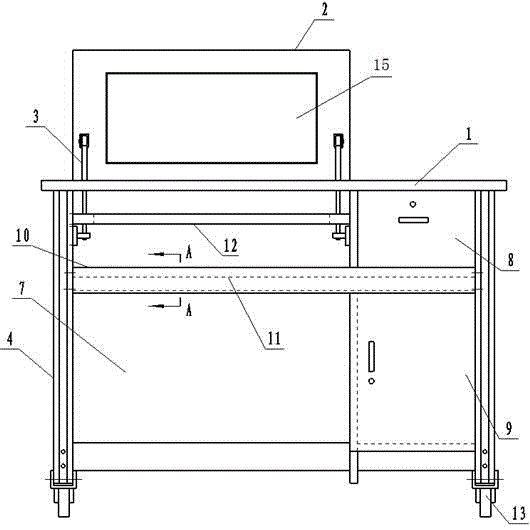

Figure 1 is a front view of the present invention.

Figure 2 is a left side view of the present invention.

Figure 3 is a right side view of the present invention.

FIG. 4 is a top view of the utility model after the upper flap is closed.

Labels in the figure:

1. Horizontal desktop board, 2. Upturned board, 3. Upturned air pressure rod, 4. Front column, 5. Left side board, 6. Rear column, 7. Back side board, 8. Central control drawer cabinet, 9. Chassis cabinet, 10, long horizontal bars, 11, support plate, 12, tool placement plate, 13, universal casters, 14, right side plate, 15, LCD screen.

Detailed ways

As shown in Figures 1-4, a podium for English teaching includes a horizontal desktop board 1, two front uprights 4, two rear uprights 6, a left side panel 5, a right side panel 14, a rear side panel 7, a central control panel Drawer cabinet 8, chassis cabinet 9, tool placement board 12, long horizontal ribs 10 and support board 11, horizontal table top board 1 is a rectangular board body, the lower part of the board body is connected with two front uprights 4, two rear uprights 6, left side panel 5 , The main frame composed of the right side panel 14 and the rear side panel 7 is fixedly connected, and a rectangular hole is opened on the left side of the horizontal desktop panel 1. In the hole, the upper flap 2 and the horizontal desktop panel 1 are connected by two combined pages. Up, there is a recessed handle directly above it, so that the upper flap 2 can be lifted upward; the side plate fixing parts of the upper turning air pressure rod 3 are respectively connected with the left side plate 5 and the central control drawer cabinet 8 through fixing screws. , the door panel fixing parts are respectively connected with both sides of the upper flap 2, a liquid crystal display screen is fixed on the lower body of the upper flap 2, and the liquid crystal display screen is provided with a data cable and a display power cord connected with the computer host; two A universal caster 13 with a foot brake is connected under each of the front uprights 4 and the rear uprights 6 .

The two sides of the rear side plate 7 are respectively connected with two left and right symmetrical rear uprights 6, the left side plate 5 and the right side plate 14 are respectively connected with the front uprights 4 and the rear uprights 6 on both sides, and the long transverse ribs 10 are connected to each other. Between the two left-right symmetrical front uprights 4; the support plate 11 is placed on the long horizontal rib 10, and is fixedly connected with each side plate by an L-shaped corner code, and the tool placement plate 12 is connected to the left side plate 5 and the central control drawer cabinet 8 There is a certain distance between the bottom of the upper flap 2 and the rear side plate 7, the tail is provided with a pen slot and a mouse slot, the two sides are concave, and the distance between the slots in the middle is sufficient to meet the requirements of the upturn air pressure rod 4. The range of movement of the piston; the central control drawer cabinet 8 is located at the right position below the horizontal desktop board 1, the bottom of the central control drawer cabinet 8 is connected to the chassis cabinet 9, the side plate of the central control drawer cabinet 8, the support plate 11 and the chassis cabinet 9. The bottom plate has a round hole for passing the power cord; the difference between the left side panel 5 and the right side panel 14 is that a rectangular wooden board for installing the outer rail of the drawer cabinet on one side is glued to the inner side above the right side panel 14 .

The central control drawer cabinet 8 is provided with a multimedia central control device, which has an interface with power supply and various signals, which can be opened to connect other multimedia equipment, such as projectors, stereos, microphones, etc.; The middle supporting force is constant, and it has a buffer mechanism to avoid the impact in place. The piston rod is installed in the downward position to reduce friction and ensure the damping quality and buffer function. It has the advantages of convenient installation, safe use and no maintenance; the tool placement plate can be Place the keyboard, wireless mouse and various types of pens.

Instructions:

Connect the data cable of the LCD screen to the computer host, plug the power cable of the LCD screen and the power cable of the computer host into the power socket to turn on the power supply, lift up the upper flap 2, and the display screen can be facing directly after lifting it. With the user, take out the wireless mouse and place it on the right side of the horizontal desktop board 1, open the computer main box in the cabinet, and use the wireless mouse and the keyboard on the tool placement board 12 to control the teaching. The upper flap 2 is dropped down to make it a level podium table, and can also be moved to other English classrooms or rooms through the universal casters 13 with brakes, with strong flexibility and unlimited flexibility.

Claims (2)

1. The utility model provides a podium for english teaching, including horizontal desktop board (1), two front column (4), two rear column (6), left side board (5), right side board (14), posterior lateral plate (7), well accuse drawer cabinet (8), machine case cabinet (9), board (12) are placed to the instrument, long horizontal muscle (10) and backup pad (11), horizontal desktop board (1) is the rectangular plate body, the plate body lower part and two front column (4), two rear column (6), left side board (5), the main body frame looks fixed connection that right side board (14) and posterior lateral plate (7) are constituteed, its characterized in that: a rectangular hole is formed in the left side of the horizontal table board (1), an upper turning plate (2) is arranged in the hole, the upper turning plate (2) is connected with the horizontal table board (1) through two groups of hinges, and a sunken handle is arranged right above the upper turning plate to enable the upper turning plate (2) to be lifted upwards; the side plate fixing piece of the upward turning air pressure rod (3) is respectively connected with the left side plate (5) and the central control drawer cabinet (8) through fixing piece screws, the door plate fixing piece is respectively connected with two sides of the upward turning plate (2), and a liquid crystal display screen (15) is fixed on the lower plate body of the upward turning plate (2).

2. The platform for english teaching of claim 1, wherein: the front upright post (4) and the rear upright post (6) are connected with universal casters (13) with foot brakes.
