CN212164754U - A multifunctional scissors with multiple functions of scraping scales - Google Patents

Abstract

A multifunctional scissors with various functions of scraping scales is made of stainless steel, and includes a scissor body 1, a scissor body 2, a rivet, a cutting edge, a small tooth and a large tooth. The front end of the scissors body 1 has a straight edge on one side and an arc on the other side, and the arc part has 40 dense small teeth. One side of the front end of the shear body 2 is a straight cutting edge, the other side is arc-shaped, and the arc-shaped part has 20 sparse large teeth. The multifunctional scissors can normally cut items in daily life. When dealing with smaller fish, the scales are smaller and the body of the fish has a larger arc, and the side with the larger and denser teeth is selected to peel off the scales. When dealing with large-sized fish, the scales are larger and the radian of the fish body is smaller. The radian is selected to be smaller, and the scales are peeled off from the side with the sparse large teeth. The utility model combines the scissors with the scale scraper, which not only reduces the tedious steps of alternately using the scissors and the scale scraper in the fish processing process, but also can select a suitable scale scraper according to the body shape and scale size of the processed fish. Small or large teeth.

Description

A multifunctional scissors with multiple functions of scraping scales

technical field

The utility model relates to the field of kitchen utensils, in particular to a multifunctional scissors with various functions of scraping scales.

Background technique

Fish is an important food material for human beings, which is delicious and nutritious. Fish is not only high in protein, but also rich in a variety of essential amino acids for human beings. However, in the process of fish processing before cooking, scissors and scale scrapers are required to be used in turn, which is cumbersome. And at this stage, the scale scrapers on the market are not individually designed according to the size of the fish and the size of the scales. It is more troublesome to descale the fish, and the effect is unsatisfactory.

SUMMARY OF THE INVENTION

In order to solve the above problems, the utility model provides a multifunctional scissors with multiple functions of scraping scales, which can make the scissors have two functions of cutting and scraping scales at the same time. And according to the size of the fish body and scales to be processed, suitable small teeth or large teeth for scraping scales can be selected.

For achieving the above object, the utility model provides the following technical solutions: A kind of multifunctional scissors with multiple scale scraping functions adopts stainless steel material, and its structure comprises scissors body 1, scissor body 2, rivets, cutting edges, small teeth and large teeth . The scissor body 1 and the scissor body 2 are the main parts of the multifunctional scissors, the lengths are both 24cm, and there are holes in the two-thirds position of the total length, which are connected by rivets movable riveting. One side of the front end of the shear body 1 is a straight cutting edge, the other side is an arc with an arc length of 10 cm and a central angle of 65°, and the arc part has 40 dense small teeth. One side of the front end of the shear body 2 is a straight edge, the other side is an arc with an arc length of 10 cm and a central angle of 45°, and the arc part has 20 sparse large teeth.

The utility model has the advantages that the combination of the scissors and the scale scraper not only reduces the tedious steps of alternately using the scissors and the scale scraper in the fish processing process, but also can select a suitable one according to the body shape of the processed fish and the size of the scales. The small or large teeth used to scrape the scales make the fish scale removal process faster and more efficient.

Description of drawings:

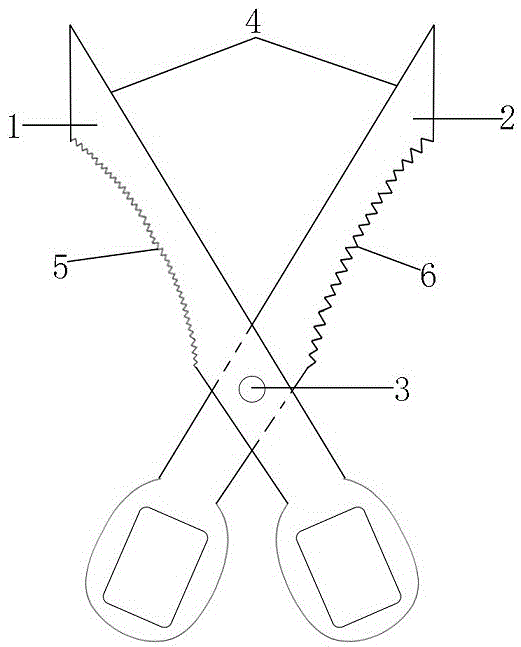

Figure 1 is a schematic diagram of the overall mechanism of the present invention.

In the picture: 1. Scissor body 1; 2. Scissor body 2; 3. Rivet; 4. Cutting edge; 5. Small tooth; 6. Large tooth.

In order to further illustrate the technical content and structural features of the present utility model, it will be further described with reference to the embodiments and accompanying drawings.

As shown in FIG. 1, the utility model includes: a stainless steel shear body 1 (1), a shear body 2 (2), a rivet (3), a cutting edge (4), a small tooth (5) and a large tooth (6) ). The shear body 1 (1) and the shear body 2 (2) are the main parts of the multifunctional shears, both of which are 25cm in length, with holes at two-thirds of the total length, and are connected by movable riveting with rivets (3). One side of the front end of the shear body 1 (1) is a straight cutting edge (4), the other side is an arc with an arc length of 10cm and a central angle of 65°, and the arc part has 40 dense small teeth (5). One side of the front end of the shear body 2 (2) is a straight edge (4), the other side is an arc with an arc length of 10 cm and a central angle of 45°, and the arc part has 20 sparse large teeth (6).

The multifunctional scissors can normally cut items in daily life. To handle fish scales, open the multi-purpose scissors for use. When dealing with smaller fish, the scales are smaller and the body of the fish has a larger arc, and the side with the larger and denser teeth is selected to peel off the scales. When dealing with large-sized fish, the scales are larger and the radian of the fish body is smaller. The radian is selected to be smaller, and the scales are peeled off from the side with the sparse large teeth. The utility model combines scissors with a scale scraper, which not only reduces the tedious steps of alternately using scissors and scale scrapers in the fish processing process, but also can select a suitable scale scraper according to the body shape and scale size of the processed fish. Small or large teeth.

Claims (4)

1. A multifunctional scissors with a variety of scale-scraping functions, characterized in that it comprises a scissors body 1 (1) and a scissor body 2 (2) connected by movable riveting through rivets (3), located in the scissors body 1 (1) And the cutting edge (4), the small tooth (5), and the large tooth (6) on the scissors body 2 (2). 2. A kind of multifunctional scissors with multiple scale-scraping functions according to claim 1, wherein the length of the scissors body 1 (1) and the scissor body 2 (2) are both 24cm, and two-thirds of the total length is 24cm. Position with holes. 3. A multifunctional scissors with multiple scale-scraping functions according to claim 1, characterized in that: one side of the front end of the scissors body 1 (1) is a straight edge (4), and the other side is an arc length It is an arc of 10 cm, with a central angle of 65°, and the arc has 40 dense denticles (5). 4. The multifunctional scissors with multiple scale-scraping functions according to claim 1, characterized in that: one side of the front end of the scissors body 2 (2) is a straight edge (4), and the other side is an arc length It is an arc of 10 cm, with a central angle of 45°, and the arc has 20 sparse large teeth (6).

Images
