CN212164001U - Base station cabinet - Google Patents

Abstract

The utility model provides a base station cabinet. The base station cabinet comprises: a casing, which has an installation cavity; an installation pole, which is arranged in the installation cavity for installation of communication equipment; the casing The body has a charging treasure installation slot, and a shared charging treasure is installed in the slot; the shell can be installed with advertising equipment. The embodiments of the present invention can solve the problem that value-added services cannot be provided because the current base station cabinet occupies the owner's space.

Description

A base station cabinet

technical field

The utility model relates to the technical field of base station cabinets, in particular to a base station cabinet.

Background technique

With the advent of the 5G era, it is difficult for the original distribution system in the building to support the 5G frequency band, which provides a quick solution to quickly achieve 5G coverage and beautify the cabinet. Most of the beautification cabinets used in communication projects are sprayed on the cabinet shell to achieve integration with the surrounding environment, so as to achieve the beautification effect. However, because it occupies the owner's space, it cannot provide value-added services for the owner, and it is difficult to coordinate with the owner.

Utility model content

The purpose of the embodiments of the present invention is to provide a base station cabinet, which solves the problem that the current base station cabinet occupies the owner's space but cannot provide value-added services.

In order to achieve the above purpose, an embodiment of the present invention provides a base station cabinet, and the base station cabinet includes:

a casing, the casing has a mounting cavity;

installing a pole, the installation pole is arranged in the installation cavity for installation of communication equipment;

The housing has a charging treasure installation slot, and a shared charging treasure is installed in the charging treasure installation slot.

Optionally, a charging interface is provided in the charging treasure installation slot for charging the shared charging treasure, and the charging interface can be electrically connected to a power source through a charging circuit.

Optionally, the housing has an advertising device installation position for the advertising device to be installed.

Optionally, the installation position of the advertising equipment is provided with a power interface and a power-on line, and the power-on line is connected to the power interface and the power source;

A power switch is provided on the power line.

Optionally, the advertising device includes an advertising light box, and the advertising light box is arranged in parallel with the installation pole.

Optionally, a first heat dissipation port is opened on the side wall of the installation cavity corresponding to the pole and the advertising light box.

Optionally, the housing is provided with a plug-in row installation position, and the plug-in row is arranged in the plug-in row installation position to provide a power output interface; and/or,

The housing is provided with a power switch, and the power switch is connected to the electrical components of the base station cabinet.

Optionally, an optical cable splice box is provided in the housing for external optical cable access.

Optionally, the housing includes an upper box body, and the mounting pole is arranged in the upper box body; and/or,

The upper box has an installation position for advertising equipment.

Optionally, the housing includes a lower box, and a charging treasure installation slot is provided on the top of the lower box; and/or,

The lower box body is provided with a plug-in row; and/or,

The lower box body is provided with a power switch; and/or,

The lower part of the lower box is provided with an optical cable splice box; and/or,

The bottom of the lower box is provided with a grounding copper bar for grounding the equipment in the base station cabinet; and/or,

A second heat dissipation port is opened on the side wall of the lower box;

The lower case has an installation space for installation of communication equipment.

One of the technical solutions in the above-mentioned technical solutions has the following advantages or beneficial effects:

In the embodiment of the present utility model, the base station cabinet is provided with an installation cavity and a charging treasure installation slot at the same time, so that the base station cabinet can be equipped with communication equipment to realize the communication function of the base station, and the base station cabinet can also provide a shared charging treasure. The base station cabinet adds added value and realizes its commercial value, thereby bringing certain benefits, especially in the case of entering a shopping mall or commercial area. In this way, it is conducive to quickly reaching an agreement with the owner, which is conducive to the layout of the base station cabinet, and the rapid realization signal coverage.

Description of drawings

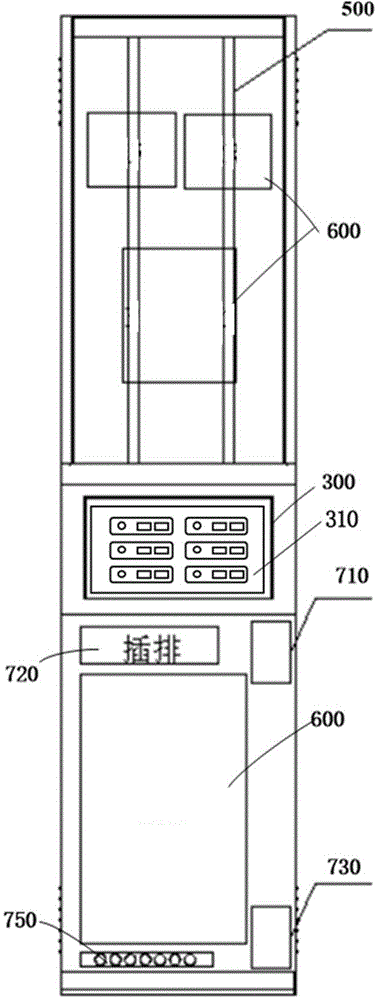

1 is a structural diagram of a base station cabinet according to an embodiment of the present invention;

2 is a structural diagram of a base station cabinet according to another embodiment of the present invention;

FIG. 3 is a structural diagram of a base station cabinet according to another embodiment of the present invention.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are part of the embodiments of the present utility model, not all of the embodiments. . Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

As shown in Figures 1-3, an embodiment of the present invention provides a base station cabinet. In order to quickly realize signal coverage, the base station cabinet includes:

a housing 100, the housing 100 has a mounting cavity;

Install the pole 500, and the pole 500 is arranged in the installation cavity for the installation of the communication device 600;

The housing 100 has a power bank installation slot 300 for the shared power bank 310 to be installed.

Specifically, in this embodiment, the casing 100 can have many forms, which can be an integral casing, an upper casing 110 and a lower casing 120, or a left casing and a right casing. It should be noted that, in this embodiment, the form of the box is not limited, as long as the requirements of the embodiment are met, and in the following embodiments, examples will be used for description. As for the overall shape of the housing 100 , there can be many forms, such as a cuboid, a cube, a cylinder, etc., as long as it has an installation cavity, it can provide a power bank installation slot 300 and other structures to meet the required characteristics of the embodiment. The shape of the installation cavity can be the same as the shape of the housing 100, or it can be adjusted according to actual needs. Taking the overall shape of the casing 100 as an example of a vertically arranged rectangular parallelepiped, the installation cavity is also vertically arranged. The installation pole 500 is arranged vertically in the installation cavity, and of course, in some embodiments, it can also be arranged laterally. The communication device 600 is installed on the installation pole 500, and its installation can be in many forms, such as hanging, locking through fasteners, etc., and engaging through buckles. The number of poles can be set according to the actual situation, take setting two as an example. There may be many communication devices 600, such as distributed pico base stations, micro base stations, and so on. The housing 100 is also provided with a power bank installation slot 300, and a shared power bank 310 is installed in the slot. The power bank installation slot 300 can be connected with the installation cavity, or can be separated from the installation cavity; the power bank installation slot 300 can be in the installation cavity. , also outside the mounting cavity. The length direction of the power bank installation slot 300 may be arranged in parallel with the length direction or the width direction of the housing 100 . Through the setting of the power bank installation slot 300, the shared power bank 310 can be placed in the power bank installation slot 300 for use by the owner or the owner's customers, which brings commercial value.

In this embodiment, by setting the installation cavity and the power bank installation slot 300 in the base station cabinet at the same time, the base station cabinet can be provided with the communication equipment 600 to realize the communication function of the base station, and the base station cabinet can also provide the shared power bank 310. In this way, It adds additional value to the base station cabinet, realizes its commercial value, and brings certain benefits, especially in the case of entering a shopping mall or commercial area. In this way, it is conducive to quickly reaching an agreement with the owner, and is conducive to the layout of the base station cabinet. signal coverage.

In some embodiments, in order to further facilitate the operation of the charging treasure by the merchants who share the charging treasure, the charging treasure installation slot 300 is provided with a charging interface for the shared charging treasure 310 to be loaded and charged. The charging circuit is electrically connected to the power source, and the shared power bank 310 is installed inside the power bank installation slot 300 . The power bank installation slot 300 is divided into several installation spaces corresponding to the shape of the shared power bank 310, and each installation space is provided with a charging interface that can charge the power bank. When the user finishes using the power bank and returns it to the power bank installation slot 300, the charging interface charges the power bank so that the shared power bank can be loaned out again. Realize the continuous work of the power bank, greatly reduce labor costs, and improve business profits.

In some embodiments, in order to further improve the added value and commercial value of the base station cabinet, the housing 100 has an installation position for the advertising device 200 for installation of the advertising device 200 . The installation position of the advertising device 200 can be in many forms, such as installation space, a snap position, a groove position, etc., as long as the space or structure of the advertising device 200 can be installed. The advertising device 200 can also have many forms, such as a billboard, an advertising light box 200 and the like. The installation position of the advertising device 200 is provided with a power interface and a power-on line, and the power-on line is connected to the power interface and the power source; a power switch is provided on the power-on line. The power interface of the installation position of the advertising device 200 can be used by the advertising device 200 so that the advertising device 200 can obtain power. By arranging the power switch on the power line, the merchant can control the power on of the advertising device 200 according to the actual situation, reduce the energy consumption of the advertising device 200, improve the efficiency, save energy, and facilitate the repair and maintenance of the advertising device 200.

In some embodiments, in order to fully utilize the space and improve the compactness of the structure, the advertising device 200 includes an advertising light box 200 , and the advertising light box 200 is arranged in parallel with the installation pole 500 . By arranging the advertising device 200 and the mounting pole 500 in parallel, the two elongated components make full use of the space in the length and width directions of the casing 100, which is beneficial to improve the compactness of the structure. In some embodiments, an opening is left on one side of the housing 100 , and the advertising light box 200 is arranged on the opening side, which can be set as a side wall of the housing 100 . In this way, the area requirement and thickness requirement of the advertising light box 200 can be fully guaranteed. , and at the same time, the advertising light box 200 can also be well protected.

In some embodiments, when the communication device 600 and the advertising light box 200 are installed in the installation cavity, the heat dissipation is relatively large. On the wall, a first heat dissipation port 111 is opened. The first heat dissipation ports 111 may be disposed on two opposite side walls of the housing 100, so that air can enter the installation cavity from one of the first heat dissipation ports 111, and flow out of the installation cavity from the other first heat dissipation port 111 to form air. The circulation is beneficial to the heat dissipation of the advertising light box 200 and the communication device 600 .

In some embodiments, the base station cabinet can also provide plug-in strips 720 for users to further improve business and added value. The housing 100 is provided with an installation position of the socket 720 , and the socket 720 is arranged in the installation position of the socket 720 to provide a power output interface; and/or, the housing 100 is provided with a power switch 710 . The air switch is an air switch, and its function is to disconnect the circuit when the current in the circuit exceeds the rated current. The power supply air switch 710 is connected to the electrical components of the base station cabinet.

In some embodiments, in order to further improve the added value and commercial value of the base station cabinet, the housing 100 is provided with an optical cable splice box 730 for external optical cable access. Through the setting of the optical cable splice box 730, the base station cabinet can realize the communication connection with the external network environment, and the advertisement device 200 and the like can transmit the display content through the network. It is also convenient for the merchants who share the power bank to supervise the shared power bank.

The base station cabinet is illustrated below by taking the case 100 including the upper case 110 and the lower case 120 as an example.

The housing 100 includes an upper case 110 , and the mounting pole 500 is disposed in the upper case 110 ; and/or, the upper case 110 has an installation position for the advertising device 200 . The overall shape of the upper box body 110 is a rectangular parallelepiped, the installation pole 500 is vertically arranged in the upper box body 110, and the advertising equipment 200 is arranged on the appearance surface of the upper box body 110 in parallel with the installation pole 500, which can be used as the upper box body 110 outer sidewall.

The housing 100 includes a lower box 120, and the overall shape of the lower box 120 is a rectangular parallelepiped. For example, the top of the lower box 120 is provided with a power bank installation slot 300; and/or, the power bank installation slot A shared power bank 310 is provided in the 300; and/or, the lower box 120 is provided with a socket 720; and/or, the lower box 120 is provided with a power switch 710; and/or, the said The lower part of the lower box body 120 is provided with an optical cable joint box 730; and/or, the bottom of the lower box body 120 is provided with a grounding copper bar 750 for grounding the equipment in the base station cabinet; and/or, the lower box body 120 is provided with a grounding copper bar 750; The side wall of the box body 120 is provided with a second heat dissipation port 121 ; the lower box body 120 has an installation space for the communication device 600 to be installed. The power bank installation slot 300 is arranged on the top of the lower box 120 , and the socket 720 is arranged directly below the power bank installation slot 300 . A power switch 710 is disposed on the right side of the plug-in strip 720 to control the power supply of the electronic equipment in the base station cabinet. A communication device 600, such as a hub, etc., may be arranged below the plug strip 720. The grounding copper bar 750 is arranged at the bottom of the lower case 120 to facilitate grounding. The optical cable splice box 730 is also arranged at the bottom of the lower box 120 , on the right side of the grounding copper bar 750 , and directly below the power supply air switch 710 . This arrangement is conducive to fully and rationally utilizing the space and improving the utilization rate of the space.

An embodiment of the present invention further provides a base station, the base station includes the above-mentioned base station cabinet, and the structure of the base station cabinet may refer to the above-mentioned embodiment, and details are not repeated here. Since the base station cabinet in the above embodiment is used in this embodiment, the base station provided by the embodiment of the present invention has the same beneficial effects as the base station cabinet in the above embodiment.

The above are only specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Replacement should be covered within the protection scope of the present invention. Therefore, the protection scope of the present invention should be subject to the protection scope of the claims.

Claims (10)

1. A base station cabinet, wherein the base station cabinet comprises: a casing, the casing has a mounting cavity; installing a pole, the installation pole is arranged in the installation cavity for installation of communication equipment; The housing has a charging treasure installation slot, and a shared charging treasure is installed in the charging treasure installation slot. 2 . The base station cabinet according to claim 1 , wherein a charging interface is provided in the charging treasure installation slot for charging the shared charging treasure, and the charging interface can be electrically connected to a power source through a charging circuit. 3 . 3 . The base station cabinet according to claim 1 , wherein the housing has an installation position for advertising equipment for installation of advertising equipment. 4 . 4. The base station cabinet according to claim 3, wherein the installation position of the advertising equipment is provided with a power supply interface and a power-on line, and the power-on line is connected to the power supply interface and the power supply; A power switch is provided on the power line. 5 . The base station cabinet according to claim 4 , wherein the advertising equipment comprises an advertising light box, and the advertising light box is arranged in parallel with the installation pole. 6 . 6 . The base station cabinet according to claim 5 , wherein a first heat dissipation port is opened on the side wall of the installation cavity corresponding to the pole and the advertising light box. 7 . 7. The base station cabinet according to claim 1, wherein the housing is provided with a plug-in row installation position, and the plug-in row is arranged in the plug-in row installation position to provide a power output interface; and/or, The housing is provided with a power switch, and the power switch is connected to the electrical components of the base station cabinet. 8. The base station cabinet according to claim 1, characterized in that, an optical cable splice box is provided in the casing for external optical cable access, so that the base station cabinet can realize the communication connection with the external network environment, and the advertising equipment can Delivery of display content through the network. 9. The base station cabinet according to claim 1, wherein the housing comprises an upper box body, and the mounting pole is arranged in the upper box body; and/or, The upper box has an installation position for advertising equipment. 10 . The base station cabinet according to claim 1 , wherein the housing comprises a lower box body, and a charging treasure installation slot is provided on the top of the lower box body; and/or, 10 . The lower box body is provided with a plug-in row; and/or, The lower box body is provided with a power switch; and/or, The lower part of the lower box is provided with an optical cable splice box; and/or, The bottom of the lower box is provided with a grounding copper bar for grounding the equipment in the base station cabinet; and/or, A second heat dissipation port is opened on the side wall of the lower box; The lower case has an installation space for installation of communication equipment.
