Abstract

The utility model discloses a high-stability boiler base, which comprises a base body. The upper end surface of the base body is an arc-shaped support surface, a plurality of support pads are installed on the surface of the arc-shaped support surface, and a boiler is installed on the arc-shaped support surface. The two sides of the surface are platforms, the bottom of the base body is installed with a support bottom plate, and multiple sets of shock absorption mechanisms are installed between the base body and the support floor, and support components are respectively installed on the platforms on both sides of the arc-shaped support surface. Improve the stability of the boiler installation, in addition, it can reduce the pressure on the bottom of the boiler and prevent the bottom from being deformed.

Description

A high stability boiler base

technical field

The utility model relates to the technical field of boilers, in particular to a high-stability boiler base.

Background technique

The boiler includes two parts, the boiler and the furnace. The hot water or steam generated in the boiler can directly provide the required thermal energy for industrial production and people's life, and can also be converted into mechanical energy through a steam power device, or converted into electrical energy through a generator. Boilers that provide hot water are called hot water boilers, which are mainly used in life and also have a small amount of applications in industrial production. Boilers that generate steam are called steam boilers, often referred to as boilers, and are mostly used in thermal power plants, ships, locomotives, and industrial and mining enterprises.

The existing boiler base has a single structure, poor stability, and poor buffer performance. Therefore, it is necessary to improve it.

Utility model content

The purpose of the present utility model is to provide a high-stability boiler base to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a high-stability boiler base, comprising a base body, the upper end surface of the base body is an arc-shaped support surface, and a plurality of support pad blocks are installed on the surface of the arc-shaped support surface , the boiler is installed on the arc-shaped support surface, the two sides of the arc-shaped support surface are platforms, the bottom of the base body is installed with a support bottom plate, and multiple sets of shock absorption mechanisms are installed between the base body and the support bottom plate, so Support components are respectively installed on the platforms on both sides of the arc-shaped support surface.

Preferably, the support pad includes a metal block, a first EVA foam pad and a second EVA foam pad, and the first EVA foam pad and the second EVA foam pad are respectively bonded to the upper surface of the metal block and the second EVA foam pad. On the lower surface, the thickness of the support pad is 2cm-4cm.

Preferably, the support assembly includes a first fixing plate, a first clamping plate, a second fixing plate and a second clamping plate, the first fixing plate is vertically installed on the upper end surface of the platform on one side of the base body, and the The first clamping plate is arranged on the inner side of the first fixing plate, the first fixing plate is provided with two bolt holes, a first adjusting screw is installed in the bolt holes, and one end of the first adjusting screw is connected to the first fixing plate The middle part of the outer side is in contact, and the other end is threadedly connected with the first adjusting nut arranged on the outer side of the first fixing plate.

Preferably, the second fixing plate is vertically installed on the upper end surface of the platform on the other side of the base body, the second clamping plate is arranged inside the second fixing plate, and the second fixing plate is provided with two bolt holes A second adjusting screw is installed in the bolt hole, one end of the second adjusting screw is in contact with the middle part of the outer side of the second fixing plate, and the other end is threadedly connected with the second adjusting nut arranged on the outer side of the second fixing plate.

Preferably, the damping mechanism includes an upper mounting plate, a lower mounting plate, a guide column and a high-strength spring, the upper mounting plate is fixed on the lower end surface of the base body by screws, and the lower mounting plate is fixedly installed on the upper end surface of the supporting base plate , the guide column is welded between the upper mounting plate and the lower mounting plate, and the high-strength spring is installed outside the guide column.

Preferably, ribs are welded on the outer wall of the base body.

Compared with the prior art, the beneficial effects of the present utility model are:

(1) The utility model has a novel structure design, which can improve the stability of the boiler installation. In addition, it can reduce the bearing pressure on the bottom of the boiler and prevent the bottom from being deformed.

(2) The supporting pad used in the utility model has good supporting and buffering performance, and can effectively support the bottom of the boiler.

(3) The support assembly adopted by the utility model can clamp and fix the side wall of the boiler to prevent the boiler from tilting.

(4) The shock absorbing mechanism adopted by the utility model has excellent shock absorbing and buffering performance, and effectively protects the base.

Description of drawings

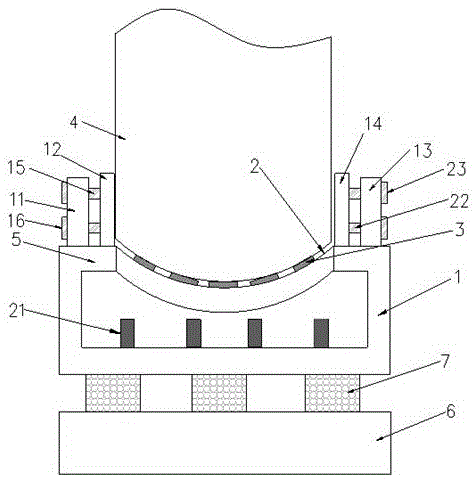

Fig. 1 is the structural representation of the utility model;

Figure 2 is a schematic structural diagram of a support pad block of the present invention;

FIG. 3 is a schematic structural diagram of the damping mechanism of the present invention.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "two ends", "one end", "the other end" The orientation or positional relationship indicated by "" etc. is based on the orientation or positional relationship shown in the accompanying drawings, and is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the indicated device or element must have a specific orientation, so as to The specific orientation configuration and operation is therefore not to be construed as a limitation of the present invention. Furthermore, the terms "first" and "second" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "provided with", "connected", etc., should be understood in a broad sense, for example, "connected" may be a fixed The connection can also be a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, and it can be internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

1-3, the present utility model provides a technical solution: a high-stability boiler base, comprising a base body 1, the upper end surface of the base body 1 is an arc-shaped support surface 2, and the arc-shaped support surface 2 A plurality of support pads 3 are installed on the surface, a boiler 4 is installed on the arc-shaped support surface 2, a platform 5 is located on both sides of the arc-shaped support surface 2, a support bottom plate 6 is installed at the bottom of the base body 1, and the base Multiple groups of shock absorbing mechanisms 7 are installed between the main body 1 and the supporting bottom plate 6 , supporting components are respectively installed on the platforms on both sides of the arc-shaped supporting surface 2 , and ribs 21 are welded on the outer wall of the base body 1 .

In the present invention, the support block 3 includes a metal block 8, a first EVA foam pad 9 and a second EVA foam pad 10, and the first EVA foam pad 9 and the second EVA foam pad 10 are respectively bonded On the upper and lower surfaces of the metal block 8, the thickness of the support block 3 is 2cm-4cm. The support block adopted by the utility model has good support and buffer performance, and can effectively support the bottom of the boiler.

In the present invention, the support assembly includes a first fixing plate 11 , a first clamping plate 12 , a second fixing plate 13 and a second clamping plate 14 , and the first fixing plate 11 is vertically installed on the platform on one side of the base body 1 The first clamping plate 12 is arranged on the inner side of the first fixing plate 11, the first fixing plate 11 is provided with two bolt holes, and the first adjusting screw 15 is installed in the bolt holes. One end of the first adjusting screw 15 is in contact with the outer middle of the first fixing plate 11 , and the other end is threadedly connected with the first adjusting nut 16 arranged on the outer side of the first fixing plate 11 ; the second fixing plate 13 is vertically installed on the other side of the base body 1 . On the upper end surface of the side platform, the second clamping plate 14 is arranged on the inner side of the second fixing plate 13, and the second fixing plate 13 is provided with two bolt holes, and the second adjusting screw 15 is installed in the bolt holes. One end of the second adjusting screw 15 is in contact with the outer middle of the second fixing plate 13 , and the other end is threadedly connected with the second adjusting nut 16 disposed on the outer side of the second fixing plate 13 . The support assembly adopted by the utility model can clamp and fix the side wall of the boiler, so as to prevent the boiler from tilting.

In addition, in the present invention, the damping mechanism 7 includes an upper mounting plate 17, a lower mounting plate 18, a guide column 19 and a high-strength spring 20. The upper mounting plate 17 is fixed on the lower end surface of the base body 1 by screws. The mounting plate 18 is fixedly installed on the upper end surface of the support base plate 6 , the guide column 19 is welded between the upper mounting plate 17 and the lower mounting plate 18 , and the high-strength spring 20 is installed outside the guide column 19 . The shock absorbing mechanism adopted by the utility model has excellent shock absorbing and buffering performance and can effectively protect the base.

To sum up, the utility model has novel structure design, can improve the stability of boiler installation, and can reduce the bearing pressure on the bottom of the boiler to prevent the bottom from being deformed.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A high-stability boiler base, comprising a base body (1), characterized in that: the upper end surface of the base body (1) is an arc-shaped support surface (2), and the arc-shaped support surface (2) is surface-mounted A plurality of support pads (3), the boiler (4) is installed on the arc-shaped support surface (2), the two sides of the arc-shaped support surface (2) are platforms (5), and the bottom of the base body (1) A support base plate (6) is installed, and multiple sets of shock absorption mechanisms (7) are installed between the base body (1) and the support base plate (6), and supports are respectively installed on the platforms on both sides of the arc-shaped support surface (2). components. 2. A high-stability boiler base according to claim 1, characterized in that: the support block (3) comprises a metal block (8), a first EVA foam pad (9) and a second EVA foam The cotton pad (10), the first EVA foam pad (9) and the second EVA foam pad (10) are respectively bonded to the upper surface and the lower surface of the metal block (8), and the thickness of the support pad (3) is 2cm-4cm. 3. A high-stability boiler base according to claim 1, characterized in that: the support assembly comprises a first fixing plate (11), a first clamping plate (12), and a second fixing plate (13) and a second clamping plate (14), the first fixing plate (11) is vertically installed on the upper end surface of the platform on one side of the base body (1), and the first clamping plate (12) is arranged on the first fixing plate (11) On the inner side, the first fixing plate (11) is provided with two bolt holes, a first adjusting screw (15) is installed in the bolt holes, and one end of the first adjusting screw (15) is fixed to the first adjusting screw (15). The middle part of the outer side of the plate (11) is in contact, and the other end is threadedly connected with a first adjusting nut (16) arranged on the outer side of the first fixing plate (11). 4. A high-stability boiler base according to claim 3, characterized in that: the second fixing plate (13) is vertically installed on the upper end surface of the platform on the other side of the base body (1), and the second fixing plate (13) The clamping plate (14) is arranged on the inner side of the second fixing plate (13), the second fixing plate (13) is provided with two bolt holes, and the second adjusting screw (22) is installed in the bolt holes, and the second adjusting screw (22) is installed in the bolt holes. One end of the second adjusting screw (22) is in contact with the outer middle of the second fixing plate (13), and the other end is threadedly connected with a second adjusting nut (23) provided on the outer side of the second fixing plate (13). 5. A high-stability boiler base according to claim 1, characterized in that: the damping mechanism (7) comprises an upper mounting plate (17), a lower mounting plate (18), a guide column (19) and A high-strength spring (20), the upper mounting plate (17) is fixed on the lower end surface of the base body (1) by screws, the lower mounting plate (18) is fixedly installed on the upper end surface of the supporting base plate (6), and the guide post (19) is welded between the upper mounting plate (17) and the lower mounting plate (18), and the high-strength spring (20) is mounted outside the guide post (19). 6. A high-stability boiler base according to claim 1, characterized in that: ribs (21) are welded on the outer wall of the base body (1).
