CN212153717U - Prefabricated movable photosensitive adjustment for quick dismantling and construction of solar bionic landscape pavilion - Google Patents

Abstract

The utility model relates to a solar bionic landscape pavilion that can be quickly dismantled and constructed with movable photosensitive adjustment, comprising a support structure (100), a ceiling (200), a movable platform (300), a linkage system (400) and a lighting system (500). and an energy system (600); the support structure (100) is arranged in the middle of the movable platform (300), and forms a large-area sheltered space with the ceiling (200); the ceiling (200) can be along the support The height direction of the structure (100) is rotated around the support structure (100) to expand or retract the ceiling; the movable platform (300) is the base of the landscape pavilion, and undertakes the upper support structure (100) and the ceiling (200) , while providing fixed space for the linkage system (400), the lighting system (500) and the energy system (600). Compared with the prior art, the landscape pavilion of the utility model has the advantages of beautiful and elegant form, clear structural system, highly standardized components and connectors, and has the characteristics of easy processing and production, and rapid assembly and construction.

Description

Prefabricated movable photosensitive adjustment for quick dismantling and construction of solar bionic landscape pavilion

technical field

The utility model relates to the technical field of construction, in particular to an assembled movable photosensitive adjustment rapid dismantling and building of a solar bionic landscape pavilion.

Background technique

Landscape pavilions are easy to build and are commonly found in urban parks, commercial plazas, characteristic towns, and rural pastoral gardens. They have rich and diverse functions and can be used for display, rest, gathering, shading and rain protection, viewing, etc., and can also be used for urban and rural important sign of space. In recent years, as people's demand for space and quality of life is getting higher and higher, the number of landscape pavilions is also increasing, injecting new spatial vitality into cities and villages, providing services for public life, and becoming a symbol of urban and rural culture.

At present, most of the landscape pavilions adopt reinforced concrete frame structure or steel structure. The materials are not environmentally friendly, the construction cost is high, the construction speed is slow, and the site and the environment are damaged greatly, and the use adaptability is low. How to reduce the construction cost of the landscape pavilion, save the construction time, reduce its impact on the site and the environment, and improve its use adaptability and efficiency is an urgent problem to be solved.

Generally speaking, landscape pavilions are open in space and relatively monotonous, and the number of users varies greatly in different seasons and weather conditions. How to adapt the landscape pavilion to different climates, provide abundant space, improve the use efficiency, and then create a more comfortable, convenient and green space is an important direction for the development and improvement of landscape pavilions.

The landscape pavilion is more flexible and has no absolutely fixed location. With the change of site function and overall spatial layout, its function and location should also change accordingly. How to adapt to changes in the overall spatial layout and function is also a problem to be solved.

Generally speaking, the night lighting of the landscape pavilion can increase the possibility of use of the landscape pavilion, prolong the use time, and also provide basic lighting for the site and environmental space, but usually the night lighting of the landscape pavilion is provided by the city power grid, which requires a certain amount of energy. , its location must also be fixed to meet the needs of the fixed grid. Today, when sustainable development is advocated, how to not only meet the mobility of the landscape pavilion, but also meet the needs of night lighting and landscape, expand the possibility of use, and prolong the use time; An important direction of thinking about landscape pavilion design.

Utility model content

The purpose of this utility model is to provide a flexible and changeable assembled movable photosensitive adjustment to quickly dismantle and construct a solar bionic landscape pavilion in order to overcome the above-mentioned defects of the prior art.

In terms of function, it can provide tourists, pedestrians and customers with the convenience of sun protection and rain protection, and create a rich public living space; in terms of construction, the cost of building materials is low, it can be quickly dismantled and constructed, and the impact on the site and the environment is small; in design In terms of energy, it can adapt to changes in different weather, climate, site and function, and its location and space can be changed; in terms of energy, it can rationally use renewable solar energy to meet the needs of night lighting and landscape, expand the possibility of use, prolong the use time, and save resources and energy. ; Spiritually, to bring cultural connotations to cities and villages.

The purpose of the present utility model can be achieved by the following technical solutions: an assembled movable photosensitive adjustment rapid demolition and construction of a solar bionic landscape pavilion, which is characterized in that it includes a support structure, a ceiling, a movable platform, a linkage system, a lighting system and an energy source. The system; the support structure is arranged in the middle of the movable platform, and forms a large-area sheltered space with the ceiling; the ceiling can rotate around the support structure along the height direction of the support structure, so that the ceiling can be unfolded or folded; The movable platform is the base of the landscape pavilion, undertakes the upper support structure and the ceiling, and provides fixed space for the linkage system, lighting system and energy system at the same time.

Further, the support structure includes beams with a polygonal structure, and a central column and two peripheral columns are arranged at the intersection of every two beams to form a triangular pyramid structure; T-shaped steel members are inserted, and the steel members are connected with the central column and the outer column by bolts and screws, which can be disassembled if necessary. The central column, the outer column and the beam are connected by T-shaped steel members, and the steel members and the beam are connected by bolts and screws, which can be disassembled if necessary.

Further, the support structure includes multiple groups of triangular pyramid structures with the same structure, the tops of the multiple triangular pyramid structures are connected by cross beams, and the bottoms are connected with the movable platform to form a stable structural whole; the bottoms of the central columns of each group of triangular pyramid structures are connected. On the inner side of the movable platform, two peripheral columns are connected to the outer side of the movable platform.

Further, the support structure also includes a wind-resistant steel cable, which is multi-strand, detachable, and its two ends are respectively connected to the outer edge vertex of the ceiling and the polygonal outer edge vertex of the movable platform. The length is fixed. When the roof is opened to the maximum, the wind-resistant steel cable is tightened, and the roof is no longer widened, preventing the roof from being lifted by extreme winds under extreme weather conditions.

The ceiling is provided between the support structure and the movable platform, and is connected to the support structure at the upper part. The ceiling is axially disposed along the top of the support structure, and the ceiling can be rotated around the support structure along the height direction of the support structure, so as to expand or collapse the ceiling.

The ceiling is composed of steel cables, wooden structure frames and flexible membranes. The flexible film has rainproof, sunshade and breathable properties, and at the same time has strong weather resistance. The ceiling is divided into a plurality of modules with the same shape and size, and the top of each module is hinged with the top of the support structure.

Each module of the ceiling is composed of an active panel, a driven panel and a flexible panel.

The active panel is composed of a plurality of wooden beams and a flexible membrane fixedly connected. The wooden beams are connected by T-shaped steel members, and are connected by bolts and screws. If necessary, they can be disassembled, and the wooden beams are fixedly connected with the flexible membrane. The wooden beam of the active panel is provided with a pulley, the pulley is connected with the structural cable of the linkage system, and the active panel is rotated within 60 degrees of the upper end of the central column by pulling the structural cable.

The driven panel is composed of a plurality of wooden beams and a flexible membrane fixedly connected. The wooden beams are connected by T-shaped steel members, and are connected by bolts and screws. If necessary, they can be disassembled, and the wooden beams are fixedly connected with the flexible membrane. The driven panel is connected with the beam of the support structure through a metal hinge, and can be rotated within a range of 90 degrees outside the beam.

The flexible panel is composed of a steel cable and a flexible film. Multiple groups of active panels and a variety of driven panels are fixedly connected through the flexible panel, and the flexible film is edge-wrapped so that the steel cable can slide freely inside.

Further, the active panel can rotate and unfold around the top of the support structure, so that the flexible panel is tensioned and turned over, and the driven panel is driven to rotate and unfold, thereby increasing the ceiling area.

Alternatively, the active panel can be rotated and retracted around the top of the support structure, so that the flexible panel is tensioned and turned over, and the driven panel is driven to rotate and retract, thereby reducing the ceiling area.

Further, the movable platform has a polygonal structure, the supporting structure is located in the middle of the movable platform, and the bottoms of each central column and peripheral column of the supporting structure are rigidly connected to the movable platform; wherein, the inner central column and the movable platform are It is directly connected by bolts, and the outer peripheral column and the movable platform are connected by T-shaped steel sheet.

The movable platform includes a plank plane, a steel structure frame and a bottom steel wheel, the plank plane and the steel structure frame are connected by a keel, and the bottom steel wheel is a universal wheel with a brake, which is arranged on the steel structure. The bottom of the structural frame is evenly distributed along the outer side and the inner side, and is connected with the steel structure frame by bolts at the same time. After the construction of the landscape pavilion is completed, the pavilion body can be pushed to adjust its position; after the position is determined, the position of the landscape pavilion can be fixed by adjusting the brake button to prevent it from moving.

Further, the plane of the wooden board includes a fixed wooden board and a movable wooden board, one side of the movable wooden board is fixedly hinged with the fixed wooden board, and the opposite side rotates when necessary and forms a certain opening angle with the platform where the fixed wooden board is located, and the angle range is 0～ 90 degrees, preferably 45 degrees, to form a backrest and provide rest facilities for tourists.

The steel structure frame is formed by splicing steel pipes with square sections through bolts, and can be disassembled if necessary. The planks are laid flat on the steel structure frame to form a polygonal frame structure with a polygonal center hole in the center; the steel structure frame and the support structure are connected by bolts.

Further, the linkage system includes structural cables, connecting steel plates, central steel cables, fixed pulleys and electric motors. The top pulley is connected, and the other end meets at the center of the landscape pavilion and is fixed with the connecting steel plate. The fixed pulley is fixed on the center of the steel structure frame in the movable platform by bolts, and the motor is fixed on the bottom of the steel structure frame in the movable platform by bolts.

The motor controls the height of the connecting steel plate by tightening and loosening the central steel cable, and the connecting steel plate drives the structural cable and changes its position, thereby pulling the ceiling and adjusting the opening angle of the ceiling.

The lighting system is composed of LED light strips, the light strips are arranged along the inner side of the support structure and the skeleton, and are connected to the energy system; the light strips are provided with electric energy by the energy system, and the light-sensitive control components of the energy system control the turn-on time. Automatically turns off when the natural light is sufficient during the day, and turns on automatically when the natural light is dim at night.

The energy system includes a solar panel, a battery, and an induction control assembly, and the energy system provides electrical energy for the linkage system, thereby enabling the ceiling to be opened and closed. The energy system provides electrical energy for the lighting system to realize nighttime lighting of the landscape pavilion.

The solar panels are fixed on the top of the support structure, and there are two groups in total, each group is composed of multiple solar panels of the same size, and is connected to the battery.

The battery is fixed on the bottom of the movable platform and is adjacent to the motor. It is characterized by low voltage and high capacity, providing sufficient power for the motor. When the sun is shining, the solar panels generate electricity and save electricity.

The inductive control component is connected with the storage battery, the lighting system and the linkage system, and is automatically controlled according to the intensity of natural light to provide corresponding energy for the lighting system and the linkage system.

Further, the induction control assembly includes a photosensitive sensor and a control system, wherein the photosensitive sensor is located at the top end of the support structure, and the control system is located at the bottom end of the movable platform, and the two are connected by an electric circuit, and the control system is connected with the said movable platform. The storage battery, the lighting system and the linkage system are connected, and the current of the storage battery is controlled to be introduced into the lighting system, and the time and current direction of the storage battery current into the linkage system are controlled at the same time.

When the sun is stronger during the day, the photosensitive sensor transmits a signal to the control system, the control system connects the current of the battery and the linkage system, and keeps the current flowing in a positive direction. The angle between the ceiling and the supporting structure increases the projected area of the ceiling.

When the natural light is weak or rainy during the day, the photosensitive sensor transmits a signal to the control system, the control system connects the current of the battery and the linkage system, and keeps the current flowing in the reverse direction, the motor of the linkage system relaxes the central main cable, and then Decreasing the angle between the ceiling and the supporting structure reduces the projected area of the ceiling.

When the natural light is weak at night, the photosensitive sensor transmits a signal to the control system, the control system is connected to the current of the battery and the lighting system, and the LED light strip is turned on to realize the lighting effect at night.

When the natural light is sufficient during the day, the photosensitive sensor transmits a signal to the control system, the control system disconnects the current from the battery and the lighting system, and the LED light strip is turned off to save energy.

The landscape pavilion includes a wireless router capable of providing wireless WIFI.

Compared with the prior art, the landscape pavilion of the present utility model is composed of six parts: a supporting structure, a ceiling, a movable platform, a linkage system, a lighting system and an energy system. The 60-degree rotation realizes opening and closing; the whole landscape pavilion can be moved in the horizontal direction through the linkage device to adjust the spatial position. The support structure is arranged in the middle of the polygonal movable platform, and the support structure and the ceiling form a large-area sheltered space. The ceiling has the function of shading and rain protection, and is divided into a plurality of modules with the same shape and size, each module is hinged with the top of the support structure; the ceiling can rotate around the support structure along the height direction of the support structure to The sunshade canopy is extended or retracted. The movable platform is the base of the landscape pavilion, undertakes the upper structure, and provides fixed space for the linkage system, lighting system, and energy system; the movable platform is composed of wooden boards, keels, steel structure frames, and steel wheels at the bottom to ensure the landscape pavilion. smooth and movable. The linkage system includes structural cables, connecting steel plates, central steel cables, fixed pulleys and electric motors to realize the opening and closing changes of the ceiling. The lighting system is composed of LED light strips, which are arranged along the inner side of the support structure and the ceiling frame, and are connected with the energy system. The energy system includes solar panels, storage batteries, and induction control components, and provides corresponding energy for the linkage device and the lighting system according to the intensity of natural light. The energy system provides corresponding electrical energy for the motor, controls the opening angle, and adjusts the projected area of the ceiling to meet different usage requirements. In sunny weather, the ceiling is opened to the maximum, and the shading effect is good; in rainy weather, the ceiling is closed, and the rainwater is discharged along the ceiling with a relatively large slope, and the rainproof performance is better. The landscape pavilion is beautiful and elegant in form, with clear structural system, highly standardized components and connectors, and is characterized by easy processing and rapid assembly and construction.

Description of drawings

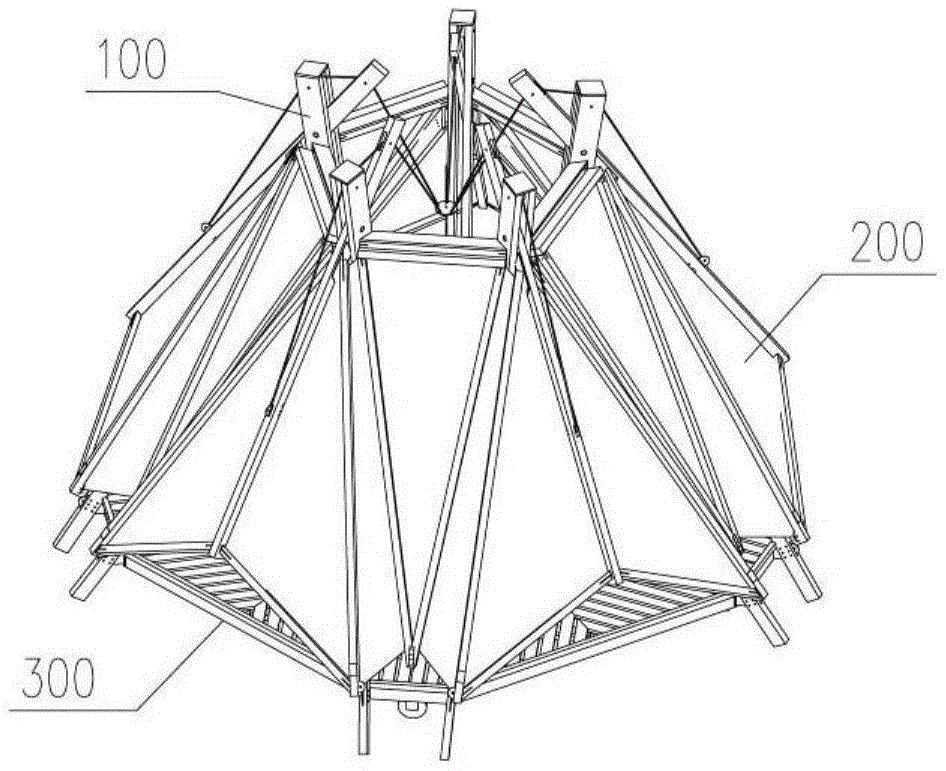

1 is a perspective view of a landscape pavilion provided by an embodiment of the present utility model (the ceiling is in a folded state);

2 is a perspective view of a landscape pavilion provided by an embodiment of the present utility model (the ceiling is in a semi-expanded state);

3 is a perspective view of a landscape pavilion provided by an embodiment of the present utility model (the ceiling is in a fully unfolded state and the movable wooden board is folded in the plane of the wooden board);

4 is a front view of a landscape pavilion provided by an embodiment of the present utility model (the movable wooden board forms an angle with the plane of the wooden board);

5 is an exploded view of a landscape pavilion provided by an embodiment of the present invention;

6 is a top view of a landscape pavilion provided by an embodiment of the present utility model (the ceiling is in a folded state);

7 is a top view of a landscape pavilion provided by an embodiment of the present utility model (the ceiling is in a semi-expanded state);

8 is a top view of a landscape pavilion provided by an embodiment of the present utility model (the ceiling is in a fully unfolded state);

9 is a top view of a landscape pavilion provided by an embodiment of the present utility model (the ceiling is not shown);

Figure 10 is an exploded view of the landscape pavilion shown in Figure 9;

11 is a bottom view of a landscape pavilion provided by an embodiment of the present utility model (the ceiling is in a fully expanded state);

Fig. 12 is an enlarged view of the landscape pavilion shown in Fig. 2 (the ceiling is in a semi-expanded state);

Marked in the picture:

100-support structure; 110-central column; 120-peripheral column; 130-beam; 140-wind-resistant steel cable; 200-ceiling; 210-active panel; 211-active panel wood structure frame; 212-active panel flexible membrane; 220 - driven panel; 221 - driven wooden structure frame; 222 - driven panel flexible film; 230 - flexible panel; 231 - flexible panel steel cable; 232 - flexible panel flexible film; 300 - movable platform; 310 - wooden board Plane; 311-fixed plank; 312- movable plank; 320-steel structure frame; 330-bottom steel wheel; 400-linkage system; 410-structure cable; 420-connecting steel plate; 430-center main cable; 450-motor; 500-lighting system (LED strip); 600-energy system; 610-battery; 620-solar panel; 630-induction control assembly; 631-light sensor; 632-control system.

Detailed ways

The technical solutions of the present invention will be clearly and completely described below with reference to the accompanying drawings. Obviously, the described embodiments are a part of the embodiments of the present invention, not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner" and "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation on the present invention. Furthermore, the terms "first", "second", and "third" are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "installed", "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a connectable connection. Detachable connection, or integral connection; may be mechanical connection or electrical connection; may be direct connection, or indirect connection through an intermediate medium, or internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Example 1

As shown in Figures 1 to 12, an assembled movable photosensitive adjustment rapid demolition and construction of a solar bionic landscape pavilion includes a support structure 100, a ceiling 200, a movable platform 300, a linkage system 400, a lighting system 500 and an energy system 600; The support structure 100 is arranged in the middle of the movable platform 300, and forms a large-area sheltered space with the ceiling 200; the ceiling 200 can rotate around the support structure 100 along the height direction of the support structure 100, so that the ceiling can be unfolded Or folded; the movable platform 300 is the base of the landscape pavilion, which undertakes the upper support structure 100 and the ceiling 200, and provides fixed space for the linkage system 400, the lighting system 500 and the energy system 600 at the same time.

The support structure 100 includes beams 130 in a pentagonal structure, and a central column 110 and two peripheral columns 120 are arranged at the intersection of every two beams 130 to form a triangular pyramid structure; A T-shaped steel member with a certain angle is used for insertion between 120, and the steel member is connected with the central column 110 and the outer column 120 by bolts and screws, which can be disassembled if necessary. The central column 110, the outer column 120 and the beam 130 are connected by T-shaped steel members, and the steel members and the beam 130 are connected by bolts and screws, which can be disassembled if necessary.

The support structure 100 includes 5 groups of triangular pyramid structures with the same structure, the tops of the 5 groups of triangular pyramid structures are connected by cross beams, and the bottoms are connected with the movable platform 300 to form a stable structural whole; the bottoms of the central columns 110 of each group of triangular pyramid structures are connected. On the inner side of the movable platform 300 , the two peripheral columns 120 are connected to the outer side of the movable platform 300 .

The support structure 100 further includes a wind-resistant steel cable 140, the wind-resistant steel cable 140 is 10 strands, detachable, and its two ends are respectively connected to the outer edge vertex of the ceiling 200 and the polygonal outer edge vertex of the movable platform 300. , Its length is fixed. When the roof is opened to the maximum, the wind-resistant steel cable is tightened, and the roof is no longer widened, preventing the roof from being lifted by extreme winds under extreme weather conditions.

The ceiling 200 is disposed between the support structure 100 and the movable platform 300 and is connected to the support structure 100 at the upper part. The ceiling 200 is axially disposed along the top of the supporting structure 100 , and the ceiling 200 can rotate around the supporting structure along the height direction of the supporting structure 100 to expand the ceiling, or make the ceiling close up.

The ceiling is composed of steel cables, wooden structure frames and flexible membranes. The flexible film has rainproof, sunshade and breathable properties, and at the same time has strong weather resistance. The ceiling 200 is divided into 5 modules with the same shape and size, the top of each module is hinged with the top of the support structure 100; each module of the ceiling 200 is composed of an active panel 210, a driven panel 220 and a flexible panel 230, the active panel 210 is composed of a plurality of wooden beams and a flexible membrane fixedly connected, the wooden beams are connected by T-shaped steel members, and are connected by bolts and screws, which can be disassembled if necessary, and the wooden beams are fixedly connected with the flexible membrane. The wooden beam of the active panel 210 is provided with a pulley, the pulley is connected with the structural cable 410 of the linkage system 400, and the active panel 210 is rotated within a range of 60 degrees on the upper end of the central column 110 by the pulling of the structural cable 410; The driven panel 220 is composed of a plurality of wooden beams and a flexible membrane fixedly connected. The wooden beams are connected by T-shaped steel members, and are connected by bolts and screws. If necessary, they can be disassembled, and the wooden beams are fixedly connected with the flexible membrane. The driven panel 220 is connected to the beam 130 of the support structure 100 through metal hinges, and can be rotated within a range of 90 degrees outside the beam 130; the flexible panel 230 is composed of steel cables and flexible films, The panels 230 are fixedly connected to the plurality of groups of active panels 210 and various driven panels 220, and are edge-wrapped with a flexible film, so that the steel cables can slide freely inside the panels.

The active panel 210 can rotate and unfold around the top of the support structure 100 , so that the flexible panel 230 is tensioned and turned over, and the driven panel 220 is driven to rotate and unfold, thereby increasing the area of the ceiling 200 .

Alternatively, the active panel 210 can be rotated and retracted around the top of the support structure 100 , so that the flexible panel 230 is tensioned and turned over, and the driven panel 220 is driven to rotate and retract, thereby reducing the area of the ceiling 200 .

The movable platform 300 has a pentagonal structure, the support structure 100 is located in the middle of the movable platform 300, and the bottoms of the central columns 110 and the peripheral columns 120 of the support structure 100 are rigidly connected to the movable platform 300; The central column 110 and the movable platform are directly connected by bolts, and the outer peripheral columns 120 and the movable platform are connected by a T-shaped steel sheet.

The movable platform 300 includes a plank plane 310, a steel structure frame 320 and a bottom steel wheel 330. The plank plane 310 and the steel structure frame 320 are connected by a keel, and the bottom steel wheel 330 is a universal brake with a brake. The wheels are arranged at the bottom of the steel structure frame 320 and evenly distributed along the outside and inside, and are connected with the steel structure frame 320 by bolts. After the construction of the landscape pavilion is completed, the pavilion body can be pushed to adjust its position; after the position is determined, the position of the landscape pavilion can be fixed by adjusting the brake button to prevent it from moving.

The board plane 310 includes a fixed board 311 and a movable board 312. One side of the movable board 312 is fixed and hinged with the fixed board 311, and the opposite side rotates when necessary and forms a certain angle with the platform where the fixed board 311 is located. The opening angle is 0-90 degrees, preferably 45 degrees, to form a backrest and provide rest facilities for tourists;

The steel structure frame 320 is formed by splicing steel pipes with square sections through bolts, and can be disassembled if necessary. The plank plane 310 is laid on the steel structure frame 320 to form a polygonal frame structure with a pentagonal center hole in the center; the steel structure frame 320 and the support structure 100 are connected by bolts.

The linkage system 400 includes a structural cable 410, a connecting steel plate 420, a central steel cable 430, a fixed pulley 440 and an electric motor 450. The structural cable 410 is multi-strand, and one end is connected to the wooden beam of the active panel 210 of the ceiling 200 and the other ends respectively. The top end of the central column 110 of the support structure 100 is connected with a pulley, and the other end meets at the center of the landscape pavilion and is fixed with the connecting steel plate 420. One end of the central steel cable 430 is connected to the connecting steel plate 420, and the other end passes through the connecting steel plate 420. The fixed pulley 440 is finally wound on the motor 450 to realize the opening and closing of the ceiling and the movement of the landscape pavilion; the fixed pulley 440 is fixed to the center of the steel structure frame 320 in the movable platform 300 by bolts, so The motor 450 is fixed to the bottom of the steel structure frame 320 in the movable platform 300 by bolts.

The motor 450 controls the height of the connecting steel plate 420 by tightening and loosening the central steel cable 430 , the connecting steel plate 420 drives the structural cable 410 and changes its position, thereby pulling the ceiling 200 and adjusting the ceiling 200 opening angle.

The linkage system 400 further includes a wind-resistant steel cable 140, the two ends of the wind-resistant steel cable 140 are respectively connected to the outer edge vertex of the ceiling 200 and the movable platform ceiling 200, and the length is fixed. At the maximum, the wind-resistant steel cable 140 is tightened, and the ceiling 200 is no longer stretched.

The lighting system 500 is composed of LED light strips. The light strips are arranged along the inner sides of the support structures 100 and 200, and are connected to the energy system 600; Turn on time, automatically turn off when the natural light is sufficient during the day, and automatically turn on when the natural light is dim at night.

The energy system 600 includes a solar panel 620, a storage battery 610, and an induction control assembly 630. The energy system provides electrical energy for the linkage system, thereby enabling the ceiling to be opened and closed. The energy system provides electrical energy for the lighting system to realize nighttime lighting of the landscape pavilion.

Described solar panel 620 is fixed on the top of described support structure 100, a total of 2 groups, each group is made up of 5 solar panels of the same size, and is connected with described storage battery 610;

The battery 610 is fixed on the bottom of the movable platform 300 and is adjacent to the motor. It is characterized by low voltage and high capacity, providing sufficient power for the motor. When the sun is shining, the solar panels generate electricity and save electricity.

The induction control assembly 630 is connected to the battery 610, the lighting system 500 and the linkage system 400, and provides corresponding energy for the lighting system 500 and the linkage system 400 according to the intensity of natural light.

The sensing control assembly 630 includes a light sensor 631 and a control system 632, wherein the light sensor 631 is located at the top of the support structure 100, and the control system 632 is located at the bottom of the movable platform 300. The system 632 is connected to the battery 610 , the lighting system 500 and the linkage system 400 , and controls the current from the battery 610 to the lighting system 500 , and controls the time and direction of the current from the battery 610 to the linkage system 400 .

When the sun is stronger during the day, the photosensitive sensor transmits a signal to the control system, the control system connects the current of the battery and the linkage system, and keeps the current flowing in a positive direction. The angle between the ceiling and the supporting structure increases the projected area of the ceiling.

When the natural light is weak or rainy during the day, the photosensitive sensor transmits a signal to the control system, the control system connects the current of the battery and the linkage system, and keeps the current flowing in the reverse direction, the motor of the linkage system relaxes the central main cable, and then Decreasing the angle between the ceiling and the supporting structure reduces the projected area of the ceiling.

When the natural light is weak at night, the photosensitive sensor transmits a signal to the control system, the control system is connected to the current of the battery and the lighting system, and the LED light strip is turned on to realize the night scene effect.

When the natural light is sufficient during the day, the photosensitive sensor transmits a signal to the control system, the control system disconnects the current from the battery and the lighting system, and the LED light strip is turned off to save energy.

The landscape pavilion includes a wireless router capable of providing wireless WIFI.

The top beam 130 of the above-mentioned support structure 100 can also be formed into a triangle, a quadrangle, a pentagon, a hexagon, a heptagon, an octagon, a nonagon, a decagon, an ellipse, and a dodecagon, and the movable The platform 300 corresponds to it to fit the ambient space.

This embodiment also provides a landscape pavilion with a marker, and the landscape pavilion with a marker fixes a marker on the top of the aforementioned landscape booth, that is, a marker is fixedly connected to the top of the ceiling 200; the marker can be, for example, a cartoon pattern, Characters, sports monograms, animals, LOGO and other shapes of logos, through the logo, to improve the recognition of the kiosk, in order to improve the aesthetics of the kiosk to a certain extent. Under certain circumstances, the landscape pavilion may also become the highlight of the city or scenic spot.

The landscape pavilion in this embodiment adopts the appearance design with strong cultural connotation and sense of technology, so that the landscape pavilion placed in cities, scenic spots, squares, shopping malls and other places can quickly arouse people's curiosity to a certain extent. Sensation, attracting people to watch, understand, take photos, and take pictures.

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present utility model, but not to limit them; although the present utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that : it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements on some or all of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the various embodiments of the present utility model Scope of technical solutions.

Claims (10)

1. An assembled movable photosensitive regulation quick-dismantling solar bionic landscape pavilion is characterized by comprising a supporting structure (100), a ceiling (200), a movable platform (300), a linkage system (400), a lighting system (500) and an energy system (600); the supporting structure (100) is arranged in the middle of the movable platform (300) and forms a large-area shielding space with the ceiling (200); the ceiling (200) can rotate around the supporting structure (100) along the height direction of the supporting structure (100) to be unfolded or folded; the movable platform (300) is a base of the landscape pavilion, receives the upper supporting structure (100) and the ceiling (200), and provides a fixed space for the linkage system (400), the lighting system (500) and the energy system (600).

2. The assembled movable photosensitive adjustment quick-dismantling solar bionic landscape pavilion according to claim 1, wherein the support structure (100) comprises cross beams (130) in a polygonal structure, and a central column (110) and two peripheral columns (120) are arranged at the intersection point of every two cross beams (130) to form a triangular cone stable structure; the supporting structure (100) further comprises a wind-resistant steel cable (140), the wind-resistant steel cable (140) is multistrand and can be detached, two ends of the wind-resistant steel cable are respectively connected with the vertex of the outer edge of the ceiling (200) and the vertex of the polygonal outer edge of the movable platform (300), and the length of the wind-resistant steel cable is fixed;

the ceiling (200) is divided into a plurality of modules with the same shape and size, and the top of each module is hinged with the top of the supporting structure (100);

the movable platform (300) is of a polygonal structure, the supporting structure (100) is positioned in the middle of the movable platform (300), and the bottoms of the central column (110) and the peripheral column (120) of the supporting structure (100) are rigidly connected with the movable platform (300);

the linkage system (400) comprises a structural cable (410), a connecting steel plate (420), a central steel cable (430), a fixed pulley (440) and a motor (450), wherein one end of the structural cable (410) is connected with a ceiling (200), the other end of the structural cable is fixed with the connecting steel plate (420), one end of the central steel cable (430) is connected with the connecting steel plate (420), the other end of the central steel cable penetrates through the fixed pulley (440), and finally the central steel cable is wound on the motor (450) to realize the opening and closing of the ceiling;

the lighting system (500) consists of LED lamp belts, and the lamp belts are arranged along the inner sides of the supporting structure (100) and the ceiling (200) framework and connected with the energy system (600);

energy system (600) include solar panel (620), battery (610), sensing control subassembly (630), solar panel (620) fix bearing structure (100) top, and with battery (610) are connected, battery (610) are fixed movable platform (300) bottom, sensing control subassembly (630) with battery (610), lighting system (500) and linked system (400) link to each other, provide corresponding energy according to light intensity for lighting system (500) and linked system (400).

3. The assembled movable photosensitive adjustment quick-dismantling solar bionic landscape pavilion according to claim 1 or 2, wherein the supporting structure (100) comprises a plurality of groups of triangular cone structures with the same structure, the tops of the groups of triangular cone structures are connected through a cross beam, and the bottoms of the groups of triangular cone structures are connected with the movable platform (300) to form a stable structural whole; the bottom of the central column (110) of each group of triangular cone structures is connected with the inner side of the movable platform (300), and the two peripheral columns (120) are connected with the outer side of the movable platform (300).

4. The assembled movable photosensitive adjustment quick-dismantling solar bionic landscape pavilion according to claim 2, wherein the ceiling (200) is composed of a plurality of groups of driving panels (210), driven panels (220) and flexible panels (230);

the driving panel (210) is formed by fixedly connecting a wood beam and a flexible film, a pulley is arranged on the wood beam of the driving panel (210), the pulley is connected with a structural cable (410) of the linkage system (400), and the driving panel (210) rotates within 60 degrees at the upper end of the central column (110) by pulling the structural cable (410);

the driven panel (220) is formed by fixedly connecting a wood beam and a flexible film, and the driven panel (220) is connected with a cross beam (130) of the supporting structure (100) through a metal hinge and can rotate within a range of 90 degrees outside the cross beam (130);

the flexible panel (230) is composed of steel cables and flexible films, a plurality of groups of driving panels (210) and a plurality of driven panels (220) are fixedly connected through the flexible panel (230), and the flexible films are subjected to edge covering treatment to enable the steel cables to freely slide in the flexible panels.

5. The assembled movable photosensitive adjustment quick-dismantling solar bionic landscape pavilion according to claim 4, wherein the driving panel (210) rotates and unfolds around the top of the supporting structure (100), so that the flexible panel (230) is tensioned and overturned to drive the driven panel (220) to rotate and unfold, thereby enlarging the area of the ceiling (200);

or the driving panel (210) rotates around the top of the supporting structure (100) and folds, so that the flexible panel (230) is tensioned and overturned, the driven panel (220) is driven to rotate and fold, and the area of the ceiling (200) is reduced.

6. The assembled movable photosensitive adjustment rapid demolition solar bionic landscape pavilion according to claim 1, wherein the movable platform (300) comprises a wood plate plane (310), a steel structure frame (320) and bottom steel wheels (330), the wood plate plane (310) is connected with the steel structure frame (320) through keels, the bottom steel wheels (330) are universal wheels with brakes and are uniformly distributed at the bottom of the steel structure frame (320) along the outer side and the inner side, and meanwhile, the assembled movable photosensitive adjustment rapid demolition solar bionic landscape pavilion is connected with the steel structure frame (320) through bolts, so that the landscape pavilion can be moved.

7. The assembled movable photosensitive adjustment quick-dismantling solar bionic landscape pavilion according to claim 6, wherein the wood plate plane (310) comprises a fixed wood plate (311) and a movable wood plate (312), one side of the movable wood plate (312) is fixedly hinged with the fixed wood plate (311), and the other opposite side of the movable wood plate (312) rotates when needed and forms a certain opening angle with a platform where the fixed wood plate (311) is located, wherein the angle ranges from 0 degree to 90 degrees;

the steel structure frame (320) is formed by splicing steel pipes with square sections through bolts, and the wood board plane (310) is laid on the steel structure frame (320) to form a polygonal frame structure with a polygonal central hole in the center;

the steel structure frame (320) is connected with the supporting structure (100) through bolts.

8. The assembled movable photosensitive adjustment quick-dismantling solar bionic landscape pavilion according to claim 4, wherein the structural cables (410) are multi-strand cables, are respectively connected with the wood beams of the driving panel (210) and the pulleys at the top end of the central column (110) of the supporting structure (100), meet at the center of the landscape pavilion, and are fixed with the connecting steel plates (420);

the fixed pulley (440) is fixed at the center of the steel structure frame (320) in the movable platform (300) through bolts, and the motor (450) is fixed at the bottom of the steel structure frame (320) in the movable platform (300) through bolts;

the motor (450) controls the height of the connecting steel plate (420) by tightening and loosening the central steel cable (430), and the connecting steel plate (420) drives the structural cable (410) and changes the position of the structural cable, so that the ceiling (200) is pulled, and the opening angle of the ceiling (200) is adjusted.

9. The assembled movable photosensitive adjustment quick-dismantling solar bionic landscape pavilion according to claim 1, wherein the linkage system (400) further comprises a wind-resistant steel cable (140), two ends of the wind-resistant steel cable (140) are respectively connected with the top point of the outer edge of the ceiling (200) and the movable platform ceiling (200), the length of the wind-resistant steel cable is fixed, when the ceiling (200) is unfolded to the maximum, the wind-resistant steel cable (140) is tensioned, and the ceiling (200) is not widened any more.

10. The assembled movable photosensitive adjustment quick-dismantling solar bionic landscape pavilion according to claim 2, wherein the induction control component (630) comprises a photosensitive sensor (631) and a control system (632), wherein the photosensitive sensor (631) is located at the top end of the support structure (100), the control system (632) is located at the bottom end of the movable platform (300), the photosensitive sensor and the control system are connected through a circuit, the control system (632) is connected with the storage battery (610), the lighting system (500) and the linkage system (400), the current of the storage battery (610) is controlled to be transmitted into the lighting system (500), and the time and the current direction of the current of the storage battery (610) are controlled to be transmitted into the linkage system (400).
