Abstract

The utility model relates to the technical field of garment processing, in particular to a drying device for garment processing, comprising a drying box, a heating device and a rotating device, wherein the heating device comprises a first heating device and a second heating device , the rotating device is arranged in the drying box, the rotating device includes a rotating base and a rotating shaft, the rotating base is arranged at the bottom of the drying box, the bottom end of the rotating shaft is connected with the rotating base, and the rotating shaft is on the rotating base. A plurality of clothes-hanging layer rods are provided, and the clothes-hanging layer rods include a plurality of clothes-hanging rods rotatably connected with the rotating shaft. The clothes-hanging rods are provided with hanging holes; The external power supply is connected, and the front side of the drying box is provided with a box door connected with the hinge of the drying box. The utility model has the advantages of simple structure, convenient operation, uniform heating and high drying speed, which can meet the needs of large-scale drying and people's needs.

Description

A drying device for garment processing

technical field

The utility model relates to the technical field of garment processing, in particular to a drying device for garment processing.

Background technique

In the process of clothing cleaning or storage, drying is often required, which requires the use of a dryer for clothing processing. At present, the existing drying machines for clothing processing on the market have great limitations, and cannot dry clothing in all directions, and cannot guarantee that each piece of clothing can be kept dry after processing, so the drying effect on clothing is not good. , can not meet the large-scale drying, can not meet the needs of people. In addition, after the drying operation is completed, because the internal temperature of the drying box is very high, it takes a period of time to take out the clothes, which reduces the efficiency of garment processing.

Utility model content

The purpose of the utility model is to overcome the above deficiencies and provide a drying device for garment processing, which is heated evenly, has a good drying effect, and can take out the garment without waiting after drying, and has high production and processing efficiency.

In order to achieve the above purpose, the technical solution of the present invention is: a drying device for garment processing, comprising a drying box, a heating device, and a rotating device, and the heating device includes a drying box disposed on the left side of the drying box. The first heating device and the second heating device arranged on the right side of the drying box, the rotating device is arranged in the drying box, the rotating device includes a rotating base and a rotating shaft, and the rotating base is arranged in the drying box The bottom end of the rotating shaft is connected to the rotating base, and the rotating shaft is provided with several clothes-hanging layer rods, and the clothes-hanging layer rods include several clothes-hanging rods rotatably connected to the A hanging hole is arranged on the rod, a motor is connected to the rotating base, and the motor is connected to an external power supply, and a box door connected to the hinge of the drying box is arranged on the front side of the drying box.

Preferably, the first heating device includes a first heating box arranged on the left side of the drying box, a first air outlet plate arranged on the left side of the drying box, and a first heating box arranged on the left side of the first heating box. A fan, a first heating plate is arranged in the first heating box, a first air outlet pipe is arranged in the first air outlet plate, the first air outlet pipe is communicated with the first heating box, and the first air outlet pipe is connected with the first heating box. A fan is connected to an external power source.

Preferably, the second heating device includes a second heating box arranged on the right side of the drying box, a second air outlet plate arranged on the right side of the drying box, and a second heating box arranged on the right side of the second heating box. Two fans, the second heating box is provided with a second heating plate, the second air outlet plate is provided with a second air outlet pipe, the second air outlet pipe is communicated with the second heating box, and the second air outlet pipe is arranged in the second heating box. The second fan is connected to the external power supply.

Preferably, an air extraction pump is provided outside the drying box, an air extraction pipeline is connected to the upper end of the air extraction pump, the other end of the air extraction pipeline is communicated with the inside of the drying box, and the air extraction pump is connected to an external power supply, The air pump is used to extract the excess heat in the drying box out of the drying box. After drying, the temperature in the drying box immediately drops, and the clothes in the drying box can be taken out without waiting.

Preferably, the box door is provided with a transparent window, so that the state of the drying box can be observed at any time.

The use method of the utility model: open the box door, hang the fabric to be dried on the clothes rail, close the box door, turn on the heating device, the rotating device and the air pump, and after the drying is completed, open the box door to Remove the dried fabric.

By adopting the above-mentioned technical scheme, the beneficial effect of the present utility model is that: the present utility model adopts the method of simultaneously supplying air on the left and right by arranging the first air outlet plate, the second air outlet plate and the rotating device in the drying box, and then Coupled with the 360° rotation of the fabric, the fabric is heated evenly and the drying speed is accelerated. The utility model is also provided with an air pump outside the drying box to extract excess heat in the drying box, and after the drying operation is completed, the fabric can be taken out without waiting for the temperature of the drying box to decrease. In addition, the utility model is provided with a box door with a transparent window, so that the state inside the drying box can be observed at any time. The utility model has the advantages of simple structure, convenient operation, uniform heating and high drying speed, which can meet the needs of large-scale drying and people's needs.

Description of drawings

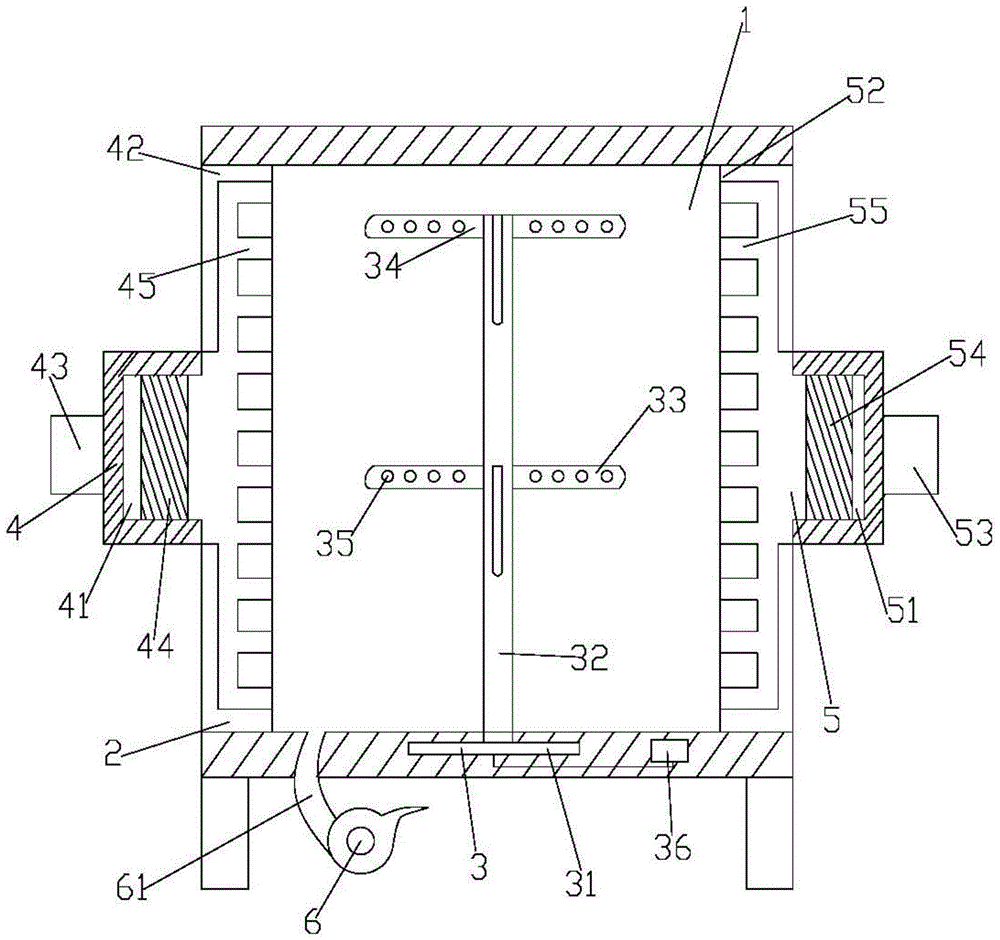

Fig. 1 is the structural representation of the utility model;

FIG. 2 is another structural schematic diagram of the present invention.

Description of main reference signs: (1, drying box; 11, box door; 12, transparent window; 2, heating device; 3, rotating device; 31, rotating base; 32, rotating shaft; 33, clothes hanger rod; 34, clothes rail; 35, hanging hole; 36, motor; 4, first heating device; 41, first heating box; 42, first air outlet; 43, first fan; 44, first heating plate; 45, the first air outlet; 5, the second heating device; 51, the second heating box; 52, the second air outlet; 53, the second fan; 54, the second heating plate; 55, the second air outlet ; 6. Air pump; 61. Air pump).

Detailed ways

The present utility model will be further described below in conjunction with the accompanying drawings and specific embodiments.

As shown in Figures 1-2, a drying device for garment processing includes a drying box 1, a heating device 2, and a rotating device 3. The heating device 2 includes a drying box 1 disposed on the left side of the drying box 1. The first heating device 4 and the second heating device 5 are arranged on the right side of the drying box 1. The rotating device 3 is arranged in the drying box 1. The rotating device 3 includes a rotating base 31 and a rotating shaft 32. The rotating base 31 is arranged at the bottom of the drying box 1, and the bottom end of the rotating shaft 32 is connected with the rotating base 31. The rotating shaft 32 is provided with several clothes-hanging layer rods 33, and the clothes-hanging layer rods 33 include Several clothes hanging rods 34 are rotatably connected with the rotating shaft 32, the clothes hanging rods 34 are provided with hanging holes 35, the rotating base 31 is connected with a motor 36, and the motor 36 is connected with an external power supply, and the drying box The front side of the body 1 is provided with a box door 11 which is hingedly connected with the drying box body 1 .

The first heating device 4 includes a first heating box 41 arranged on the outer left side of the drying box 1 , a first air outlet plate 42 arranged on the left side inside the drying box 1 , and a first heating box 41 arranged on the left side. The first fan 43 on the left side, the first heating box 41 is provided with a first heating plate 44, the first air outlet plate 42 is provided with a first air outlet 45, the first air outlet 45 In communication with the first heating box 41, the first fan 43 is connected with an external power source. The first heating box 41 is fixedly connected to the drying box 1 through bolts, and the first fan 43 is connected to the first heating box 41 through bolts and communicated with the first heating box 41 through pipes.

The second heating device 5 includes a second heating box 51 arranged on the outer right side of the drying box 1 , a second air outlet plate 52 arranged on the right side inside the drying box 1 , and a second heating box 51 arranged on the right side. The second fan 53 on the right side, the second heating box 51 is provided with a second heating plate 54, the second air outlet plate 52 is provided with a second air outlet 55, the second air outlet 55 In communication with the second heating box 51, the second fan 53 is connected with an external power source. The second heating box 51 is fixedly connected to the drying box 1 through bolts, and the second fan 53 is connected to the second heating box 51 through bolts and communicated with the second heating box 51 through pipes.

The drying box 1 is provided with an air pump 6, the upper end of the air pump 6 is connected with an air pump 61, and the other end of the air pump 61 is communicated with the drying box 1. The air pump 6 Connected to an external power source, the air pump 6 is used to extract the excess heat from the drying box 1 to the outside of the drying box 1. After drying, the temperature in the drying box 1 drops immediately without waiting. The clothes in the drying box 1 can be taken out.

The box door 11 is provided with a transparent window 12, so that the state of the drying box 1 can be observed at any time.

The use method of this embodiment: open the box door 11, hang the fabric to be dried on the clothes rail 34, close the box door 11, open the heating device 2 and the rotating device 3, the air pump 6, the first heating plate 44, The second heating plate 54 is heated, and under the action of the first fan 43 and the second fan 53, the hot air comes out from the first air outlet plate 42 and the second air outlet plate 52 respectively, and the fabrics hanging on the clothes rail 34 are heated. At the same time, driven by the motor 36, the rotating base 31 and the rotating shaft 32 also rotate, thereby driving the fabric to rotate in an all-round 360°, so that the fabric is heated evenly, and the drying speed is accelerated. Then, open the box door 11 to take out the dried fabric.

The above are only the preferred embodiments of the present invention, and cannot limit the scope of the present invention. All the equivalent changes and decorations made according to the scope of the patent application of the present invention should still belong to the scope covered by the present invention. Inside.

Claims (5)

1. The utility model provides a drying device for tailoring which characterized in that: the drying box comprises a drying box body, a heating device and a rotating device, wherein the heating device comprises a first heating device arranged on the left side of the drying box body and a second heating device arranged on the right side of the drying box body, the rotating device is arranged in the drying box body and comprises a rotating base and a rotating shaft, the rotating base is arranged at the bottom of the drying box body, the bottom end of the rotating shaft is connected with the rotating base, a plurality of clothes hanging layer rods are arranged on the rotating shaft, each clothes hanging layer rod comprises a plurality of clothes hanging rods connected with the rotating shaft in a rotating mode, hanging holes are formed in the clothes hanging rods, the rotating base is connected with a motor, the motor is connected with an external power supply, and a box door connected with the drying box body in a hinge mode is arranged on the.

2. The drying device for clothing processing according to claim 1, wherein: the first heating device comprises a first heating box arranged on the outer left side of the drying box body, a first air outlet plate arranged on the inner left side of the drying box body, and a first fan arranged on the left side of the first heating box body, wherein a first heating plate is arranged in the first heating box body, a first air outlet pipe is arranged in the first air outlet plate, the first air outlet pipe is communicated with the first heating box body, and the first fan is connected with an external power supply.

3. The drying device for clothing processing according to claim 1, wherein: the second heating device comprises a second heating box arranged on the outer right side of the drying box body, a second air outlet plate arranged on the inner right side of the drying box body, and a second fan arranged on the right side of the second heating box body, wherein a second heating plate is arranged in the second heating box body, a second air outlet pipe is arranged in the second air outlet plate, the second air outlet pipe is communicated with the second heating box body, and the second fan is connected with an external power supply.

4. The drying device for clothing processing according to claim 1, wherein: the drying box is characterized in that an air pump is arranged outside the drying box, the upper end of the air pump is connected with an air exhaust pipeline, the other end of the air exhaust pipeline is communicated with the inside of the drying box, and the air pump is connected with an external power supply.

5. The drying device for clothing processing according to claim 1, wherein: the box door is provided with a transparent window.
