Abstract

The utility model relates to the field of packaging boxes, aims to solve the problem that the existing packaging box parts cannot take into account low price and high grade, and provides packaging box parts and a 3D packaging box. The packaging box includes a rectangular sheet, including a front sheet, a back sheet and two side sheets, and can be folded into a rectangular surrounding wall; a top cover structure is connected to the upper end of the rectangular sheet; the top cover structure includes a cover sheet, a front folded sheet and side sheets A folded sheet; the junction of the front folded sheet and the front sheet is provided with parallel and spaced front double folds, and a front connecting sheet is defined between the front double folds; the junction of the side folded sheet and the side sheet is provided with parallel spaced side double folds, A side connecting piece is defined between the side double folds; the cover piece can be folded along the single fold to a position within the top surface of the package, and fitly closes the opening enclosed by the side connecting piece and the front connecting piece. The beneficial effects of the utility model are that the stiffness of the box body is effectively improved, the thickness of the edges and corners of the box body is strengthened, the molding effect of the box body is improved, and the warping problem of the box cover of the packaging box parts in the past is solved.

Description

Packaging Boxes and 3D Packaging Boxes

technical field

The utility model relates to the field of packaging boxes, in particular to a packaging box piece and a 3D packaging box.

Background technique

Most of the existing packaging boxes are made of lenticular sheets or lenticular sheets covered with paper and then combined with inner and outer boxes; 3D gift boxes are made of lenticular sheets, mounted on paper, and then pasted with cardboard.

However, these technologies have disadvantages: although the price of the 3D hook bottom packaging box is cheaper than that of the 3D gift box, the grade is lower, and the stiffness after molding is not as good as that of the 3D gift box; while the appearance of the 3D gift box looks higher, and it is quite The degree is also good, but the cost is also high, which cannot meet the needs of consumers who want both high quality and low price.

Utility model content

The utility model aims to provide a packing box and a 3D packing box, so as to solve the problem that the existing packing box cannot take into account the low price and the high grade.

The embodiment of the present utility model is realized in this way:

A packaging box including:

A rectangular sheet, which includes a front sheet, a back sheet and two side sheets, and can be folded along its vertical crease into a closed rectangular enclosure;

a bottom sealing structure, which is connected to the lower end of the rectangular sheet and can be folded to close the lower opening of the rectangular surrounding wall; and

a top cover structure, which is connected to the upper end of the rectangular sheet and can foldably cover or open the upper opening of the rectangular surrounding wall;

Wherein, the top cover structure includes a cover piece connected to the upper edge of the back piece, a front folded piece connected to the upper edge of the front piece, and a side folded piece connected to the upper edge of each of the side pieces respectively;

The junction of the front folded sheet and the front sheet is provided with parallel and spaced front double folds, the front double folds define the front connecting sheet, and can be folded along the double folds so that the front connecting sheet is located on the top surface of the packaging box. The state in which the inner and front folded sheets are located within the rectangular enclosure;

The junction of the side folded sheet and the side sheet is provided with parallel and spaced side double folds, and side connecting pieces are defined between the side double folds, and can be folded along the double folds until the side connecting pieces are located on the top surface of the packaging box. The state where the inner and side folded sheets are located within the rectangular enclosure;

One side of the cover sheet is connected to the back sheet through a single crease, and the cover sheet can be folded along the single crease to a position within the top surface of the packaging box, and at this position, the other side of the cover sheet can be folded. The three sides are respectively connected to a folded edge through a single fold; and each folded edge can be folded along the corresponding single fold relative to the cover sheet toward the bottom of the packaging box, so that in the closed state of the top cover structure, each folded edge can be folded toward the bottom of the box. In the rectangular surrounding wall and laterally abutting against the side folded sheet/front folded sheet, the cover sheet is adapted to close the opening enclosed by the side connecting sheet and the front connecting sheet.

The beneficial effects of the present utility model include:

(1) Due to the double crease structure, in this solution, the front connecting piece and the side connecting piece of the folded and formed packaging box are in contact with the folded edge, which effectively improves the stiffness of the box body;

(2) The front connecting piece and the side connecting piece are located in the top surface of the packaging box, which strengthens the thickness of the edges and corners of the box body, improves the molding effect of the box body, and solves the warping problem of the box cover of the previous packaging box; thus effectively improving the appearance of the packaging box Visual effects, suitable for the packaging of tobacco, wine, cosmetics, medicines, exhibits, stationery and other products.

In one embodiment:

In the unfolded state, the single crease at the junction of the cover sheet and the back sheet, the crease of the front double crease close to the side of the bottom sealing structure, and the side double crease close to all The folds on one side of the bottom sealing structure are collinear.

In one embodiment:

Both the side folded sheet and the front folded sheet are cut off part of the material from both sides to form a trapezoidal structure that is large at the bottom and small at the top.

In one embodiment:

The corners of the front folded sheet and the side folded sheet are rounded.

In one embodiment:

The side edges of the front folded sheet and the side folded sheet are both sides minus the trapezoidal structure of the lower part of the material and the upper part, and in the closed state of the top cover structure, the front folded sheet and the two The side folded sheets are respectively matched with the corresponding three sides of the cover sheet, and are combined with the cover sheet to form a complete rectangle.

In one embodiment:

The bottom sealing structure includes bottom sheets respectively connected to the front sheet, the back sheet and the lower sides of the two side sheets, and the four bottom sheets are connected to each other in a superimposed state to close the lower opening of the rectangular surrounding wall.

The utility model also provides a 3D packaging box formed by folding the aforementioned packaging box parts.

In one embodiment:

It also includes a base, which is placed in the rectangular surrounding wall and supported on the bottom cover of the packaging box formed by connecting the bottom sealing structures.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings mentioned in the embodiments will be briefly introduced below. It should be understood that the following drawings only show some embodiments of the present invention, therefore It should not be regarded as a limitation of the scope. For those of ordinary skill in the art, other related drawings can also be obtained from these drawings without any creative effort.

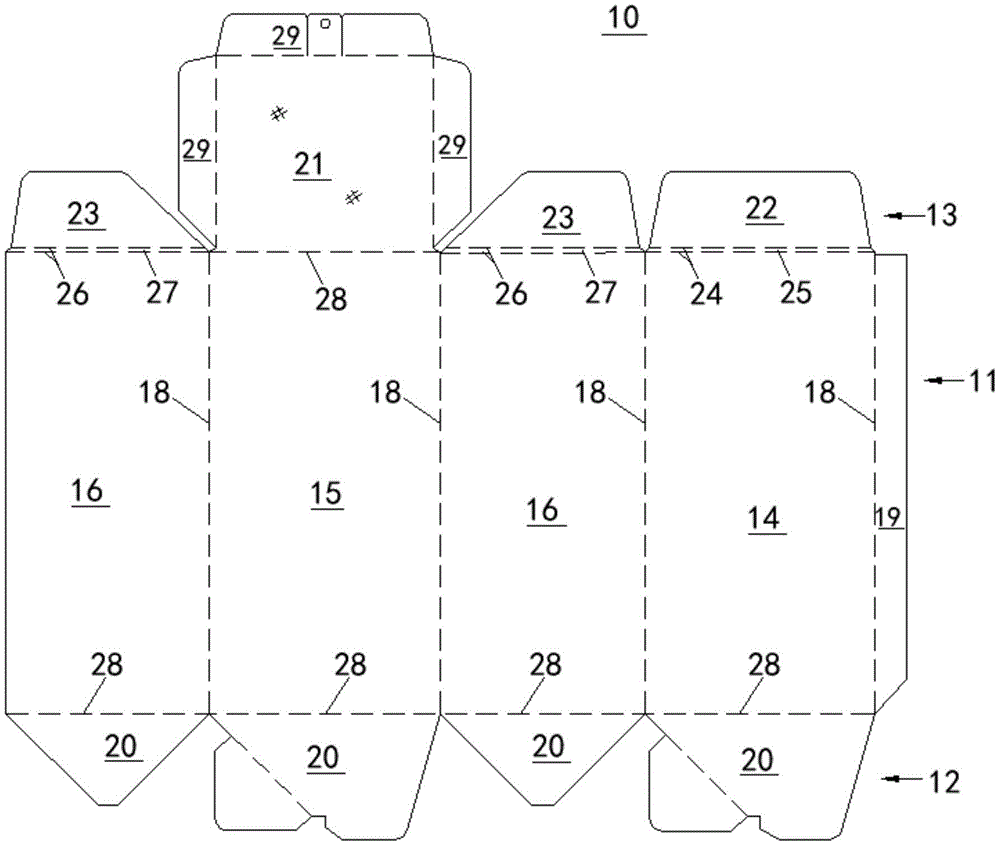

Fig. 1 is the structural representation of the packing box in the utility model embodiment;

Fig. 2 is the schematic diagram of the 3D packaging box folded into the packaging box (top cover structure is closed);

FIG. 3 is a schematic diagram of a 3D packaging box formed by folding the packaging box parts (the top cover structure is opened).

Icon: packing box 10, rectangular sheet 11, bottom sealing structure 12, top cover structure 13, front sheet 14, back sheet 15, side sheet 16, rectangular wall 17, vertical crease 18, side sheet 19, bottom sheet 20 , cover sheet 21, front folded sheet 22, side folded sheet 23, front double fold 24, front connecting piece 25, side double fold 26, side connecting piece 27, single fold 28, folded edge 29, 3D packaging box 30 .

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present utility model clearer, the technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. The embodiments described above are a part of the embodiments of the present invention, but not all of the embodiments. The components of the embodiments of the invention generally described and illustrated in the drawings herein may be arranged and designed in a variety of different configurations.

Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It should be noted that like numerals and letters refer to like items in the following figures, so once an item is defined in one figure, it does not require further definition and explanation in subsequent figures.

In the description of the present invention, it should be noted that if the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner", "lower", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the accompanying drawings, or the orientation or positional relationship that is usually placed when the utility model product is used, is only for the convenience of describing the present utility model and simplifying the description, Rather than indicating or implying that the indicated device or element must have a particular orientation, be constructed and operate in a particular orientation, it should not be construed as a limitation of the present invention. In addition, if the terms "first", "second" and the like appear in the description of the present invention, they are only used to distinguish the description, and should not be construed as indicating or implying relative importance.

In addition, the appearance of terms such as "horizontal", "vertical" and the like in the description of the present invention does not mean that the components are required to be absolutely horizontal or suspended, but may be slightly inclined. For example, "horizontal" only means that its direction is more horizontal than "vertical", it does not mean that the structure must be completely horizontal, but can be slightly inclined.

In the description of the present utility model, it should also be noted that, unless otherwise expressly specified and limited, the terms "arrangement", "installation", "connection" and "connection" should be understood in a broad sense, for example, it may be A fixed connection can also be a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Example

Referring to FIG. 1 (see FIG. 2 and FIG. 3 for cooperation), the present embodiment provides a packaging box 10 , which includes a rectangular sheet 11 , a bottom sealing structure 12 and a top cover structure 13 . The packaging box 10 mentioned herein can be considered as a flat cardboard with appropriate creases set on it, so that it can be folded along the creases into a desired 3D packaging box for packaging of products such as cigarettes and wine.

In the packaging box 10 , the rectangular sheet 11 includes a front sheet 14 , a back sheet 15 and two side sheets 16 , and can be folded along its vertical crease 18 to form a closed rectangular surrounding wall 17 . As shown in FIG. 1 , the side panel 16 , the back panel 15 , the side panel 16 , and the front panel 14 are connected in sequence through a vertical crease 18 . Of course, in order to facilitate the end-to-end connection required when the four enclose the rectangular wall 17 , a side piece 19 is also connected to the outer side of the front piece 14 . In this way, when enclosing the rectangular wall 17 , the side pieces 19 can be stacked and bonded to the inner surface of the outer side pieces 16 . The side panel 19 and the front panel 14 may also be connected by a vertical fold 18 .

Of course, the front piece 14 and the back piece 15 in this embodiment are in a front-to-back relationship, and from different angles, the front piece 14 can also be regarded as being located at the back.

The bottom sealing structure 12 is connected to the lower end of the rectangular sheet 11 and can be folded to close the lower opening of the rectangular surrounding wall 17 . The bottom seal structure 12 can adopt the common 3D packaging box 30 setting form. For example, as shown in the figure, the bottom seal structure 12 includes a bottom sheet 20 connected to the front sheet 14, the back sheet 15 and the lower sides of the two side sheets 16 respectively, and four bottom sheets 20. They are connected to each other in a superimposed state to close the lower opening of the rectangular surrounding wall 17 . The two parts of each bottom sheet 20 can be glued together by overlapping parts, and then the box bottom is formed through the middle notch part, inside and outside, to form the box bottom, which will not be repeated here. Each backsheet 20 and the front panel 14/back panel 15/side panel 16 are also connected by a single crease 28.

The top cover structure 13 is connected to the upper end of the rectangular sheet 11 , and can foldably cover or open the upper opening of the rectangular surrounding wall 17 . The top cover structure 13 includes a cover sheet 21 connected to the upper side of the back sheet 15 , a front folded sheet 22 connected to the upper side of the front sheet 14 , and side folded sheets 23 connected to the upper sides of each side sheet 16 respectively.

The junction of the front folded sheet 22 and the front sheet 14 is provided with parallel and spaced front double folds 24, the front double folds 24 define a front connecting piece 25, and can be folded along the double folds so that the front connecting piece 25 is located in the 3D The state in which the front folded sheet 22 is located within the rectangular enclosure wall 17 within the top surface of the packaging box 30 .

The junction of the side folded sheet 23 and the side sheet 16 is provided with parallel and spaced side double folds 26, the side double folds 26 define side connecting pieces 27, and can be folded along the side double folds 26 to make the side connecting pieces 27 A state in which the side folded sheet 23 is located within the top surface of the 3D packaging box 30 and the side folded sheet 23 is located within the rectangular surrounding wall 17 .

The width of the front connecting piece 25/side connecting piece 27 formed by the front double folds 24/side double folds 26 will be visually reflected as the thickness of the side wall of the box body when the boxes are stacked.

One side of the cover sheet 21 is connected to the back sheet 15 through a single crease 28, and the cover sheet 21 can be folded along the single crease 28 to a position within the top surface of the 3D packaging box 30; The other three sides are respectively connected to a folded edge 29 through a single fold 28; and each folded edge 29 can be folded along the corresponding single fold 28 relative to the cover sheet 21 toward the bottom of the 3D packaging box 30, so that the cover of the top cover structure 13 can be folded toward the bottom of the 3D packaging box 30. In the closed state, each folded edge 29 laterally abuts with the side folded sheet 23/front folded sheet 22 in the rectangular surrounding wall 17, and the cover sheet 21 is adapted to close the opening enclosed by the side connecting sheet 27 and the front connecting sheet 25. As shown in FIG. 1 , in the unfolded state, the single crease 28 at the junction of the cover sheet 21 and the back sheet 15 , the crease of the front double crease 24 close to the side of the bottom seal structure 12 , and the side double crease 26 The folds on the side close to the bottom sealing structure 12 are collinear.

The beneficial effects of the present utility model include:

(1) Due to the double fold structure, the front connecting piece 25, the side connecting piece 27 and the folding edge 29 of the folded and formed 3D packaging box 30 in this solution are in contact with each other, which effectively improves the stiffness of the box body;

(2) The front connecting piece 25 and the side connecting piece 27 are located in the top surface of the 3D packaging box 30, which strengthens the thickness of the edges and corners of the box body, improves the molding effect of the box body, and solves the warping problem of the lid of the 3D packaging box piece 10 in the past;

(3) Effectively enhance the visual effect of the appearance of the 3D packaging box 30, which is suitable for the packaging of tobacco, wine, cosmetics, medicines, exhibits, stationery and other products.

In this embodiment, both the side folded sheet 23 and the front folded sheet 22 are partially cut from both sides of the material to form a trapezoidal structure that is large at the bottom and small at the top. In this way, the folding of the side folded sheet 23/the front folded sheet 22 can be facilitated, and the blocking by the rectangular surrounding wall 17 can be avoided during the folding process. Optionally, the corners of the front folded sheet 22 and the side folded sheet 23 are rounded.

In this embodiment, the side edges of the front folded sheet 22 and the side folded sheet 23 are both sides minus the trapezoidal structure of the lower part of the material and the upper part. The two side folded sheets 23 are respectively matched with the corresponding three sides of the cover sheet 21, and together with the cover sheet 21, form a complete rectangle.

The 3D packaging box 30 formed by folding the packaging box member 10 in this embodiment can be seen in FIG. 2 or FIG. 3 .

Optionally, the 3D packaging box 30 further includes a base (not shown), and the base is placed in the rectangular surrounding wall 17 and supported on the bottom cover of the 3D packaging box 30 formed by connecting the bottom sealing structures 12 . The base can be a base made of sponge material or wood material, etc., for carrying products to be packaged, such as wine bottles.

The 3D packaging box 30 in this embodiment can be sealed by structures such as rivets or fasteners. When it needs to be opened, it can be opened by removing the rivets and buckles. Of course, it can also be implemented in the form of a plug tongue.

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. For those skilled in the art, the present invention may have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (8)

1. a packing box is characterized in that, comprising: A rectangular sheet, which includes a front sheet, a back sheet and two side sheets, and can be folded along its vertical crease into a closed rectangular enclosure; a bottom sealing structure, which is connected to the lower end of the rectangular sheet and can be folded to close the lower opening of the rectangular surrounding wall; and a top cover structure, which is connected to the upper end of the rectangular sheet and can foldably cover or open the upper opening of the rectangular surrounding wall; Wherein, the top cover structure includes a cover piece connected to the upper edge of the back piece, a front folded piece connected to the upper edge of the front piece, and a side folded piece connected to the upper edge of each of the side pieces respectively; The junction of the front folded sheet and the front sheet is provided with parallel and spaced front double folds, the front double folds define the front connecting sheet, and can be folded along the double folds so that the front connecting sheet is located on the top surface of the packaging box. The state in which the inner and front folded sheets are located within the rectangular enclosure; The junction of the side folded sheet and the side sheet is provided with parallel and spaced side double folds, and side connecting pieces are defined between the side double folds, and can be folded along the double folds until the side connecting pieces are located on the top surface of the packaging box. The state where the inner and side folded sheets are located within the rectangular enclosure; One side of the cover sheet is connected to the back sheet through a single crease, and the cover sheet can be folded along the single crease to a position within the top surface of the packaging box, and at this position, the other side of the cover sheet can be folded. The three sides are respectively connected to a folded edge through a single fold; and each folded edge can be folded along the corresponding single fold relative to the cover sheet toward the bottom of the packaging box, so that in the closed state of the top cover structure, each folded edge can be folded toward the bottom of the box. In the rectangular surrounding wall and laterally abutting against the side folded sheet/front folded sheet, the cover sheet is adapted to close the opening enclosed by the side connecting sheet and the front connecting sheet. 2. The packing box according to claim 1, characterized in that: In the unfolded state, the single crease at the junction of the cover sheet and the back sheet, the crease of the front double crease close to the side of the bottom sealing structure, and the side double crease close to all The folds on one side of the bottom sealing structure are collinear. 3. The packing box according to claim 1, characterized in that: Both the side folded sheet and the front folded sheet are cut off part of the material from both sides to form a trapezoidal structure that is large at the bottom and small at the top. 4. The packing box according to claim 1, characterized in that: The corners of the front folded sheet and the side folded sheet are rounded. 5. The packing box according to claim 1, characterized in that: The side edges of the front folded sheet and the side folded sheet are both sides minus the trapezoidal structure of the lower part of the material and the upper part, and in the closed state of the top cover structure, the front folded sheet and the two The side folded sheets are respectively matched with the corresponding three sides of the cover sheet, and are combined with the cover sheet to form a complete rectangle. 6. The packing box according to claim 1, characterized in that: The bottom sealing structure includes bottom sheets respectively connected to the front sheet, the back sheet and the lower sides of the two side sheets, and the four bottom sheets are connected to each other in a superimposed state to close the lower opening of the rectangular surrounding wall. 7. A 3D packaging box, characterized in that: it is formed by folding the packaging box according to any one of claims 1-6. 8. 3D packing box according to claim 7, is characterized in that: It also includes a base, which is placed in the rectangular surrounding wall and supported on the bottom cover of the packaging box formed by connecting the bottom sealing structures.
