CN212123627U - Automatic nail angle device for energy-saving efficient plate production - Google Patents

Abstract

The utility model discloses an automatic nail angle device for energy-saving and high-efficiency plate production, which comprises a frame and a working platform arranged on the frame; a nailing mechanism is arranged under the working platform; The nailing mechanism is provided with a nailing through slot; the upper surface of the working platform is rotatably provided with a rotating plate mechanism; the plate is placed on the rotating plate mechanism and is driven and rotated by the rotating plate mechanism; the nailing through groove is located in the moving path of the top corner of the plate The top of the working platform is also provided with a pressing mechanism; the pressing end of the pressing mechanism is movably connected with the upper surface of the plate; the technical solution adopted by the utility model solves the problem that the existing angle nailing machine is inconvenient to move the plate This leads to problems of inconvenience and low processing efficiency.

Description

Automatic nail angle device for energy-saving and high-efficiency plate production

technical field

The utility model relates to the technical field of plate production equipment, in particular to an automatic nail angle device for energy-saving and high-efficiency plate production.

Background technique

In the production process of woodworking furniture, it is often necessary to bind the right angles of various plates at right angles, so a nail angle machine is required; the existing nail angle machine mainly includes a working platform and a nail head arranged under the working platform. The through groove on the working platform enables the nail head to be nailed upwards; at the same time, a pressing mechanism is set above the working platform to fix the plate with the corner to be nailed to reduce shaking; because in the process of furniture plate processing, the plate that needs to be nailed has a general structure. It is regular but has a certain volume and weight. When nailing each corner, an operator needs to move the board and move each vertex to the position of the nail head in sequence, which leads to problems of inconvenience and low processing efficiency.

Utility model content

The purpose of the utility model is to provide an automatic nailing device for energy-saving and high-efficiency plate production, which solves the problem of inconvenience and low processing efficiency due to the inconvenience of the existing nailing machine for a regular plate with a certain weight and volume. The problem.

In order to solve the above-mentioned technical problems, the utility model adopts the following technical scheme: an automatic nail angle device for energy-saving and high-efficiency plate production, comprising a frame and a working platform arranged on the frame; nailing mechanism; the working platform is provided with a nailing through slot corresponding to the nailing mechanism; the upper surface of the working platform is rotatably provided with a rotating plate mechanism; the plate is placed on the rotating plate mechanism and is driven and rotated by the rotating plate mechanism; The nail through groove is located on the moving path of the top corner of the plate; a pressing mechanism is also arranged above the working platform; the pressing end of the pressing mechanism is movably connected with the upper surface of the plate;

Further, the rotating plate mechanism includes a driving motor, a transmission shaft and a rotating disk; the driving motor is arranged on the lower surface of the working platform; the driving motor is connected to the rotating disk through a transmission shaft;

Further, the pressing mechanism includes a mounting frame, a pressing cylinder, a telescopic rod and a pressing block; the bottom end of the mounting frame is connected to both sides of the working platform; the pressing cylinder is fixedly arranged on the mounting frame; One end of the telescopic rod is connected to the pressing cylinder and the other end is connected to the pressing block;

Further, the rotating disk is a circular disk; the pressing mechanism is arranged corresponding to the center of the rotating disk; the lower surface of the pressing block is provided with a first magnetic chuck; the rotating disk is provided with an installation slot corresponding to the first magnetic chuck ; A second magnetic chuck is arranged in the installation groove; the first magnetic chuck and the second magnetic chuck are magnetically adsorbed;

Further, a positioning slot is also provided on the working platform; a positioning member is movably arranged on the positioning slot; the positioning member is movably connected with the top corner of the plate;

Further, a support rod is also provided on the side wall of the rotating disk; the support rod includes at least two and is symmetrically arranged on the rotating flat side wall;

Further, a cushion block is provided on the worktable; the cushion block is movably connected with the support rod;

A further technical solution is that the support rod is a telescopic rod; the support rod is a prismatic structure.

Compared with the prior art, the beneficial effect of the present utility model is at least one of the following:

1. A turning plate mechanism is set on the upper surface of the working platform. After placing the plate with the corners to be nailed on the turning plate mechanism, the turning mechanism drives the plate to rotate, and moves the top corners of the plate to the position of the nailing through groove. Accept the role of the nailing mechanism under the nailing through groove, and the rotating plate mechanism plays the role of supporting and automatically rotating the plate, which is conducive to reducing the manual movement of the plate by the operator and improving the efficiency of the nail angle;

2. The nailing through groove is located on the moving path of the top corner of the plate. The specific opening position of the nailing through groove and the specific installation position of the nailing mechanism can be set according to the structure of the plate, so that the top angle of the plate can fall on the plate during rotation. The top of the nailing through groove is beneficial to improve the convenience of the nail angle of the board;

3. The pressing mechanism set on the working platform can press the plate during nailing, which is conducive to reducing the shaking of the plate and improving the effect of the nail angle;

4. The pressing end of the pressing mechanism is movably connected with the upper surface of the plate. When the plate needs to be rotated to make the next nail corner enter the nailing through slot, the pressing end of the pressing mechanism is separated from the upper surface of the plate, so that the plate is It can be rotated; when nailing is required, the pressing end of the pressing mechanism is pressed against the upper surface of the plate, which is conducive to stable nailing and improving the effect of nail angle.

Description of drawings

Fig. 1 is the front view structure schematic diagram of the utility model.

FIG. 2 is a schematic top view of the structure of the present invention.

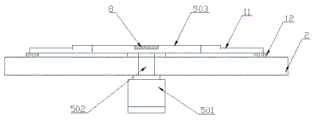

FIG. 3 is a schematic structural diagram of the rotating plate mechanism.

In the drawings: 1. frame; 2. working platform; 3. nailing mechanism; 4. nailing through groove; 5. rotating plate mechanism; 501. driving motor; 502. transmission shaft; Pressing mechanism; 601. Mounting frame; 602. Pressing cylinder; 603. Telescopic rod; 604. Pressing block; 7. First magnetic chuck; 8. Second magnetic chuck; 9. Positioning slot; 10. Positioning piece ; 11. Support rod; 12. Pad.

Detailed ways

In order to make the purpose, technical solutions and advantages of the present utility model more clearly understood, the present utility model will be further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are only used to explain the present invention, and are not intended to limit the present invention.

Example 1: As shown in Figures 1 to 3, an automatic nail angle device for energy-saving and high-efficiency plate production includes a frame 1 and a working platform 2 arranged on the frame 1; The nailing mechanism 3; the working platform 2 is provided with a nailing through slot 4 corresponding to the nailing mechanism 3; the upper surface of the working platform 2 is rotated and provided with a turning plate mechanism 5; The plate mechanism 5 is driven to rotate; the nailing through groove 4 is located on the moving path of the top corner of the plate; a pressing mechanism 6 is also arranged above the working platform 2; the pressing end of the pressing mechanism 6 is connected to the upper surface of the plate Active connection; in this embodiment, the nailing mechanism 3 selects a conventional commercially available nailing head, and any nailing mechanism 3 that can reasonably adjust the position of the nailing head can be selected according to needs; in this embodiment, the nailing The position of the through groove 4 can be set according to the plate with a large processing volume, and the notch area of the nailing through groove 4 is set reasonably, which is beneficial for each vertex of the plate to fall above the nailing through groove 4 .

On the upper surface of the working platform 2, a turning plate mechanism 5 is rotated and arranged. After placing the plate with the corners to be nailed on the turning plate mechanism 5, the turning mechanism drives the plate to rotate, and moves the top corners of the plate to the position of the nailing through groove 4. Position, accept the role of the nailing mechanism 3 below the nailing through groove 4, and the turning plate mechanism 5 plays the role of supporting and automatically rotating the plate, which is conducive to reducing the manual movement of the plate by operators and improving the efficiency of the nail angle; The groove 4 is located on the moving path of the top corner of the board. The specific opening position of the nailing through groove 4 and the specific installation position of the nailing mechanism 3 can be set according to the structure of the board, so that the top corner of the board can fall on the nailing during rotation. The upper part of the through groove 4 is conducive to improving the convenience of the nail angle of the board; the pressing mechanism 6 set on the working platform 2 can press the board during nailing, which is conducive to reducing the shaking of the board and improving the nail angle. Effect; the pressing end of the pressing mechanism 6 is movably connected with the upper surface of the plate, when the plate needs to be rotated to make the next nail angle enter the 4th position of the nailing through groove, the pressing end of the pressing mechanism 6 is separated from the upper surface of the plate , so that the plate can be rotated; when nailing is required, the pressing end of the pressing mechanism 6 is pressed against the upper surface of the plate, which is conducive to stable nailing and improving the effect of the nail angle.

The rotating plate mechanism 5 includes a driving motor 501, a transmission shaft 502 and a rotating disk 503; the driving motor 501 is arranged on the lower surface of the working platform 2; the driving motor 501 is connected to the rotating disk 503 through the transmission shaft 502; In the embodiment, the drive motor 501 selects a conventional commercially available stepping motor; any reasonable model and power can be selected as required; in this embodiment, the stepping motor is electrically connected to an external power supply and a conventional numerical control system, and is controlled by the numerical control system The stepping motor drives the rotating disk 503 to rotate according to a certain frequency, so that the rotation period and speed of the rotating disk 503 can be adjusted as required, which is beneficial to improve the efficiency and flexibility of processing; in this embodiment, the numerical control system can choose conventional PLC numerical control system, you can choose any reasonable control system according to your needs. In this embodiment, the transmission shaft 502 adopts a conventional transmission shaft 502, and is connected to the working platform 2 through a bearing member, which is beneficial to improve the stability of rotation; It is made of material, and any reasonable material can be selected according to needs; in this embodiment, the distance between the rotating disk 503 and the surface of the working platform 2 is set appropriately, which is beneficial for the nailing machine and the pressing mechanism 6 to stably press the plate . The rotating shaft and the rotating disk 503 are driven by the driving motor 501 on the working platform 2 to rotate at an appropriate frequency and cycle, so that the top corners of the plates can automatically enter the top of the nailing through grooves 4 for nailing in turn, which is beneficial to improve the nailing angle. efficiency.

The pressing mechanism 6 includes a mounting frame 601, a pressing cylinder 602, a telescopic rod 603 and a pressing block 604; the bottom end of the mounting frame 601 is connected to both sides of the working platform 2; One end of the telescopic rod 603 is connected to the pressing cylinder 602 and the other end is connected to the pressing block 604; in this embodiment, the mounting frame 601 is made of a material with a certain mechanical strength, and any one can be selected as required Reasonable material; the bottom end of the mounting frame 601 is connected to both sides of the working platform 2, which is beneficial to avoid the mounting frame 601 from affecting the rotation of the turning plate mechanism 5; Connected to an external power supply, any reasonable cylinder diameter and type of cylinder can be selected according to needs; in this embodiment, the pressing cylinder 602 can also be connected to the above-mentioned control system, controlled by the control system, cooperates with the turning plate mechanism 5, downward Press the plate; in this embodiment, the telescopic rod 603, the pressing cylinder 602 and the pressing block 604 adopt a conventional fixed connection method, and the driving of the pressing cylinder 602 drives the telescopic rod 603 to reciprocate above the working platform 2, so that the pressing The tightening block 604 reciprocates up and down, and presses the board according to a certain period, which is beneficial to stabilize the board, reduce the shaking of the board, and improve the nail angle effect.

The rotating disc 503 is a circular disc; the pressing mechanism 6 is arranged corresponding to the center of the turntable; the lower surface of the pressing block 604 is provided with a first magnetic chuck 7 ; the rotating disc 503 is arranged corresponding to the first magnetic chuck 7 There is an installation slot; a second magnetic chuck 8 is arranged in the installation slot; the first magnetic chuck 7 and the second magnetic chuck 8 are magnetically adsorbed; in this embodiment, the rotating disc 503 adopts a disc structure, which is beneficial to improve the rotation The flexibility of the rotation of the plate 503, the pressing mechanism 6 is arranged corresponding to the center of the turntable, which is conducive to pressing the plate from the center of the plate, and is conducive to improving the pressing effect; in this embodiment, the first magnetic chuck 7 and the second magnetic chuck 8 They are all made of conventional magnetic materials with certain adsorption strength and mechanical strength. By setting the first magnetic suction cup 7 and the second magnetic suction cup 8, it is beneficial to enhance the clamping effect of the pressing block 604 and the rotating disk 503 on the plate, which is beneficial to The stability of the nail angle is improved, and at the same time, the magnetic adsorption connection is beneficial to the separation of the pressing block 604; The surface is flush, which helps to save space and facilitate stable board placement.

The working platform 2 is also provided with a positioning slot 9; a positioning member 10 is movably arranged on the positioning slot 9; the positioning member 10 is movably connected with the top corner of the plate; The L-shaped positioning member 10 is selected to be used, and the positioning slot 9 is set corresponding to the positioning member 10. The positioning member 10 is used when placing the plate, which is conducive to aligning the center of the plate with the center of the rotating disk 503, and is conducive to the top corner of the plate when it is rotated. Nail on the through slot 4; after the plate is placed, the positioning member 10 can be taken out from the positioning slot 9 to prevent the positioning member 10 from affecting the rotation of the plate. In this embodiment, the setting position of the positioning slot 9 can be pre-processed according to the structure of the plate.

The side walls of the rotating disk 503 are also provided with support rods 11 ; the support rods 11 include at least two and are symmetrically arranged on the rotating flat side walls; in this embodiment, the support rods 11 are beneficial to cushion the rotating disk 503 The gap between the working platform 2 and the working platform 2 is beneficial to reduce the occurrence of one side warping when the nail angle is raised; the support rods 11 include at least two, and they are arranged symmetrically, which is conducive to improving the stability. Affects the corner work of the nailing mechanism 3 .

The worktable is provided with a cushion block 12; the cushion block 12 is movably connected with the support rod 11; in this embodiment, the cushion block 12 and the support rod 11 are movably connected, which is beneficial to enhance the effect of cushioning the rotating disk 503, and the cushion The setting position of the block 12 is set corresponding to the moving path and stop point of the support rod 11 . The cushion block 12 and the support rod 11 may also adopt conventional movable connection methods such as magnetic adsorption, or any reasonable movable connection method may be selected according to needs.

The support rod 11 is a telescopic rod 603; the support rod 11 is a prismatic structure; in this embodiment, the support rod 11 is a prismatic structure, such as a quadrangular prism, which is beneficial to improve the support stability. In this embodiment, the support rod 11 It is set as a conventional telescopic rod 603 structure, and any reasonable telescopic rod 603 structure with a fixed telescopic length can be selected as required, and the support rod 11 is set as a telescopic rod 603 structure, and the length of the support rod 11 can be adjusted as required. Helps to improve the stability of the support.

Although the present invention has been described herein with reference to a number of illustrative embodiments thereof, it should be understood that many other modifications and implementations can be devised by those skilled in the art that will fall within the scope of this application within the scope and spirit of the principles disclosed. More particularly, various variations and modifications are possible in the component parts and/or arrangements of the subject combination arrangement within the scope of the present disclosure, drawings and claims. In addition to variations and modifications to the component parts and/or arrangements, other uses will also be apparent to those skilled in the art.

Claims (8)

1. An automatic corner nailing device for energy-saving and efficient plate production comprises a rack (1) and a working platform (2) arranged on the rack (1); a nailing mechanism (3) is arranged below the working platform (2); a nailing through groove (4) is arranged on the working platform (2) corresponding to the nailing mechanism (3); the method is characterized in that: a rotating plate mechanism (5) is rotatably arranged on the upper surface of the working platform (2); the plate is arranged on the plate rotating mechanism (5) and is driven to rotate by the plate rotating mechanism (5); the nailing through groove (4) is positioned on a moving path of the top angle of the plate; a pressing mechanism (6) is also arranged above the working platform (2); and the pressing end of the pressing mechanism (6) is movably connected with the upper surface of the plate.

2. The automatic nail angle device for energy-saving and efficient plate production according to claim 1, is characterized in that: the rotating plate mechanism (5) comprises a driving motor (501), a transmission shaft (502) and a rotating disc (503); the driving motor (501) is arranged on the lower surface of the working platform (2); the drive motor (501) is connected to a turn disc (503) by a drive shaft (502).

3. The automatic nail angle device for energy-saving and efficient plate production according to claim 2, characterized in that: the pressing mechanism (6) comprises a mounting frame (601), a pressing cylinder (602), an expansion rod (603) and a pressing block (604); the bottom end of the mounting rack (601) is connected with two sides of the working platform (2); the pressing cylinder (602) is fixedly arranged on the mounting frame (601); one end of the telescopic rod (603) is connected with the pressing cylinder (602) and the other end is connected with the pressing block (604).

4. The automatic nail angle device for energy-saving and high-efficiency plate production according to claim 3, characterized in that: the rotating disc (503) is a circular disc; the pressing mechanism (6) is arranged corresponding to the center of the turntable; a first magnetic suction disc (7) is arranged on the lower surface of the pressing block (604); the rotating disc (503) is provided with a mounting groove corresponding to the first magnetic suction disc (7); a second magnetic disc (8) is arranged in the mounting groove; the first magnetic suction disc (7) and the second magnetic suction disc (8) are magnetically attracted.

5. The automatic nail angle device for energy-saving and high-efficiency plate production according to claim 4, is characterized in that: the working platform (2) is also provided with a positioning slot (9); a positioning piece (10) is movably arranged on the positioning slot (9); the positioning piece (10) is movably connected with the top corner of the plate.

6. The automatic nail angle device for energy-saving and efficient plate production according to claim 2, characterized in that: a support rod (11) is further arranged on the side wall of the rotating disc (503); the support rods (11) at least comprise two support rods which are symmetrically arranged on the rotating flat side wall.

7. The automatic nail angle device for energy-saving and efficient plate production according to claim 6, is characterized in that: a cushion block (12) is arranged on the workbench; the cushion block (12) is movably connected with the support rod (11).

8. The automatic nail angle device for energy-saving and efficient plate production according to claim 6, is characterized in that: the supporting rod (11) is a telescopic rod (603); the support rod (11) is of a prism structure.
