Abstract

The utility model discloses a spraying device for kiwifruit planting. A casing, the interior of the casing is provided with a screw device, the power output end of the screw device is fixed with a connecting rod, a lower slider is fixed on the upper part of the connecting rod close to the lower end, and the upper end of the connecting rod is fixed with a connecting rod. The upper sliding block is provided with a lower guide rail matched with the lower sliding block inside the casing, and support rods are fixed on both sides of the upper surface of the casing. The utility model is provided with a driving device for the sprinkler head. The rod body can drive the nut to move in the horizontal direction, and the support rod can reciprocate. When the support rod reciprocates, the upper slider can drive the sprinkler head to reciprocate, so that the sprinkler head can spray a large area and avoid adding manual carts. Frequency of.

Description

A spray device for kiwi fruit planting

technical field

The utility model relates to the technical field of kiwifruit, in particular to a spraying device for kiwifruit planting.

Background technique

China is the origin of the kiwifruit, which was introduced to New Zealand in the early 20th century. On November 6, 2008, at the International Kiwifruit Conference held in New Zealand, more than 200 experts from 19 countries in the world agreed that: China is the origin of kiwifruit, and the origin of kiwifruit in the world is Wuduhe Town, Yiling District, Yichang City, Hubei Province;

In order to avoid pests on the kiwifruit, a spraying device is required to spray the kiwifruit. The spraying device in the prior art is generally an operator's trolley body, which is provided with a liquid medicine and a spray head. The spray head in the prior art generally sprays the position It is fixed and cannot be adjusted deformed, so it cannot be sprayed on a large area. If a large area is required, the operator needs to push the car body frequently, which is more troublesome.

Utility model content

The purpose of this utility model is to provide a spraying device for kiwifruit planting, which solves the problem that the general spraying position of the nozzle in the prior art is fixed and cannot be adjusted deformed, resulting in the inability to spray on a large area. The operator frequently pushes the car body, which is a more troublesome problem.

In order to achieve the above purpose, the present invention provides the following technical solutions: a spraying device for kiwifruit planting, comprising a base, a medicine mixing device is installed on one side of the upper surface of the base, and a medicine mixing device is installed on the other side of the upper surface of the base. A drive device, the drive device includes a casing, a screw device is arranged inside the casing, a connecting rod is fixed at the power output end of the screw device, and a lower slider is fixed on the upper part of the connecting rod near the lower end , and an upper slider is fixed on the upper end of the connecting rod, a lower guide rail matched with the lower slider is arranged inside the casing, a support rod is fixed on both sides of the upper surface of the casing, and the upper end of the support rod is installed with The upper guide rail matched with the upper slide block is provided with a spray head, and a water outlet device is connected between the spray head and the medicine mixing device.

Preferably, walking wheels are installed at four corners of the lower surface of the base, and a push handle is installed on the side of the upper surface of the base close to the medicine mixing device.

Preferably, the medicine mixing device includes a mixing chamber, the water outlet device includes a medicine outlet pipe, the upper end of the medicine outlet pipe is inserted into the lower part of the interior of the mixing chamber, the other end of the medicine outlet pipe is installed with a water pump, and the water outlet end of the water pump is provided with There is a connecting pipe, and a hose is connected between the connecting pipe and the spray head.

Preferably, a feeding port is installed on the upper side of the mixing chamber, a stirring frame is installed inside the mixing chamber, and a driving member for driving the stirring frame to rotate is installed on the upper side of the mixing chamber, and the mixing chamber is Brackets are installed on both sides below.

Preferably, the spray head includes a spray pipe and a spray head, and the spray head is installed obliquely below the spray pipe.

Preferably, the screw device includes a motor and a screw main body, the screw main body is installed inside the casing through a bearing, the motor is used to drive the screw main body to rotate forward and reverse, and the outer circumference of the screw main body is threadedly connected with a nut, the The lower end of the connecting rod is fixed with the upper end face of the nut.

Compared with the prior art, the beneficial effects of the present utility model are: the present utility model is provided with a driving device for the sprinkler head, the main screw rod in the driving device can drive the nut to move in the horizontal direction, and the support rod can reciprocate. , When the support rod reciprocates, the upper slider can drive the sprinkler head to reciprocate, so that the sprinkler head can spray a large area and avoid increasing the frequency of manual carts.

Description of drawings

The accompanying drawings are used to provide a further understanding of the present invention, and constitute a part of the specification, and are used to explain the present invention together with the embodiments of the present invention, and do not constitute a limitation to the present invention. In the attached image:

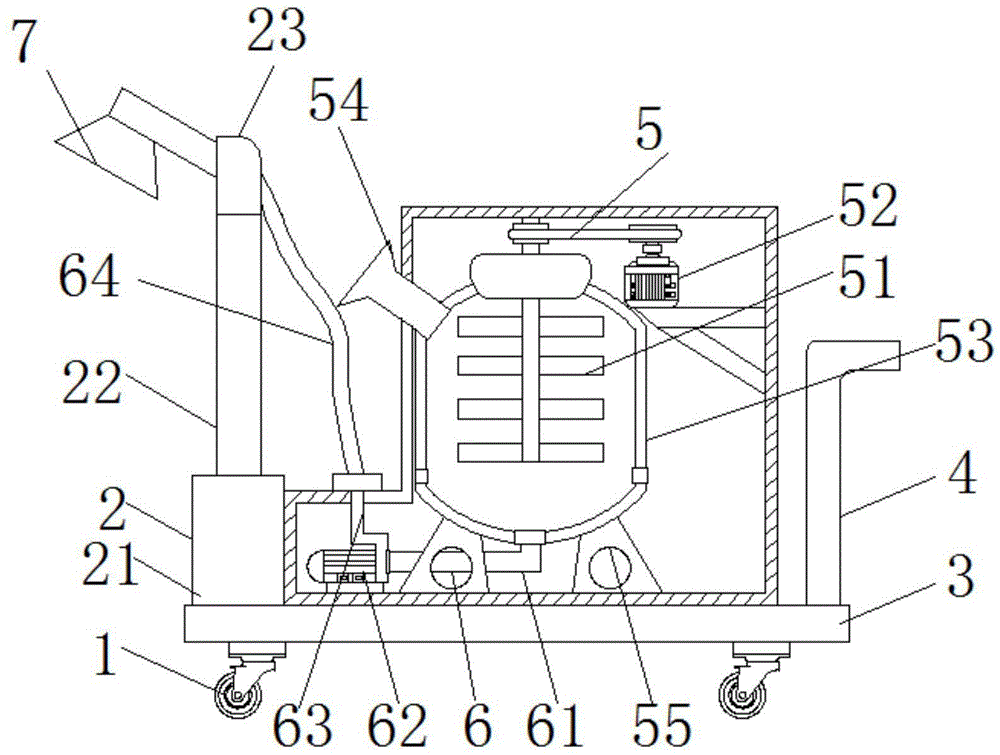

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the side view of the sprinkler head installed in the drive device of the present invention;

FIG. 3 is a side view of the driving device of the present invention.

In the figure: 1. Walking wheel; 2. Driving device; 21. Housing; 22. Support rod; 23. Upper guide rail; 24. Lower guide rail; 25. Connecting rod; 26. Lower slider; 27. Screw device; 271 , motor; 272, screw body; 273, nut; 28, upper slider; 3, base; 4, push handle; 5, mixing device; 51, stirring frame; 52, driving part; 53, mixing chamber; 54 , feeding port; 55, bracket; 6, water outlet device; 61, drug outlet pipe; 62, water pump; 63, connecting pipe; 64, hose; 7, sprinkler head; 71, nozzle; 72, sprinkler head.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present invention more clear, the technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described The embodiments of the present invention are a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention. Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIG. 1 , in the embodiment of the present utility model, a spraying device for kiwifruit planting includes a base 3, and four corners of the lower surface of the base 3 are installed with walking wheels 1, and the upper surface of the base 3 is close to A push handle 4 is installed on one side of the mixing device 5. By pushing the push handle 4, the traveling wheel 1 can be rotated, and then the traveling wheel 1 can conveniently drive the device to move, so as to supply kiwifruit in different positions for spraying;

As shown in FIG. 1 , a mixing device 5 is installed on the upper surface of the base 3 . The mixing device 5 includes a mixing chamber 53 , a feeding port 54 is installed on the upper side of the mixing chamber 53 , and a stirring chamber is installed inside the mixing chamber 53 Rack 51, and a driving member 52 for driving the stirring rack 51 to rotate is installed on the upper side of the mixing chamber 53, and brackets 55 are installed on both sides of the lower side of the mixing chamber 53, and the medicine and water are fed and mixed through the feeding port 54. Inside the chamber 53, the driving member 52 drives the stirring frame 51 to mix water and medicine, and the support 55 can support the mixing chamber 53 on the upper surface of the base 3;

1 and 2, a driving device 2 is provided on the other side of the upper surface of the base 3, and the driving device 2 can drive the spray head 7 to move. The driving device 2 includes a housing 21, and a screw device 27 is arranged inside the housing 21 , the housing 21 plays the role of protecting the screw device 27, the power output end of the screw device 27 is fixed with a connecting rod 25, the screw device 27 includes a motor 271 and a screw main body 272, and the screw main body 272 is mounted on the housing 21 through a bearing. Inside, the motor 271 is used to drive the screw main body 272 to rotate forward and reverse, the outer circumference of the screw main body 272 is threadedly connected with a nut 273, the lower end of the connecting rod 25 is fixed with the upper end face of the nut 273, and the motor 271 can drive the screw main body 272 Forward and reverse rotation, and the screw main body 272 can drive the nut 273 to move in the horizontal direction, so as to drive the spray head 7 to move and expand the spray range;

2 and 3 , a lower slide block 26 is fixed on the upper end of the connecting rod 25 near the lower end, and an upper slide block 28 is fixed on the upper end of the connecting rod 25 . The lower guide rail 24, both sides of the upper surface of the casing 21 are fixed with support rods 22, the upper end of the support rod 22 is installed with the upper guide rail 23 that cooperates with the upper slider 28, the nut 273 can drive the connecting rod 25 to reciprocate, and the connecting rod 25 When reciprocating, the upper slider 28 moves inside the upper guide rail 23, and the lower slider 26 slides inside the lower guide rail 24;

1 and 2, the upper slider 28 is provided with a spray head 7, the spray head 7 includes a spray pipe 71 and a spray head 72, the spray head 72 is installed obliquely below the spray pipe 71, and the liquid medicine enters the inside of the spray pipe 71 and then flows from the spray pipe 71. Nozzle 72 sprays out;

As shown in FIG. 1, a water outlet device 6 is connected between the spray head 7 and the medicine mixing device 5. The water outlet device 6 includes a medicine outlet pipe 61. A stop valve should be installed on the medicine outlet pipe 61, and the upper end of the medicine outlet pipe 61 is inserted into the mixing chamber. Below the inside of 53, a water pump 62 is installed at the other end of the medicine outlet pipe 61, and the water outlet end of the water pump 62 is provided with a connecting pipe 63, and a hose 64 is connected between the connecting pipe 63 and the spray head 7, and the medicine is discharged from the medicine outlet pipe 61. The medicine then enters the connecting pipe 63 through the water pump 62 , then enters the hose 64 , and finally enters the inside of the spray head 7 .

The working principle and use process of the utility model: when using the device, the walking wheel 1 can be rotated by pushing the push handle 4, and then the walking wheel 1 can conveniently drive the device to move, so as to supply kiwi fruit in different positions for spraying, The medicine and water are fed into the mixing chamber 53 through the feeding port 54, and the driving member 52 drives the stirring frame 51 to mix the water and the medicine. Enter the connecting pipe 63 through the water pump 62, then enter the hose 64, and finally enter the inside of the nozzle 71 and then spray from the nozzle 72;

When a large area is required to be sprayed, the motor 271 can drive the screw main body 272 to rotate forward and reverse, and the screw main body 272 can drive the nut 273 to move in the horizontal direction. The guide rail 23 and the nut 273 can drive the connecting rod 25 to reciprocate. When the connecting rod 25 reciprocates, the upper slider 28 moves inside the upper guide rail 23, the lower slider 26 slides inside the lower guide rail 24, and the upper slider 28 can drive the sprinkler head 7. Reciprocating movement, so that the spray head 7 sprays a large area.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (6)

1. The utility model provides a kiwi fruit is planted with spouting medicine device, includes base (3), its characterized in that: the medicine mixing device (5) is installed on one side of the upper surface of the base (3), the driving device (2) is arranged on the other side of the upper surface of the base (3), the driving device (2) comprises a shell (21), a screw rod device (27) is arranged inside the shell (21), a connecting rod (25) is fixed to the power output end of the screw rod device (27), a lower slider (26) is fixed to the position, close to the lower end, of the connecting rod (25), an upper slider (28) is fixed to the upper end of the connecting rod (25), a lower guide rail (24) matched with the lower slider (26) is arranged inside the shell (21), supporting rods (22) are fixed to two sides of the upper surface of the shell (21), an upper guide rail (23) matched with the upper slider (28) is installed at the upper end of each supporting rod (22), and a spraying head (7) is installed on each upper slider (28, a water outlet device (6) is connected between the sprinkler head (7) and the medicine mixing device (5).

2. The pesticide spraying device for kiwi fruit planting according to claim 1, characterized in that: four corners of the lower surface of the base (3) are provided with walking wheels (1), and one side of the upper surface of the base (3) close to the medicine mixing device (5) is provided with a pushing handle (4).

3. The pesticide spraying device for kiwi fruit planting according to claim 1, characterized in that: mix medicine device (5) including mixing chamber (53), go out water installation (6) including going out pencil (61), go out the inside below that the upper end of pencil (61) inserted mixing chamber (53), go out the other end of pencil (61) and install water pump (62), the play water end of water pump (62) is provided with connecting pipe (63), is connected with hose (64) between connecting pipe (63) and sprinkler head (7).

4. The pesticide spraying device for kiwi fruit planting according to claim 3, characterized in that: feeding mouth (54) are installed to the top one side of mixing chamber (53), the internally mounted of mixing chamber (53) has stirring frame (51), and the top one side of mixing chamber (53) is installed and is used for driving stirring frame (51) pivoted driving piece (52), and support (55) are all installed to the below both sides of mixing chamber (53).

5. The pesticide spraying device for kiwi fruit planting according to claim 1, characterized in that: the sprinkler head (7) comprises a spray pipe (71) and a spray head (72), and the spray head (72) is obliquely arranged below the spray pipe (71).

6. The pesticide spraying device for kiwi fruit planting according to claim 1, characterized in that: the screw rod device (27) comprises a motor (271) and a screw rod main body (272), the screw rod main body (272) is installed inside the shell (21) through a bearing, the motor (271) is used for driving the screw rod main body (272) to rotate forwards and backwards, a nut (273) is connected to the outer portion of the circumference of the screw rod main body (272) in a threaded mode, and the lower end of the connecting rod (25) is fixed to the upper end face of the nut (273).
