Abstract

The utility model relates to the technical field of high-voltage electrical equipment, in particular to an intelligent control device that is easy to install. There are chutes, and there are slidable racks in the chutes. The top and bottom of the installation grooves are provided with two spaced limit grooves. There are rotatable gears in the placement grooves. The handle has a hole on one side of the body, one end of the hole penetrates the gear and the body, and one side of the body is provided with a limit pin. The body is limited by setting a limit slot in the installation slot and the rack to cooperate with each other, and the rack is driven to move into the limit slot by setting the gear, so that the body can be installed in the installation slot by rotating the gear, and dismantling also It is more convenient to limit the gear by setting the matching hole of the limit pin.

Description

An easy-to-install intelligent control device

technical field

The utility model relates to the technical field of high-voltage electrical equipment, in particular to an intelligent control device with convenient installation.

Background technique

The intelligent control device is used for 3~35kV indoor switch cabinets, suitable for various switch cabinets such as central cabinets, handcart cabinets, fixed cabinets, ring network cabinets, etc. The intelligent control device has a primary circuit simulation diagram and switch status indication, high voltage live Display, automatic temperature and humidity control, human body induction automatic lighting, voice prompts, electrical parameter measurement and RS485 communication interface and many other functions, integrating operation and display, the existing intelligent control devices are mostly fixed in the installation holes on the switch cabinet and It is inconvenient to install and disassemble. When the intelligent control device fails in actual use or needs to be upgraded, if the disassembly and installation take a long time, it will bring great losses to the enterprise due to power failure and shutdown. control device.

Utility model content

The purpose of the utility model is to solve the disadvantage that the intelligent control device in the prior art is inconvenient to install, and proposes an intelligent control device that is easy to install.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

Design an intelligent control device that is easy to install, including a mounting slot and a body set on the high-voltage switchgear, and a placement slot is opened on both sides of the top of the body, the placement slot runs through the body, and both sides inside the placement slot are A chute is provided, the chute runs through the body, a slidable rack is arranged in the chute, and two spaced limit slots are provided on the top and bottom of the installation slot, and the limit The slots and the racks correspond respectively in positions. When the device is working, one end of the rack can move into the limit slot, and a rotatable gear is arranged in the placement slot, and both ends of the gear are fixedly installed on On the body, the gear is located between the two racks, and the gear and the rack are meshed with each other. A handle is arranged on one side of the body, and one end of the handle penetrates the body and is fixedly connected with the gear. One side of the body is A hole is opened, one end of the hole penetrates the gear and the body, one side of the body is provided with a limit pin, and one end of the limit pin penetrates the body and the gear and extends into the hole.

Preferably, one end of the limiting pin is provided with a card.

Preferably, a baffle is fixedly installed on the top of one side of the body.

Preferably, one end of the baffle is hinged with a frame body, and a transparent glass is fixedly installed in the frame body.

Preferably, a slot is formed at the lower end of one side of the body, a spring is fixedly installed at the lower end of one side of the frame, a baffle is fixedly installed at one end of the spring, a latch is arranged on one side of the frame, and one end of the latch is It runs through the frame body, the spring and the blocking piece in sequence and extends into the slot, and the plug and the blocking piece are fixedly connected.

Preferably, a handle is fixedly installed at one end of the latch.

The utility model proposes an intelligent control device that is easy to install, and has the beneficial effects of: limiting the position of the body by arranging a limit slot in the setting installation slot and the rack to cooperate with each other, and driving the rack to move to the limit slot by setting the gear Therefore, the body can be installed in the installation slot by rotating the gear, and the disassembly is also relatively convenient, and the gear is limited by setting the matching hole of the limit pin.

Description of drawings

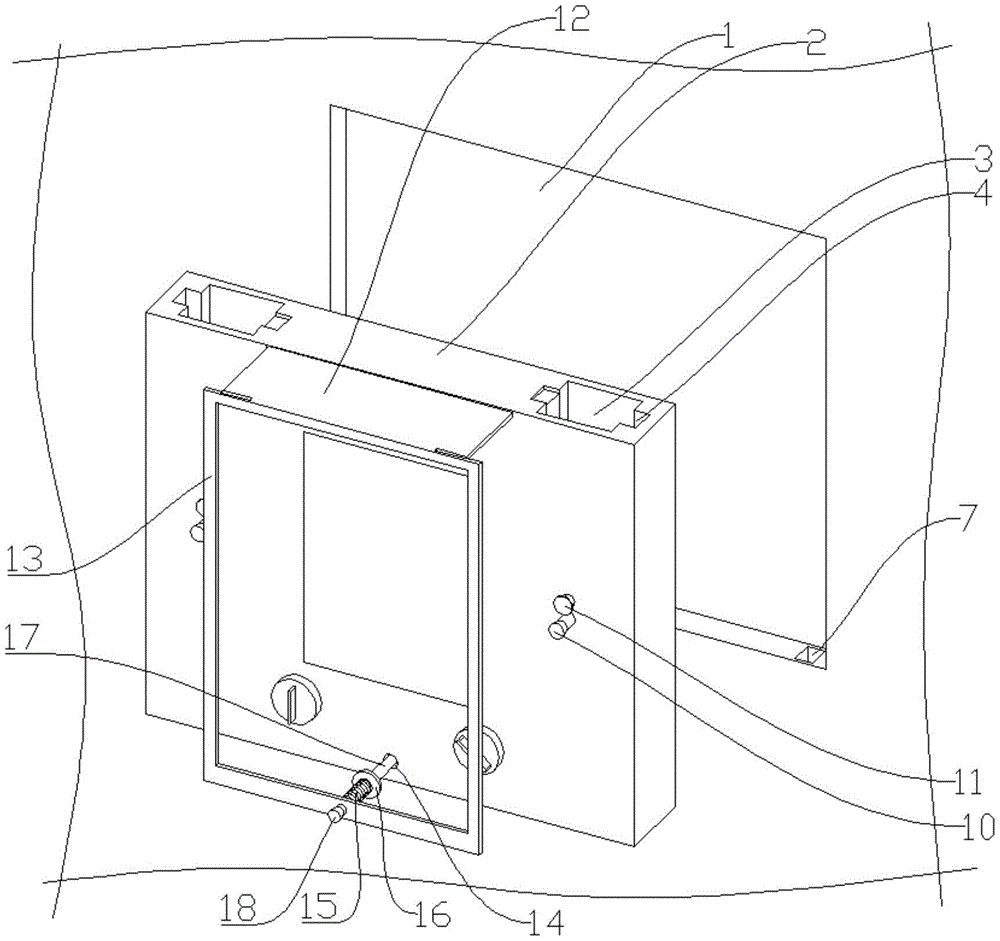

FIG. 1 is a schematic structural diagram of an easy-to-install intelligent control device proposed by the present invention.

FIG. 2 is a sectional view 1 of an intelligent control device that is easy to install according to the present invention.

FIG. 3 is a second cross-sectional view of a convenient-installed intelligent control device proposed by the present invention.

FIG. 4 is an enlarged schematic view of the position A in FIG. 2 of an intelligent control device that is easy to install according to the present invention.

In the figure: installation slot 1, body 2, placement slot 3, chute 4, rack 5, gear 6, limit slot 7, hole 8, limit pin 9, handle 10, card 11, baffle 12, frame Body 13 , slot 14 , spring 15 , baffle 16 , latch 17 , handle 18 .

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

Example 1:

Referring to Figures 1-4, an intelligent control device that is easy to install includes a mounting slot 1 and a body 2 opened on the high-voltage switchgear. Placement slots 3 are provided on both sides of the top of the body 2, and the placement slot 3 runs through the body 2. The placement slot 3. Both sides of the interior are provided with chute 4, the chute 4 runs through the body 2, the chute 4 is provided with a slidable rack 5, and the top and bottom of the installation slot 1 are provided with two spaced limits. Position slot 7, and the position of the limit slot 7 and the rack 5 are corresponding respectively. When the device is working, one end of the rack 5 can be moved into the limit slot 7, and a rotatable gear 6 is arranged in the placement slot 3. The gear 6 Both ends are fixedly installed on the body 2, the gear 6 is located between the two racks 5, and the gear 6 and the rack 5 are meshed with each other. The gear 6 is fixedly connected, a hole 8 is opened on one side of the body 2, one end of the hole 8 penetrates the gear 6 and the body 2, one side of the body 2 is provided with a limit pin 9, one end of the limit pin 9 penetrates the body 2 and the gear 6 and extends to the hole 8 Inside. One end of the limiting pin 9 is provided with a card 11 .

When the device is working, put the body 2 into the installation slot 1, turn the handle 10 to make the gear 6 rotate and drive the rack 5 to move into the limit slot 7, the racks 5 on both sides of the placement slot 3 are facing Move in different directions, and all move into the corresponding limit slot 7, and then insert the limit pin 9 into the body 2 and pass through the gear 6, and fix the gear 6 by the limit pin 9, so as to install the body 2 in the high voltage. In the installation slot 1 on the switch cabinet, when the body 2 needs to be disassembled, pull out the limit pin 9 and turn the handle 10 in the opposite direction to make the gear 6 rotate and drive the rack 5 to leave the limit slot 7. Removable body 2, the whole process is simple and convenient.

Example 2:

1-4 , as another preferred embodiment of the present invention, the difference from Embodiment 1 is that a baffle 12 is fixedly installed on the top of one side of the body 2 . A frame body 13 is hinged to one end of the baffle 12 , and a transparent glass is fixedly installed in the frame body 13 . A slot 14 is provided at the lower end of one side of the body 2, a spring 15 is fixedly installed on the lower end of one side of the frame body 13, a baffle 16 is fixedly installed at one end of the spring 15, and a plug pin 17 is provided on one side of the frame body 13, and one end of the plug pin 17 penetrates the frame body in turn. 13. The spring 15 and the blocking piece 16 extend into the slot 14, and the plug 17 and the blocking piece 16 are fixedly connected. A handle 18 is fixedly mounted on one end of the latch 17 .

Since the working environment of the intelligent control device is in the power distribution room, the power distribution room is not cleaned frequently, so the dust is serious. The baffle 12 is provided to play a dust-proof effect. On the one hand, it plays a dustproof role, and on the other hand, it is also convenient to observe the panel data of the intelligent control device. When the button on the intelligent control device needs to be operated, the frame body 13 can be opened by pulling the handle 18 to make the latch 17 leave the slot 14 .

The above are only the preferred specific embodiments of the present invention, but the protection scope of the present invention is not limited to this. Equivalent replacement or modification of the new technical solution and its utility model concept shall be included within the protection scope of the present utility model.

Claims (6)

1. An intelligent control device convenient to install comprises a mounting groove (1) and a machine body (2) which are arranged on a high-voltage switch cabinet, and is characterized in that both sides of the top of the machine body (2) are provided with placing grooves (3), the placing grooves (3) penetrate through the machine body (2), both sides of the inside of the placing grooves (3) are provided with sliding grooves (4), the sliding grooves (4) penetrate through the machine body (2), the sliding grooves (4) are internally provided with slidable racks (5), both the top and the bottom of the mounting groove (1) are provided with two spacing grooves (7) which are arranged at intervals, the spacing grooves (7) and the racks (5) are respectively in corresponding positions, when the device works, one end of each rack (5) can move into the spacing groove (7), rotatable gears (6) are arranged in the placing grooves (3), both ends of each gear (6) are fixedly arranged on the machine body (2), gear (6) are located between two rack (5), and gear (6) and rack (5) intermeshing, organism (2) one side is equipped with handle (10), handle (10) one end run through organism (2) and with gear (6) fixed connection, organism (2) one side is opened porosely (8), hole (8) one end runs through gear (6) and organism (2), organism (2) one side is equipped with spacer pin (9), spacer pin (9) one end runs through organism (2) and gear (6) and extends to in hole (8).

2. An easy-to-install intelligent control device according to claim 1, wherein one end of the limit pin (9) is provided with a clamping piece (11).

3. An easy-to-install intelligent control device according to claim 1, wherein a baffle (12) is fixedly installed at the top of one side of the machine body (2).

4. An easy-to-install intelligent control device according to claim 3, wherein one end of the baffle (12) is hinged to a frame body (13), and transparent glass is fixedly installed in the frame body (13).

5. The intelligent operation and control device convenient to install according to claim 4, wherein a slot (14) is formed in the lower end of one side of the machine body (2), a spring (15) is fixedly installed at the lower end of one side of the frame body (13), a blocking piece (16) is fixedly installed at one end of the spring (15), a bolt (17) is arranged on one side of the frame body (13), one end of the bolt (17) sequentially penetrates through the frame body (13), the spring (15) and the blocking piece (16) and extends into the slot (14), and the bolt (17) and the blocking piece (16) are fixedly connected.

6. An easy-to-install intelligent control device according to claim 5, wherein a handle (18) is fixedly installed at one end of the bolt (17).
