CN212110642U - A sampling device for testing the compactness of filling materials in hydraulic engineering - Google Patents

Abstract

The utility model discloses a sampling device for detecting the compaction degree of filling materials in water conservancy projects, and relates to the technical field of water conservancy projects. A sampling device for detecting the compactness of filling materials in hydraulic engineering, comprising a work surface, connecting rods are fixedly connected on both sides of the work surface, a connecting block is fixedly connected at the bottom of the connecting rod, and the sides of the connecting block are fixedly connected There is a stepping frame, a movable wheel is fixedly installed at the bottom of the connecting block, a chassis shell is fixedly installed on the top of the work surface, a motor is arranged inside the chassis shell, and a lifting rod is fixedly connected to the output end of the motor, and the lifting rod is fixedly connected. The bottom is fixedly connected with a sampling drill. Start the motor through the switch to drive the lifting rod to set up the downward movement, and drive the sampling drill to screw into the sampling sample. The sample is cut into a cylindrical shape, and then the cut sample can be taken out. The sampling process is completed and efficient, and the integrity of the sample is well preserved. Higher accuracy.

Description

A sampling device for testing the compactness of filling materials in hydraulic engineering

technical field

The utility model relates to the technical field of water conservancy projects, in particular to a sampling device for detecting the compaction degree of filling materials in water conservancy projects.

Background technique

A water conservancy project is a project built for the purpose of controlling and deploying natural surface water and groundwater to achieve the purpose of eliminating harm and increasing profits. Also known as water engineering. Water is an indispensable and precious resource for human production and life, but its natural state does not fully meet human needs. Only by building water conservancy projects can we control water flow, prevent flood disasters, and adjust and distribute water to meet the needs of people's lives and production for water resources.

The degree of compaction, also known as the degree of compaction, refers to the ratio of the dry density of soil or other road construction materials after compaction to the standard maximum dry density, expressed as a percentage. The most commonly used method for measuring the degree of compaction is the sand filling method. The sand filling method uses tools such as shovels or chisels for sampling. When digging a pit, the problem of large upper opening and small lower opening is likely to occur, which reduces the detection result. accuracy. At the same time, using the existing sampling tools, the digging time is longer, the moisture content of the sample will decrease, and the accuracy of the test results will also be reduced.

Utility model content

The purpose of the present utility model is to provide a sampling device for detecting the compactness of filling materials in hydraulic engineering, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a sampling device for detecting the compaction degree of filling materials in hydraulic engineering, including a work surface, the two sides of the work surface are fixedly connected with connecting rods, and the bottom of the connecting rod is connected. A connecting block is fixedly connected, a pedal frame is fixedly connected to the side of the connecting block, a movable wheel is fixedly installed at the bottom of the connecting block, a chassis shell is fixedly installed on the top of the work surface, and a motor is arranged inside the chassis shell, and the A lifting rod is fixedly connected to the output end of the motor, a sampling drill is fixedly connected to the bottom of the lifting rod, a fixing frame is fixedly installed at the bottom of the working table, and a positioning groove is opened in the center of the fixing frame, and the lifting rod penetrates the inner wall of the positioning groove .

Preferably, adjustment bolts are threadedly fixed on the outer walls of both sides of the lifting rod, the upper part of the sampling bit is in movable contact with the inner wall of the lifting rod, the top of the sampling bit is provided with gaps on both sides, and the outer wall of the sampling bit is equidistantly provided with threaded grooves .

Preferably, the adjustment bolt is matched with the position of the notch, and the adjustment bolt is threadedly fixed with the notch.

Preferably, the pedaling rack includes a sleeve, a spring is arranged inside the sleeve, a sleeve rod is movably sleeved on the inner wall of the lower end of the sleeve, a pedal is fixedly connected to the bottom of the sleeve rod, and a pedal is provided at the top of the pedal Has a non-slip layer.

Preferably, one end of the spring is fixedly connected to the bottom of the sleeve, the other end of the spring is fixedly connected to the top of the sleeve rod, the inner wall of the bottom of the sleeve is provided with a snap ring, the outer wall of the top of the sleeve rod is provided with a snap groove, the The snap ring matches the snap groove.

Preferably, handles are provided on both sides of the top of the work surface, and a switch is provided on the top of the chassis shell, and the switch is electrically connected to the motor.

Preferably, there are two groups of the movable wheels, and the sampling bit is a hollow structure.

Compared with the prior art, the beneficial effects of the present utility model are:

(1), a sampling device for testing the compactness of filling materials in water conservancy projects. First, the device is pushed to the sampling point by the movable wheel, and the pedals are stepped on with both feet. During the tension process, the sleeve rod is inside the sleeve. Sliding down, the spring buffers it with tension, and finally realizes the contact between the pedal and the ground, completes the fixation of the equipment, prevents the machine from shaking and damages the drill bit during the sampling process, and starts the motor through the switch to drive the lifting rod to open the sinking movement and drive the sampling. The drill bit is screwed into the sampling sample. Since the sampling drill bit is a hollow structure, the sample is cut into a cylindrical shape, and then the lifting rod is lifted to make the sampling drill bit leave the ground, and then the cut sample can be taken out. The sampling process is completed and efficient, and the sample is complete The degree is well preserved and the accuracy is higher.

(2), a sampling device used for testing the compactness of filling materials in hydraulic engineering. In the process of connecting the lifting rod and the sampling bit, first insert the upper end of the sampling bit into the lifting rod, and then twist the adjusting bolt to make it move toward the sampling bit. The outer wall is close to each other, among which, there is a gap on the outer wall of the upper end of the sampling bit, and the adjusting bolt and the gap are matched with each other, so as to realize the tight fixation of the sampling bit and the lifting rod.

Description of drawings

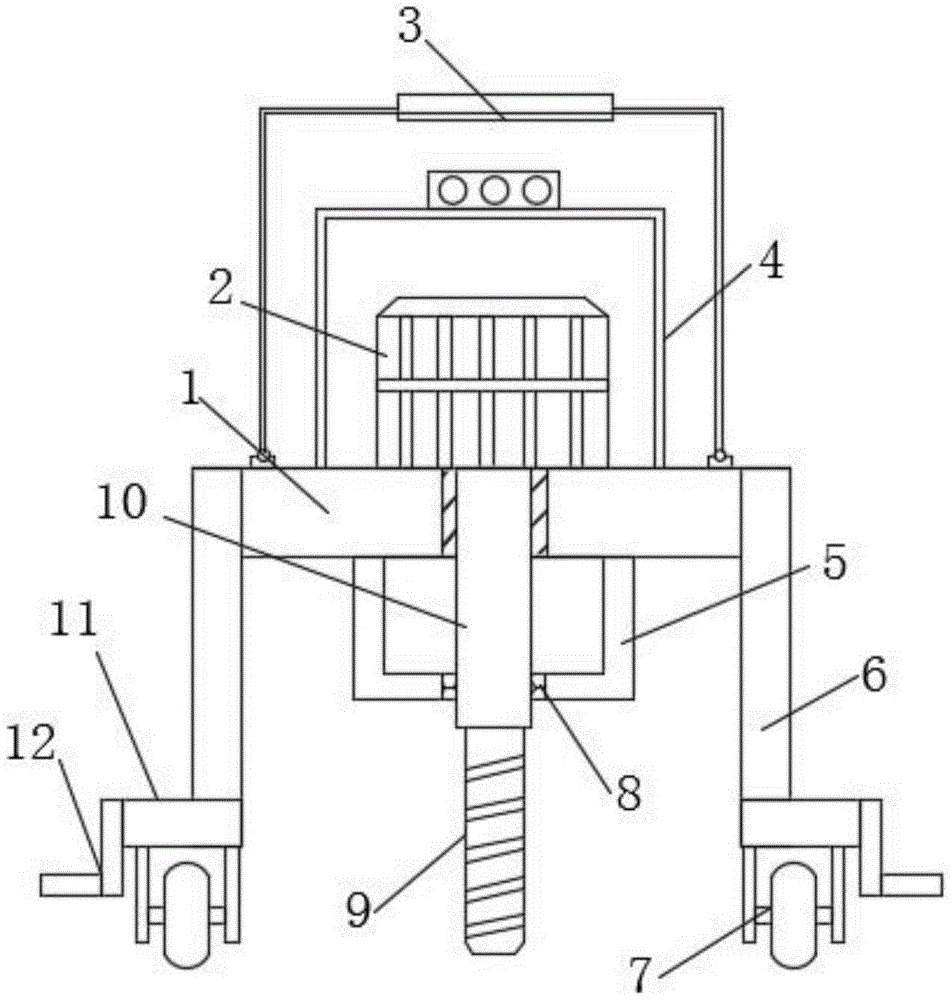

Fig. 1 is the overall structure schematic diagram of the present utility model;

Fig. 2 is the top view of some mechanisms of the utility model;

Fig. 3 is the connection schematic diagram of the lifting rod and the sampling drill bit of the present invention;

FIG. 4 is a schematic structural diagram of the pedaling frame of the present invention.

In the picture: 1 worktable, 2 motors, 3 handles, 4 chassis shells, 5 fixed frames, 6 connecting rods, 7 movable wheels, 8 positioning slots, 9 sampling drill bits, 10 lifting rods, 11 connecting blocks, 12 pedal racks, 13 Adjusting bolts, 14 notches, 15 threaded grooves, 16 springs, 17 sleeves, 18 sets of rods, 19 pedals.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

As shown in Figures 1-3, the present utility model provides a technical solution: a sampling device for detecting the compactness of filling materials in hydraulic engineering, comprising a work surface 1, and connecting rods 6 are fixedly connected on both sides of the work surface 1, A connecting block 11 is fixedly connected to the bottom of the connecting rod 6, a pedal frame 12 is fixedly connected to the side of the connecting block 11, a movable wheel 7 is fixedly installed at the bottom of the connecting block 11, and a chassis shell 4 is fixedly installed on the top of the work surface 1, and the inside of the chassis shell 4 is provided with The motor 2, the output end of the motor 2 is fixedly connected with a lifting rod 10, the bottom of the lifting rod 10 is fixedly connected with a sampling drill 9, the bottom of the work table 1 is fixedly installed with a fixing frame 5, and a positioning slot 8 is opened in the center of the fixing frame 5, and the lifting rod 10 It penetrates through the inner wall of the positioning groove 8 .

As shown in Figures 1-3, adjusting bolts 13 are threadedly fixed on the outer walls of the lifting rod 10, the upper part of the sampling bit 9 is in movable contact with the inner wall of the lifting rod 10, the top of the sampling bit 9 is provided with gaps 14 on both sides, and the outer wall of the sampling bit 9 is equidistant. A threaded groove 15 is provided, the position of the adjusting bolt 13 is matched with the opening 14 , and the adjusting bolt 13 and the opening 14 are threadedly fixed. In the process of connecting the lifting rod 10 and the sampling bit 9, first insert the upper end of the sampling bit 9 into the lifting rod 10, and then twist the adjusting bolt 13 to make it approach the outer wall of the sampling bit, wherein the outer wall of the upper end of the sampling bit 9 is provided with a gap 14 , the adjusting bolt 13 and the notch 14 are matched with each other, so as to realize the tight fixation of the sampling bit 9 and the lift rod 10, and the use of threaded fixation is convenient for subsequent maintenance and replacement, which is faster.

As shown in FIG. 4 , the pedaling frame 12 includes a sleeve 17, a spring 16 is arranged inside the sleeve 17, a sleeve rod 18 is movably sleeved on the inner wall of the lower end of the sleeve 17, and a pedal 19 is fixedly connected to the bottom of the sleeve rod 18. The pedal 19 The top is provided with a non-slip layer, one end of the spring 16 is fixedly connected to the bottom of the sleeve 17, the other end of the spring 16 is fixedly connected to the top of the sleeve rod 18, the inner wall of the bottom of the sleeve 17 is provided with a snap ring, and the top outer wall of the sleeve rod 18 The ring matches the groove. During the sampling operation, step on the pedal 19 with both feet. During the tension process, the sleeve rod 18 slides down inside the sleeve 17, and the spring 16 buffers the tension, and finally the pedal 19 is in contact with the ground, so that the The equipment is fixed to facilitate sampling. After the sampling operation is completed, both feet leave the pedal 19. After losing the tension, the sleeve rod 18 shrinks to the inside of the sleeve 17 under the action of the spring 16 to realize the lift off the ground.

As shown in FIG. 1 , handles 3 are provided on both sides of the top of the work surface 1 , a switch is provided on the top of the case shell 4 , and the switch is electrically connected to the motor 2 . The carrying handle is provided to improve the portability of the device, and at the same time, two sets of movable wheels 7 are provided to improve the stability of the device and prevent rollover.

Working principle: In the practical process of the present utility model, the device is first pushed to the sampling point through the movable wheel 7, and the pedals 19 are stepped on with both feet. 16. The tension buffer is performed on it, and finally the pedal 19 is in contact with the ground, and the fixing of the equipment is completed to prevent the machine from shaking and damaging the drill bit during the sampling process. The motor 2 is activated by the switch to drive the lifting rod 10 to set up the sinking movement, and drive the sampling drill bit. 9 spirally enters the inside of the sampling sample. Since the sampling drill bit 9 is a hollow structure, the sample is cut into a cylindrical shape, and then the lifting rod 10 is lifted to make the sampling drill bit 9 leave the ground, and then the cut sample can be taken out. At the same time, in the lifting rod 10 During the connection process with the sampling bit 9, first insert the upper end of the sampling bit 9 into the inside of the lifting rod 10, and turn the adjusting bolt 13 to make it approach the outer wall of the sampling bit, wherein the outer wall of the upper end of the sampling bit 9 is provided with a gap 14, and the adjusting bolt is provided with a gap 14. 13 and the notch 14 are matched with each other, so as to realize the tight fixation of the sampling bit 9 and the lift rod 10, and the use of threaded fixation is convenient for subsequent maintenance and replacement, which is more efficient.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a be used for hydraulic engineering filler compactness to detect sampling equipment, includes table surface (1), its characterized in that: table surface (1) both sides fixedly connected with connecting rod (6), connecting rod (6) bottom fixedly connected with connecting block (11), frame (12) are stepped on to connecting block (11) side fixedly connected with, connecting block (11) bottom fixed mounting has movable wheel (7), table surface (1) top fixed mounting has case shell (4), case shell (4) inside is provided with motor (2), motor (2) output end fixedly connected with lifter (10), lifter (10) bottom fixedly connected with sample drill bit (9), table surface (1) bottom fixed mounting has mount (5), mount (5) central point puts and has seted up constant head tank (8), lifter (10) run through constant head tank (8) inner wall.

2. The hydraulic engineering filler compactness detection sampling equipment of claim 1, characterized in that: lifter (10) both sides outer wall thread tightening has adjusting bolt (13), sample drill bit (9) upper portion and lifter (10) inner wall movable contact, opening (14) have been seted up to sample drill bit (9) top both sides, sample drill bit (9) outer wall equidistance is provided with thread groove (15).

3. The hydraulic engineering filler compactness detection sampling equipment of claim 2, characterized in that: the adjusting bolt (13) is matched with the position of the opening (14), and the adjusting bolt (13) is fixed with the opening (14) through threads.

4. The hydraulic engineering filler compactness detection sampling equipment of claim 1, characterized in that: the trample frame (12) comprises a sleeve (17), a spring (16) is arranged inside the sleeve (17), a loop bar (18) is movably sleeved on the inner wall of the lower end of the sleeve (17), a trample board (19) is fixedly connected to the bottom of the loop bar (18), and an anti-skid layer is arranged on the top of the trample board (19).

5. The hydraulic engineering filler compactness detection sampling equipment of claim 4, characterized by that: spring (16) one end and sleeve (17) bottom fixed connection, the spring (16) other end and loop bar (18) top fixed connection, sleeve (17) bottom inner wall is provided with the snap ring, loop bar (18) top outer wall is provided with the draw-in groove, snap ring and draw-in groove phase-match.

6. The hydraulic engineering filler compactness detection sampling equipment of claim 1, characterized in that: the utility model discloses a motor, including table surface (1), case shell (4), switch, table surface (1) top both sides are provided with handle (3), the switch is provided with switch and motor (2) electric connection.

7. The hydraulic engineering filler compactness detection sampling equipment of claim 1, characterized in that: the movable wheels (7) are provided with two groups, and the sampling drill bit (9) is of a hollow structure.
