Abstract

The utility model discloses an automatic pouring machine, which comprises a bottom frame, a motor, a storage bin and a solenoid valve. An electric lifting rod is installed on the top of the base frame, and a bottom plate is installed on the top of the electric lifting rod. A storage bin is installed at the top of the storage bin, and a support plate is installed at the top of the inside of the storage bin. One end of the top of the storage bin is installed with a second feed hopper that penetrates the support plate, and the storage bin is far away from the second feed hopper. One end of the top is installed with a first feeding hopper that penetrates through the support plate, a device box is installed at the bottom end of the bottom plate, and a motor is installed inside the device box, and all four corners of the bottom end of the bottom frame are installed with universal wheels , and a push rod is installed at one end of the chassis. The automatic pouring machine drives the second L-shaped stirring rod and the first L-shaped stirring rod to stir the storage bin through the first rotating shaft and the second rotating shaft respectively, so that the material inside the storage bin is stirred more uniformly.

Description

an automatic pouring machine

technical field

The utility model relates to the technical field of pouring machines, in particular to an automatic pouring machine.

Background technique

During house construction, it is necessary to stir the slurry, cement, quicklime, gypsum and aluminum powder paste suspension injected into the tank in a certain proportion to make it evenly mixed and fully reacted, and the mixed slurry should be injected into the mold through the pouring machine in time. The traditional casting machine can basically meet the needs of people, but there are still certain problems. The specific problems are as follows:

1. At present, most of the pouring machines on the market are pouring the mixed slurry into the inside of the pouring machine for pouring. This pouring method increases the labor intensity of the operator and cannot directly mix the slurry inside the pouring machine. , it is not convenient for operators to operate;

2. At present, most of the pouring machines on the market cannot adjust the height of the pouring machine, and cannot pour the mold frames with different heights, so that the practical type of the pouring machine can be reduced.

Utility model content

The purpose of the present invention is to provide an automatic pouring machine to solve the problems raised in the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: an automatic pouring machine, including a chassis, a motor, a storage bin and a solenoid valve, the top of the chassis is equipped with an electric lifting rod, and the electric lifting rod is A bottom plate is installed at the top, a storage bin is installed on the top of the bottom plate, and a support plate is installed at the top inside the storage bin, and a second feed hopper that penetrates the support plate is installed at one end of the top of the storage bin. One end of the silo away from the top of the second feeding hopper is installed with a first feeding hopper penetrating the support plate, a device box is installed at the bottom end of the bottom plate, and a motor is installed inside the device box, and the bottom end of the bottom frame is installed All four corners are provided with universal wheels, and one end of the bottom frame is provided with a push rod.

Preferably, the output end of the motor is installed with a first rotating shaft through the bottom plate and the support plate through a coupling, and a first sleeve is sleeved on the outer wall of one end of the first rotating shaft close to the motor, and the first sleeve at both ends of the first sleeve is sleeved. The outer wall is sleeved with a second L-shaped stirring rod, and the top end of the first rotating shaft is provided with a first conical gear.

Preferably, a rotating rod is installed at one end of the side wall of the storage bin, and a third bevel gear matching the first bevel gear is provided at one end of the side wall of the rotating rod away from the bottom plate.

Preferably, a second rotating shaft is installed at the middle position of the top end inside the storage bin through a bearing, and a second bevel gear matching the third bevel gear is installed at the bottom end of the second rotating shaft.

Preferably, a second sleeve is sleeved on the outer wall of the second rotating shaft, and a first L-shaped stirring rod is installed at both ends of the second sleeve, and a U-shaped stirring rod is installed at the bottom end of the first L-shaped stirring rod. type stirring rod.

Preferably, the bottom end of the side wall of the storage bin is provided with a discharge pipe penetrating the storage bin, and the outer wall of the discharge pipe is provided with a solenoid valve.

Compared with the prior art, the beneficial effects of the present utility model are:

1. The device is installed by installing the motor, the first rotating shaft, the first sleeve, the second stirring rod, the first bevel gear, the third bevel gear, the second rotating shaft, the second sleeve, the first L-shaped stirring rod, The mutual cooperation between the U-shaped stirring rod and the storage bin enables the motor to drive the first rotating shaft and the second rotating shaft through the mutual meshing of the first bevel gear, the second bevel gear and the third bevel gear, which is convenient for the first rotating shaft and the second rotating shaft to mesh with each other. The second rotating shaft rotates in the opposite direction, and at the same time, the second L-shaped stirring rod and the first L-shaped stirring rod are respectively driven by the first rotating shaft and the second rotating shaft to stir the storage bin, so that the material inside the storage bin is more stirred. to be uniform;

2. At the same time, the device can drive the storage bin to move up and down through the installation of the electric lifting rod, the discharge pipe and the solenoid valve through the cooperation of the four groups of electric lifting rods, which is convenient to adjust the height of the storage bin. At the same time, by opening the solenoid valve Make the material pour through the discharge pipe.

Description of drawings

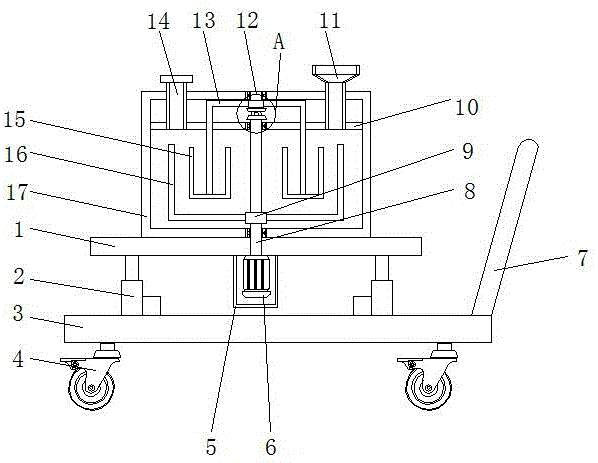

FIG. 1 is a schematic diagram of the front cross-sectional structure of the utility model.

Figure 2 is a schematic front view of the utility model.

FIG. 3 is an enlarged structural schematic diagram of part A in FIG. 1 of the present utility model.

In the figure: 1. Bottom plate; 2. Electric lift rod; 3. Bottom frame; 4. Universal wheel; 5. Device box; 6. Motor; 7. Push rod; 8. First shaft; 9. First sleeve ; 10, support plate; 11, the first feed hopper; 12, the second shaft; 13, the first L-shaped stirring rod; 14, the second feeding hopper; 15, the U-shaped stirring rod; 16, the second L-shaped Stirring rod; 17, storage bin; 18, discharge pipe; 19, solenoid valve; 20, second sleeve; 21, first bevel gear; 22, second bevel gear; 23, third bevel gear ; 24. Rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-3 , an embodiment provided by the present invention: an automatic pouring machine, including a chassis 3, a motor 6, a storage bin 17 and a solenoid valve 19, and the top of the chassis 3 is equipped with an electric lift Rod 2, the model of the electric lifting rod 2 can be NKLA8F, and a bottom plate 1 is installed on the top of the electric lifting rod 2, and a storage bin 17 is installed on the top of the bottom plate 1.

One end of the side wall of the storage bin 17 is installed with a rotating rod 24, and one end of the side wall of the rotating rod 24 away from the bottom plate 1 is provided with a third bevel gear 23 matching the first bevel gear 21, which is convenient for passing The rotation of the first bevel gear 21 drives the third bevel gear 23 and the rotating rod 24 to rotate.

The second rotating shaft 12 is installed at the middle position of the inner top of the storage bin 17 through a bearing, and the bottom end of the second rotating shaft 12 is installed with a second bevel gear 22 matched with the third bevel gear 23, which is convenient for passing the third bevel gear 23. The rotation of the bevel gear 23 drives the second bevel gear 22 and the second shaft 12 to rotate.

A second sleeve 20 is sleeved on the outer wall of the second rotating shaft 12 , and both ends of the second sleeve 20 are installed with a first L-shaped stirring rod 13 , and a U-shaped stirring rod is installed at the bottom end of the first L-shaped stirring rod 13 The rod 15 is convenient to drive the first L-shaped stirring rod 13 and the U-shaped stirring rod 15 to rotate through the rotation of the second rotating shaft 12 .

The bottom end of the side wall of the storage bin 17 is installed with a discharge pipe 18 that runs through the storage bin 17, and a solenoid valve 19 is installed on the outer wall of the discharge pipe 18. The solenoid valve 19 is used to control the opening of the discharge pipe 18, which is convenient for The material inside the storage bin 17 is poured through the discharge pipe 18 .

The top end of the storage bin 17 is installed with the support plate 10 , the top end of the storage bin 17 is installed with the second feed hopper 14 penetrating the support plate 10 , and the end of the storage bin 17 is far from the top of the second feed hopper 14 . A first feeding hopper 11 is installed through the support plate 10 , a device box 5 is installed at the bottom end of the bottom plate 1 , and a motor 6 is installed inside the device box 5 , and the model of the motor 6 can be Y90S-2.

The output end of the motor 6 is installed with a first rotating shaft 8 through the bottom plate 1 and the support plate 10 through a coupling, and the outer wall of one end of the first rotating shaft 8 close to the motor 6 is sleeved with a first sleeve 9, and the first sleeve 9 is two. The outer wall of the end is sleeved with a second L-shaped stirring rod 16, and the top end of the first rotating shaft 8 is provided with a first bevel gear 21, which is convenient to drive the first sleeve 9 and the second L-shaped stirring rod 16 through the rotation of the first rotating shaft 8. Stir.

Universal wheels 4 are installed at four corners of the bottom end of the base frame 3 , and a push rod 7 is installed at one end of the base frame 3 .

Working principle: When using the automatic pouring machine, first pour water and mixture into the storage bin 17 through the first feeding hopper 11 and the second feeding hopper 14, and then start the motor 6 to drive the first feeding hopper 6 to rotate. A rotating shaft 8 , the first sleeve 9 and the second L-shaped stirring rod 16 rotate to facilitate the stirring of the storage bin 17 . The rotation of the first rotating shaft 8 drives the first bevel gear 21 and the third bevel gear 23 to rotate. , and the rotation of the third bevel gear 23 drives the second bevel gear 22 and the second shaft 12 to rotate, and the rotation of the second shaft 12 drives the second sleeve 20 and the first L-shaped stirring rod 13 to rotate. The L-shaped stirring rod 13 rotates to drive two sets of U-shaped stirring rods 15 to stir the inside of the storage bin 17, so that the first rotating shaft 8 and the second rotating shaft 12 rotate in opposite directions, and the stirring direction of the stirring rods is also reversed, which is convenient for The material inside the storage bin 17 can be stirred more evenly. When the stirring is completed, the bottom plate 1 can be moved up and down by starting the four sets of electric lifting rods 2, which is convenient for adjusting the height of the storage bin 17. The notice can also be adjusted by adjusting a The height of the side electric lifting rod 2 makes the storage bin 17 tilt, and then by opening the solenoid valve 19, the material inside the storage bin 17 is poured through the discharge pipe 18, which is convenient for pouring the mold frames with different heights. This is the whole working principle of the utility model.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention may be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. The utility model provides an automatic casting machine, includes chassis (3), motor (6), storage silo (17) and solenoid valve (19), its characterized in that: electric lift pole (2) are all installed on the top of chassis (3), and bottom plate (1) is installed on the top of electric lift pole (2), storage silo (17) are installed on the top of bottom plate (1), and backup pad (10) are installed on the inside top of storage silo (17), second feeder hopper (14) that run through backup pad (10) are installed to the one end on storage silo (17) top, and the one end on second feeder hopper (14) top is kept away from in storage silo (17) installs first feeder hopper (11) that run through backup pad (10), device case (5) are installed to the bottom of bottom plate (1), and the internally mounted of device case (5) has motor (6), universal wheel (4) are all installed to the bottom four corners department of chassis (3), and push rod (7) are installed to the one end of chassis (3).

2. An automatic casting machine according to claim 1, characterized in that: the output of motor (6) is installed through the shaft coupling and is run through first pivot (8) of bottom plate (1) and backup pad (10), and first pivot (8) are close to the one end outer wall cover of motor (6) and have been put first sleeve (9), second L type puddler (16) have been put to the outer wall cover at first sleeve (9) both ends, the top of first pivot (8) is provided with first conical gear (21).

3. An automatic casting machine according to claim 1, characterized in that: rotating rod (24) are installed to the one end of storage silo (17) one side lateral wall, and rotating rod (24) keep away from the one end of bottom plate (1) one side lateral wall and be provided with first conical gear (21) assorted third conical gear (23).

4. An automatic casting machine according to claim 1, characterized in that: the middle position of the top end in the storage bin (17) is provided with a second rotating shaft (12) through a bearing, and the bottom end of the second rotating shaft (12) is provided with a second bevel gear (22) matched with a third bevel gear (23).

5. An automatic casting machine according to claim 4, characterized in that: second sleeve (20) have been put to the outer wall cover of second pivot (12), and first L type puddler (13) are all installed at the both ends of second sleeve (20), U type puddler (15) are installed to the bottom of first L type puddler (13).

6. An automatic casting machine according to claim 1, characterized in that: the bottom of storage silo (17) one side lateral wall is installed and is run through discharging pipe (18) of storage silo (17), and solenoid valve (19) are installed to the outer wall of discharging pipe (18).
