CN212104896U - Wall panel assembly

Info

Publication number: CN212104896U
Application number: CN201922131094.7U
Authority: CN
Inventors: 丁欣欣; 丁泽成; 王文广; 周东珊; 林显杨; 余广
Original assignee: Zhejiang Yasha Decoration Co Ltd
Current assignee: Zhejiang Yasha Decoration Co Ltd
Priority date: 2019-12-03
Filing date: 2019-12-03
Publication date: 2020-12-08
Anticipated expiration: 2029-12-03

Abstract

The utility model discloses a shingle nail assembly, this shingle nail assembly includes: the leveling pieces are arranged at intervals along the extending direction of the wall body and are used for leveling the wall body; the wall panels are sequentially arranged along the extending direction of the wall body and cover the wall body, and the outer surfaces of the wall panels are provided with decorative layers; the butt joint installation component is arranged between two adjacent wall panels and is used for connecting the two adjacent wall panels, and the two adjacent wall panels are fixed with the leveling piece through the butt joint installation component; the internal corner mounting assembly is arranged at the internal corner of the wall body and is used for connecting the wall panels positioned at two sides of the internal corner of the wall, and the wall panels positioned at two sides of the internal corner of the wall are fixed with the leveling piece through the internal corner mounting assembly; the external corner fixing piece is arranged at the external corner of the wall body and used for connecting the wall panels positioned at two sides of the external corner of the wall body, and the wall panels positioned at two sides of the external corner of the wall body are fixed with the leveling piece through the external corner fixing piece. The utility model discloses, can realize shingle nail and wall body rapid Assembly, improve the industrialization level.

Description

Wall panel assembly

Technical Field

The utility model relates to a fitment technical field especially relates to a shingle nail assembly.

Background

The wall decoration is the key area of the interior space decoration of the building, can protect the wall body, enhances the firmness and the durability of the wall body, and prolongs the service life of the wall body.

In the existing wall decoration process, especially in the spaces of toilets, kitchens and the like which relate to water, the wall body needs to be subjected to pre-waterproof treatment, and the decorative layer is installed on the pre-waterproof basis, so that the construction time is prolonged, and the decoration cost is increased. The decoration layer mainly comprises tiles and stones, and the tile and stone paving mode is mainly divided into a wet pasting mode and a dry hanging mode. Wherein, the wet pasting is mainly realized by arranging cement mortar or tile adhesive on the tile or the stone to realize the pasting and fixing with the wall; the dry hanging is mainly characterized in that the ceramic tiles or the stone is fixed on the wall body by adopting a dry hanging component. The two methods mainly have the following problems: the wet pasting construction process is longer, the construction professional level is higher, the quality control difficulty is higher, and the adverse effects of pollution of the construction environment and the like are caused; the dry hanging component wastes a large space, the leveling adjustment is complicated in the installation process, and the single ceramic tile is dry-hung and easy to break. The wall panel is used as a decorative layer to decorate the wall surface, so that the waterproof step can be omitted, and the cost and the labor are saved. The shingle nail can accomplish the preparation in advance according to specific construction space, and it can to realize assembling after getting into construction space, adopts shingle nail decoration wall body can improve the installation effectiveness, practices thrift construction cost. However, existing dry-hang elements are not suitable for the installation of wall panels.

Accordingly, there is a need for a shingle assembly and method of installation that addresses the above-identified problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a shingle nail assembly, shingle nail assembly can realize shingle nail and wall body rapid Assembly, treats the wall body in the installation space through the shingle nail and decorates, can simplify the work progress, shortens construction period, avoids producing more rubbish in the job site, avoids leaving the vestige easily in positions such as floor, door frame, improves industrialization level.

The technical scheme of the utility model a shingle nail assembly is provided, include:

the leveling pieces are arranged at intervals along the extending direction of the wall body and used for leveling the wall body;

the wall panels are sequentially arranged along the extending direction of the wall body and cover the wall body, and the outer surfaces of the wall panels are provided with decorative layers;

the butt joint installation component is arranged between two adjacent wall panels and is used for connecting the two adjacent wall panels, and the two adjacent wall panels are fixed with the leveling piece through the butt joint installation component;

the internal corner mounting assembly is arranged at the internal corner of the wall body and is used for connecting the wall panels positioned at two sides of the internal corner of the wall, and the wall panels positioned at two sides of the internal corner of the wall are fixed with the leveling member through the internal corner mounting assembly;

the external corner mounting is arranged at the external corner of the wall body and used for connecting and locating the wall panels at two sides of the external corner of the wall body, and the wall panels pass through the external corner mounting and the leveling parts to be fixed.

Further, the butt joint mounting assembly comprises:

and the connecting sub-piece is arranged between two adjacent wall panels and is used for connecting one of the adjacent wall panels.

Further, the connecting sub-assembly comprises:

the first wallboard connecting plate comprises a first side surface and a second side surface which are oppositely arranged, and the first side surface is attached to the wallboard;

the first plug board is perpendicular to the first side face and extends along the direction far away from the second side face, the first plug board comprises a third side face and a fourth side face which are oppositely arranged, a first clamping groove for clamping and connecting one of the adjacent wall panels is formed between the third side face and the first side face, and a second clamping groove for clamping and connecting the other adjacent wall panel is formed between the fourth side face and the first side face.

Further, the butt joint installation component further comprises:

flush joint connects female, sets up adjacent two between the shingle nail, with connect the son joint for connect adjacent another shingle nail, adjacent two the shingle nail passes through flush joint connect female with leveling is fixed.

Further, the butt joint female member includes:

the second shingle connecting plate comprises a fifth side surface and a sixth side surface which are oppositely arranged, a first side edge positioned on the fifth side surface and a second side edge positioned on the sixth side surface and oppositely arranged with the first side edge, and the fifth side surface is attached to the leveling piece;

the first connecting sub fixing plate is arranged on the first side edge and extends along the direction far away from the second wall panel connecting plate, and the top of the first connecting sub fixing plate is flush with the fifth side surface;

the first limiting plate is arranged on the second side edge and extends in the same direction as the first connecting sub fixing plate, the bottom of the first limiting plate is arranged to be flush with the sixth side surface, and the first connecting sub fixing plate, the second wall panel connecting plate and the first limiting plate form a first accommodating groove for accommodating the connecting sub;

and the second plug board is perpendicular to the first limiting board and extends along the direction far away from the first connecting sub-part fixing board, and a third clamping groove for clamping the adjacent other wall panel is formed between the second plug board and the sixth side surface.

Further, the reentrant corner mounting assembly comprises:

female is connected to reentrant corner, sets up wall reentrant corner both sides, with connect son joint for the connection is located another of wall reentrant corner both sides the shingle is located two of wall reentrant corner both sides the shingle passes through female is connected to the reentrant corner with leveling piece is fixed.

Further, the female corner connecting member includes:

the third wall panel connecting plate comprises a seventh side surface and an eighth side surface which are oppositely arranged, and the seventh side surface is attached to the leveling piece;

the second connecting sub fixing plate is perpendicular to the eighth side face and extends in the direction away from the seventh side face;

the second limiting plate is located second connector fixed plate below, the perpendicular to eighth side and with second connector fixed plate syntropy extends, second connector fixed plate third shingle nail connecting plate with form between the top of second limiting plate and hold the second holding tank of connector, connector the bottom of second limiting plate with form the joint between the third shingle nail connecting plate be located another of wall reentrant corner both sides the fourth joint groove of shingle nail.

Further, the male corner fitting includes:

a fourth shingle connecting plate including first and second opposite ends for connecting one of the shingles on opposite sides of the external corner of the wall;

and the fifth wallboard connecting plate is positioned at the second end part and is vertical to the fourth wallboard connecting plate and is used for connecting the other wallboard positioned at two sides of the external corner of the wall.

After adopting above-mentioned technical scheme, have following beneficial effect: by adopting the wall panel assembly, the wall panel and the wall body can be quickly assembled, the construction process can be simplified, the construction period is shortened, the construction speed is improved, meanwhile, the environment pollution or decoration garbage is avoided, the phenomenon that marks are easily left at the positions of floors, door frames and the like is avoided, and the industrialization level is improved. Moreover, the wall panel assembly occupies a small space, is convenient and quick to assemble, accurate in positioning, high in flatness, good in decoration effect and good in sealing performance and waterproof performance.

Drawings

The disclosure of the present invention will become more readily understood by reference to the drawings. It should be understood that: these drawings are for illustrative purposes only and are not intended to limit the scope of the present disclosure. In the figure:

fig. 1 is a schematic structural diagram of a shingle assembly according to an embodiment of the present invention;

FIG. 2 is an enlarged view of portion A shown in FIG. 1;

FIG. 3 is a schematic structural view of the connector sub shown in FIG. 2;

FIG. 4 is a perspective view of FIG. 3;

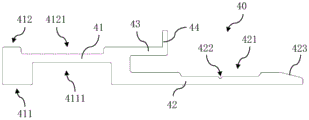

FIG. 5 is a schematic view of the butt joint female member shown in FIG. 2;

FIG. 6 is a perspective view of FIG. 5;

FIG. 7 is a schematic view of the combination of the male connection sub and the female butt connection sub shown in FIGS. 3 and 5;

FIG. 8 is an enlarged view of portion B shown in FIG. 1;

FIG. 9 is a schematic view of the female reentrant connector member of FIG. 8;

FIG. 10 is a perspective view of FIG. 9;

FIG. 11 is a schematic view of the combination of the female and male coupling sub-elements shown in FIGS. 3 and 9;

fig. 12 is an enlarged view of the portion C shown in fig. 1.

Detailed Description

The following describes the present invention with reference to the accompanying drawings.

It is easily understood that, according to the technical solution of the present invention, a plurality of structural modes and implementation modes that can be mutually replaced by those of ordinary skill in the art can be achieved without changing the spirit of the present invention. Therefore, the following detailed description and the accompanying drawings are only exemplary illustrations of the technical solutions of the present invention, and should not be construed as limiting or restricting the technical solutions of the present invention in its entirety or as a limitation of the present invention.

The terms of orientation of up, down, left, right, front, back, top, bottom, and the like referred to or may be referred to in this specification are defined relative to the configuration shown in the drawings, and are relative terms, and thus may be changed correspondingly according to the position and the use state of the device. Therefore, these and other directional terms should not be construed as limiting terms.

As shown in fig. 1-12, the shingle assembly of the present invention includes a plurality of leveling members 10, a plurality of shingles 20, butt joint mounting assemblies, inside corner mounting assemblies, and outside corner mounting members.

The leveling pieces 10 are arranged at intervals along the extending direction of the wall body and used for leveling the wall body; the wall panels 20 are sequentially arranged along the extending direction of the wall body and cover the wall body, and the outer surfaces of the wall panels 20 are provided with decorative layers; the butt joint installation component is arranged between two adjacent wall panels 20 and is used for connecting the two adjacent wall panels 20, and the two adjacent wall panels 20 are fixed with the leveling member 10 through the butt joint installation component; the internal corner mounting assembly is arranged at the internal corner of the wall body and is used for connecting the wall panels 20 positioned at two sides of the internal corner of the wall, and the wall panels 20 positioned at two sides of the internal corner of the wall are fixed with the leveling member 10 through the internal corner mounting assembly; the external corner fixing piece is arranged at the external corner of the wall body and is used for connecting the wall panels 20 positioned at two sides of the external corner of the wall body, and the wall panels 20 positioned at two sides of the external corner of the wall body are fixed with the leveling piece 10 through the external corner fixing piece.

After the leveling members 10 are distributed at intervals along the extending direction of the wall body, the wall panels 20 are sequentially arranged along the extending direction of the wall body, the decorative layer arranged on the outer surface of the wall panel 20 faces to the outside so as to decorate the wall body, the wall panel 20 is assembled from one end of the wall body, and the free end of the wall panel 20 positioned at the end part can be fixed on the wall body through a reentrant corner installation component; for a flat wall surface, the adjacent wall panels 20 are fixed on the wall body through butt joint installation components; the wall panels 20 at two sides of the internal corner of the wall are mounted on the wall body through the internal corner mounting assembly, the wall panels 20 at two sides of the external corner of the wall are mounted on the wall body through the external corner fixing member, and the free end of the wall panel 20 at the other side end part is fixed on the wall body through the internal corner mounting assembly. By adopting the wall panel assembly, the wall panel and the wall body can be quickly assembled, the construction process can be simplified, the construction period is shortened, the construction speed is improved, meanwhile, the environment pollution or decoration garbage is avoided, the phenomenon that marks are easily left at the positions of floors, door frames and the like is avoided, and the industrialization level is improved.

As shown in fig. 2-7, the butt mounting assembly includes a connection sub-member 30 and a butt connection female member 40; the connecting sub-member 30 is provided between the adjacent two of the wall panels 20 for connecting the adjacent first wall panels 21; the butt joint female member 40 is disposed between two adjacent wall panels 20, is clamped with the connecting sub member 30, and is used for connecting the adjacent second wall panels 22, and the two adjacent wall panels 20 are fixed with the leveling member 10 through the butt joint female member 40. The connecting sub-member 30 and the flush joint female member 40 are used to realize flush joint of the adjacent first and

second wall panels

21 and 22, and the flush joint female member 40 and the flush joint member 10 are fixedly connected by means of screws or the like so as to fix the flush jointed first and

second wall panels

21 and 22 on the wall body. The flush joint mounting assembly for the wall panels can realize the quick assembly of the adjacent wall panels, has good stability and improves the waterproof performance; meanwhile, the traditional gap filling process is omitted, the construction flow is simplified, and the pollution to the operation environment is avoided.

Optionally, as shown in fig. 3-6, the connector sub 30 includes a first shingle connector panel 31 and a first patch panel 32. The first wallboard connecting plate 31 comprises a first side surface 311 and a second side surface 312 which are oppositely arranged, and the first side surface 311 is attached to the wallboard 20; the first plug board 32 is perpendicular to the first side 311 and extends in a direction away from the second side 312, the first plug board 32 includes a third side 321 and a fourth side 322 which are oppositely disposed, a first clamping groove for clamping the adjacent one of the wall panels 20 is formed between the third side 321 and the first side 311, and a second clamping groove for clamping the adjacent other wall panel 20 is formed between the fourth side 322 and the first side 311.

The butt connection female member 40 includes a second wall panel connection plate 41, a first connection sub member fixing plate 42, a first stopper plate 43, and a second socket plate 44. The second shingle connecting plate 41 comprises a fifth side 411 and a sixth side 412 which are oppositely arranged, a first side edge positioned on the fifth side 411 and a second side edge positioned on the sixth side 412 and oppositely arranged with the first side edge, and the fifth side 411 is attached to the leveling member 10; a first connecting sub fixing plate 42 disposed on the first side and extending in a direction away from the second shingle connecting plate 41, wherein the top of the first connecting sub fixing plate 42 is flush with the fifth side 411; a first limiting plate 43 disposed on the second side edge and extending in the same direction as the first connecting sub-fixing plate 42, wherein the bottom of the first limiting plate 43 is disposed to be flush with the sixth side surface 412, and the first connecting sub-fixing plate 42, the second wall panel connecting plate 41 and the first limiting plate 43 form a first accommodating groove for accommodating the connecting sub-30; the second inserting plate 44 is perpendicular to the first limiting plate 43 and extends in a direction away from the first connecting sub fixing plate 42, and a third clamping groove for clamping another adjacent wall panel 20 is formed between the second inserting plate 44 and the sixth side surface 412.

Adopt above-mentioned connecting sub-spare and butt joint to connect female member joint and connect, easy dismounting, first joint groove and third joint groove provide spacingly to realize zonulae occludens, improve the integrative nature of wall panel and butt joint installation component, improve whole leakproofness and waterproof performance simultaneously.

The top and bottom referred to herein are in terms of the shingle, and when installed, the end distal from the shingle is the top and the end proximal to the shingle is the bottom.

When the wall panel is installed, the first connecting sub fixing plate 42 is fixed on the leveling member 10 between the first wall panel 21 and the second wall panel 22 by means of screws and the like; secondly, abutting the adjacent two side end faces of the second wall panel 22 on the second plug board 44 and the second wall panel connecting board 41 respectively, and fixing the second wall panel connecting board 41 by means of bonding and the like; then, the first shingle connecting plate 31 is inserted into a first accommodating groove formed by the first connecting sub fixing plate 42, the second shingle connecting plate 41 and the first limiting plate 43, and can be fixedly connected with the first connecting sub fixing plate 42 in a bonding mode and the like; finally, the adjacent two side end faces of the first shingle 21 are respectively abutted against the first inserting plate 32 and the first shingle connecting plate 31 and fixed on the first shingle connecting plate 31 by means of bonding and the like.

In this embodiment, the flush mounting assembly may also be used to mount two adjacent wall panels 20 on a flat wall body by the connecting sub-members 30 cooperating with other combined structural members, for example, the two connecting sub-members 30 may be used to mount two adjacent wall panels 20, and the two connecting sub-members 30 may be fixed on the leveling member 10 in a screw manner, and the flush mounting assembly is not limited to the connecting sub-members 30 and the flush mounting female members 40 in this embodiment.

In this embodiment, it is preferable that the second side surface 312 is provided with a first groove 3121 extending along the extending direction of the first wall panel connecting plate 31, the first wall panel connecting plate 31 has a long bar shape, and the first groove 3121 extends along the length direction of the first wall panel connecting plate 31, so as to provide an escape space when the flush joint female member 40 is screwed with the leveling member 10.

In this embodiment, preferably, the first side 311 at the first fastening groove is provided with a second groove 3111 extending along the extending direction of the first shingle connecting plate 31, and the extending direction of the second groove 3111 is the same as the extending direction of the first groove 3121, and both extend along the length direction of the first shingle connecting plate 31. When first shingle nail connecting plate 31 bonds with first shingle nail 21, second recess 3111 is used for holding the cream glue, provides dodges the space, makes the cream glue level with first shingle nail connecting plate 31, prevents that the cream glue is protruding.

In this embodiment, it is preferred that the fifth side 411 is provided with a third groove 4111 extending along the extending direction of the second wall panel connecting plate 41, the second wall panel connecting plate 41 is shaped as a strip, and the third groove 4111 extends along the length direction of the second wall panel connecting plate 41. Through set up the third recess on second shingle nail connecting plate, alleviate the weight of second shingle nail connecting plate, save material simultaneously, reduce cost.

In this embodiment, preferably, the sixth side surface 412 is provided with a fourth groove 4121 extending along the extending direction of the second wall panel connecting plate 41, and the extending direction of the fourth groove 4121 is the same as the extending direction of the third groove 4111, and both the extending direction and the extending direction are along the length direction of the second wall panel connecting plate 41. When the second shingle connecting plate 41 is bonded to the second shingle 22, the fourth groove 4121 is used to receive the paste, to provide an escape space, so that the paste is flush with the second shingle connecting plate 41, preventing the paste from being protruded.

In this embodiment, preferably, a fifth groove 421 extending along the extending direction of the first connecting sub fixing plate 42 is disposed on a side surface of the first connecting sub fixing plate 42 close to the first limiting plate 43, the first connecting sub fixing plate 42 is shaped as a long strip, and the fifth groove 421 extends along the length direction of the first connecting sub fixing plate 42, so as to provide an escape space when the flat connecting female member 40 is screwed to the leveling member 10.

In this embodiment, preferably, the first connecting sub fixing plate 42 located at the fifth groove 421 is further provided with a first positioning groove 422 extending in the same direction as the fifth groove 421, and the first positioning groove 422 is used for positioning a drilling position of a screw, so as to facilitate quick installation of the flush connecting female member 40.

In this embodiment, preferably, the end of the first side 311 at the second engaging groove is provided with a first guide portion 313, and the end of the first connecting sub fixing plate 42 is provided with a second guide portion 423, so as to guide the first shingle connecting plate 31 to be inserted into the first receiving groove formed by the first connecting sub fixing plate 42, the second shingle connecting plate 41 and the first limiting plate 43.

In this embodiment, the first wall panel connecting plate 31 and the first inserting plate 32 are preferably of an integrally formed structure. By adopting an integrally formed structure, the manufacturing process can be simplified, and the structural strength of the connecting sub-element 30 can be improved.

In this embodiment, preferably, the second wall panel connecting plate 41, the first connecting sub fixing plate 42, the first limiting plate 43 and the second inserting plate 44 are integrally formed. By adopting an integrally formed structure, the manufacturing process can be simplified, and the structural strength of the flush joint female connection member 40 is improved.

As shown in fig. 2-3, 8-11, the female corner mounting assembly includes a coupling sub 30 and a female corner coupling female 50. The connecting sub-element 30 is arranged between two adjacent wall panels 20 and is used for connecting one of the adjacent wall panels 20, and the connecting sub-element 30 has the same structure as the connecting sub-element 30 in the flush joint installation component, so the description is omitted; the female corner connecting element 50 is arranged on two sides of the female corner of the wall, is clamped with the connecting element 30 and is used for connecting the other wall panel 20 positioned on two sides of the female corner of the wall, and the two wall panels 20 positioned on two sides of the female corner of the wall are fixed with the leveling element 10 through the female corner connecting element 50. The connecting sub-element 30 and the female corner connecting element 50 are used for realizing the first wall panel 21 and the second wall panel 22 which are positioned at two sides of the female corner of the wall, and the female corner connecting element 50 and the leveling element 10 are fixedly connected through screws and the like so as to fix the connected first wall panel 21 and the second wall panel 22 on the wall. The internal corner mounting assembly for the wall panel can realize the rapid assembly of the first wall panel and the second wall panel which are positioned at two sides of the internal corner of the wall, has good stability and improves the waterproof performance; meanwhile, the traditional gap filling process is omitted, the construction flow is simplified, and the pollution to the operation environment is avoided.

Alternatively, as shown in fig. 8 to 11, the female corner connecting element 50 includes a third wall panel connecting plate 51, a second connecting sub fixing plate 52 and a second limiting plate 53. The third wallboard connecting plate 51 comprises a seventh side 511 and an eighth side 512 which are oppositely arranged, and the seventh side 511 is attached to the leveling member 10; a second connecting sub-member fixing plate 52 perpendicular to the eighth side 512 and extending in a direction away from the seventh side 511; the second limiting plate 53 is located below the second connecting sub-fixing plate 52, the eighth side 512 of the perpendicular to and the second connecting sub-fixing plate 52 extend in the same direction, a second accommodating groove for accommodating the connecting sub-part 30 is formed between the tops of the second connecting sub-fixing plate 52, the third wall panel connecting plate 51 and the second limiting plate 53, and a fourth clamping groove for clamping another wall panel 20 located on two sides of the internal corner of the wall is formed between the bottoms of the connecting sub-part 30 and the second limiting plate 53 and the third wall panel connecting plate 51.

Adopt above-mentioned connection son and reentrant corner to connect female joint and connect, easy dismounting, first joint groove and fourth joint groove provide spacingly to realize zonulae occludens, improve the wholeness of shingle nail and reentrant corner installation component, improve whole leakproofness and waterproof performance simultaneously.

When the wall panel is installed, firstly, the second connecting sub fixing plate 52 is fixed on the leveling member 10 between the first wall panel 21 and the second wall panel 22 by means of screws and the like, and the third wall panel connecting plate 51 is fixed on the leveling member 10 positioned at the internal corner of the wall; secondly, abutting the end surfaces of two adjacent sides of the second shingle 22 against a second limit plate 53 and a third shingle connecting plate 51 respectively, and fixing the second shingle on the third shingle connecting plate 51 in a bonding way and the like; then, the first shingle connecting plate 31 is inserted into a second accommodating groove formed among the tops of the second connecting sub fixing plate 52, the third shingle connecting plate 51 and the second limiting plate 53, and can be fixedly connected with the second connecting sub fixing plate 52 in a bonding manner and the like; finally, the adjacent two side end faces of the first shingle 21 are respectively abutted against the first inserting plate 32 and the first shingle connecting plate 31 and fixed on the first shingle connecting plate 31 by means of bonding and the like.

In this embodiment, the internal corner installation assembly may also be used to install two wall panels 20 located at two sides of the internal corner of the wall by matching the connecting sub-piece 30 with other combined structural members, for example, the two connecting sub-pieces 30 and two wall panels 20 may be used to install the two connecting sub-pieces 30 on the leveling member 10 in a screw manner, and the internal corner installation assembly is not limited to the connecting sub-piece 30 and the internal corner connecting female piece 50 in this embodiment.

In this embodiment, preferably, the seventh side 511 is provided with a sixth groove 5111 extending along the extending direction of the third wall panel connecting plate 51, the third wall panel connecting plate 51 is in a long strip shape, and the sixth groove 5111 extends along the length direction of the third wall panel connecting plate 51. Through set up the sixth recess on third shingle nail connecting plate, alleviate the weight of third shingle nail connecting plate, save material simultaneously, reduce cost.

In this embodiment, preferably, the eighth side 512 is provided with a seventh groove 5121 extending in the same direction as the sixth groove 5111, and the extending direction of the seventh groove 5121 is the same as the extending direction of the sixth groove 5111, and both the seventh groove 5121 and the sixth groove extend along the length direction of the third shingle connecting plate 51. When the third shingle connecting plate 51 is bonded to the second shingle 22, the seventh groove 5121 is used to receive the paste, to provide an escape space, so that the paste is flush with the third shingle connecting plate 51, preventing the paste from being protruded.

In this embodiment, preferably, the second connecting sub fixing plate 52 is provided with an eighth groove 521 extending along the extending direction of the second connecting sub fixing plate 52 on the side surface close to the second limiting plate 53, the second connecting sub fixing plate 52 is shaped as a long strip, and the eighth groove 521 extends along the length direction of the second connecting sub fixing plate 52, so as to provide an escape space when the female connection member 50 and the leveling member 10 are connected by screws.

In this embodiment, preferably, a second positioning groove 522 extending in the same direction as the eighth groove 521 is further disposed on the second connecting sub fixing plate 52 located at the eighth groove 521, and the second positioning groove 522 is used for positioning a drilling position of a screw, so as to facilitate quick installation of the female reentrant corner connecting component 50.

In this embodiment, preferably, the end of the second connecting sub fixing plate 52 on the side close to the second limit plate 53 is provided with a third guide portion 523 for guiding the first shingle connecting plate 31 to be inserted into the second receiving groove formed between the second connecting sub fixing plate 52, the third shingle connecting plate 51 and the top of the second limit plate 53.

In this embodiment, preferably, the third shingle connecting plate 51, the second connecting sub fixing plate 52 and the second limiting plate 53 are integrally formed. By adopting the integral molding structure, the manufacturing process can be simplified, and the structural strength of the female corner connecting piece 50 can be improved.

Alternatively, as shown in figure 12, the male corner fastener comprises a fourth and

fifth shingle web

61, 62. A fourth shingle connecting plate 61 including a first end and a second end which are oppositely disposed, for connecting the first shingles 21 positioned at both sides of the external corner of the wall; and a fifth shingle connecting plate 62 at the second end perpendicular to the fourth shingle connecting plate 61 for connecting the second shingles 22 at both sides of the external corner of the wall. Adopt above-mentioned external corner mounting to be used for realizing the first shingle nail of wall external corner department and the rapid Assembly and the accurate positioning of second shingle nail, reduce the installation degree of difficulty, improve the installation accuracy, guarantee installation quality.

In this embodiment, the fourth and fifth

shingle connection plates

61 and 62 are preferably of one-piece construction. The manufacturing process can be simplified and the structural strength of the external corner fixing piece can be improved by adopting an integrally formed structure.

The following explains the installation method of the shingle assembly provided by the utility model, specifically as follows:

(1) a plurality of leveling pieces 10 are distributed at intervals along the extending direction of the wall body;

(2) a plurality of wall panels 20 are distributed in sequence along the extending direction of the wall body;

(3) installing reentrant corner installation components outside the first side end parts of the plurality of wall panels 20, fixing and limiting the wall panels 20 positioned at the first side end parts by the reentrant corner installation components, and fixing the free ends of the wall panels 20 positioned at the first side end parts with the leveling members 10;

(4) fixing a flush mounting component on the leveling member 10 between two adjacent wall panels 20, wherein the two adjacent wall panels 20 are connected into an integral structure through the flush mounting component and are fixed with the leveling member 10 through the flush mounting component;

(5) repeating the step (4) until the wall panels 20 on two sides of the internal corner and/or the external corner of the wall body are installed, fixing the internal corner installation assembly and/or the external corner fixing piece on the internal corner and/or the external corner of the wall, and fixing the wall panels 20 on two sides of the internal corner and/or the external corner of the wall with the leveling piece 10 through the internal corner installation assembly and/or the external corner fixing piece;

(6) and (5) repeating the step (5) until the wall panels 20 positioned at the second side end parts of the plurality of wall panels 20 are installed, installing internal corner installation components outside the second side end parts of the plurality of wall panels 20, fixing and limiting the wall panels 20 positioned at the second side end parts by the internal corner installation components, and fixing the free ends of the wall panels 20 positioned at the second side end parts with the leveling members 10.

The wall surface plate assembly is adopted for wall surface installation, so that the wall surface plate and a wall body can be quickly assembled, the construction process can be simplified, the construction period is shortened, the construction speed is increased, meanwhile, the environment pollution or decoration garbage is avoided, the phenomenon that marks are easily left at the positions of floors, door frames and the like is avoided, and the industrialization level is improved.

Optionally, in step (4), the method specifically includes:

(4a) disposing the first connector sub fixing plate 42 on the leveling member 10 between the first and

second wall panels

21 and 22;

(4b) abutting the end surfaces of two adjacent sides of the second shingle 22 against the second plug board 44 and the second shingle connecting board 41 respectively, and fixing the second shingle connecting board 41;

(4c) inserting the first shingle connecting plate 31 into a first receiving groove formed by the first connecting sub fixing plate 42, the second shingle connecting plate 41 and the first limiting plate 43;

(4d) the adjacent two side end faces of the first shingle 21 are respectively abutted against the first inserting plate 32 and the first shingle connecting plate 31 and fixed on the first shingle connecting plate 31.

The flush joint mounting assembly can realize the quick assembly of adjacent wall panels, has good stability and improves the waterproof performance; meanwhile, the traditional gap filling process is omitted, the construction flow is simplified, and the pollution to the operation environment is avoided.

Optionally, in step (5), specifically including:

(5a) a second connecting sub fixing plate 52 is arranged on the leveling member 10 between the first wall panel 21 and the second wall panel 22, so that a third wall panel connecting plate 51 is fixed on the leveling member 10 positioned at the internal corner of the wall;

(5b) abutting the end surfaces of the two adjacent sides of the second shingle 22 against a second limit plate 53 and a third shingle connecting plate 51 respectively, and fixing the second shingle on the third shingle connecting plate 51;

(5c) inserting the first shingle connecting plate 31 into a second receiving groove formed among the tops of the second connecting sub fixing plate 52, the third shingle connecting plate 51 and the second limiting plate 53;

(5d) the adjacent two side end faces of the first shingle 21 are respectively abutted against the first inserting plate 32 and the first shingle connecting plate 31 and fixed on the first shingle connecting plate 31.

Adopt above-mentioned reentrant corner installation component can realize the rapid Assembly and the accurate positioning of first shingle nail and second shingle nail of wall reentrant corner department, reduce the installation degree of difficulty, improve the installation accuracy, guarantee installation quality.

Optionally, in step (5), specifically, the method further includes:

a fourth shingle connecting plate 61 and a fifth shingle connecting plate 62 are fixed to the external corner of the wall, and the first shingle 21 and the second shingle 22 positioned at both sides of the external corner of the wall are fixed to the fourth shingle connecting plate 61 and the fifth shingle connecting plate 62, respectively.

Adopt above-mentioned external corner mounting to be used for realizing the first shingle nail of wall external corner department and the rapid Assembly and the accurate positioning of second shingle nail, reduce the installation degree of difficulty, improve the installation accuracy, guarantee installation quality.

To sum up, the utility model provides a shingle nail assembly adopts above-mentioned shingle nail assembly can realize shingle nail and wall body rapid Assembly, can simplify the work progress, shortens construction period, improves construction speed, avoids producing environmental pollution or fitment rubbish simultaneously, avoids leaving the vestige easily in positions such as floor, door frame, improves industrialization level. Moreover, the wall panel assembly occupies a small space, is convenient and quick to assemble, accurate in positioning, high in flatness, good in decoration effect and good in sealing performance and waterproof performance.

What has been described above is merely the principles and preferred embodiments of the present invention. It should be noted that, for those skilled in the art, on the basis of the principle of the present invention, several other modifications can be made, and the protection scope of the present invention should be considered.

Claims

1. A shingle assembly, comprising:

the flush mounting assembly is arranged between two adjacent wall panels and is used for connecting the two adjacent wall panels, the two adjacent wall panels are fixed with the leveling piece through the flush mounting assembly, and the flush mounting assembly comprises a connecting sub-piece which is arranged between the two adjacent wall panels and is used for connecting one of the two adjacent wall panels;

2. The shingle assembly of claim 1, wherein said connector sub-assembly comprises:

3. A wall panel assembly according to claim 1 or claim 2, wherein the butt-joint mounting assembly further comprises:

4. A shingle assembly as defined in claim 3, wherein said butt connection female member comprises:

5. A shingle assembly as defined in claim 1 or claim 2 wherein said reentrant mounting means comprises:

6. The shingle assembly of claim 5, wherein said female corner coupling element comprises:

7. A shingle assembly as defined in claim 1, wherein said male corner fastener comprises:
