CN212104681U

CN212104681U - On-spot assembled partition wall

Info

Publication number: CN212104681U
Application number: CN202020143835.3U
Authority: CN
Inventors: 冯小牛
Original assignee: Arukau Building Materials Qidong Co ltd
Current assignee: Arukau Building Materials Qidong Co ltd
Priority date: 2020-01-22
Filing date: 2020-01-22
Publication date: 2020-12-08
Anticipated expiration: 2030-01-22

Abstract

The utility model belongs to the technical field of dismantled and assembled wall body, a on-spot assembled partition wall is disclosed, it includes the sky fossil fragments, the keel, a plurality of fossil fragments stand, a plurality of adjusting part, mounting and link plate, the sky fossil fragments can set up on the roof, the keel can set up in subaerial relative with the roof, keel and sky fossil fragments parallel arrangement, a plurality of fossil fragments mutual separation that stand set up between sky fossil fragments and keel, it is mutually perpendicular with the sky fossil fragments to stand fossil fragments, adjusting part sets up on the keel, can adjust the position of standing fossil fragments in vertical direction, adjusting part sets up with the keel one-to-one that stands, it links together through the mounting with the sky fossil fragments to stand fossil fragments, the link plate can be connected between two adjacent upright fossil fragments in order to form the partition wall. The utility model provides a site Assembly formula partition wall can the site Assembly partition wall with the cell space, and the packaging efficiency is high, save the cost can keep job site's sanitation again.

Description

On-spot assembled partition wall

Technical Field

The utility model belongs to the technical field of dismantled and assembled wall body, especially, relate to a site Assembly type partition wall.

Background

Office areas often include large spaces that are often divided into smaller spaces by wall panel systems according to actual user needs when finished.

When building indoor partitions, the traditional method is to utilize a large amount of light steel keels to process and manufacture on site, or to cut and brush bricks, batch putty, polish and brush paint and the like. A large amount of building rubbish, dust and construction noise can be generated on the decoration site, so that original workers need to be removed from the construction site, decoration cost is increased, normal work of the workers is affected, and construction time is long.

Therefore, there is a need for a field-fabricated partition that solves the above-mentioned problems.

SUMMERY OF THE UTILITY MODEL

An object of the utility model is to provide a field assembly formula partition wall, can the field assembly partition wall with the compartment inner space, the packaging efficiency is high, save the cost can keep job site's sanitation again.

To achieve the purpose, the utility model adopts the following technical proposal:

a field-installable partition comprising:

the ceiling keel can be arranged on a roof or a decorative suspended ceiling;

the ground keel can be arranged on the ground opposite to the roof, and the ground keel and the skullar keel are arranged in parallel;

the vertical keels are arranged between the top keel and the ground keel at intervals, and the vertical keels are perpendicular to the top keel;

the adjusting assemblies are arranged on the ground keel and can adjust the position of the vertical keel in the vertical direction, and the adjusting assemblies and the vertical keel are arranged in a one-to-one correspondence manner;

the vertical keel and the overhead keel are connected together through the fixing pieces;

the link plate can be connected in adjacent two in order to form the partition wall between the upright fossil fragments.

Preferably, the adjusting part comprises an adjusting foot and an adjusting piece, the adjusting foot is arranged on the ground keel, one end of the adjusting piece is connected with the adjusting foot, the other end of the adjusting piece is connected with the bottom end of the vertical keel, and the distance between the adjusting foot and the adjusting piece is adjustable.

Preferably, first U type groove has been seted up to the keel, adjust the foot and be located first U type inslot, adjust the foot with threaded connection between the regulating part, through rotating it can drive to adjust the foot the regulating part is followed first U type groove slides in vertical direction.

Preferably, the adjusting foot comprises a stud, the adjusting piece is provided with a second U-shaped groove, the bottom end of the vertical keel is clamped in the second U-shaped groove, a threaded through hole is formed in the bottom wall of the second U-shaped groove, the stud is connected with the threaded through hole, and when the stud rotates, the adjusting piece can be driven to move up and down to adjust the position of the vertical keel in the vertical direction.

Preferably, the fixing part comprises a first plate and a second plate which are connected in an L shape, a first long waist hole is formed in the first plate, a second long waist hole is formed in the second plate, the first plate can be connected to the vertical keel through the first long waist hole, and the second plate can be connected to the ceiling keel through the second long waist hole.

Preferably, the vertical keel comprises a rib plate and two side plates, the rib plate is connected between the two side plates, a plurality of hanging plate holes are formed in the side face, deviating from the rib plate, of each side plate at intervals, a plurality of hanging lugs are arranged on the side face of each hanging plate at intervals, and the hanging lugs can be clamped in the hanging plate holes in a one-to-one correspondence mode to hang the hanging plates on the vertical keel.

Preferably, the rib plate is provided with a long through hole, and the long through hole is used for penetrating through a wire tube.

Preferably, the hanging plate assembly further comprises a skirting board assembly, and the skirting board assembly can be installed on the vertical keel and is located below the hanging plate.

Preferably, the skirting board assembly comprises a clamping piece and a skirting board, the clamping piece can be installed on the vertical keel, the clamping piece is provided with a clamping groove, and the skirting board can be clamped in the clamping groove.

Preferably, the hanging plate further comprises an elastic insertion strip, and the elastic insertion strip can be embedded between two adjacent hanging plates.

The utility model has the advantages that:

the utility model provides an on-spot assembled partition wall, it is including the sky fossil fragments, the keel, a plurality of fossil fragments, adjusting part, mounting and link plate, the sky fossil fragments can set up on the roof, the keel can set up subaerially, the mounting is used for connecting the top of founding the fossil fragments in the sky fossil fragments, adjusting part can connect the bottom of founding the fossil fragments in the keel, and can adjust the upper and lower position of founding the fossil fragments in order to adjust a plurality of fossil fragments to flush, the link plate can be connected in order to form the partition wall between two adjacent founding the fossil fragments. The utility model provides a site Assembly formula partition wall can the site Assembly partition wall with the cell space, and the packaging efficiency is high, save the cost can keep job site's sanitation again.

Drawings

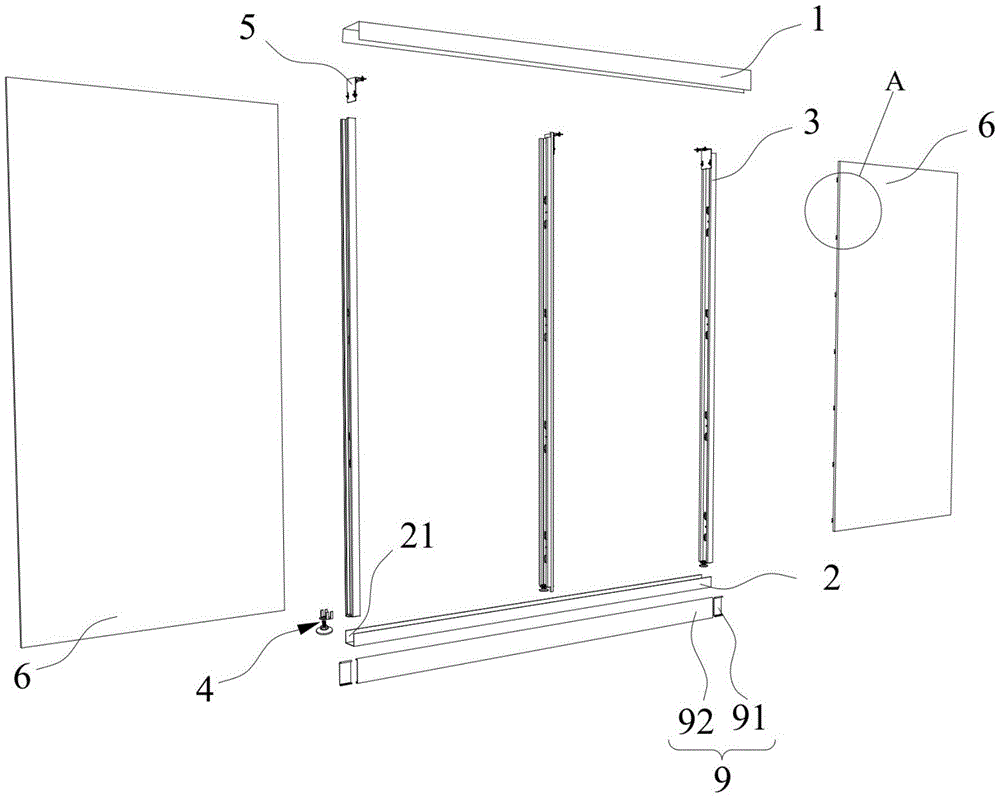

Fig. 1 is an exploded schematic view of a field-assembled partition wall according to an embodiment of the present invention;

fig. 2 is an exploded schematic view of an adjusting assembly provided in an embodiment of the present invention;

fig. 3 is a schematic structural diagram of a fixing member according to an embodiment of the present invention;

fig. 4 is a schematic structural view of the keel provided in the embodiment of the invention;

FIG. 5 is an enlarged view at A in FIG. 1;

fig. 6 is a partial structural schematic view of a field-assembled partition wall provided by the embodiment of the invention;

fig. 7 is an exploded view of a structure of a field-assembled partition wall according to an embodiment of the present invention.

In the figure:

1. a ceiling keel; 2. a keel; 3. erecting a keel; 4. an adjustment assembly; 5. a fixing member; 6. hanging the plate; 7. hanging a lug; 8. an elastic fillet; 9. a skirting board assembly;

21. a first U-shaped groove; 31. a rib plate; 32. a side plate; 41. adjusting the foot; 42. an adjustment member; 51. a first plate; 52. a second plate; 91. a fastener; 92. skirting boards;

311. a long through hole; 321. hanging plate holes; 411. a stud; 412. a hexagonal cylinder; 413. a base plate; 421. a second U-shaped groove; 422. a threaded through hole; 511. a first long waist hole; 512. a reinforcing plate; 521. a second long waist hole; 522. and (7) fixing holes.

Detailed Description

Reference will now be made in detail to the embodiments of the present invention, examples of which are illustrated in the accompanying drawings, wherein like reference numerals refer to the same or similar parts throughout, or parts having the same or similar functions. The embodiments described below with reference to the drawings are exemplary and intended to be used for explaining the present invention, and should not be construed as limiting the present invention.

In the description of the present invention, unless otherwise expressly specified or limited, the terms "connected," "connected," and "mounted" are to be construed broadly and can include, for example, a mounted connection, a removable connection, a mechanical connection, an electrical connection, a direct connection, an indirect connection through an intermediary, a connection between two elements, or an interaction between two elements. The specific meaning of the above terms in the present invention can be understood according to specific situations by those skilled in the art.

In the description of the present invention, unless otherwise expressly specified or limited, the first feature "on" or "under" the second feature may include both the first and second features being in direct contact, and may also include the first and second features being in contact, not in direct contact, but with another feature therebetween. Also, the first feature being "on," "above" and "over" the second feature includes the first feature being directly on and obliquely above the second feature, or merely indicating that the first feature is at a higher level than the second feature. A first feature being "under," "below," and "beneath" a second feature includes the first feature being directly under and obliquely below the second feature, or simply meaning that the first feature is at a lesser elevation than the second feature.

The technical solution of the present invention is further explained by the following embodiments with reference to the accompanying drawings.

As shown in fig. 1, the present embodiment provides a field-assembled partition wall, which includes a ceiling keel 1, a floor keel 2, a plurality of vertical keels 3, a plurality of adjusting assemblies 4, a plurality of fixing members 5 and a hanging plate 6, wherein the ceiling keel 1 can be arranged on a roof or a decorative ceiling; the ground keel 2 can be arranged on the ground opposite to the roof, and the ground keel 2 and the skullet keel 1 are arranged in parallel; the vertical keels 3 are arranged between the top keel 1 and the ground keel 2 at intervals, and the vertical keels 3 are perpendicular to the top keel 1; the adjusting assemblies 4 are arranged on the ground keel 2 and can adjust the position of the vertical keel 3 in the vertical direction, and the adjusting assemblies 4 and the vertical keel 3 are arranged in a one-to-one correspondence manner; the vertical keel 3 and the ceiling keel 1 are connected together through a fixing piece 5; the hanging plate 6 can be connected between two adjacent vertical keels 3 to form a partition wall.

The on-site assembly type partition wall that this embodiment provided, ceiling keel 1 can set up in roof or decoration furred ceiling, and ground keel 2 can set up subaerially, and mounting 5 is used for connecting the top of founding fossil fragments 3 in ceiling keel 1, and adjusting part 4 can connect the bottom of founding fossil fragments 3 in ground keel 2, and can adjust the upper and lower position of founding fossil fragments 3 in order to adjust a plurality of fossil fragments 3 that found to flush, and link plate 6 can connect in order to form the partition wall between two adjacent founding fossil fragments 3. The field assembly type partition wall provided by the embodiment can be assembled in the field to divide the space in a room, has high assembly efficiency, saves the cost and can keep the environmental sanitation of a construction site.

As shown in fig. 2, the adjusting assembly 4 comprises an adjusting foot 41 and an adjusting piece 42, one end of the adjusting piece 42 is connected to the adjusting foot 41, the other end of the adjusting piece 42 is connected to the bottom end of the upright keel 3, the distance between the adjusting foot 41 and the adjusting piece 42 is adjustable, the adjusting foot 41 is arranged on the floor keel 2, and the position of the upright keel 3 in the vertical direction is adjusted by adjusting the distance between the adjusting foot 41 and the adjusting piece 42, so that the upright keels 3 are flush, and the adjusting assembly is also suitable for separating houses with different floor heights.

Specifically, first U type groove 21 has been seted up to ground keel 2, adjusts foot 41 and is located first U type groove 21, adjusts threaded connection between foot 41 and the regulating part 42, adjusts foot 41 through rotating and can drive regulating part 42 and slide in vertical direction along first U type groove 21. Preferably, adjust foot 41 including the double-screw bolt 411, second U type groove 421 has been seted up to regulating part 42, and the bottom joint of founding fossil fragments 3 is in second U type groove 421, has seted up screw thread through-hole 422 on the bottom wall of second U type groove 421, and double-screw bolt 411 is connected with screw thread through-hole 422, and when the double-screw bolt 411 was rotatory, can drive regulating part 42 and reciprocate in order to adjust the position of founding fossil fragments 3 in vertical direction.

In this embodiment, the outer side of the adjusting member 42 has two parallel planes, the two planes correspond to the two side walls in the first U-shaped groove 21, respectively, and when the adjusting pin 41 rotates, the rotation of the adjusting member 42 can be limited due to the interference of the two side walls of the first U-shaped groove 21 on the adjusting member 42, so as to drive the adjusting member 42 to perform linear movement along the axial direction of the stud 411. Simultaneously, adjusting part 4 is located first U type groove 21, and adjusting part 4 can be sheltered from the front, looks more pleasing to the eye, and the lateral wall of first U type groove 21 can play the effect of leaning on the location to adjusting part 42 in addition, prevents that adjusting part 42 is crooked and influence adjusting part 4's regulating action.

More specifically, the adjusting foot 41 further comprises a hexagonal column 412 and a bottom plate 413, the hexagonal column 412 is connected between the stud 411 and the bottom plate 413, and the bottom plate 413 abuts against the bottom surface of the first U-shaped groove 21. The setting of bottom plate 413 can increase the area of contact who adjusts foot 41 and keel 2, improves the stability of adjusting foot 41, and the centre gripping of the instrument of being convenient for is gone up to the lateral surface of hexagon cylinder 412 to rotatory double-screw bolt 411 reciprocates in order to drive adjusting part 42, and of course, hexagon cylinder 412 also can set up to other cylinders that have the side edge.

As shown in fig. 3, the fixing member 5 includes a first plate 51 and a second plate 52 connected in an L shape, the first plate 51 is provided with a first long waist hole 511, the second plate 52 is provided with a second long waist hole 521, the first plate 51 can be connected to the upright keel 3 through the first long waist hole 511, and the second plate 52 can be connected to the ceiling keel 1 through the second long waist hole 521. In this implementation, use the fastener to pass long waist hole and fix, the setting of first long waist hole 511 makes the upright fossil fragments 3 after connecting can also adjust from top to bottom in order to adapt to the height in house and keep leveling with other upright fossil fragments 3. Also, after the fastening member is connected to the ceiling keel 1 through the second long waist hole 521, the fixing member 5 can be horizontally moved and fixed through the fixing hole 522 by the fastening member after being adjusted to a proper position. Reinforcing plates 512 are respectively provided at both sides of the first plate 51, and the reinforcing plates 512 are perpendicular to the first plate 51 for improving the strength of the fixing member 5.

As shown in fig. 4 and 5, the upright keel 3 includes a rib plate 31 and two side plates 32, the rib plate 31 is connected between the two side plates 32, a plurality of hanging plate holes 321 are spaced apart from the side surface of the side plate 32 away from the rib plate 31, a plurality of hanging lugs 7 are spaced apart from the side surface of the hanging plate 6, and the hanging lugs 7 can be clamped in the hanging plate holes 321 in a one-to-one correspondence manner to hang the hanging plate 6 on the upright keel 3. The rib plate 31 is provided with a long through hole 311, and the long through hole 311 is used for passing through a wire tube. In this embodiment, two axisymmetric U-shaped grooves are formed on the inner side surfaces of the two side plates 32 and the two side surfaces of the rib plate 31, so as to provide a containing space for the electric wire tube, thereby facilitating the installation of strong and weak electricity in the partition wall.

As shown in fig. 6 and 7, the field-assembled partition wall provided by the present embodiment further includes a skirting board assembly 9, and the skirting board assembly 9 can be mounted on the vertical keel 3 and is located below the hanging board 6. Baseboard subassembly 9 includes fastener 91 and baseboard 92, and fastener 91 can be installed on upright fossil fragments 3, and fastener 91 is provided with the draw-in groove, and baseboard 92 can clamp in the draw-in groove. In this embodiment, two ends of the skirting board 92 are respectively provided with a fastener 91, so that the skirting board 92 can be clamped more stably. The skirting board 92 can make the partition wall structure firm, protect the hanging board 6, prevent the hanging board 6 from being dirtied when carrying things, walking or cleaning, and can also play a role in beautifying and decorating. The skirting board 92 can be made of metal or other materials, and the latch 91 is made of metal or other materials with certain elasticity and rigidity.

Specifically, the field-fabricated partition wall provided by the embodiment further comprises an elastic insertion strip 8, and the elastic insertion strip 8 can be embedded between two adjacent hanging plates 6 to play a decorative role. Whether the elastic insertion strip 8 needs to be installed is determined according to design requirements, and if the hanging plate 6 is closely spliced, the elastic insertion strip 8 can be omitted.

Whether hanging plates 6 are hung on the two sides of the vertical keel 3 or not is determined according to design requirements. In this embodiment, the hanging plate 6 is composed of a decorative panel and an inner lining plate, the decorative panel can be made of metal materials such as steel plates, stainless steel and aluminum alloy, can also be made of bamboo and wood products, plastic products or glass products, and can also be made of composite materials such as aluminum-plastic plates, bamboo and wood composite plates or the like. The lining board is generally made of materials such as a paper-faced gypsum board, a TK board and the like, can also be an aluminum alloy framework, is adsorbed on the back face of the decoration panel through a bonding agent or a meshing method and is used for enhancing the strength of the decoration panel such as impact resistance.

The steps of assembling the site-fabricated partition wall provided in this embodiment are as follows:

s1, fixing a ceiling keel 1 at a proper position on a roof by using a fastener, and fixing a ground keel 2 on the ground corresponding to the ceiling keel 1 by using the fastener.

S2, the bottom end of the vertical keel 3 is clamped in a second U-shaped groove 421 of the adjusting piece 42, the stud 411 is screwed into the threaded through hole 422, and the adjusting component 4 is inserted into a first U-shaped groove 21 of the ground keel 2.

S3, the fixing piece 5 is connected to the ceiling keel 1 through the second long waist hole 521, and the fixing piece 5 is connected with the vertical keel 3 through the first long waist hole 511.

S4, after the plurality of vertical keels 3 are installed, the height of the vertical keels 3 is adjusted by utilizing the hexagonal wrench to rotate the adjusting feet 41, and the plurality of vertical keels 3 are adjusted to be flush.

S5, measuring the horizontal distance between every two adjacent vertical keels 3 by using a measuring tool, and fixing the positions of the vertical keels 3 in the horizontal direction by using fasteners to penetrate through the fixing holes 522 when the adjustment is proper.

S6, fixing the clamping piece 91 at a proper position of the vertical keel 3, and clamping the skirting board 92 in a clamping groove of the clamping piece 91.

And S7, arranging and fixing a wire tube in the long through hole 311 of the vertical keel 3.

And S8, hanging the hanging lugs 7 of the assembled hanging plates 6 into the hanging plate holes 321 of the vertical keels 3 in sequence.

In the present embodiment, the fasteners are preferably general-purpose members such as screws, bolts, and rivets.

It is obvious that the above embodiments of the present invention are only examples for illustrating the present invention, and are not intended to limit the embodiments of the present invention. Other variations and modifications will be apparent to persons skilled in the art in light of the above description. And are neither required nor exhaustive of all embodiments. Any modification, equivalent replacement, and improvement made within the spirit and principle of the present invention should be included in the protection scope of the claims of the present invention.

Claims

1. A field-installable partition, comprising:

the ceiling keel (1) can be arranged on a roof or a decorative suspended ceiling;

the ground keel (2) can be arranged on the ground opposite to the roof, and the ground keel (2) and the roof keel (1) are arranged in parallel;

the vertical keels (3) are arranged between the top keel (1) and the ground keel (2) at intervals, and the vertical keels (3) are perpendicular to the top keel (1);

the adjusting assemblies (4) are arranged on the ground keel (2) and can adjust the position of the vertical keel (3) in the vertical direction, and the adjusting assemblies (4) are arranged in one-to-one correspondence with the vertical keel (3);

the vertical keels (3) and the overhead keels (1) are connected together through the fixing pieces (5);

and the hanging plate (6) can be connected between two adjacent vertical keels (3) to form a partition wall.

2. The field-assembled partition according to claim 1, wherein the adjusting assembly (4) comprises an adjusting foot (41) and an adjusting member (42), the adjusting foot (41) is arranged on the ground keel (2), one end of the adjusting member (42) is connected to the adjusting foot (41), the other end of the adjusting member is connected to the bottom end of the vertical keel (3), and the distance between the adjusting foot (41) and the adjusting member (42) is adjustable.

3. The field assembly type partition wall according to claim 2, wherein the ground keel (2) is provided with a first U-shaped groove (21), the adjusting foot (41) is positioned in the first U-shaped groove (21), the adjusting foot (41) is in threaded connection with the adjusting piece (42), and the adjusting piece (42) can be driven to slide in the vertical direction along the first U-shaped groove (21) by rotating the adjusting foot (41).

4. The on-site assembly type partition wall according to claim 3, wherein the adjusting pin (41) comprises a stud (411), the adjusting member (42) is provided with a second U-shaped groove (421), the bottom end of the upright keel (3) is clamped in the second U-shaped groove (421), the bottom wall of the second U-shaped groove (421) is provided with a threaded through hole (422), the stud (411) is connected with the threaded through hole (422), and when the stud (411) rotates, the adjusting member (42) can be driven to move up and down to adjust the position of the upright keel (3) in the vertical direction.

5. The field assembly type partition wall according to claim 1, wherein the fixing member (5) comprises a first plate (51) and a second plate (52) which are connected in an L shape, a first long waist hole (511) is formed in the first plate (51), a second long waist hole (521) is formed in the second plate (52), the first plate (51) can be connected to the vertical keel (3) through the first long waist hole (511), and the second plate (52) can be connected to the ceiling keel (1) through the second long waist hole (521).

6. The on-site assembly type partition wall according to claim 1, wherein the vertical keel (3) comprises a rib plate (31) and two side plates (32), the rib plate (31) is connected between the two side plates (32), a plurality of hanging plate holes (321) are formed in the side face, deviating from the rib plate (31), of each side plate (32) at intervals, a plurality of hanging lugs (7) are arranged on the side face of each hanging plate (6) at intervals, and the hanging lugs (7) can be clamped in the hanging plate holes (321) in a one-to-one correspondence mode to hang the hanging plates (6) on the vertical keel (3).

7. The site-mountable partition according to claim 6, wherein the ribs (31) are provided with through holes (311), and the through holes (311) are used for passing electric conduits.

8. A field-assembled partition according to claim 1 further comprising a kick plate assembly (9), the kick plate assembly (9) being mountable on the riser (3) and located below the cladding (6).

9. A site-mountable partition according to claim 8, wherein the skirting board assembly (9) comprises a snap member (91) and a skirting board (92), the snap member (91) being mountable on the keel (3), the snap member (91) being provided with a snap groove, the skirting board (92) being snap-fittable in the snap groove.

10. A site-mountable partition according to any one of claims 1 to 9 further including a resilient moulding (8), the resilient moulding (8) being capable of being inserted between two adjacent said cladding panels (6).
