CN212103387U - An energy-saving drying device for the production of knitted sweaters - Google Patents

Abstract

The utility model discloses an energy-saving drying device for the production of knitted sweaters, which comprises a drying box body, a clothes hanger is slidably assembled and installed at the top of the inner cavity of the drying box body, and a clothes hanger is fixedly installed at the bottom of the inner cavity of the drying box body. There is a bottom plate, a number of uniform air holes are evenly distributed on the bottom plate, a heating rod is arranged under the bottom plate, a heating coil is wound around the heating rod, and a plurality of uniformly installed on the inner bottom wall of the drying box The fan, the top wall of the drying box is provided with an air outlet, and one end of the air return pipe is fixedly inserted at the position of the opened air outlet, and the other end of the return air pipe is connected to the circulation box, and the drying box The side walls of the body and the circulation box are respectively provided with an air inlet and an air outlet, and the air inlet and the air outlet are sealed and communicated with each other. By adopting the technical scheme, the structure is simple, the assembly and installation are convenient, and the residual heat part is flowed into the drying box through the circulation box for reheating and utilization, which plays the role of energy saving and drying.

Description

An energy-saving drying device for the production of knitted sweaters

technical field

The utility model relates to the technical field of knitted sweater production, in particular to an energy-saving drying device for knitted sweater production.

Background technique

During the drying process of knitted sweaters, the existing knitted sweaters are not uniformly dried, the drying effect is not ideal, and part of the waste heat is discharged during drying, resulting in waste of part of the waste heat. Therefore, we design a knitted sweater production Energy saving drying unit.

Utility model content

In order to solve the defects of the prior art solutions, the utility model discloses an energy-saving drying device for the production of knitted sweaters.

The utility model discloses an energy-saving drying device for the production of knitted sweaters, which comprises a drying box body, the top of the inner cavity of the drying box body is slidably assembled and installed with a clothes hanger, and the inner cavity of the drying box body is provided with a clothes hanger. A bottom plate is fixedly installed at the bottom, and a number of equalizing air holes are evenly distributed on the bottom plate. A heating rod is arranged below the bottom plate, and a heating coil is wound and sleeved on the heating rod. The drying box A plurality of fans are evenly installed on the inner bottom wall of the drying box, and an air outlet is opened on the top wall of the drying box, and one end connected to the air return pipe is fixedly inserted at the position of the opened air outlet. The other end of the air return pipe is connected to the circulation box, and the side walls of the drying box and the circulation box are respectively provided with an air inlet and an air overflow, and the air inlet and the overflow are sealed. Connectivity settings.

Preferably, sliders are fixedly connected to both ends of the clothes hanging rod, the sliders are slidably installed on a linear sliding rail, and the linear sliding rail is fixedly installed on the inner side of the drying box. on the wall.

Preferably, a duct fan is fixedly installed on the air return pipe.

Preferably, insulating sleeve blocks are fixedly installed on both sides of the heating rod, and the insulating sleeve blocks are fixedly installed on the inner side wall of the drying box.

The beneficial effects are:

1. Its structure is simple and easy to assemble and install. The fan installed evenly on the bottom wall of the drying box blows up the high-temperature airflow generated by the heating coil and the heating rod. The knitted sweater on the rod is dried evenly from bottom to top.

2. The residual heat of the drying process can be easily drained from the return air pipe to the circulating box, and the circulating box will flow the residual heat into the drying box for re-heating and utilization, which plays the role of energy-saving drying.

Description of drawings

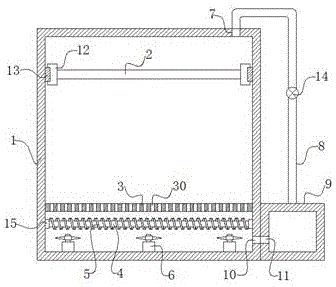

Figure 1 is a schematic structural diagram of an energy-saving drying device for producing knitted sweaters of the present invention.

Among them: 1- drying box; 2- clothes rail; 3- bottom plate, 30- air distribution hole; 4- heating rod; 5- heating coil; 6- fan; 7- air outlet; 8- return air duct ; 9-circulation box; 10-air inlet; 11-air outlet; 12-slider; 13-linear slide rail; 14-duct fan; 15-insulation sleeve.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. For example; based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

As shown in FIG. 1 , the utility model discloses an energy-saving drying device for knitted sweater production, which comprises a drying box 1, and a clothes hanger 2 is slidably mounted on the top of the inner cavity of the drying box 1. The bottom of the inner cavity of the drying box 1 is fixedly installed with a bottom plate 3, a plurality of air holes 30 are evenly distributed on the bottom plate 3, and a heating rod 4 is arranged below the bottom plate 3. A heating coil 5 is wound on the heating rod 4, a plurality of fans 6 are evenly installed on the inner bottom wall of the drying box 1, and an exhaust port is opened on the top wall of the drying box 1 7. One end of the air return duct 8 is fixedly inserted at the position of the opened air outlet 7, and the other end of the air return duct 8 is connected to the circulation box 9, the drying box 1, the circulation box The side walls of the 9 are respectively provided with an air inlet 10 and an air outlet 11 , and the air inlet 10 and the air outlet 11 are arranged in sealed communication.

Preferably, sliders 12 are fixedly connected to both ends of the clothes hanging rod 2 , the sliders 12 are slidably installed on the linear slide rails 13 , and the linear slide rails 13 are fixedly installed on the drying machine. On the inner side wall of the drying box body 1, the sliding assembly and installation between the clothes hanging rod 2 and the drying box body 1 are facilitated.

Preferably, a duct fan 14 is fixedly installed on the return air duct 8 , and the installed duct fan 14 is used to accelerate the inflow of part of the heat of the discharged waste heat into the circulation box 9 .

Preferably, insulating sleeve blocks 15 are fixedly installed on both sides of the heating rod 4 , and the insulating sleeve blocks 15 are fixedly installed on the inner side wall of the drying box 1 .

The utility model is implemented as follows: when in use, the knitted sweater to be dried is hung on the clothes hanger 2 by a clothespin, so as to facilitate the sliding clothes hanger 2 to be pushed into the inner cavity of the drying box 1, and the heating coil 5. Power on and generate heat, and its heat is rapidly expanded by the heating rod 4 to its air contact area, so that the heating coil 5 and the heating rod 4 heat the surrounding air to a high-temperature airflow, and blow the high-temperature airflow upward by turning on the fan 6, so that the high-temperature airflow from the bottom plate 3 The uniform air holes 30 opened on the top are uniformly distributed and discharged upward, so that the sweaters on the clothes hanger 2 are evenly dried from bottom to top, and the waste heat dried upward is easy to flow into the return air duct from the exhaust port 7 8, and quickly return to the circulation box 9 under the action of the duct fan 14, so that the residual heat part of the airflow is sent to the drying box 1 from the overflow port 11 and the air inlet 10 of the circulation box 9 for reuse. The role of energy saving drying. By adopting the technical solution, the structure is simple, the assembly and installation are convenient, and the fans installed evenly on the bottom wall of the drying box blow up the high-temperature air flow generated by the heating coil and the heating rod, and the high-temperature air flow can be easily distributed from the uniform air holes on the bottom plate. The knitted sweaters on the clothes rail are uniformly dried from bottom to top; the residual heat in the drying process is easy to be drained into the circulation box by the return air pipe, and the residual heat is flowed into the drying box by the circulation box. The body is reheated and used, which plays the role of energy saving and drying.

Finally, it should be noted that the above embodiments are only used to illustrate the present utility model rather than limit the technical solutions described in the present utility model; , those of ordinary skill in the art should understand that the present utility model can still be modified or equivalently replaced; and all technical solutions and improvements that do not depart from the spirit and scope of the present utility model shall be covered by the claims of the present utility model. in the range.

Claims (4)

1. An energy-saving drying device for the production of knitted sweaters, comprising a drying box (1), characterized in that the top of the inner cavity of the drying box (1) is slidably assembled and installed with a clothes hanger (2) , a bottom plate (3) is fixedly installed at the bottom of the inner cavity of the drying box (1), and a plurality of air holes (30) are evenly distributed on the bottom plate (3). A heating rod (4) is arranged below, a heating coil (5) is wound and sleeved on the heating rod (4), and a plurality of The fan (6), the top wall of the drying box (1) is provided with an air outlet (7), and the position of the opened air outlet (7) is fixedly inserted and connected to the air return pipe (8). One end, the other end of the return air pipe (8) is connected to the circulation box (9), and the side walls of the drying box (1) and the circulation box (9) are respectively provided with air inlets ( 10) An air outlet (11), the air inlet (10) and the air outlet (11) are sealed and communicated with each other. 2. An energy-saving drying device for knitted sweater production according to claim 1, characterized in that: the rod ends on both sides of the clothes hanging rod (2) are fixedly provided with sliders (12), and the The sliding block (12) is slidably mounted on the linear slide rail (13), and the linear slide rail (13) is fixedly mounted on the inner side wall of the drying box (1). 3. The energy-saving drying device for knitted sweater production according to claim 1, wherein a duct fan (14) is fixedly installed on the air return pipe (8). 4. An energy-saving drying device for knitted sweater production according to claim 1, characterized in that: both sides of the heating rod (4) are fixedly sleeved with insulating sleeve blocks (15), and the insulating sleeves (15) are installed on both sides. The sleeve block (15) is fixedly installed on the inner side wall of the drying box (1).
