CN212101631U - A temporary lift mast for a forklift - Google Patents

Abstract

The utility model discloses a temporary lifting mast for a forklift, which comprises a clamp mounting seat, a column and a lifting lug. One end of the clamp mounting seat is provided with a clamp mounting hole, and a forklift fixing lower clamp can be inserted into the clamp mounting seat. In the mounting hole of the holding clip, one end of the column is fixed on the outside of the holding clip mounting seat, and the lifting lug is fixed on the other end of the vertical column, and the lifting lug is provided with a lifting ring for fixing the lifting rope; The baffle, the upper clamp of the forklift can be in contact with one end of the baffle, the clamp mounting seat and the forklift fixed lower clamp can be pressed and fixed, and the lifting lug set at the other end of the column can be used to realize the single piece of melon slice on the top of the storage tank. The lifting height of the forklift is increased by using the clamp mounting seat and the column to increase the length of the forearm bucket of the forklift, thereby increasing the lifting height of the forklift. The device has a simple structure and is easy to install. The operation utilization efficiency reduces the intensity of workers and improves the operation efficiency at the same time.

Description

A temporary lift mast for a forklift

technical field

The utility model belongs to a forklift structure, in particular to a temporary lift mast for a forklift.

Background technique

In the process of hoisting and installation in the tower, due to the limited construction space, during the construction process on the site with limited construction space, it is necessary to hoist and install a single slice of melon on the vault of the storage tank. The tool is elevated, the construction is cumbersome, and the construction period is long, the space for the tool is limited, and the single slice of the storage tank vault is heavy, which cannot ensure the safety of hoisting, and the forklift can enter the tower to work, but the lifting height of the forklift is limited. The length of the forearm bucket of the forklift is limited, and the height of the storage tank cannot be effectively increased; the large crane cannot enter the operation, and the work efficiency cannot be improved.

Utility model content

The purpose of the utility model is to provide a temporary lift mast for a forklift to overcome the deficiencies of the prior art.

To achieve the above object, the utility model adopts the following technical solutions:

A temporary lifting mast for a forklift includes a clamp mounting seat, a column and a lifting lug, one end of the clamp mounting seat is provided with a clamp mounting hole, and a lower clamp for fixing the forklift can be inserted into the clamp mounting hole of the clamp mounting seat , one end of the column is fixed on the outside of the clamp mounting seat, the lifting lug is fixed on the other end of the column, and the lifting lug is provided with a lifting ring for fixing the hoisting rope; The movable upper clamp can be in contact with one end face of the baffle, and the clamp mounting seat and the forklift fixed lower clamp can be pressed and fixed.

Further, the outer wall of the holding clip mounting seat is provided with a forklift moving upper holding clip socket, the forklift moving upper holding clip socket is located on one side of the baffle plate, and the forklift moving upper holding clip can be inserted into the forklift moving upper holding clip socket. Inside.

Further, the included angle between the upright column and the side wall surface of the baffle plate on the holding clip mounting seat is 120°-150°.

Further, the optimum included angle between the vertical column and the side wall surface of the mounting base where the baffle is provided is 135°.

Further, reinforcing ribs are provided on both sides of the connection between the upright column and the holding clip mounting seat.

Compared with the prior art, the utility model has the following beneficial technical effects:

The utility model relates to a temporary lifting mast for a forklift, which comprises a clamp mounting seat, a column and a lifting lug. One end of the clamp mounting seat is provided with a clamp mounting hole, and the forklift fixing lower clamp can be inserted into the clamp mounting seat. In the installation hole, one end of the column is fixed to the outside of the clamp mounting seat, and the lifting lug is fixed to the other end of the column. The lifting lug is provided with a lifting ring for fixing the hoisting rope; the clamp mounting seat is fixed with a baffle on the outer surface of one side of the column , the upper clamp of the forklift can be in contact with one end of the baffle plate, the clamp mounting seat and the forklift fixed lower clamp can be pressed and fixed, and the lifting lug set at the other end of the column can be used to realize the lifting of a single slice of melon on the top of the storage tank. , The length of the forearm bucket of the forklift is increased by using the clamp mounting seat and the column to increase the lifting height of the forklift. The device has a simple structure and is easy to install. It is lifted by the ready-made lifting system of the forklift, which greatly improves the utilization of the forklift. efficiency, reducing the intensity of workers, while improving operational efficiency.

Further, the upright column and the clamp mounting seat are arranged at an obtuse angle, and a hoisting space for a single piece of melon slice on the top of the storage tank is formed at the lower end of the upright column, which is beneficial to the installation operation.

Further, reinforcing ribs are provided on both sides of the connection between the vertical column and the holding clip mounting seat, so as to improve the connection stability of the vertical column and the holding clip mounting seat.

Description of drawings

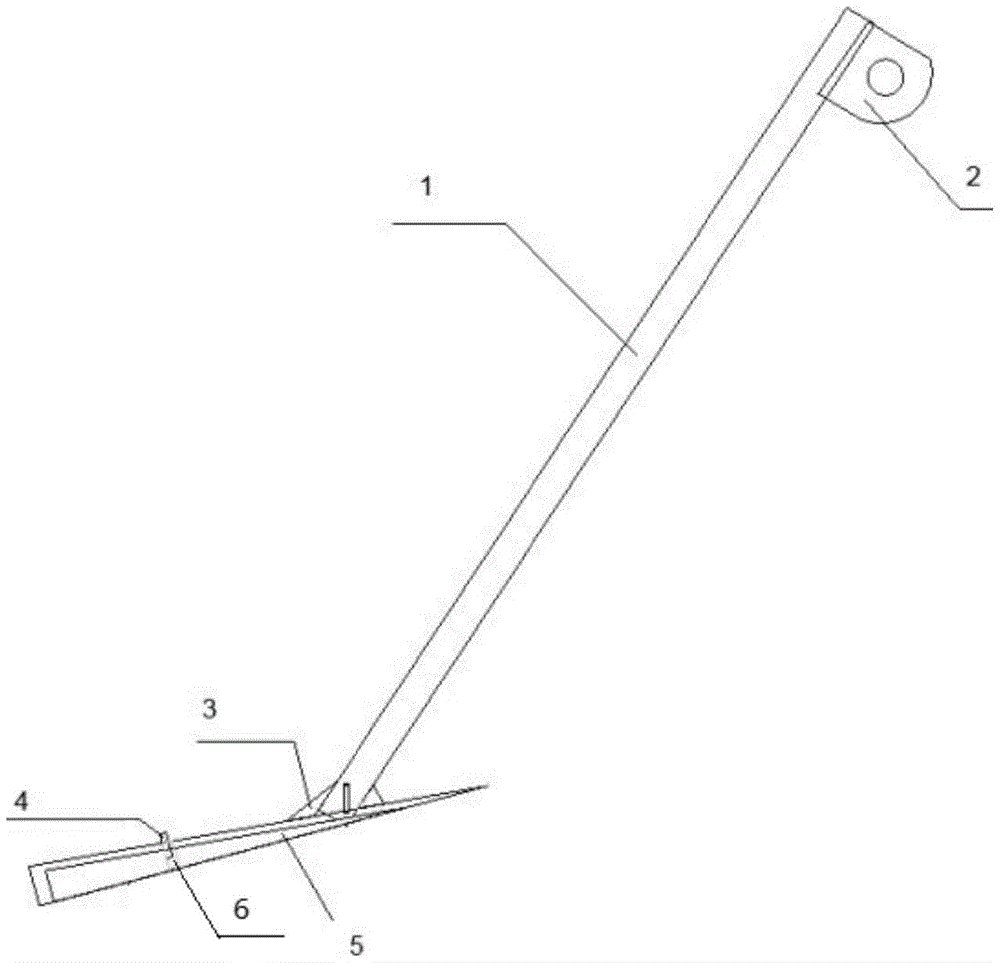

FIG. 1 is a schematic structural diagram of a temporary lift mast in an embodiment of the present utility model.

FIG. 2 is a schematic diagram of the installation structure of the temporary lift mast in the embodiment of the present utility model.

FIG. 3 is a schematic diagram of the installation structure of the double lift mast in the embodiment of the present invention.

Among them, 1. Upright column; 2. Lifting lug; 3. Reinforcing rib; Forklift fixed lower holding clip.

Detailed ways

Below in conjunction with accompanying drawing, the utility model is described in further detail:

As shown in Figures 1 and 2, a temporary lifting mast for a forklift of the present invention includes a clamp mounting seat 5, a column 1 and a lifting lug 2. One end of the clamp mounting seat 5 is provided with a clamp mounting hole. The fixed lower clamp 8 can be inserted into the clamp installation hole of the clamp mounting seat 5, one end of the column 1 is fixed to the outside of the clamp mounting seat 5, and the lifting lug 2 is fixed to the other end of the column 1. The lifting ring for hoisting the rope; the clamp mounting seat 5 is fixed with a baffle plate 4 on the outer surface of one side of the column 1, and the upper clamp 7 can be in contact with one end surface of the baffle plate 4 when the forklift moves, and the clamp mounting seat 5 is fixed to the forklift. The lower holding clip 8 is pressed and fixed; when in use, the holding clip mounting base 5 is set on the forklift fixed lower holding clip 8, and then the upper holding clip 7 is moved by the forklift to press the baffle plate 4, so that the holding clip mounting base 5 is fixed Fix the lower holding clip 8 on the forklift truck to increase the length of the lower holding clip 8 fixed by the forklift truck, and then use the lifting lug 2 arranged on the other end of the column 1 to hoist a single piece of melon on the top of the storage tank, and use the holding clip to install The seat 5 and the column 1 increase the length of the forearm bucket of the forklift, thereby increasing the lifting height of the bucket. The device has a simple structure and is easy to install. It is lifted by the ready-made lifting system of the forklift, which greatly improves the utilization efficiency of the forklift and reduces the The intensity of the workers is increased, and the work efficiency is improved at the same time.

The outer wall of the clamp mounting seat 5 is provided with a forklift movable upper clamp socket 6, the forklift movable upper clamp hole 6 is located on the side of the baffle plate 4, and the forklift movable upper clamp 7 can be inserted into the forklift movable upper clamp In the insertion hole 6, the clamping strength of the clamp mounting seat 5 is improved to prevent the baffle 4 from falling off when the clamp is clamped, and the secondary clamp is realized to ensure the safety of the hoisting process.

The angle between the side wall surface of the baffle plate 4 provided with the baffle plate 4 between the column 1 and the clamp mounting seat 5 is 120°-150°. The column 1 and the clamp mounting seat 5 are arranged at an obtuse angle, and a single piece of storage tank vault is formed at the lower end of the column 1. The melon slice hoisting space, specifically, the optimum angle between the column 1 of the present application and the side wall surface on which the baffle plate 4 is provided with the clamp mounting seat 5 is 135°.

Reinforcing ribs 3 are provided on both sides of the connection between the vertical column 1 and the holding clip mounting seat 5 to improve the connection stability of the vertical column 1 and the holding clip mounting seat 5 .

As shown in FIG. 3 , the height H of the column is determined according to the construction space, the chord height of the vault of the storage tank and the lifting height of the holding forklift. tons, the maximum lifting height is 3.167m. During use, a set of temporary lift masts are respectively installed on the forklift fixed lower holding clips 8 on both sides of the front end of the forklift truck, and the double temporary lift mast structure is adopted to improve the stability of the installation process and ensure the installation safety.

Claims (5)

1. A temporary lifting mast for a forklift truck, characterized in that it comprises a holding clip mounting seat (5), a column (1) and a lifting lug (2), and one end of the holding clip mounting seat (5) is provided with a holding clip mounting hole, The lower clamp (8) for fixing the forklift can be inserted into the clamp mounting hole of the clamp mounting seat (5). On the other end of 1), the lifting lug (2) is provided with a lifting ring for fixing the lifting rope; the clamp mounting seat (5) is fixed with a baffle (4) on the outer surface of one side of the column (1). The holding clip (7) can be in contact with one end surface of the baffle plate (4), and the holding clip mounting seat (5) and the holding clip (8) under the forklift are pressed and fixed. 2 . The temporary lifting mast for a forklift according to claim 1 , wherein the outer wall surface of the clamp mounting seat (5) is provided with a forklift movable upper clamp socket (6), and the forklift movable upper clamp. 3 . The clip socket (6) is located on one side of the baffle plate (4), and the forklift movable upper holding clip (7) can be inserted into the forklift movable upper holding clip socket (6). 3. The temporary lifting mast for a forklift truck according to claim 1, characterized in that the angle between a side wall surface of which the upright column (1) and the clamp mounting seat (5) are provided with a baffle plate (4) is 120 °-150°. 4. A forklift mast according to claim 3, characterized in that the angle between the vertical column (1) and the clamp mounting seat (5) provided with a baffle plate (4) is the best The included angle is 135°. 5 . The temporary lifting mast for a forklift according to claim 1 , characterized in that reinforcing ribs ( 3 ) are provided on both sides of the connection between the upright column ( 1 ) and the clamp mounting seat ( 5 ). 6 .
