CN212096909U - Environment-friendly dry-mixed mortar amplification batching and stirring equipment - Google Patents

Abstract

The utility model belongs to the technical field of mixing equipment, in particular to an environmental-friendly dry-mixed mortar amplifying and batching mixing equipment, which comprises a base, a casing is arranged above the base, and four supporting legs are symmetrically fixed at the bottom end of the casing. , the bottoms of the support legs are fixedly connected with the top of the base, the top of the casing is provided with a through opening, the top of the casing is provided with a circular cover, and the bottom of the circular cover is symmetrically fixed with Four arc sliders. The utility model can drive two stirring paddles to rotate by arranging a circular cover plate, a driven bevel gear, a biaxial motor and a driving bevel gear. , The drive flat gear and the chain can make the two stirring paddles do circular motion in the shell, so the stirring effect is better. Better dust removal effect.

Description

An environmentally friendly dry-mixed mortar amplifying batching mixing equipment

technical field

The utility model relates to the technical field of mixing equipment, in particular to an environment-friendly dry-mixed mortar amplifying and batching mixing equipment.

Background technique

Dry-mixed mortar (also called dry-mixed mortar in the early days) is usually called hydraulic cement-mixed mortar, which refers to aggregates (such as quartz sand), inorganic cementitious materials (such as cement) and additives (such as polymers) that have been dried and screened A kind of granular or powdery material that is physically mixed in a certain proportion, transported to the construction site in the form of bags or bulk, and can be used directly after mixing with water.

In the production process of dry-mixed mortar, various ingredients need to be mixed, so mixing equipment is required. The current mixing equipment generally drives a stirring paddle to rotate through a motor to achieve the mixing effect, but this method of mixing The effect is poor, and various ingredients cannot be mixed together efficiently and quickly, thus affecting the processing efficiency, and after the current mixing equipment mixes the ingredients, when the ingredients are poured out of the discharge port, dust will be generated, which will cause environmental damage. Therefore, we propose an environmentally friendly dry-mixed mortar scale-up batching mixing equipment to solve the above problems.

Utility model content

(1) Technical problems solved

In view of the deficiencies of the prior art, the utility model provides an environment-friendly dry-mixed mortar amplifying batching mixing equipment, which solves the problems of poor mixing effect and no dust removal function of the existing mixing equipment.

(2) Technical solutions

In order to achieve the above purpose, the present utility model provides the following technical solutions: an environmentally friendly dry-mixed mortar amplifying batching and stirring equipment, including a base, a casing is arranged above the base, and four symmetrically fixed at the bottom end of the casing. Support legs, the bottoms of the support legs are all fixedly connected with the top of the base, the top of the casing is provided with a through opening, the top of the casing is provided with a circular cover, and the bottom of the circular cover is symmetrical Four arc-shaped sliders are fixed, an annular chute is provided on the top of the shell, and the arc-shaped sliders are all slidably connected in the annular chute, and stirring paddles are symmetrically arranged inside the shell. The tops of the stirring paddles penetrate through the top of the circular cover plate and are fixed with driven bevel gears, and the tops of the stirring paddles are all rotatably connected to the top of the circular cover plate through bearings, and the top of the circular cover plate is fixed with double shaft motor, the output shaft of the double shaft motor is fixed with a driving bevel gear, the driving bevel gear is meshed with the corresponding driven bevel gear, a circular top plate is arranged above the circular cover plate, the The bottom of the circular top plate is symmetrically fixed with four vertical rods, and the bottoms of the vertical rods are all fixedly connected with the top of the circular cover plate. A driven spur gear is fixed on the wall, a servo motor is fixed on one side wall of the casing, a driving spur gear is fixed on the output shaft of the servo motor, a chain is arranged above the casing, and the active The gear is connected with the driven spur gear through a chain, the other side wall of the casing is connected with a feeding hopper, the top of the feeding hopper is hinged with a hopper cover through a hinge, and the bottom of the casing is installed and communicated with a feeding hopper. A discharge pipe, a valve is installed at the bottom end of the discharge pipe, a suction fan is fixed on the top of the base, a suction pipe is fixed at the suction end of the suction fan, and a suction pipe is fixed at one end of the suction pipe An air hood, an air outlet pipe is fixed on the air outlet end of the suction fan, a water storage box is fixed on the top of the base, and one end of the air outlet pipe is arranged in the water storage box.

As a preferred technical solution of the present invention, the bottom end of the casing is in the shape of a funnel.

As a preferred technical solution of the present invention, a rubber pad is fixed at the bottom of the base.

As a preferred technical solution of the present invention, the air suction pipe and the air outlet pipe are both rigid plastic pipes.

As a preferred technical solution of the present invention, the material of the stirring paddle is stainless steel.

(3) Beneficial effects

Compared with the prior art, the utility model provides an environmentally friendly dry-mixed mortar amplifying batching and stirring equipment, which has the following beneficial effects:

This environmentally friendly dry-mixed mortar amplifying batching and stirring equipment can drive two stirring paddles to rotate by setting a circular cover plate, a driven bevel gear, a biaxial motor and a driving bevel gear. , Driven spur gear, servo motor, drive spur gear and chain can drive the circular cover to rotate, so that the two stirring paddles can make circular motions in the shell, so the stirring effect is good, and it can efficiently and quickly make various The ingredients are evenly mixed together, and a better dust removal effect can be achieved by setting the suction fan, suction pipe, suction hood, air outlet pipe and water storage box.

Description of drawings

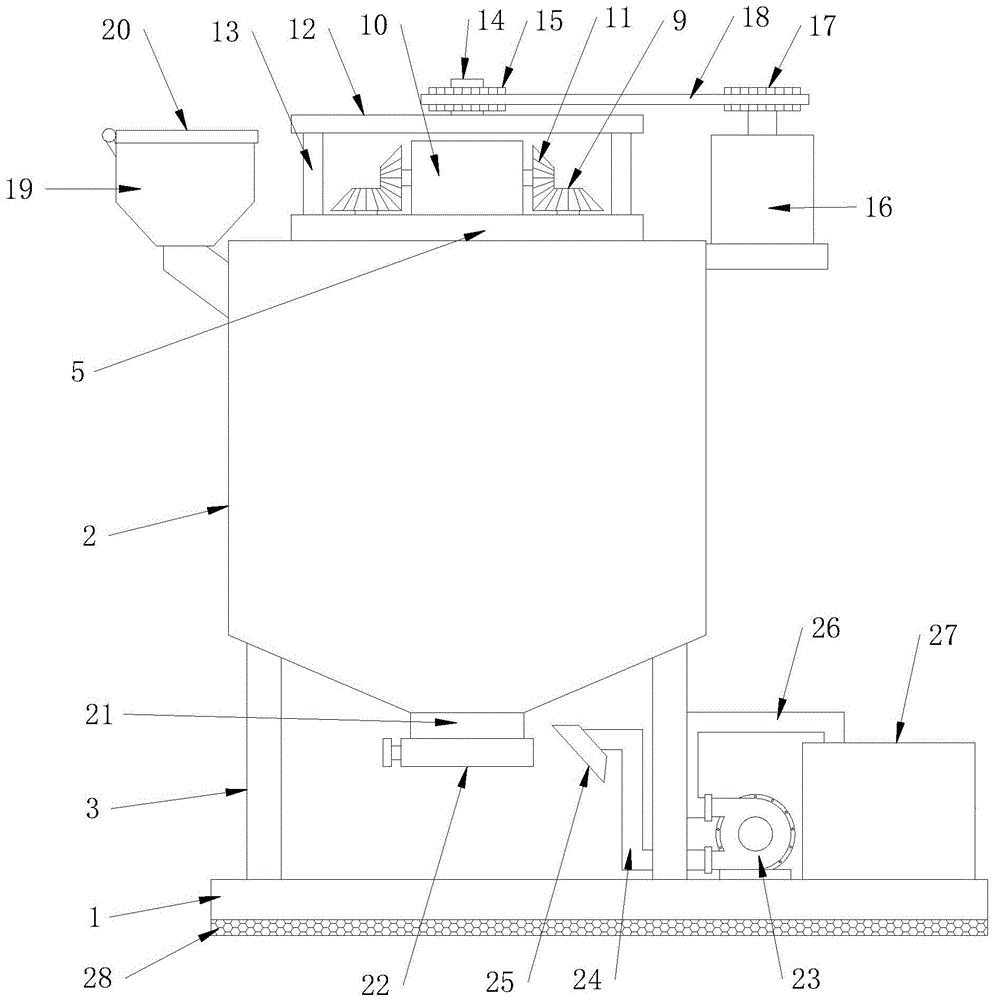

1 is a schematic diagram of the overall structure of the present utility model;

Fig. 2 is the overall sectional structure schematic diagram of the utility model;

FIG. 3 is a schematic top view of the housing of the present invention.

In the figure: 1. Base; 2. Shell; 3. Supporting legs; 4. Through port; 5. Circular cover plate; 6. Arc-shaped slider; 7. Annular chute; 8. Stirring paddle; 9. From Moving bevel gear; 10. Double shaft motor; 11. Driving bevel gear; 12. Circular top plate; 13. Vertical rod; 14. Fixed shaft; 15. Driven spur gear; 16. Servo motor; 17. Driving spur gear; 18, chain; 19, feeding hopper; 20, bucket cover; 21, discharge pipe; 22, valve; 23, suction fan; 24, suction pipe; 25, suction hood; 26, outlet pipe; 27, Water storage box; 28. Rubber pad.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example

1-3, the present utility model provides the following technical solutions: an environmentally friendly dry-mixed mortar amplifying batching and stirring equipment, comprising a base 1, a casing 2 is arranged above the base 1, and a bottom end of the casing 2 is symmetrically fixed with Four supporting legs 3, the bottoms of the supporting legs 3 are fixedly connected with the top of the base 1, the top of the casing 2 is provided with a through opening 4, the top of the casing 2 is provided with a circular cover 5, and the Four arc-shaped sliders 6 are symmetrically fixed at the bottom, and an annular chute 7 is provided on the top of the shell 2. The arc-shaped sliders 6 are all slidably connected in the annular chute 7, and a stirring paddle 8 is symmetrically arranged inside the shell 2. , the top of the stirring paddle 8 penetrates through the top of the circular cover plate 5 and is fixed with a driven bevel gear 9, and the top of the stirring paddle 8 is rotationally connected with the top of the circular cover plate 5 through bearings, and the top of the circular cover plate 5 A biaxial motor 10 is fixed, the output shaft of the biaxial motor 10 is fixed with a driving bevel gear 11, the driving bevel gear 11 is meshed with the corresponding driven bevel gear 9, and a circular top plate is arranged above the circular cover plate 5. 12. Four vertical rods 13 are symmetrically fixed at the bottom of the circular top plate 12. The bottoms of the vertical rods 13 are fixedly connected to the top of the circular cover plate 5. A fixed shaft 14 is fixed at the center of the top of the circular top plate 12. The fixed shaft The outer side wall of 14 is sleeved and fixed with a driven spur gear 15, one side wall of the casing 2 is fixed with a servo motor 16, the output shaft of the servo motor 16 is fixed with a driving spur gear 17, and a chain 18 is arranged above the casing 2, The driving spur gear 17 is connected with the driven spur gear 15 through the chain 18. The other side wall of the housing 2 is connected with a feeding hopper 19. The top of the feeding hopper 19 is hinged with a hopper cover 20 through a hinge. A discharge pipe 21 is installed and communicated at the bottom, a valve 22 is installed at the bottom end of the discharge pipe 21, a suction fan 23 is fixed on the top of the base 1, and a suction pipe 24 is fixed at the suction end of the suction fan 23. A suction hood 25 is fixed at one end, an air outlet pipe 26 is fixed at the air outlet end of the suction fan 23 , and a water storage box 27 is fixed on the top of the base 1 .

In this embodiment, by arranging the circular cover plate 5, the driven bevel gear 9, the biaxial motor 10 and the driving bevel gear 11, the two stirring paddles 8 can be driven to rotate. The shaft 14, the driven spur gear 15, the servo motor 16, the driving spur gear 17 and the chain 18 can drive the circular cover 5 to rotate, so that the two stirring paddles 8 can make circular motions in the housing 2, so the stirring effect is Better, it can mix various ingredients evenly and efficiently. By setting the suction fan 23, the suction pipe 24, the suction hood 25, the air outlet pipe 26 and the water storage box 27, a better dust removal effect can be achieved. .

Specifically, the bottom end of the casing 2 is funnel-shaped.

In this embodiment, the bottom end of the casing 2 is in the shape of a funnel to facilitate the discharge of materials.

Specifically, a rubber pad 28 is fixed to the bottom of the base 1 .

In this embodiment, by fixing the rubber pad 28 on the bottom of the base 1 , a better shock absorption and noise reduction effect can be achieved.

Specifically, the air suction pipe 24 and the air outlet pipe 26 are both rigid plastic pipes.

In this embodiment, the air suction pipe 24 and the air outlet pipe 26 are both rigid plastic pipes, because the plastic pipes are lighter in weight and cheaper in price.

Specifically, the material of the stirring paddle 8 is stainless steel.

In this embodiment, the material of the stirring paddle 8 is stainless steel, because stainless steel has high structural strength and is durable.

The working principle and use process of the utility model: when using, pour various ingredients into the casing 2, start the biaxial motor 10 and the servo motor 16, the biaxial motor 10 drives the two driving bevel gears 11 to rotate, and the driving cone The gear 11 can drive the corresponding driven bevel gear 9 to rotate, thereby driving the two stirring paddles 8 to rotate, the servo motor 16 can drive the driving spur gear 17 to rotate, and under the action of the chain 18, it can drive the driven spur gear 15 to rotate , the driven spur gear 15 can drive the fixed shaft 14 to rotate, and the fixed shaft 14 can drive the circular top plate 12 to rotate, so it can drive the circular cover plate 5 to rotate, so that the two stirring paddles 8 will make circular motions in the casing 2 , so the stirring effect is better, and various ingredients can be mixed together efficiently and quickly. When the ingredients are mixed well, open the valve 22. When the ingredients are poured out, dust will be generated. At this time, the suction fan 23 is activated, which needs to be explained here. The only thing is that the suction force of the suction fan 23 is small, and the suction fan 23 sucks the generated dust into the water in the water storage box 27, which can reduce the dust content in the air and reduce pollution.

Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it is still possible to modify the technical solutions described in the foregoing embodiments, or perform equivalent replacements to some of the technical features. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall be included in the protection scope of the present invention.

Claims (5)

1. An environmentally friendly dry-mixed mortar amplifying batching and stirring equipment, comprising a base (1), characterized in that: a casing (2) is provided above the base (1), and the bottom end of the casing (2) Four supporting legs (3) are symmetrically fixed, the bottoms of the supporting legs (3) are all fixedly connected with the top of the base (1), the top of the casing (2) is provided with a through opening (4), and the The top of the casing (2) is provided with a circular cover plate (5), the bottom of the circular cover plate (5) is symmetrically fixed with four arc-shaped sliders (6), and the top of the casing (2) An annular chute (7) is provided, the arc-shaped sliders (6) are all slidably connected in the annular chute (7), and a stirring paddle (8) is symmetrically arranged inside the casing (2). The top of the stirring paddle (8) penetrates through the top of the circular cover plate (5) and is fixed with a driven bevel gear (9), and the top of the stirring paddle (8) passes through the bearing and the circular cover (5). The top is rotatably connected, a biaxial motor (10) is fixed on the top of the circular cover plate (5), and a driving bevel gear (11) is fixed on the output shaft of the biaxial motor (10). (11) is meshed with the corresponding driven bevel gear (9), a circular top plate (12) is arranged above the circular cover plate (5), and the bottom of the circular top plate (12) is symmetrically fixed with Four vertical rods (13), the bottoms of the vertical rods (13) are all fixedly connected with the top of the circular cover plate (5), and the center of the top of the circular top plate (12) is fixed with a fixed shaft (14) A driven spur gear (15) is sleeved and fixed on the outer side wall of the fixed shaft (14), and a servo motor (16) is fixed on one side wall of the housing (2). The output shaft is fixed with a drive spur gear (17), a chain (18) is arranged above the casing (2), and the drive spur gear (17) is drive-connected with the driven spur gear (15) through the chain (18) , a feeding hopper (19) is installed and communicated with the other side wall of the casing (2), the top of the feeding hopper (19) is hinged with a hopper cover (20) through a hinge, and the casing (2) A discharge pipe (21) is installed and communicated with the bottom of the base (21), a valve (22) is installed at the bottom end of the discharge pipe (21), and a suction fan (23) is fixed on the top of the base (1). A suction pipe (24) is fixed at the suction end of (23), a suction hood (25) is fixed at one end of the suction pipe (24), and an outlet is fixed at the outlet end of the suction fan (23). A pipe (26), a water storage box (27) is fixed on the top of the base (1), and one end of the air outlet pipe (26) is arranged in the water storage box (27). 2 . The environmentally friendly dry-mixed mortar amplifying batching and stirring equipment according to claim 1 , wherein the bottom end of the shell ( 2 ) is in the shape of a funnel. 3 . 3. An environmentally friendly dry-mixed mortar amplifying batching and stirring equipment according to claim 1, characterized in that: a rubber pad (28) is fixed at the bottom of the base (1). 4 . The environmentally friendly dry-mixed mortar amplifying and batching mixing equipment according to claim 1 , wherein the air suction pipe ( 24 ) and the air outlet pipe ( 26 ) are both rigid plastic pipes. 5 . 5. An environmentally friendly dry-mixed mortar amplifying batching and stirring equipment according to claim 1, characterized in that: the material of the stirring paddle (8) is stainless steel.
