Abstract

The utility model discloses a turntable tooling for aviation parts, which comprises a fixing block, a support plate is rotatably connected to the front of the fixing block, and a fixing device is fixedly connected to one side of the top of the support plate, and the fixing device comprises a fixing device. One side of the fixed plate is fixedly connected with a slide rail, the outer surface of the slide rail is slidably connected with a slider, and one side of the slider is fixedly connected with a rack, and the bottom of the rack is fixedly connected with a clamping A stable plate is fixedly connected to one side of the fixed plate and is located on the back of the slide rail, the bottom of the stable plate is fixedly connected to a motor, and one end of the motor output shaft is fixedly connected to a gear that meshes with the rack; The movement of the pressing plate can clamp and fix aviation parts of different thicknesses and sizes, so that the turntable tooling can clamp and fix aviation parts of different thicknesses, which is convenient for processing different types of aviation parts and can improve the clamping of parts. Processing efficiency, reduce production costs.

Description

A turntable tooling for aerospace parts

technical field

The utility model relates to the technical field of aviation parts preparation, in particular to a turntable tooling used for aviation parts.

Background technique

With the development of society, the aviation industry is also making great progress. The development of aviation has greatly changed the structure of transportation. Aircraft has provided people with a fast, convenient, economical, safe and comfortable means of transportation, and has become the most important way for people to travel between continents. It is the main tool that has intensified the exchanges between countries around the world. When processing aviation parts, it is generally necessary to fix the aviation parts through the turntable tooling, and the parts can be easily processed through the clamping and rotation of the tooling. With the rapid development of aviation industry, aviation parts are diversified, and a large number of turntable tooling needs to be configured in the process of adding, which wastes costs and reduces work efficiency.

SUMMARY OF THE INVENTION

In order to overcome the deficiencies of the prior art, the utility model provides a turntable tooling for aviation parts, which can solve the problem that the existing flipping machine cannot clamp and fix aviation parts with different thicknesses.

In order to solve the above-mentioned technical problems, the utility model provides the following technical solutions:

The utility model provides a turntable tooling for aviation parts, comprising a fixing block, a support plate is rotatably connected to the front of the fixing block, and a fixing device is fixedly connected to one side of the top of the support plate, and the fixing device comprises a fixing plate , and one side of the fixed plate is fixedly connected with a slide rail, the outer surface of the slide rail is slidably connected with a slider, and one side of the slider is fixedly connected with a rack, and the bottom of the rack is fixedly connected with a clamping plate A stabilizer plate is fixedly connected to one side of the fixed plate and is located on the back of the slide rail, the bottom of the stabilizer plate is fixedly connected to a motor, and one end of the motor output shaft is fixedly connected to a gear that meshes with the rack.

As a preferred technical solution of the present invention, a vertical plate is fixedly connected to the bottom of the fixing block, and a bottom plate is fixedly connected to the bottom of the vertical plate, and the bottom plate is fixedly installed on the turntable.

As a preferred technical solution of the present invention, one side of the top of the bottom plate is hinged with a hydraulic cylinder through a connecting block, and the top of the hydraulic cylinder is hinged with the bottom of the support plate.

As a preferred technical solution of the present invention, a storage box is fixedly connected to the top of the bottom plate and located at the back of the support plate, and a power switch is fixedly installed on the front of the storage box.

As a preferred technical solution of the present invention, a baffle plate is fixedly connected to the top surface of the support plate.

Compared with the prior art, the beneficial effects that the utility model can achieve are:

The utility model drives the gear to rotate through the motor, and drives the rack and the pressing plate to move, and through the movement of the pressing plate, the aviation parts of different thicknesses and sizes can be clamped and fixed, so that the turntable tooling can be used for the aviation parts of different thicknesses. Clamping and fixing is convenient for processing different types of aviation parts, which can improve the clamping and processing efficiency of parts and reduce production costs; the bottom plate of the support plate is installed with a hydraulic cylinder, which can be extended to drive the support plate to tilt, so that the parts on it can be adjusted The position and angle of the parts are convenient for processing different parts of the parts.

Description of drawings

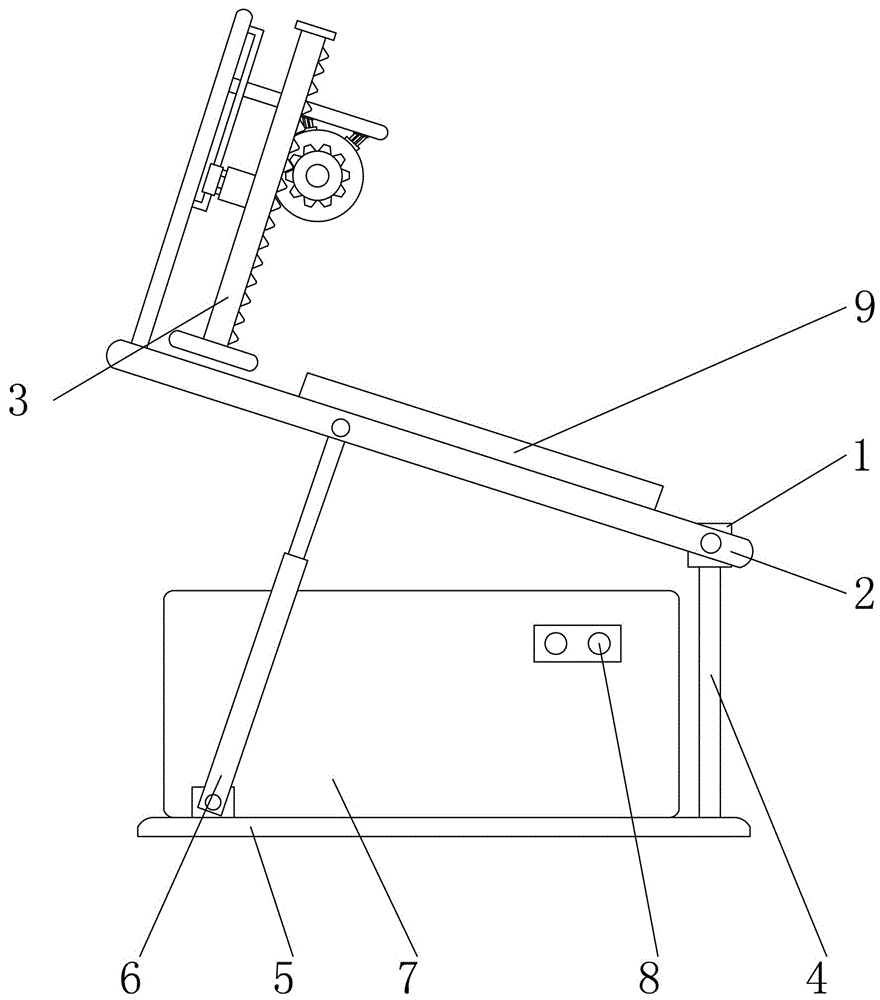

Fig. 1 is the structural representation of the present utility model;

FIG. 2 is a schematic structural diagram of the fixing device of the present invention.

Among them: 1. Fixing block; 2. Support plate; 3. Fixing device; 31. Fixing plate; 32. Slide rail; 33. Slider; 34. Rack; 35. Clamping plate; 36. Stabilizing plate; 37. Motor; 38, gear; 4, vertical plate; 5, bottom plate; 6, hydraulic cylinder; 7, storage box; 8, power switch; 9, baffle.

Detailed ways

The preferred embodiments of the present utility model will be described below with reference to the accompanying drawings. It should be understood that the preferred embodiments described herein are only used to illustrate and explain the present utility model, but not to limit the present utility model.

Please refer to Fig. 1-2, the present invention provides a turntable tooling for aviation parts, comprising a fixing block 1, a support plate 2 is rotatably connected to the front of the fixing block 1, and one side of the top of the support plate 2 is fixedly connected There is a fixing device 3, the fixing device 3 includes a fixing plate 31, and one side of the fixing plate 31 is fixedly connected with a sliding rail 32, an outer surface of the sliding rail 32 is slidably connected with a sliding block 33, and one side of the sliding block 33 is fixedly connected with a sliding block 33. Rack 34, a clamping plate 35 is fixedly connected to the bottom of the rack 34, a stabilization plate 36 is fixedly connected to one side of the fixing plate 31 and located on the back of the slide rail 32, and a motor 37 is fixedly connected to the bottom of the stabilization plate 36, and the motor 37 It is connected to an external power source through a connecting wire, and one end of the output shaft of the motor 37 is fixedly connected with a gear 38 that meshes with the rack 34. When the aerospace parts need to be processed, the hydraulic cylinder 6 is operated, and the hydraulic cylinder 6 shortens to drive the support plate. 2 Move to a horizontal state, place the aviation parts on the support plate 2, make the motor 37 work through the power switch 8, the motor 37 drives the gear 38 to rotate, drives the rack 34 and the pressing plate 35 to move, through the movement of the pressing plate 35 Clamping and fixing of aerospace parts.

A vertical plate 4 is fixedly connected to the bottom of the fixing block 1 , and a bottom plate 5 is fixedly connected to the bottom of the vertical plate 4 , and the bottom plate 5 is fixedly installed on the brick platform.

One side of the top of the bottom plate 5 is hinged with a hydraulic cylinder 6 through a connecting block. The hydraulic cylinder 6 is operated by the power switch 8, and the hydraulic cylinder 6 is extended to drive the support plate 2 to tilt to a vertical state, which can prevent the air flow on the support plate 2. The position angle of the parts is adjusted, and the top of the hydraulic cylinder 6 is hinged with the bottom of the support plate 2 .

A storage box 7 is fixedly connected to the top of the bottom plate 5 and on the back of the support plate 2 , and a power switch 8 is fixedly installed on the front of the storage box 7 . The power switch 8 controls the operation of the motor 37 and the hydraulic cylinder 6 .

A baffle 9 is fixedly connected to the front and back of the top of the support plate 2 , and the baffle 9 can further limit and fix the aviation parts.

Specifically, when the device is in use, the aerospace parts are placed on the support plate 2 at the position below the clamping plate 35, the motor 37 is operated by the power switch 8, the motor 37 drives the gear 38 to rotate, and drives the rack 34 and the clamping plate 35. Movement, the aviation parts are clamped and fixed by the movement of the pressing plate 35, so as to facilitate the processing of the parts; when it is necessary to process different parts or angles of the parts, the hydraulic cylinder 6 can be operated by the power switch 8, and the hydraulic cylinder 6 The elongation drives the support plate 2 to gradually incline, so as to adjust the angle and position of the support plate 2 and the aviation parts on it.

The utility model drives the gear to rotate through the motor, and drives the rack and the pressing plate to move, and through the movement of the pressing plate, the aviation parts of different thicknesses and sizes can be clamped and fixed, so that the turntable tooling can be used for the aviation parts of different thicknesses. Clamping and fixing is convenient for processing different types of aviation parts, which can improve the clamping and processing efficiency of parts and reduce production costs; the bottom plate of the support plate is installed with a hydraulic cylinder, which can be extended to drive the support plate to tilt, so that the parts on it can be adjusted The position and angle of the parts are convenient for processing different parts of the parts.

The embodiments of the present invention are not limited to this. According to the content of the above-mentioned embodiments of the present invention, using conventional technical knowledge and conventional means in the field, without departing from the above-mentioned basic technical ideas of the present invention, the above preferred embodiments can also be used. Other various forms of modifications, substitutions or combinations are made, and other obtained embodiments fall within the protection scope of the present invention.

Claims (5)

1. A turntable tooling for aviation parts, comprising a fixed block (1), characterized in that a support plate (2) is rotatably connected to the front of the fixed block (1), and a A fixing device (3) is fixedly connected to the side, the fixing device (3) includes a fixing plate (31), and a sliding rail (32) is fixedly connected to one side of the fixing plate (31). A slider (33) is slidably connected to the outer surface, a rack (34) is fixedly connected to one side of the slider (33), and a clamping plate (35) is fixedly connected to the bottom of the rack (34). A stabilizer plate (36) is fixedly connected to one side of the fixing plate (31) and is located at the back of the slide rail (32), a motor (37) is fixedly connected to the bottom of the stabilizer plate (36), and the output shaft of the motor (37) is fixedly connected A gear (38) meshing with the rack (34) is fixedly connected to one end of the gear. 2 . The turntable tooling for aviation parts according to claim 1 , wherein a vertical plate ( 4 ) is fixedly connected to the bottom of the fixing block ( 1 ), and the bottom of the vertical plate ( 4 ) is fixed. 3 . A bottom plate (5) is connected, and the bottom plate (5) is fixedly mounted on the turntable. 3. A turntable tooling for aerospace parts according to claim 2, characterized in that a hydraulic cylinder (6) is hinged on one side of the top of the bottom plate (5) through a connecting block, and the hydraulic cylinder (6) The top end is hinged to the bottom of the support plate (2). 4. A turntable tooling for aviation parts according to claim 2, characterized in that a storage box (7) is fixedly connected to the top of the bottom plate (5) and located at the back of the support plate (2), A power switch (8) is fixedly installed on the front of the storage box (7). 5 . The turntable tooling for aviation parts according to claim 1 , wherein a baffle plate ( 9 ) is fixedly connected to the top surface of the support plate ( 2 ). 6 .
