Abstract

The utility model discloses a battery tab shaping device, comprising a fixing seat for placing a battery, a pressing mechanism for pressing out the limit groove of the tab, and a cutting mechanism for cutting the tab, wherein the pressing mechanism and the fixed seat are slidably connected in the vertical direction through a sliding mechanism, one end of the fixed seat is hinged with a cutting mechanism, the position of the fixed seat close to the cutting mechanism is provided with a concave groove, and the pressing mechanism corresponds to A pressing protrusion is arranged at the position of the concave groove. The utility model adopts the battery tab shaping device with the above structure, the pressing of the limiting groove of the battery tab is more regular, and the cutting of the battery tab is also more smooth, which greatly improves the yield and effectively improves the the efficiency of the staff.

Description

A battery tab setting device

technical field

The utility model relates to a battery processing technology, in particular to a battery tab setting device.

Background technique

Before the battery is assembled, the tabs of the battery need to be shaped in advance. The conventional requirement for shaping is to press regular limit grooves on the tabs and cut the tabs flat. In the prior art, the conventional shaping of the tabs It is often done manually, so problems such as irregularity in the pressing of the limit groove and irregularity in the cutting of the tabs are prone to occur.

Utility model content

The purpose of the utility model is to provide a battery tab shaping device which can press regular limit grooves on the tabs of the battery and can cut the tabs of the battery flat.

In order to achieve the above purpose, the utility model provides a battery tab shaping device, including a fixing seat for placing the battery, a pressing mechanism for pressing out the limit groove of the tab, and a cutting mechanism for cutting the tab, wherein , the pressing mechanism and the fixing base are slidably connected in the vertical direction through a sliding mechanism, one end of the fixing base is hinged with a cutting mechanism, and the fixing base is provided with a concave groove at a position close to the cutting mechanism, The pressing mechanism is provided with pressing protrusions corresponding to the positions of the concave grooves.

Preferably, the sliding mechanism includes a plurality of guide rods, the fixing base is provided with a plurality of guide holes corresponding to the guide rods, one end of the guide rod is vertically inserted into the pressing mechanism, and the other end penetrates the guide holes .

Preferably, the cutting mechanism includes a cutting board hinged to one end of the fixing base and a handle perpendicular to the cutting board.

Preferably, the pressing mechanism includes a pressing plate, a pressing protrusion disposed at the bottom end of the pressing plate, and a pressing block for pressing the battery, and the bottom end of the pressing plate is provided with a pressing plate that matches the pressing block. A tightening groove, the bottom end of the pressing groove is connected with the top end of the pressing block through a spring.

Preferably, the fixing base is further provided with a limiting mechanism for limiting the pressing mechanism, and the limiting mechanism includes a limiting frame with one end fixed to the fixing base and another slidably connected to the limiting frame. One end of the limit rod, one end of the limit rod is connected to the external pressure cylinder, and the other end is connected to the top end of the pressing plate.

Preferably, a plurality of limit blocks are arranged on the fixing base, and a battery is clamped between the limit blocks.

Therefore, the present invention adopts a battery tab shaping device with the above structure, which can press the limiting groove of the battery tab more regularly, and cut the battery tab more smoothly, which greatly improves the yield and effectively improve the work efficiency of staff.

The technical solutions of the present utility model will be described in further detail below through the accompanying drawings and embodiments.

Description of drawings

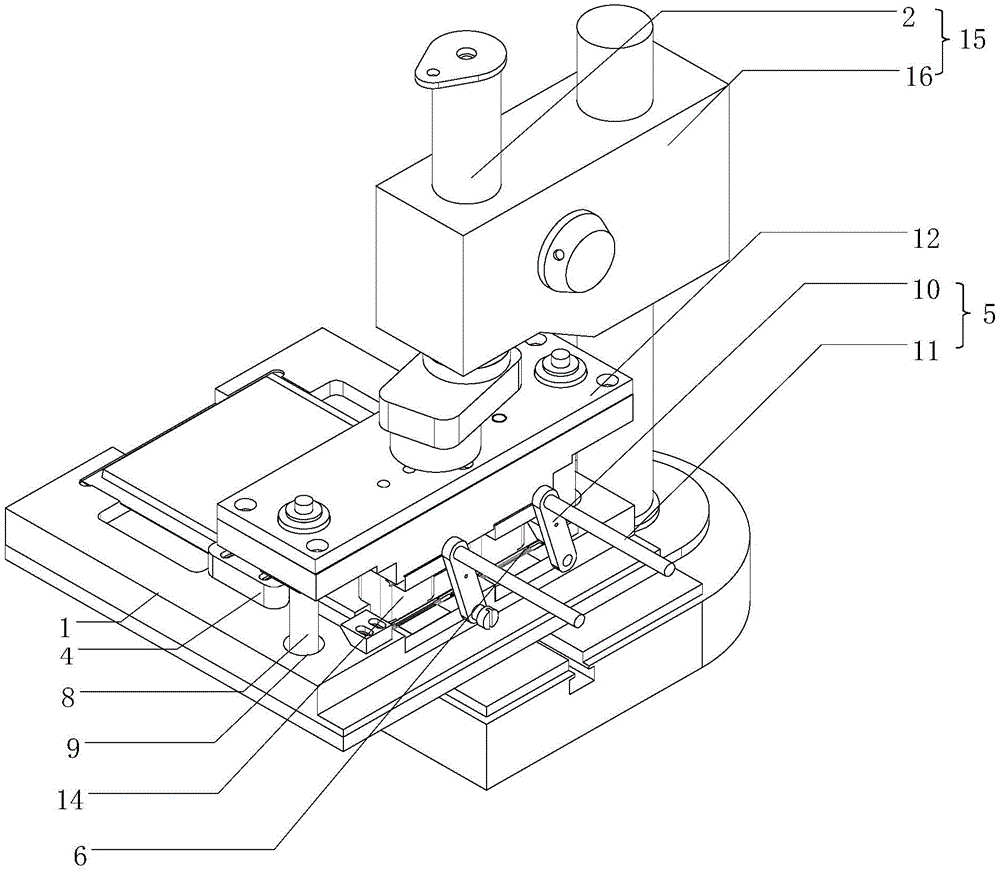

1 is a schematic structural diagram of a viewing angle of a battery tab shaping device of the present invention;

FIG. 2 is a schematic structural diagram of a viewing angle of a battery tab shaping device of the present invention;

FIG. 3 is a schematic view of the structure of a battery tab shaping device from the right side of the present invention.

Among them: 1. Fixed seat; 2. Limiting rod; 4. Limiting block; 5. Cutting mechanism; 6. Concave groove; 7. Pressing protrusion; 8. Guide rod; 9. Guide hole; 10. Cutting board ; 11, handle; 12, pressing plate; 14, pressing block; 15, limit mechanism; 16, limit frame.

Detailed ways

The present invention will be further described below in conjunction with the accompanying drawings. It should be noted that the present embodiment takes the technical solution as the premise, and provides a detailed implementation manner and a specific operation process, but the protection scope of the present invention does not limited to this embodiment.

1 is a schematic structural diagram of a viewing angle of a battery tab sizing device of the present invention, FIG. 2 is a structural schematic diagram of a viewing angle of a battery tab forming device of the present invention, and FIG. 3 is a Schematic diagram of the right side view of the battery tab shaping device.

As shown in Figure 1, Figure 2 and Figure 3, the structure of the present utility model, a battery tab shaping device, includes a fixing base 1 for placing the battery, a pressing mechanism for pressing out the tab limit groove, and a The cutting mechanism 5 for cutting the tab, wherein the pressing mechanism and the fixing seat 1 are slidably connected in the vertical direction through a sliding mechanism, and the sliding mechanism includes several guide rods 8, and the fixing seat 1 corresponds to the The guide rod 8 is provided with a number of guide holes 9 , one end of the guide rod 8 is vertically inserted into the pressing mechanism, and the other end penetrates the guide hole 9 , and the guide rod 8 is slidable in the guide hole 9 One end of the fixing base 1 is hinged with a cutting mechanism 5. The cutting mechanism 5 includes a cutting board 10 hinged on one end of the fixing base 1 and a handle 11 perpendicular to the cutting board 10. The operator holds the handle 11 and rotates , the cutting plate 10 is rotated to the position of the battery tabs, and the battery tabs are cut off. The fixing base 1 is provided with a concave groove 6 at a position close to the cutting mechanism 5, and the pressing mechanism corresponds to the The position of the concave groove 6 is provided with a pressing protrusion 7, the battery tab is placed on the concave groove 6, the pressing protrusion 7 presses the battery tab downward, and squeezes the battery tab into the The concave groove 6 is pressed, and then the pressing protrusion 7 comes out of the concave groove 6 . At this time, a limiting groove with a shape similar to the concave groove 6 is pressed on the battery tab.

The pressing mechanism includes a pressing plate 12, a pressing protrusion 7 arranged at the bottom end of the pressing plate 12, and a pressing block 14 for pressing the battery. 14 of the pressing groove, the pressing block 14 can be embedded into the pressing groove, the bottom end of the pressing groove and the top end of the pressing block 14 are connected by a spring, and the pressing plate 12 is downward. When moving, the pressing block 14 contacts the battery, and as the pressing plate 12 moves downward step by step, the pressing block 14 presses the battery under the pressure of the spring, which effectively prevents the battery from running. The problem of position change in the process of stereotyping.

The fixing base 1 is also provided with a limiting mechanism 15 for limiting the pressing mechanism. The limiting mechanism 15 includes a limiting frame 16 whose one end is fixed on the fixing base 1 and is slidably connected to the limiting mechanism. The limit rod 2 at the other end of the frame 16, one end of the limit rod 2 is connected to the external pressure cylinder, and the other end is connected to the top of the pressing plate 12, the limit mechanism 15 effectively avoids the pressing mechanism The problem of left and right shaking during the pressing process makes the pressing mechanism to press the battery tab more accurately.

A plurality of limit blocks 4 are arranged on the fixing base 1 , and a battery is clamped between the limit blocks 4 .

During the application process, the operator puts the battery between the limit blocks 4 and drives the external pressure cylinder to move the pressing plate 12 downward, and the pressing plate 12 carries the pressing block 14 to press the battery against the battery , after the pressing block 14 presses the battery, the pressing plate 12 continues to move downward, the pressing block 14 tightly presses the battery under the pressure of the spring, and then the pressing protrusion 7 pushes the battery The tabs are pressed into the concave grooves 6, and then a limit groove is pressed on the battery tabs, and then the operator holds the handle 11, makes the cutting board 10 rotate to cut the battery tabs, and then drives the external pressure cylinder, The pressing mechanism is lifted up to separate the pressing mechanism from the battery, and finally the battery is removed to complete the shaping operation of a battery tab.

Therefore, the present invention adopts a battery tab shaping device with the above structure, which can press the limiting groove of the battery tab more regularly, and cut the battery tab more smoothly, which greatly improves the yield and effectively improve the work efficiency of staff.

Finally, it should be noted that the above embodiment is only used to illustrate the technical scheme of the present utility model rather than limiting it. Although the present utility model has been described in detail with reference to the preferred embodiment, those of ordinary skill in the art should understand that: It is still possible to modify or equivalently replace the technical solutions of the present invention, and these modifications or equivalent replacements cannot make the modified technical solutions depart from the spirit and scope of the technical solutions of the present invention.

Claims (6)

1. A battery tab sizing device, characterized in that it comprises a fixing seat for placing a battery, a pressing mechanism for pressing out a tab limiting groove, and a cutting mechanism for cutting the tab, wherein the pressing The mechanism and the fixing base are slidably connected in the vertical direction through a sliding mechanism, one end of the fixing base is hinged with a cutting mechanism, the fixing base is provided with a concave groove at a position close to the cutting mechanism, and the pressing mechanism Pressing protrusions are provided at positions corresponding to the concave grooves. 2 . The battery tab shaping device according to claim 1 , wherein the sliding mechanism comprises a plurality of guide rods, the fixing seat is provided with a plurality of guide holes corresponding to the guide rods, and the guide rods are provided with a plurality of guide holes. One end is vertically inserted into the pressing mechanism, and the other end penetrates the guide hole. 3 . The battery tab shaping device according to claim 1 , wherein the cutting mechanism comprises a cutting board hinged to one end of the fixing seat and a handle perpendicular to the cutting board. 4 . 4 . The battery tab shaping device according to claim 1 , wherein the pressing mechanism comprises a pressing plate, a pressing protrusion arranged at the bottom end of the pressing plate, and a pressing block for pressing the battery. 5 . The bottom end of the pressing plate is provided with a pressing groove that matches the pressing block, and the bottom end of the pressing groove is connected with the top end of the pressing block through a spring. 5 . The battery tab shaping device according to claim 4 , wherein the fixing base is further provided with a limiting mechanism for limiting the pressing mechanism, and the limiting mechanism includes one end fixed on the pressing mechanism. 6 . A limit frame of the fixed seat and a limit rod slidably connected to the other end of the limit frame, one end of the limit rod is connected to an external pressure cylinder, and the other end is connected to the top of the pressing plate. 6 . The battery tab shaping device according to claim 1 , wherein a plurality of limit blocks are arranged on the fixing base, and a battery is clamped between the limit blocks. 7 .
