Abstract
本实用新型公开了一种酸改性凹凸棒土制备用搅拌装置，包括第一搅拌箱和第二搅拌箱,所述第一搅拌箱的顶部设置有第一驱动电机，所述第一驱动电机的输出轴上固定连接有搅拌轴，所述搅拌轴的表面上固定连接有搅拌杆，所述第一搅拌箱的底部设置有第二搅拌箱，所述第一搅拌箱的底面上且位于通孔的位置设置有隔板，所述第二搅拌箱的侧面上设置有第二驱动电机，所述第二驱动电机的输出轴上固定连接有转动轴。该酸改性凹凸棒土制备用搅拌装置，通过设置第一搅拌箱和第二搅拌箱使得对物料进行充分搅拌，使得搅拌均匀，通过设置电动伸缩杆带动挡板来回摆动，方便物料出口，避免物料在出料过程中造成堵塞，且操作简单方便，便于使用。
The utility model discloses a stirring device for the preparation of acid-modified attapulgite, comprising a first stirring box and a second stirring box. A first driving motor is arranged on the top of the first stirring box, and the first driving motor A stirring shaft is fixedly connected to the output shaft of the stirring shaft, a stirring rod is fixedly connected to the surface of the stirring shaft, a second stirring box is arranged at the bottom of the first stirring box, and the bottom surface of the first stirring box is located in the The position of the hole is provided with a partition plate, the side surface of the second stirring box is provided with a second driving motor, and the output shaft of the second driving motor is fixedly connected with a rotating shaft. The mixing device for the preparation of acid-modified attapulgite is provided with a first stirring box and a second stirring box to fully stir the material, so that the stirring is even, and the baffle is driven to swing back and forth by setting an electric telescopic rod, which is convenient for material exit and avoids The material is blocked during the discharging process, and the operation is simple and convenient, and it is easy to use.
Description
技术领域technical field
本实用新型属于凹凸棒土制备技术领域，具体涉及一种酸改性凹凸棒土制备用搅拌装置。The utility model belongs to the technical field of attapulgite preparation, in particular to a stirring device for the preparation of acid-modified attapulgite.
背景技术Background technique
凹凸棒粘土是一种稀有非金属矿产资源，简称凹土，它是一种层链状结构的含水富镁铝硅酸盐粘土矿物，凹土作为一种重要的稀缺性非金属矿产资源，在农牧业、建材、石油、冶金、食品等10多个领域有着广泛应用，凹凸棒石粘土是我国优势非金属矿之一，其用途非常广泛，被称为“千用之土，万土之王”，在凹土的生产研制过程中，经常需要使用到搅拌机，现有凹土生产用搅拌机结构简单，一般只具备简单的搅拌功能，在对凹土进行酸改性搅拌的过程中，由于在搅拌的过程中物料的自然沉降，导致搅拌不均匀，所以需要设计出一种酸改性凹凸棒土制备用搅拌装置来解决此问题。Attapulgite is a rare non-metallic mineral resource, referred to as attapulgite. It is a layer-chain structure of water-rich magnesium-aluminosilicate clay mineral. As an important scarce non-metallic mineral resource, attapulgite is It is widely used in more than 10 fields such as agriculture and animal husbandry, building materials, petroleum, metallurgy, food, etc. Attapulgite clay is one of the dominant non-metallic minerals in my country. Wang", in the production and development process of attapulgite, a mixer is often used. The existing mixer for attapulgite production has a simple structure and generally only has a simple stirring function. In the process of stirring, the natural sedimentation of materials leads to uneven stirring, so it is necessary to design a stirring device for the preparation of acid-modified attapulgite to solve this problem.
实用新型内容Utility model content
本实用新型的目的在于提供一种酸改性凹凸棒土制备用搅拌装置，以解决上述背景技术中提出的问题。The purpose of this utility model is to provide a stirring device for the preparation of acid-modified attapulgite, so as to solve the problems raised in the above background technology.
为实现上述目的，本实用新型提供如下技术方案：一种酸改性凹凸棒土制备用搅拌装置，包括第一搅拌箱和第二搅拌箱,所述第一搅拌箱的顶部设置有第一驱动电机，所述第一驱动电机的输出轴上固定连接有搅拌轴，所述搅拌轴的表面上固定连接有搅拌杆，所述第一搅拌箱的底部设置有第二搅拌箱，所述第一搅拌箱的底面上且位于通孔的位置设置有隔板，所述第二搅拌箱的侧面上设置有第二驱动电机，所述第二驱动电机的输出轴上固定连接有转动轴，所述转动轴的表面上固定连接有螺旋叶片，所述第二搅拌箱一端的底面上开设有出料口，所述出料口的一侧固定连接有连接板，所述连接板的侧面上转动连接有电动伸缩杆，所述电动伸缩杆的另一端转动连接有挡板，所述挡板的上表面且位于出料口的位置设置有密封板，所述密封板的顶面上固定连接有导杆。所述第二搅拌箱底端的两侧对称固定连接有支撑腿。In order to achieve the above purpose, the present utility model provides the following technical solutions: a stirring device for the preparation of acid-modified attapulgite, comprising a first stirring box and a second stirring box, and the top of the first stirring box is provided with a first drive motor, a stirring shaft is fixedly connected to the output shaft of the first driving motor, a stirring rod is fixedly connected to the surface of the stirring shaft, a second stirring box is arranged at the bottom of the first stirring box, and the first stirring box is A partition plate is arranged on the bottom surface of the stirring box and at the position of the through hole, a second driving motor is arranged on the side of the second stirring box, and a rotating shaft is fixedly connected to the output shaft of the second driving motor. A screw blade is fixedly connected to the surface of the rotating shaft, a discharge port is opened on the bottom surface of one end of the second stirring box, one side of the discharge port is fixedly connected with a connecting plate, and the side of the connecting plate is rotatably connected There is an electric telescopic rod, the other end of the electric telescopic rod is rotatably connected with a baffle plate, the upper surface of the baffle plate is provided with a sealing plate at the position of the discharge port, and the top surface of the sealing plate is fixedly connected with a guide plate. rod. Two sides of the bottom end of the second mixing box are symmetrically and fixedly connected with support legs.
优选的，所述通孔的一侧且位于隔板的上方设置有刮片。Preferably, a scraper is provided on one side of the through hole and above the separator.
优选的，所述第一搅拌箱内部的底面上固定连接有倾斜板。Preferably, an inclined plate is fixedly connected to the bottom surface inside the first stirring box.
优选的，所述隔板贯穿第一搅拌箱且延伸至其外部，与其通孔滑动连接。Preferably, the separator penetrates through the first stirring box and extends to the outside thereof, and is slidably connected with its through holes.
优选的，所述挡板的一端且位于出料口的一侧与第二搅拌箱的底面转动连接。Preferably, one end of the baffle plate and the side of the discharge port are rotatably connected to the bottom surface of the second stirring box.
本实用新型的技术效果和优点：该酸改性凹凸棒土制备用搅拌装置，通过设置第一搅拌箱和第二搅拌箱使得对物料进行充分搅拌，使得搅拌均匀，通过设置电动伸缩杆带动挡板来回摆动，方便物料出口，避免物料在出料过程中造成堵塞，且操作简单方便，便于使用。The technical effects and advantages of the utility model: the stirring device for the preparation of acid-modified attapulgite can fully stir the material by setting the first stirring box and the second stirring box, so that the stirring is uniform, and the electric telescopic rod is set to drive the block The plate swings back and forth, which is convenient for material exit, avoids material blockage in the process of discharging, and is easy to operate and easy to use.
附图说明Description of drawings

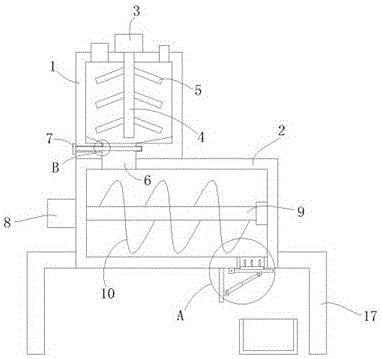

图1为本实用新型的结构示意图；Fig. 1 is the structural representation of the utility model;
图2为本实用新型图1中A处结构放大示意图；Fig. 2 is the enlarged schematic diagram of the structure at place A in Fig. 1 of the utility model;
图3为本实用新型图1中B处结构放大示意图。FIG. 3 is an enlarged schematic view of the structure at B in FIG. 1 of the present utility model.
图中：1、第一搅拌箱；2、第二搅拌箱；3、第一驱动电机；4、搅拌轴；5、搅拌杆；6、通孔；7、隔板；8、第二驱动电机；9、转动轴；10、螺旋叶片；11、出料口；12、连接板；13、电动伸缩杆；14、挡板；15、密封板；16、导杆；17、支撑腿；18、刮片。In the figure: 1, the first stirring box; 2, the second stirring box; 3, the first driving motor; 4, the stirring shaft; 5, the stirring rod; 6, the through hole; 7, the partition plate; 8, the second driving motor ;9, rotating shaft; 10, spiral blade; 11, discharge port; 12, connecting plate; 13, electric telescopic rod; 14, baffle plate; 15, sealing plate; 16, guide rod; 17, support leg; 18, Blade.
具体实施方式Detailed ways
下面将结合本实用新型实施例中的附图，对本实用新型实施例中的技术方案进行清楚、完整地描述，显然，所描述的实施例仅仅是本实用新型一部分实施例，而不是全部的实施例。基于本实用新型中的实施例，本领域普通技术人员在没有做出创造性劳动前提下所获得的所有其他实施例，都属于本实用新型保护的范围。The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.
本实用新型提供了如图1-3所示的一种酸改性凹凸棒土制备用搅拌装置，包括第一搅拌箱1和第二搅拌箱2,通过设置第一搅拌箱1和第二搅拌箱2可以对物料进行充分搅拌。The utility model provides a stirring device for the preparation of acid-modified attapulgite as shown in Figures 1-3, comprising a first stirring box 1 and a second stirring box 2. By setting the first stirring box 1 and the second stirring box Box 2 can fully stir the material.
所述第一搅拌箱1的顶部设置有第一驱动电机3，所述第一驱动电机3的输出轴上固定连接有搅拌轴4，所述搅拌轴4的表面上固定连接有搅拌杆5，所述第一搅拌箱1的底部设置有第二搅拌箱2，所述第一搅拌箱1的底面上且位于通孔6的位置设置有隔板7，所述通孔6的一侧且位于隔板7的上方设置有刮片18，通过设置刮片18方便对隔板7上的物料进行清理。The top of the first stirring box 1 is provided with a first driving motor 3, a stirring shaft 4 is fixedly connected to the output shaft of the first driving motor 3, and a stirring rod 5 is fixedly connected on the surface of the stirring shaft 4, The bottom of the first stirring box 1 is provided with a second stirring box 2 , and the bottom surface of the first stirring box 1 is provided with a
所述第二搅拌箱2的侧面上设置有第二驱动电机8，所述第二驱动电机8的输出轴上固定连接有转动轴9，所述转动轴9的表面上固定连接有螺旋叶片10，所述第二搅拌箱2一端的底面上开设有出料口11，所述出料口11的一侧固定连接有连接板12，所述连接板12的侧面上转动连接有电动伸缩杆13，所述电动伸缩杆13的另一端转动连接有挡板14，所述挡板14的一端且位于出料口11的一侧与第二搅拌箱2的底面转动连接，所述挡板14的上表面且位于出料口11的位置设置有密封板15，所述密封板15的顶面上固定连接有导杆16。所述第二搅拌箱2底端的两侧对称固定连接有支撑腿17，通过电动伸缩杆13带动挡板14来回摆动，使得导杆16与物料接触，避免出料口堵塞，且操作简单方便，便于使用。The side of the second stirring box 2 is provided with a second drive motor 8, the output shaft of the second drive motor 8 is fixedly connected with a rotating shaft 9, and the surface of the rotating shaft 9 is fixedly connected with a
该酸改性凹凸棒土制备用搅拌装置，在使用时，通过投料口将物料投入到第一搅拌箱1内部，启动第一驱动电机3带动搅拌杆5旋转，对物料进行搅拌，搅拌后打开隔板7物料掉落到第二搅拌箱2内部，启动第二驱动电机8带动螺旋叶片10进行旋转，对物料再次进行搅拌使其充分混合，当出料时，启动电动伸缩杆13带动挡板14旋转，方便物料输出，通过导杆16对物料进行疏通，避免物料在出料口11堵塞，且操作简单方便，便于使用。The stirring device for the preparation of acid-modified attapulgite, when in use, puts the material into the first stirring box 1 through the feeding port, starts the first driving motor 3 to drive the stirring rod 5 to rotate, stirs the material, and opens after stirring. The material of the
最后应说明的是：以上所述仅为本实用新型的优选实施例而已，并不用于限制本实用新型，尽管参照前述实施例对本实用新型进行了详细的说明，对于本领域的技术人员来说，其依然可以对前述各实施例所记载的技术方案进行修改，或者对其中部分技术特征进行等同替换,凡在本实用新型的精神和原则之内，所作的任何修改、等同替换、改进等，均应包含在本实用新型的保护范围之内。Finally, it should be noted that the above are only the preferred embodiments of the present invention, and are not intended to limit the present invention. , it can still modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some of its technical features, any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model, All should be included within the protection scope of the present invention.
