CN212087653U - A new multifunctional fish tank - Google Patents

Abstract

A new type of multifunctional fish tank, comprising an inner hollow rectangular base, a cylinder body with an upper opening is fixedly installed on the top surface of the base, the surrounding side walls of the cylinder body are made of transparent materials, and the surrounding side walls of the cylinder body are all connected with the surrounding of the base. The side walls are flush, the bottom surface of the cylinder is provided with a water outlet structure, the four corners of the top surface of the base are respectively provided with vertical first through holes, and the bottom surface of the cylinder body corresponds to the first through holes with vertical second through holes. Vertical rotating tubes are arranged in the through holes. The utility model is suitable for families or public places, and adopts the cooperation of a rotating pipe, a screw pipe and a screw sleeve to make the inner wall cleaning device move vertically to clean the inner wall of the cylinder body; at the same time, the water storage tank, the power device and the water pump are all installed It effectively reduces the volume of the entire device inside the base, and has complete functions. It integrates water exchange, oxygen supply, and cleaning the inner wall of the cylinder, without other oxygen supply equipment, effectively improving the overall appearance and strong practicability.

Description

A new multifunctional fish tank

technical field

The utility model belongs to the field of fish tanks, in particular to a novel multifunctional fish tank.

Background technique

With the development and progress of society, people pay more and more attention to living standards and quality of life. Many people like to keep fish at home, which can not only enhance the beauty of the family, but also increase the fun of life. However, most fish tanks in the existing technology It is necessary to use a separate oxygen supply device to maintain the oxygen required by the fish, which occupies a large volume and has many pipes, which is not beautiful. At the same time, with the growth of time, the water in the fish tank will breed a lot of bacteria, and the inner wall of the fish tank will stick to a lot of Dirt, in order to ensure the health of the fish, the water in the fish tank needs to be replaced regularly, and the inner wall of the fish tank needs to be cleaned regularly, but now the cleaning of the inner wall of the fish tank is mostly manual cleaning, which is complicated and time-consuming. For larger fish tanks, regular water changes consume a large amount of water, resulting in a waste of water resources, which is not environmentally friendly.

Utility model content

The utility model provides a novel multifunctional fish tank for solving the defects in the prior art.

The utility model is realized through the following technical solutions:

A new type of multifunctional fish tank, comprising an inner hollow rectangular base, a cylinder body with an upper opening is fixedly installed on the top surface of the base, the surrounding side walls of the cylinder body are made of transparent materials, and the surrounding side walls of the cylinder body are all connected with the surrounding of the base. The side walls are flush, the bottom surface of the cylinder is provided with a water outlet structure, the four corners of the top surface of the base are respectively provided with vertical first through holes, and the bottom surface of the cylinder body corresponds to the first through holes with vertical second through holes. The through holes are all provided with vertical rotating pipes, the upper ends of the rotating pipes pass through the corresponding first through holes and the second through holes in sequence and are connected with them through sealed bearings, and the upper ends of the rotating pipes are fixedly installed with vertical upper ends closed. The screw thread of the screw is in the same direction, the base is fixedly installed on the inner side wall of the cylinder, the lower end of the rotating pipe is connected to one end of the rigid water inlet pipe through the corresponding first through hole through the sealing bearing, and the inner bottom surface of the base is fixed Install a water storage tank with an open upper end, the upper end of the water storage tank is fixedly connected to the inner top surface of the base, the water outlet structure is connected with the upper part of the water storage tank, a horizontal filter screen is fixed in the middle of the water storage tank, and a ring-shaped UV light strip is embedded around the lower part of the water storage tank , the lower left side of the water storage tank is provided with a horizontal first water outlet, a water pump is fixedly installed on the left side of the inner bottom surface of the base, the water inlet end of the water pump is connected to the first water outlet through a connecting pipe, and the water outlet end of the water pump is connected to all the water inlets at the same time through the water pipe joint. The other end of the water pipe, the lower right side of the water storage tank is provided with a horizontal second water outlet, the outer end of the second water outlet is fixedly connected to the inner end of the water outlet pipe, and the outer end of the water outlet pipe penetrates the corresponding side inner wall of the base and is located outside the base, A solenoid valve is installed on the side of the water outlet pipe close to the second water outlet. There is a power device in the base that drives the four rotating pipes to rotate in the same direction at the same time. The upper part of the solenoid pipe is provided with several evenly distributed first pipes on the side near the middle of the cylinder. With three water outlets, the upper part of the screw tube is fitted with a screw sleeve which is threaded with it, and a horizontal cylinder inner wall cleaning device is fixedly installed between the two adjacent screw sleeves. The inner wall of the cylinder is cleaned; the UV lamp belt, water pump and power unit are all connected to the power supply.

A new type of multifunctional fish tank as described above, the power device includes a first pulley, a belt, a motor, and a second pulley. A motor with an output shaft facing upward is fixedly installed on the bracket, a second pulley is fixedly installed on the output shaft of the motor, the four first pulleys and the second pulley are connected by a belt, and the motor is connected with the power supply.

A new type of multifunctional fish tank as mentioned above, the inner wall cleaning device includes a scraper, a horizontal scraper is fixedly installed between two adjacent screw sleeves, and the side of the scraper away from the middle of the cylinder body is both inside and outside. Small trapezoid, rubber blocks are fixedly installed on the side of the scraper away from the middle of the cylinder.

A new type of multifunctional fish tank as described above, the water outlet structure includes a fourth water outlet, a third through hole, and a connecting pipe, and four vertical fourth vertical The water outlet, the fourth water outlet on the top surface of the base communicates with the corresponding fourth water outlet on the bottom surface of the cylinder body, the upper part of the circumference of the water storage tank is provided with third through holes, and the outer ends of the third through holes are fixedly connected to the L-shaped water outlet. The horizontal nozzle of the connecting pipe and the vertical nozzle of the connecting pipe are fixed to the lower end of the fourth water outlet corresponding to the connection base.

In the above-mentioned novel multifunctional fish tank, the spiral tube is made of transparent material.

The advantages of the utility model are: the utility model is suitable for families or public places; when in use, the solenoid valve is closed, water is contained in the cylinder, the water surface is lower than the third water outlet at the uppermost part, and fish are kept in the cylinder , the ultraviolet light strip is in the open state. When it is necessary to supply oxygen and exchange water for the fish in the tank, the user turns on the water pump, and the water in the tank enters the water storage tank through the water outlet structure under the action of the water pump. The water in the water tank is filtered by the filter screen to filter out the impurities in the water body. After the ultraviolet lamp strip is sterilized, it enters the rotating pipe through the first water outlet, the water pump and the water inlet pipe in turn, and then goes from the third water outlet on the upper part of the rotating pipe to the rotating pipe. The middle of the tank is sprayed, and the flowing water can effectively increase the oxygen concentration in the tank to supply oxygen to the fish in the tank. Thereby, the effect of replacing the inside of the cylinder is achieved; when the inner wall of the cylinder needs to be cleaned, the user fishes out the fish in the cylinder, then opens the solenoid valve, and the water in the cylinder passes through the storage tank in turn. The water structure, the water storage tank, the second water outlet and the water outlet pipe are directly discharged, and then the rotating pipe is driven by the power device to rotate and rotate in the same direction. The rotation of the rotating pipe drives the corresponding solenoid to rotate accordingly. The tubes are threadedly connected, and the rotation of the screw makes the screw sleeve move downward along the corresponding screw tube. At the same time, the inner wall cleaning device is fixedly installed between the two adjacent screw sleeves, and the inner wall cleaning device can move with the corresponding screw sleeve. The inner wall of the cylinder body is cleaned, and the downward movement of the screw sleeve drives all the inner wall cleaning devices to move downward, so that the inner wall cleaning device cleans the surrounding inner walls of the cylinder body; the utility model has a reasonable design and an ingenious conception. , The cooperation of the screw pipe and the screw sleeve makes the inner wall cleaning device move vertically to clean the inner wall of the cylinder body; at the same time, the utility model has a compact structure, and the water storage tank, the power device and the water pump are all installed inside the base to effectively reduce the overall size of the cylinder. The volume of the device is small, and the utility model has complete functions, which integrates water exchange, oxygen supply and cleaning of the inner wall of the cylinder, without other oxygen supply equipment, effectively improving the overall appearance and strong practicability.

Description of drawings

In order to illustrate the embodiments of the present invention or the technical solutions in the prior art more clearly, the following briefly introduces the accompanying drawings used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description The drawings are some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative labor.

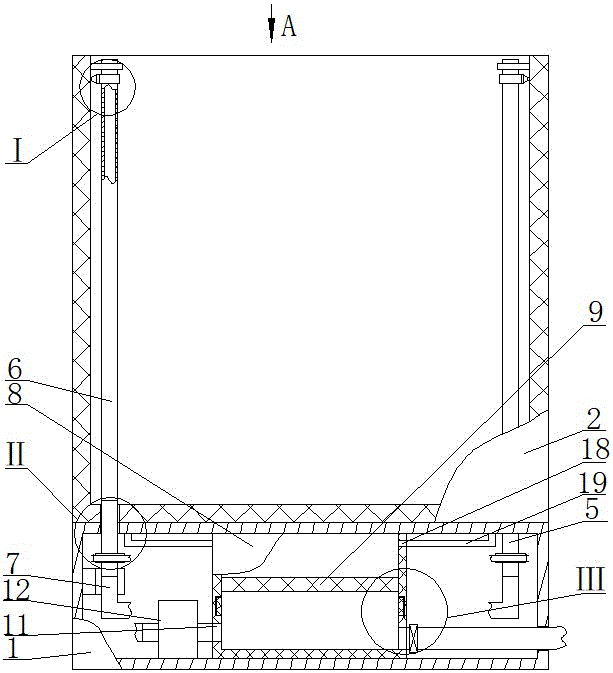

1 is a schematic structural diagram of the present utility model; FIG. 2 is an enlarged view of FIG. 1A to the view; FIG. 3 is an enlarged view of a part of FIG. 1I; FIG. 4 is an enlarged view of a part of FIG. 1II; ; Figure 6 is a schematic diagram of the power plant.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present utility model clearer, the technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. The embodiments described above are a part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

A new type of multifunctional fish tank, as shown in the figure, includes a hollow rectangular base 1, the top surface of the base 1 is fixedly installed with a cylinder body 2 with an upper opening, and the surrounding side walls of the cylinder body 2 are made of transparent materials. The surrounding side walls of 2 are flush with the surrounding side walls of the base 1, the inner bottom surface of the cylinder body 2 is provided with a water outlet structure, and the four corners of the top surface of the base 1 are respectively provided with vertical first through holes 3, and the bottom surface of the cylinder body 2 corresponds to The first through hole 3 is provided with a vertical second through hole 4, and the first through hole 3 is provided with a vertical rotating pipe 5, and the upper end of the rotating pipe 5 passes through the corresponding first through hole 3 and the second through hole in sequence. The hole 4 is connected with it through a sealed bearing, the upper end of the rotating tube 5 is fixedly installed with a vertical upper end closed coil 6, the screw 6 has the same thread rotation direction, the base 1 is fixedly installed on the inner wall of the cylinder block 2, and rotate The lower ends of the pipes 5 all pass through the corresponding first through holes 3 and are connected to one end of the rigid water inlet pipe 7 through a sealed bearing. Surface, the water outlet structure is communicated with the upper part of the water storage tank 8, the middle part of the water storage tank 8 is fixedly installed with a horizontal filter screen 9, the lower part of the The first water outlet 11, the water pump 12 is fixedly installed on the left side of the inner bottom surface of the base 1, the water inlet end of the water pump 12 is connected to the first water outlet 11 through a connecting pipe, and the water outlet end of the water pump 12 is connected to the other side of all the water inlet pipes 7 at the same time through the water pipe joint. One end, the lower right side of the water storage tank 8 is provided with a horizontal second water outlet 13, the outer end of the second water outlet 13 is fixedly connected to the inner end of the water outlet pipe 14, and the outer end of the water outlet pipe 14 penetrates the corresponding side inner wall of the base 1 and is located in Outside the base 1, a solenoid valve is installed on the side of the water outlet pipe 14 close to the second water outlet 13. The base 1 is provided with a power device that drives the four rotating pipes 5 to rotate in the same direction at the same time. There are several evenly distributed third water outlets 15 on one side, the upper part of the screw pipe 6 is sleeved with a screw sleeve 16 that is threaded with it, and a horizontal cylinder 2 inner wall cleaning device is fixedly installed between the two adjacent screw sleeves 16 , The inner wall cleaning device can clean the inner wall of the cylinder 2 with the vertical movement of the corresponding screw sleeve 16; The utility model is suitable for families or public places; when in use, the solenoid valve is closed, the cylinder body 2 is filled with water, and the water surface is lower than the third water outlet 15 at the uppermost part, fish are raised in the cylinder body 2, and the ultraviolet light strips 10 is in the open state. When it is necessary to supply oxygen and exchange water for the fish in the cylinder block 2, the user turns on the water pump 12, and the water in the cylinder block 2 enters the water storage tank 8 through the water outlet structure under the action of the water pump 12. , the water in the water storage tank 8 passes through the filter screen 9 to filter out impurities in the water body, and after the ultraviolet lamp strip 10 is sterilized, it enters the rotating pipe 5 through the first water outlet 11, the water pump 12, and the water inlet pipe 7 in turn, and then The water is sprayed from the third water outlet 15 on the upper part of the rotating pipe 5 to the middle of the cylinder 2, and the flowing water can effectively increase the oxygen concentration in the cylinder 2 to supply oxygen to the fish in the cylinder 2, and at the same time pass through the filter screen 9 and the ultraviolet light strip 10 filter and sterilize the water in the cylinder 2, so as to have the effect of replacing the water in the cylinder 2; when the inner wall of the cylinder 2 needs to be cleaned, the user removes the The fish inside is taken out, and then the solenoid valve is opened, and the water in the cylinder 2 is discharged directly through the water storage structure, the water storage tank 8, the second water outlet 13, and the water outlet pipe 14, and then the rotating pipe 5 is driven by the power device. Rotate and rotate in the same direction, the rotation of the rotating tube 5 drives the corresponding solenoid 6 to rotate accordingly. Since the screw sleeve 16 and the corresponding solenoid 6 are threadedly connected, the rotation of the solenoid 6 makes the screw 16 rotate along the corresponding solenoid. 6 moves downward, and at the same time, since the inner wall cleaning device is fixedly installed between the adjacent two screw sleeves 6, and the inner wall cleaning device can clean the inner wall of the cylinder block 2 with the movement of the corresponding screw sleeve 16, the screw sleeve 16 moves downward. All the inner wall cleaning devices are driven to move downward, so that the inner wall cleaning device cleans the surrounding inner walls of the cylinder body 2; The inner wall cleaning device is moved vertically to clean the inner wall of the cylinder block 2; at the same time, the utility model has a compact structure, and the water storage tank 8, the power device and the water pump 12 are all installed inside the base 1 to effectively reduce the volume of the entire device, and The utility model has complete functions, integrates water exchange, oxygen supply and cleaning of the inner wall of the cylinder body 2, no other oxygen supply equipment is required, the overall aesthetics is effectively improved, and the practicability is strong.

Specifically, as shown in FIG. 4 , the power device described in this embodiment includes a first pulley 20 , a belt 21 , a motor 22 , and a second pulley 23 , and the first pulley is fixedly sleeved on the outer circumference of the middle portion of the rotating tube 5 . 20. The motor 22 with the output shaft facing upward is fixedly installed on one side of the inner wall of the base 1 through the bracket. The output shaft of the motor 22 is fixedly installed with the second pulley 23, and the four first pulleys 20 and the second pulley 23 pass through the belt. 21 is connected, and the motor 22 is connected with the power supply. During use, the motor 22 works. Since the four first pulleys 20 and the second pulleys 23 are connected by the belt 21, the rotation of the output shaft of the motor 22 causes the second pulleys 23 to rotate accordingly, and the four The rotation directions of the second pulleys 23 are the same, so that the four rotating pipes 5 rotate in the same direction.

Specifically, as shown in FIG. 3 , the inner wall cleaning device in this embodiment includes a scraper 24 , and a horizontal scraper 24 is fixedly installed between two adjacent screw sleeves 16 , and the scraper 24 is away from a part of the middle of the cylinder block 2 . The sides are all trapezoidal with large inside and outside, and rubber blocks 25 are fixedly installed on the side of the scraper 24 away from the middle of the cylinder block 2 . In the process of use, the scraper 24 moves downward with the corresponding screw sleeve 16. Since the side of the scraper 24 away from the middle of the cylinder 2 is trapezoid with a large inside and a small outside, it can effectively reduce the adhesion of the inner wall of the cylinder 2. The object is scraped to the bottom of the cylinder block 2, and at the same time, the rubber block 25 is in contact with the inner wall of the cylinder block 2, which can effectively protect the inner wall of the cylinder block 2.

Further, as shown in FIG. 2 , the water outlet structure described in this embodiment includes a fourth water outlet 17 , a third through hole 18 , and a connecting pipe 19 . The inner bottom surface of the cylinder block 2 and the top surface of the base 1 correspond to four There are four vertical fourth water outlets 17, the fourth water outlet 17 on the top surface of the base 1 communicates with the fourth water outlet 17 corresponding to the inner bottom surface of the cylinder block 2, and the upper part of the circumference of the water storage tank 8 is provided with a third through hole 18, The outer ends of the third through holes 18 are fixedly connected to the horizontal nozzles of the L-shaped connecting pipes 19 , and the vertical nozzles of the connecting pipes 19 are fixedly connected to the lower ends of the fourth water outlets 17 corresponding to the base 1 . During use, the water in the cylinder body 2 enters the water storage tank 8 through the fourth water outlet 17 , the connecting pipe 19 and the third through hole 18 in sequence.

Further, as shown in FIG. 1 , the coil 6 in this embodiment is made of transparent material. The coil 6 made of transparent material can effectively enhance the aesthetics of the cylinder block 2 .

Finally, it should be noted that the above embodiments are only used to illustrate the technical solutions of the present utility model, but not to limit them; although the present utility model has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: It is still possible to modify the technical solutions recorded in the foregoing embodiments, or perform equivalent replacements to some of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions depart from the spirit of the technical solutions of the embodiments of the present invention and range.

Claims (5)

1. A novel multifunctional fish tank is characterized in that: comprises a rectangular base (1) with a hollow interior, wherein a cylinder body (2) with an upper opening is fixedly installed on the top surface of the base (1), the peripheral side walls of the cylinder body (2) are made of transparent materials, the peripheral side walls of the cylinder body (2) are flush with the peripheral side walls of the base (1), a water outlet structure is arranged on the bottom surface in the cylinder body (2), vertical first through holes (3) are respectively formed in the four corners of the top surface of the base (1), vertical second through holes (4) are formed in the bottom surface of the cylinder body (2) corresponding to the first through holes (3), vertical rotating pipes (5) are arranged in the first through holes (3), the upper ends of the rotating pipes (5) sequentially penetrate through the corresponding first through holes (3), the second through holes (4) and are connected with the rotating pipes through sealing bearings, vertical screwed pipes (6) with closed upper ends are fixedly installed at the upper ends of the rotating pipes (5), and the screwing directions of the screwed pipes (6) are, the base (1) is fixedly arranged on the inner side wall of the cylinder body (2), the lower end of the rotating pipe (5) penetrates through the corresponding first through hole (3) and is connected with one end of the hard water inlet pipe (7) through a sealing bearing, the upper end opening water storage tank (8) is fixedly arranged on the inner bottom surface of the base (1), the upper end of the water storage tank (8) is fixedly connected with the inner top surface of the base (1), a water outlet structure is communicated with the upper part of the water storage tank (8), a horizontal filter screen (9) is fixedly arranged in the middle of the water storage tank (8), an annular ultraviolet lamp belt (10) is embedded around the lower part of the water storage tank (8), a horizontal first water outlet (11) is formed in the left side of the lower part of the water storage tank (8), a water pump (12) is fixedly arranged on the left side of the inner bottom surface of the base (1), the water inlet end of the water pump (12) is connected, a horizontal second water outlet (13) is formed in the right side of the lower portion of the water storage tank (8), the outer end of the second water outlet (13) is fixedly connected with the inner end of a water outlet pipe (14), the outer end of the water outlet pipe (14) penetrates through the inner wall of the corresponding side of the base (1) and is located outside the base (1), an electromagnetic valve is installed on one side, close to the second water outlet (13), of the water outlet pipe (14), a power device which simultaneously drives four rotating pipes (5) to rotate in the same direction is arranged in the base (1), a plurality of uniformly distributed third water outlets (15) are formed in one side, close to the middle of the cylinder body (2), of the upper portion of each spiral pipe (6), a threaded sleeve (16) matched with the upper portion of each spiral pipe in a threaded mode is sleeved on the upper portion of each spiral pipe, a horizontal cylinder body (2) inner wall cleaning device is fixedly installed between every two adjacent spiral sleeves (16), and the inner wall cleaning; the ultraviolet lamp strip (10), the water pump (12) and the power device are all connected with a power supply.

2. A novel multifunctional fish tank as claimed in claim 1, characterized in that: the power device comprises a first belt wheel (20), a belt (21), a motor (22) and a second belt wheel (23), the first belt wheel (20) is fixedly sleeved on the periphery of the middle of the rotating pipe (5), the motor (22) with an upward output shaft is fixedly installed on the inner wall of one side of the base (1) through a support, the second belt wheel (23) is fixedly installed on the output shaft of the motor (22), the four first belt wheels (20) and the second belt wheels (23) are connected through the belt (21), and the motor (22) is connected with a power source.

3. A novel multifunctional fish tank as claimed in claim 1, characterized in that: the inner wall cleaning device comprises a scraper (24), the horizontal scraper (24) is fixedly installed between every two adjacent thread sleeves (16), one side, far away from the middle part of the cylinder body (2), of each scraper (24) is trapezoidal, the inner part of each scraper is larger than the outer part of each scraper, and one side, far away from the middle part of the cylinder body (2), of each scraper (24) is fixedly provided with a rubber block (25).

4. A novel multifunctional fish tank as claimed in claim 1, 2 or 3, characterized in that: go out water structure include fourth delivery port (17), third through-hole (18), connecting pipe (19), four vertical fourth delivery port (17) are seted up to the interior bottom surface of cylinder body (2) and the top surface correspondence of base (1), fourth delivery port (17) that the bottom surface corresponds in fourth delivery port (17) and the cylinder body (2) of the top surface of base (1) communicate with each other, third through-hole (18) are all seted up on the upper portion all around of storage water tank (8), the horizontal mouth of pipe of the equal fixed connection L type's of outer end connecting pipe (19) of third through-hole (18), the equal fixed connection base (1) of the vertical mouth of pipe of connecting pipe (19) corresponds the lower extreme of fourth delivery port (17).

5. A novel multifunctional fish tank as claimed in claim 1, 2 or 3, characterized in that: the spiral tube (6) is made of transparent materials.
