CN212084093U - A computer cooling device - Google Patents

Abstract

The utility model discloses a heat dissipation device for a computer, which comprises a first base, a storage rack is arranged above the middle of the first base, and an auxiliary radiator is clamped on the left and right sides of the storage rack, respectively. A telescopic mechanism is installed in the middle of the storage rack, and two exhaust mechanisms are also installed in the middle of the storage rack to cooperate with the auxiliary radiator. The tail of the first base and the second base are also connected with a lifting component for adjusting the height. The beneficial effects of the utility model are: the device has a reasonable design, adopts double heat dissipation, improves the heat absorption effect and heat dissipation efficiency of the heat dissipation device, and can perform multiple The size adjustment optimizes the heat dissipation effect of the computer, further improves the running speed of the computer, has high practicability and market prospects, and is suitable for widespread use.

Description

A computer cooling device

technical field

The utility model relates to the field of computers, in particular to a heat dissipation device for computers.

Background technique

With the development of science and technology, notebooks are more and more widely used due to their advantages of lightness and portability. The cooling problem of notebook computers has always been one of the bottlenecks in the development of notebook technology, and the cooling effect also affects the actual use effect of notebook computers. In order to solve this problem, people have designed notebook cooling bases.

However, the current cooling device has the disadvantages of poor heat dissipation effect and low heat dissipation efficiency, and most notebook cooling devices cannot be adjusted in size, so there is a large room for improvement. Therefore, in order to meet the actual needs, it is urgent to develop a more mature cooling device. computer cooling device.

Utility model content

The purpose of the present invention is to provide a heat dissipation device for a computer to solve the above-mentioned problems in the background art.

To achieve the above object, the utility model provides the following technical solutions:

A heat dissipation device for a computer comprises a first base, a storage rack is arranged above the middle of the first base, an auxiliary radiator is clamped on the left and right sides of the storage rack, and an auxiliary radiator is installed in the middle of the storage rack. A telescopic mechanism, two exhaust mechanisms are also installed in the middle of the storage rack to cooperate with the auxiliary radiator, a second base is also connected to the bottom of the first base, and the first base and the second base are connected to the bottom of the first base. The tail of the base is also connected with a lifting component for adjusting the height.

As a further solution of the present invention, an L-shaped fixing frame is respectively installed on the left and right sides of the bottom of the storage rack.

As a further solution of the present invention, a graphene heat dissipation patch is paved in the middle of the storage rack.

As a further solution of the present invention: a casing for fixing is installed outside the auxiliary radiator, and a fan is installed inside the casing. A switch for controlling the fan is also installed outside the casing, and a fan is installed inside the casing. A first air outlet is installed.

As a further solution of the present invention, the telescopic mechanism includes three connecting frames, and a telescopic hinge is respectively installed in the middle of each connecting frame.

As a further solution of the present invention, a second air outlet is respectively provided in the left and right air exhaust mechanisms, and an exhaust fan is installed inside the second air outlet.

As a further solution of the present invention: the lifting assembly includes a limit slot and a diamond lift bracket, the limit slot is horizontally installed at the tail of the second base, the diamond lift bracket is fixed inside the limit slot, and the diamond lift bracket is fixed inside the limit slot. A fixing plate is installed on the top of the lifting bracket, and a connecting pin seat is also installed on the fixing plate.

As a further solution of the present invention, a rubber pad is installed on the left and right sides of the front end of the second base, respectively.

Compared with the prior art, the beneficial effects of the present utility model are: the device has a reasonable design, adopts double heat dissipation, improves the heat absorption effect and heat dissipation efficiency of the heat dissipation device, and can adjust multiple sizes at the same time, and optimizes the heat dissipation effect of the computer. The operating speed of the computer is further improved, the utility model has high practicability and market prospect, and is suitable for widespread use.

Description of drawings

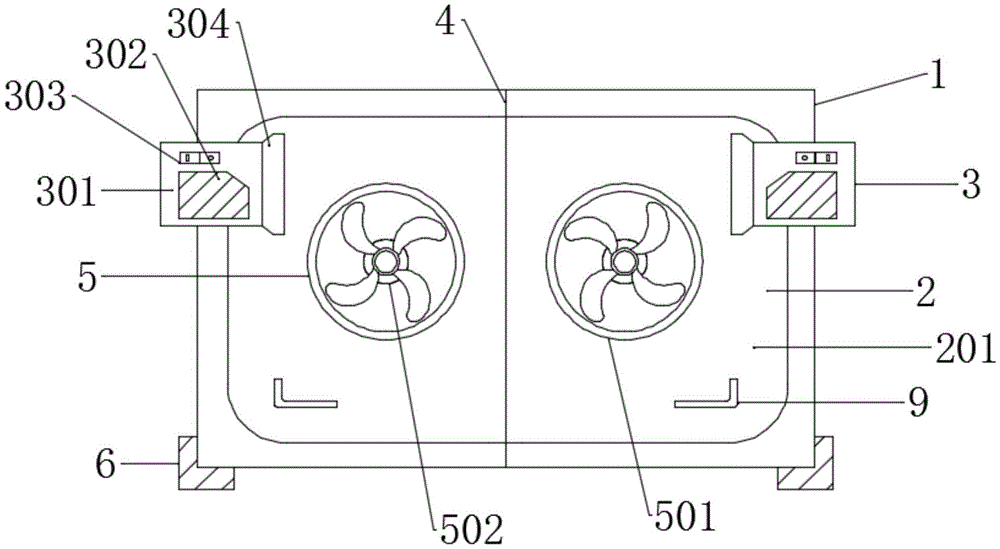

FIG. 1 is a top view of a heat sink for a computer.

FIG. 2 is a schematic diagram of a back structure of a heat dissipation device for a computer.

FIG. 3 is a schematic side view of a heat dissipation device for a computer.

In the picture: 1- The first base, 2- Shelf, 3- Auxiliary radiator, 4- Telescopic mechanism, 5- Exhaust mechanism, 6- Rubber pad, 7- The second base, 8- Lifting assembly, 9-L Type fixing frame, 201-Graphene cooling patch, 301-Fan, 302-Shell, 303-Switch, 304-First air outlet, 401-Connecting frame, 402-Telescopic hinge, 501-Second air outlet, 502-Exhaust fan, 801-Limiting slot, 802-Diamond lift bracket, 803-Fixing plate, 804-Connecting pin seat.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Example 1:

Referring to FIGS. 1 to 3 , in an embodiment of the present invention, a heat dissipation device for a computer includes a first base 1 , a storage rack 2 is arranged above the middle of the first base 1 , and two left and right sides of the storage rack 2 are provided. An auxiliary radiator 3 is clamped on the side, a telescopic mechanism 4 is installed in the middle of the storage rack 2, and two exhaust mechanisms 5 are also installed in the middle of the storage rack 2 for use with the auxiliary radiator 3. A second base 7 is also connected to the bottom of the first base 1 , and a lifting assembly 8 for adjusting the height is also connected to the tail of the first base 1 and the second base 7 .

Embodiment 2:

In this embodiment, an L-shaped fixing frame 9 is respectively installed on the left and right sides of the bottom of the storage rack 2 , a graphene heat dissipation patch 201 is paved in the middle of the storage rack 2 , and the auxiliary radiator 3 A casing 302 for fixing is installed outside, and a fan 301 is installed inside the casing 302. A switch 303 for controlling the fan 301 is also installed outside the casing 302, and a first air outlet is installed inside the casing 302 304; the telescopic mechanism 4 includes three connecting frames 401, and a telescopic hinge 402 is respectively installed in the middle of each of the connecting frames 401; a second air exhaust mechanism is respectively provided in the left and right air exhaust mechanisms 5 A vent 501, an exhaust fan 502 is installed inside the second air outlet 501; the lift assembly 8 includes a limit slot 801 and a diamond lift bracket 802, the limit slot 801 is horizontally installed at the rear of the second base 7, so The diamond-shaped lifting bracket 802 is fixed inside the limit slot 801 , a fixing plate 803 is installed on the top of the diamond-shaped lifting bracket 802 , and a connecting pin seat 804 is also installed on the fixing plate 803 , and the front end of the second base 7 is left and right. A rubber pad 6 is installed on both sides respectively.

The working principle of the utility model is as follows: when in use, according to the size of the computer required to dissipate heat, the telescopic mechanism 4 arranged in the middle of the storage rack 2 is adjusted, and then the computer is fixedly installed through the L-shaped fixing frame 9 installed at the bottom, The device is adjusted to a suitable height through the lifting assembly 8 provided at the bottom, the graphene heat dissipation patch 201 connected to the bottom of the computer can quickly absorb heat, and the absorbed heat is quickly discharged through the exhaust mechanism 5 at the bottom, and is installed on the rack 2 at the same time. The auxiliary radiators 3 on the left and right sides quickly absorb and discharge the heat discharged from the left and right heat dissipation ports, so as to achieve the effect of double heat dissipation.

In addition, it should be understood that although this specification is described in terms of embodiments, not each embodiment only includes an independent technical solution, and this description in the specification is only for the sake of clarity, and those skilled in the art should take the specification as a whole , the technical solutions in each embodiment can also be appropriately combined to form other implementations that can be understood by those skilled in the art.

Claims (8)

1. The utility model provides a heat abstractor for computer, includes first base (1), its characterized in that first base (1) middle part top is equipped with supporter (2) the left and right sides presss from both sides respectively and is equipped with one auxiliary heat radiator (3) supporter (2) mid-mounting has telescopic machanism (4) supporter (2) middle part still install two with auxiliary heat radiator (3) cooperation exhaust mechanism (5) of using first base (1) bottom still is connected with second base (7) first base (1) and second base (7) afterbody still are connected with lift assembly (8) that are used for height-adjusting.

2. The heat sink for computer according to claim 1, wherein an L-shaped fixing frame (9) is installed on each of the left and right sides of the bottom of the rack (2).

3. The heat sink for computer as claimed in claim 2, wherein a graphene heat sink (201) is laid in the middle of the rack (2).

4. The heat sink for computer according to claim 3, wherein a casing (302) for fixing is installed outside the auxiliary heat sink (3), a fan (301) is installed inside the casing (302), a switch (303) for controlling the fan (301) is further installed outside the casing (302), and a first exhaust port (304) is installed inside the casing (302).

5. The heat sink for computer as claimed in claim 4, wherein the telescopic mechanism (4) comprises three connecting frames (401), and a telescopic hinge (402) is installed in the middle of each connecting frame (401).

6. The heat sink for computer according to claim 5, wherein a second air outlet (501) is provided in each of the left and right air exhaust mechanisms (5), and a fan (502) is installed inside the second air outlet (501).

7. The heat sink for computer as claimed in claim 6, wherein the lifting assembly (8) comprises a limit groove (801) and a rhombic lifting bracket (802);

spacing groove (801) horizontal installation is in second base (7) afterbody, rhombus lift support (802) are fixed inside spacing groove (801) fixed plate (803) are installed at rhombus lift support (802) top fixed plate (803) still install connecting pin seat (804).

8. The heat sink for computer according to claim 1 or 7, wherein a rubber pad (6) is mounted on each of the left and right sides of the front end of the second base (7).
