Abstract

The utility model relates to the field of building anti-seismic supports, in particular to a high-resistance anti-seismic connecting support combined structure, comprising a first sloping side plate, a hanging rod vertically connected with a wall, connected with the lower end of the hanging rod and parallel to the wall The supporting plate assembly of the body, the second side plate connected with the supporting plate assembly, the detachable horizontal fixing frame and several connecting seats; the supporting plate assembly includes an upper layer plate, a buffer plate arranged below the upper layer plate and a buffer plate arranged below the buffer plate The lower plate of the suspender; the horizontal fixing frame is fixed on the suspender through a number of positioning holes opened on the suspender, and can be adjusted and disassembled according to requirements; the utility model adopts the first inclined side plate and the second side plate to cooperate, and the stability is stable. It is more reliable; the support plate assembly is convenient for damping the first inclined side plate and the second side plate, reducing the impact of shaking and vibration on the whole bracket; it is fixed on the hanger rod by the hanger rod stiffener, and the support plate assembly needs to be stable when fixed. pipes or cables.

Description

A high-resistance earthquake-resistant connecting bracket composite structure

technical field

The utility model relates to the field of building anti-seismic supports, in particular to a high-resistance anti-seismic connecting support combined structure.

Background technique

The angle between the vertical support and the diagonal support of the seismic support shall meet the requirement of 45°. However, the existing seismic support connecting members are generally two mutually hinged connecting plates. When the vertical support and the oblique support are connected by such hinges, it is difficult to ensure the connection between the vertical support and the oblique support during the installation process. 45° angle requirements, and the angle adjustment process is cumbersome during installation. In addition, the hinge part has poor strength and low bearing capacity.

Secondly, the traditional anti-vibration bracket for lateral support for pipelines or cables lacks the corresponding shock-absorbing structure, resulting in a general shock-absorbing effect of the anti-vibration bracket for lateral support. When the anti-vibration bracket for lateral support is subjected to bumps or shaking , The anti-seismic bracket for lateral support cannot maintain a good stability effect, which affects the experience of using the anti-seismic bracket.

Utility model content

The utility model proposes a high-resistance anti-seismic connecting bracket combined structure, which has the characteristics of simple structure, double lateral support frame, buffer support component and adjustable fixing frame.

In order to achieve the above-mentioned purpose, the utility model adopts the following technical solutions:

A high-resistance anti-seismic connection bracket combination structure, comprising a first inclined side plate, a suspension rod vertically connected with a wall, a support plate assembly connected with the lower end of the suspension rod and parallel to the wall, and connected with the support plate assembly the second side plate, detachable horizontal fixing frame and several connecting seats;

The support plate assembly includes an upper layer plate, a buffer plate arranged below the upper layer plate, and a lower layer plate arranged below the buffer plate; Demand adjustment and disassembly;

One end of the first inclined side plate is fixedly connected to the wall through the connecting seat, and the other end is connected to the hanger rod through the connecting base; the upper end of the hanger rod is connected to the wall body through a shock absorbing member, and the lower end and the upper board are fixed by connecting ribs connection; P-type tube bundles are fixed on the upper board through limit fasteners; one end of the second side board is fixedly connected to the wall through a fixed anchor bolt, and the other end is connected to the upper board through a connecting seat.

Further, the connection seat includes two connection plates and a self-tightening nut; the connection plate is screwed to the plate to be connected, and the self-tightening nut plays a role of fixed connection.

Further, the shock absorbing member includes a shock absorbing base fixed on the wall, a shock absorbing guide rod inserted inside the shock absorbing base, and a shock absorbing spring sleeved on the shock absorbing guide rod; The ends are respectively fixedly connected with the shock-absorbing base and the suspension rod, the upper end of the shock-absorbing guide rod is inserted into the shock-absorbing base, and the lower end is fixedly connected with the upper end of the suspension rod.

Preferably, two suspension rods are provided, which are respectively connected vertically to both ends of the support plate assembly.

Further, two of the first inclined side plates and the second side plates are provided, the two first inclined side plates are respectively connected to the adjacent hanger rods, and the two second side plates are respectively arranged on the supporting rods. Both ends of the plate assembly and on the inside of the boom.

Preferably, the materials of the first inclined side plate, the support plate assembly, the upper layer plate, the lower layer plate and the hanger rod are all C-shaped channel steel with holes.

The utility model adopts the cooperation of the first inclined side plate and the second side plate to double fix the support plate assembly, and the stability is more reliable; the support plate assembly includes an upper layer plate, a buffer layer and a lower layer plate, and a buffer layer is added between the upper and lower layer plates. The plate is convenient for shock absorption for the first inclined side plate and the second side plate. The two devices complement each other to reduce the impact of shaking and vibration on the whole bracket; a horizontal fixing frame is provided, and the corresponding positioning holes can be adjusted according to the needs, and the suspension rod is used to strengthen it. The parts are fixed on the hanger rod, and the pipelines or cables that need to be stable are fixed with the support plate assembly.

Description of drawings

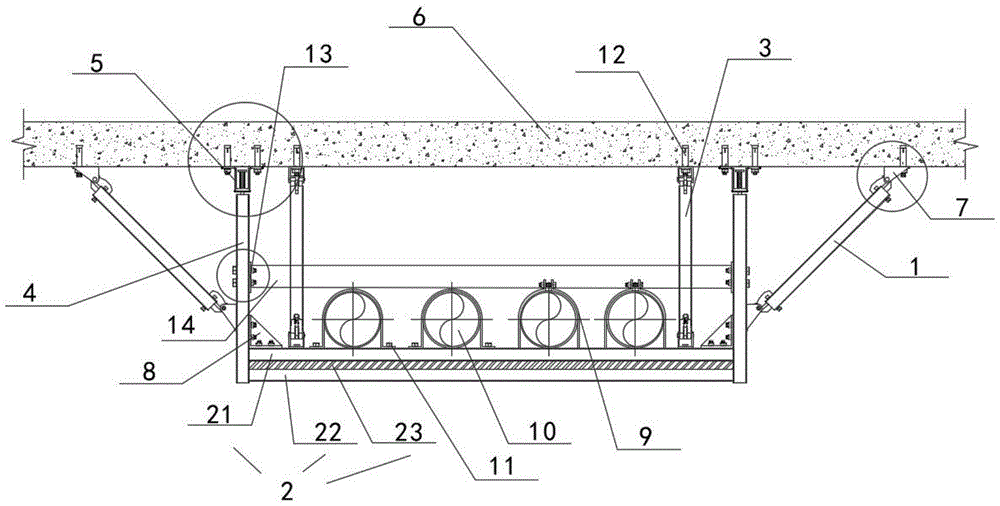

Fig. 1 is the structural representation of a kind of high-resistance anti-seismic connection bracket combined structure of the present utility model;

Fig. 2 is the top view schematic diagram of a kind of high-resistance anti-seismic connection bracket combined structure of the present invention;

3 is an enlarged schematic view of the horizontal fixing frame 14 of a high-resistance earthquake-resistant connecting bracket combined structure of the present invention;

4 is an enlarged schematic view of the connecting seat 7 of a high-resistance earthquake-resistant connecting bracket combined structure of the present invention;

5 is an enlarged schematic view of the shock absorbing member 5 of a high-resistance shock-resistant connecting bracket combination structure of the present invention;

Reference numerals: 1-first inclined side plate, 2-support plate assembly, 21-upper plate, 22-lower plate, 23-buffer plate, 3-second side plate, 4-suspender, 5-shock absorber , 51- shock-absorbing base, 52- shock-absorbing spring, 53- shock-absorbing guide rod, 6- wall, 7- connecting seat, 71- connecting plate, 72- self-tightening bolt, 8- connecting rib, 9-P type Tube bundle, 11-Limiting fastener, 12-Fixing anchor bolt, 13-Boom stiffener, 14-Horizontal fixing frame, 141-Locating hole

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example.

Referring to Figures 1-5, a high-resistance seismic connection bracket combination structure includes a first inclined side plate 1, a hanger 4 vertically connected to the wall 6, and the lower end of the hanger 4 is connected and parallel to the wall. 6, the second side plate 3 connected with the support plate assembly 2, the detachable horizontal fixing frame 14 and several connecting seats 7; The plate 23 and the lower plate 22 arranged below the buffer plate 23; the horizontal fixing frame 14 is fixed on the suspension rod 4 through the suspension rod stiffener 13 through a number of positioning holes 141 opened on the suspension rod 4, and can be adjusted according to needs Height and dismantling pick and place; one end of the first inclined side plate 1 is fixedly connected to the wall 6 through the connecting seat 7, and the other end is connected to the hanging rod 4 through the connecting seat 7; the upper end of the hanging rod 4 passes through the wall 6 The shock absorber 5 is connected, and the lower end is fixedly connected with the upper plate 21 through the connecting ribs 8; the upper plate 21 is fixed with a P-type tube bundle 9 through the limit fastener 11; one end of the second side plate 3 is fixed by anchor bolts 12 is fixedly connected with the wall 6, and the other end is connected with the upper board 21 through the connecting seat 7.

The utility model adopts the cooperation of the first inclined side plate 1 and the second side plate 2 to double fix the support plate assembly 2, so that the stability is more reliable; the support plate assembly 2 includes an upper layer plate 21, a buffer layer 23 and a lower layer plate 22. The buffer layer 23 is added between the layers to facilitate shock absorption for the first inclined side plate 1 and the second side plate 2. The two devices complement each other to reduce the impact of shaking and vibration on the whole bracket; The corresponding positioning hole 141 needs to be adjusted, fixed on the hanger rod 4 through the hanger rod stiffener 13, and cooperates with the support plate assembly 2 to fix the pipeline or cable that needs to be stable. 's pipeline.

Referring to Figures 1-5, a high-resistance anti-vibration connecting bracket assembly structure, further, the connecting base 7 includes two connecting plates 71 and self-tightening nuts 72; the connecting plates 71 are screwed to the plate to be connected. , the self-tightening nut 72 plays the role of fixed connection.

Further, the shock absorbing member 5 includes a shock absorbing base 51 fixed on the wall 6 , a shock absorbing guide rod 53 inserted inside the shock absorbing base 51 , and a shock absorbing spring sleeved on the shock absorbing guide rod 53 . 52; both ends of the shock-absorbing spring 52 are respectively fixedly connected with the shock-absorbing base 51 and the suspension rod 4, the upper end of the shock-absorbing guide rod 53 is inserted into the shock-absorbing base 51, and the lower end is connected to the upper end of the suspension rod 4 Fixed connection.

Preferably, there are two hanging rods 4 , which are vertically connected to both ends of the support plate assembly 2 respectively.

Preferably, two of the first inclined side plates 1 and the second side plates 3 are provided, the two first inclined side plates 1 are respectively connected to the adjacent hanger rods 4, and the two second side plates are respectively 3 are respectively arranged on both ends of the support plate assembly 2 and are located on the inner side of the hanger rod 4 .

Preferably, the materials of the first inclined side plate 1, the support plate assembly 2, the upper layer plate 21, the lower layer plate 22 and the hanger rod 4 are all C-shaped channel steel with holes.

The specific embodiments described above further describe the purpose, technical solutions and beneficial effects of the present invention in detail. It should be understood that the above are only specific embodiments of the present invention and are not intended to limit the present invention The protection scope of the utility model, any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model shall be included within the protection scope of the present utility model.

Claims (6)

1. A high-resistance anti-seismic connection bracket composite structure, characterized in that it comprises a first inclined side plate (1), a hanger rod (4) vertically connected to a wall (6), and a hanger rod (4) The lower end is connected to the support plate assembly (2) parallel to the wall (6), the second side plate (3) connected to the support plate assembly (2), the detachable horizontal fixing frame (14) and several connecting seats (7) ); The support plate assembly (2) comprises an upper layer plate (21), a buffer plate (23) arranged below the upper layer plate (21) and a lower layer plate (22) arranged below the buffer plate (23); the horizontal fixing frame (14) The hanger rod stiffener (13) is fixed on the hanger rod (4) through a number of positioning holes (141) provided on the hanger rod (4), and the height can be adjusted and dismantled and taken according to requirements; One end of the first inclined side plate (1) is fixedly connected with the wall body (6) through the connecting seat (7), and the other end is connected with the hanger rod (4) through the connecting seat (7); The upper end is connected with the wall (6) by the shock absorbing member (5), and the lower end is fixedly connected with the upper board (21) by the connecting rib (8); the upper board (21) is fixed by the limit fastener (11). There is a P-type tube bundle (9); one end of the second side plate (3) is fixedly connected to the wall (6) through a fixed anchor bolt (12), and the other end is connected to the upper board (21) through a connecting seat (7). 2. A high-resistance anti-seismic connecting bracket combined structure according to claim 1, characterized in that, the connecting seat (7) comprises two connecting plates (71) and a self-tightening nut (72); the The connecting plate (71) is screwed on the plate to be connected, and the self-tightening nut (72) plays the role of fixed connection. 3. The high-resistance anti-seismic connecting bracket combination structure according to claim 1, wherein the shock absorbing member (5) comprises a shock absorbing base (51) fixed on the wall (6), A shock-absorbing guide rod (53) inserted in the shock-absorbing base (51) and a shock-absorbing spring (52) sleeved on the shock-absorbing guide rod (53); The shock-absorbing base (51) is fixedly connected to the suspension rod (4), the upper end of the shock-absorbing guide rod (53) is inserted into the shock-absorbing base (51), and the lower end is fixedly connected to the upper end of the suspension rod (4). . 4. The high-resistance anti-seismic connection bracket combination structure according to claim 1, characterized in that, the hanger rods (4) are provided with two rods, which are respectively vertically connected to two parts of the support plate assembly (2). end. 5. The high-resistance earthquake-resistant connecting bracket combination structure according to claim 1, characterized in that, the first inclined side plate (1) and the second side plate (3) are provided with two, 2 The first inclined side plates (1) are respectively connected with the adjacent suspension rods (4), and the two second side plates (3) are respectively arranged on both ends of the support plate assembly (2) and located on the suspension rods. (4) inside. 6. The high-resistance anti-seismic connection bracket combination structure according to claim 1, wherein the first inclined side plate (1), the support plate assembly (2), the upper layer plate (21), the lower layer The material of the plate (22) and the hanger rod (4) is C-shaped channel steel with holes.
