Abstract

The utility model discloses a home take-out receiving device of the Internet of Things, which belongs to the technical field of take-out taking. There are two folding plates on both sides of the telescopic flat plate mechanism, a front plate is connected to the side of the telescopic flat plate mechanism away from the bottom plate, a collection port is opened inside the front plate, and a first plate is rotated on the top of the front plate. A rotating rod, the bottom of the first rotating rod is rotatably connected with a cover plate; the utility model installs and fixes a plurality of movable connecting plates and connecting rods, then connects them with hinges, and then installs the folding plates on both sides, so that The front plate connected on one side of the connecting plate can shrink the take-out box as a whole, so that the take-out box can be stored in the installed wall without occupying corridors and public spaces.

Description

An Internet of Things home takeaway receiving device

Technical field:

The utility model relates to the technical field of express delivery collection, in particular to an Internet of Things household takeaway collection device.

Background technique:

Food delivery is a new industry, and now the delivery boy has become a good-paying profession. Every city, the streets are full of food delivery boys who play an indispensable role, not only for errands, but also for every one who has no time to do it. Friends of people who order takeaway meals.

At present, with the development of take-out, customers themselves are unable to receive take-out in time for their own reasons. Usually, the takeaway is placed at the door, and it is easy to lose it at the door. Therefore, many people will put a box at the door to collect take-out. The box occupies space and affects normal traffic. , and there is no takeaway collection box that is convenient to shrink.

Therefore, it is necessary to invent an Internet of Things home takeaway receiving device to solve the above problems.

Utility model content:

The purpose of the utility model is to provide an Internet of Things household take-out receiving device, so as to solve the problem of inconvenient storage of take-out boxes in the prior art.

The utility model is implemented by the following technical solutions: an IoT home takeaway receiving device, comprising a bottom plate, the surface of the bottom plate is threadedly connected with mounting screws, and two telescopic flat plate mechanisms are arranged on the top and bottom surfaces of the bottom plate, the telescopic plate mechanism is Two folding plates are arranged on both sides of the flat plate mechanism, a front plate is connected to the side of the telescopic flat plate mechanism away from the bottom plate, a collection port is opened inside the front plate, and a first rotating rod is rotatably installed on the top of the front plate. A cover plate is rotatably connected to the bottom of the first rotating rod;

The telescopic flat plate mechanism includes a plurality of connecting plates, a plurality of connecting rods are arranged between the connecting plates, and a connecting hinge is fixedly installed at the connection between the connecting plates and the connecting rods;

The two sides of the folding plate are rotatably connected with a fixing mechanism, the fixing mechanism includes a fixing rod, a second rotating rod is installed at one end of the fixing rod, and the end of the fixing rod is connected with a side away from the second rotating rod. A fixed groove rod is provided with a first groove on the side away from the second rotating rod, a second groove is provided inside the fixed groove rod, and a plug-in is installed on one side of the fixed groove rod.

Preferably, the connecting plate and the connecting rod are hinged through a connecting hinge.

Preferably, both the front plate and the bottom plate are rotatably connected to the connecting plate.

Preferably, a handle is provided at the bottom of the cover plate.

Preferably, the bottom of the handle is provided with a spring.

Preferably, the top of the handle is provided with a third groove.

1. By installing and fixing a plurality of movable connecting plates and connecting rods, and then connecting them with hinges, and then by installing the folding plates on both sides, the front plate connected on one side of the connecting plate can make the takeaway box as a whole shrink back and forth, In this way, the takeaway receiving box can be stored in the installed wall without occupying the corridor or public space;

2. By installing the handle to connect with the front plate, stretch and shrink the folding plate and the telescopic flat plate mechanism connected to the front plate. The handle can be moved downward by installing the spring, and the handle can be moved downward and stuck on the cover plate, which can The cover is opened and the takeaway is put into the device.

Description of drawings:

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

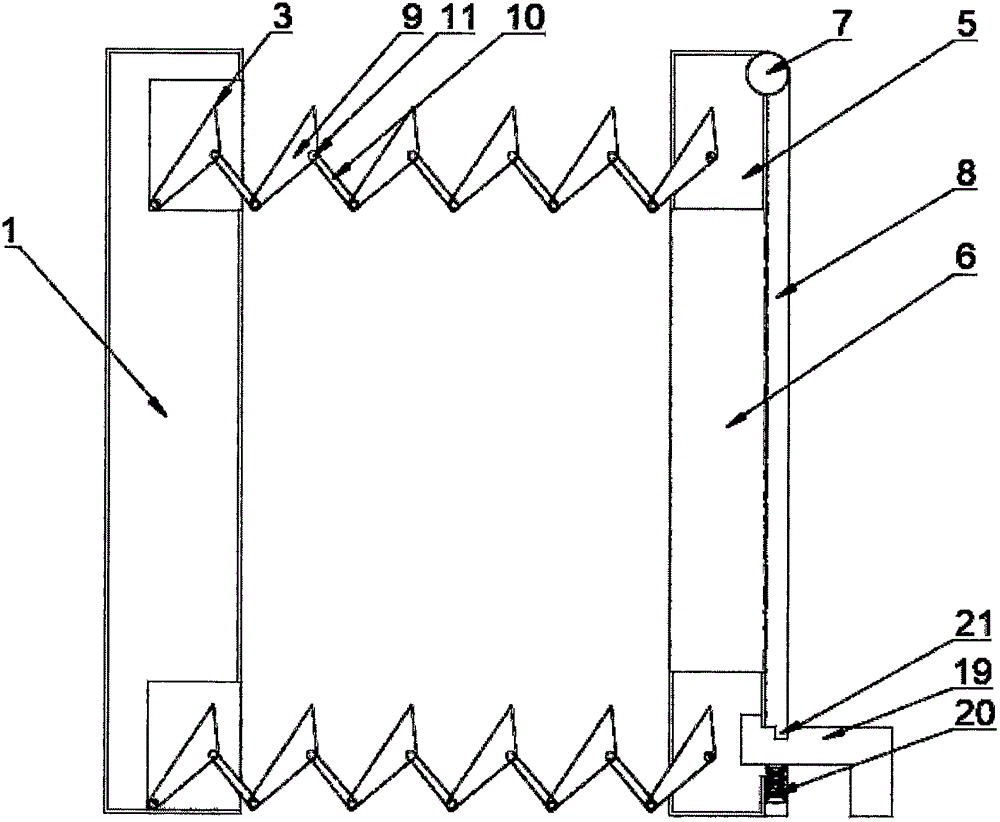

Figure 1 is a schematic diagram of the overall cross-sectional structure of the utility model.

Figure 2 is a schematic side view of the cross-sectional structure of the utility model.

FIG. 3 is a schematic structural diagram of the folding plate and the fixing mechanism of the present invention.

In the figure: 1. Bottom plate; 2. Installation screw; 3. Telescopic flat plate mechanism; 4. Folding plate; 5. Front plate; 6. Receiving port; 7. The first rotating rod; 8. Cover plate; 10, connecting rod; 11, connecting hinge; 12, fixing mechanism; 13, fixing rod; 14, second rotating rod; 15, fixing groove rod; 16, first groove; 17, second groove; 18, Insert; 19, handle; 20, spring; 21, third groove.

Detailed ways:

The technical solutions of the present utility model will be described in further detail below in conjunction with the accompanying drawings, but the protection scope of the present utility model is not limited to the following. Any feature disclosed in this specification (including any accompanying claims - abstract and drawings), unless expressly stated otherwise, may be replaced by other equivalent or alternative features serving a similar purpose. That is, unless expressly stated otherwise, each feature is but one example of a series of equivalent or similar features.

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Before describing the embodiments, some necessary terms need to be explained. E.g:

If the terms "first"-"second" and the like appear in this application to describe various elements, these elements should not be limited by these terms. These terms are only used to distinguish one element from another. Thus, a "first" element discussed below could also be termed a "second" element without departing from the teachings of the present invention. It will be understood that when an element is referred to as being "connected" or "coupled" to another element, it can be directly connected or coupled to the other element or intervening elements may also be present. In contrast, when an element is referred to as being "directly connected" or "directly coupled" to another element, there are no intervening elements present.

Various terms appearing in this application are used for the purpose of describing particular embodiments only and are not intended to be limiting of the invention, and the singular is intended to include the plural unless the context clearly dictates otherwise.

When the terms "comprising" and/or "comprising" are used in this specification, these terms indicate the presence of said feature-integrity-step-operation-element and/or component, but do not exclude more than one other feature- The presence and/or addition of an entity-step-operation-element-part and/or groups thereof.

The utility model provides an Internet of Things household takeaway receiving device as shown in Figures 1-3. As shown in Figures 1-2, the utility model includes a base plate 1. The surface of the base plate 1 is threadedly connected with mounting screws 2 to fix the device on the desired In the installed wall, the top and bottom surfaces of the bottom plate 1 are provided with two telescopic flat plate mechanisms 3, which cooperate with the folding plates 4 to make the device shrink, two folding plates 4 are arranged on both sides of the telescopic flat plate mechanism 3, and the telescopic flat plate mechanism 3 is far from the bottom plate. 1. A front plate 5 is connected on one side, and a receiving port 6 is opened inside the front plate 5, which is convenient for the takeaway brother to put the takeaway into the box and take it out for customers. The top of the front plate 5 is rotated and installed with a first rotating rod 7, which is connected to the front plate. 5 and the cover plate 8, the bottom of the first rotating rod 7 is rotatably connected with the cover plate 8, the telescopic flat plate mechanism 3 includes a plurality of connecting plates 9, the connecting rod 10 is connected with the bottom plate 1 and the front plate 5, and it can also be placed for take-out after being stretched. A plurality of connecting rods 10 are arranged between the connecting plates 9. The connecting plates 9 are connected by connecting hinges 11, and connecting hinges 11 are fixedly installed at the connection between the connecting plates 9 and the connecting rods 10, and the connecting plates 9 and the connecting rods 10 are connected connect.

As shown in Fig. 2-3, a fixing mechanism 12 is rotatably connected to both sides of the folding plate 4. The fixing mechanism 12 includes a fixing rod 13. A second rotating rod 14 is installed at one end of the fixing rod 13, so that the fixing mechanism 12 drives the folding board. 4 and the front plate 5 are stretched and contracted, the end of the fixed rod 13 away from the second rotating rod 14 is connected with a fixed groove rod 15, and the side of the fixed rod 13 away from the second rotating rod 14 is provided with a first groove 16, The fixed groove rod 15 is provided with a second groove 17 inside, and the fixed rod 13 is accommodated. A plug-in 18 is installed on one side of the fixed groove rod 15, and the first groove 16 is matched with the first groove 16 and the takeaway receiving box is fully opened to fix it. A handle 19 is provided at the bottom of the plate 8, and the device is opened by pulling the handle 19. A third groove 21 is provided on the top of the handle 19 to facilitate the connection of the handle 19 with the cover plate 8. The bottom of the handle 19 is provided with a spring 20, which cooperates with the handle 19 to move the card downward. Hold cover 8 to open it.

The specific use method of the above-mentioned Internet of Things home takeaway receiving device includes the following steps: pulling the handle 19 to drive the connecting plate 9 and the folding plate 4 connected to the front plate 5 to a fully open state, and then pulling the handle 19 downward to clamp the handle 19 on the cover plate 8, open the cover 8 and put the takeaway into the device through the receiving port 6, then cover it, and finally the guest comes back to open the cover 8 to take out the takeaway and cover it, and push the front plate 5 to connect the connecting plate 9 and the folding plate. 4 can shrink.

The remaining technical features in this embodiment can be flexibly selected by those skilled in the art according to actual conditions to meet different specific actual needs. It will be apparent, however, to one of ordinary skill in the art that these specific details need not be employed to practice the present invention. In other instances, in order to avoid obscuring the present invention, well-known compositions, structures or components are not specifically described, which are all within the technical protection scope defined by the technical solutions claimed in the claims of the present invention.

In the description of the present invention, unless otherwise expressly specified and limited, the terms "arrangement" - "installation" - "connected" - "connected" are all broad meanings, which should be understood by those skilled in the art in a broad sense. For example, it can be a fixed connection, or a movable connection, or an integral connection, or a partial connection, a mechanical connection, an electrical connection, a direct connection, or an indirect connection through an intermediate medium. It can be the internal connection of two components, etc. For those skilled in the art, the specific meaning of the above terms in the present invention can be understood according to the specific situation, that is, the expression in the written language can be flexibly corresponding to the implementation of the actual technology, Expressions in the literal language (including the accompanying drawings) of the description of the present invention do not constitute any single limiting interpretation of the claims.

Changes and changes made by those skilled in the art do not depart from the spirit and scope of the present invention, and should all fall within the protection scope of the appended claims of the present invention. In the foregoing description, numerous specific details are set forth in order to provide a thorough understanding of the present invention. It will be apparent, however, to one of ordinary skill in the art that these specific details need not be employed to practice the present invention. In other instances, in order to avoid obscuring the present invention, well-known technologies, such as specific construction details, operating conditions and other technical conditions, are not described in detail.

Claims (6)

1. An Internet of Things household takeaway collection device, comprising a base plate (1), characterized in that: the base plate (1) surface is threadedly connected with mounting screws (2), and the top and bottom surfaces of the base plate (1) are provided with Two telescopic flat plate mechanisms (3), two folding plates (4) are provided on both sides of the telescopic flat plate mechanism (3), and a front plate (5) is connected to the side of the telescopic flat plate mechanism (3) away from the bottom plate (1). ), a collection port (6) is provided inside the front plate (5), a first rotating rod (7) is rotatably installed on the top of the front plate (5), and a bottom of the first rotating rod (7) is rotatably connected with cover plate (8); The telescopic flat plate mechanism (3) includes a plurality of connecting plates (9), a plurality of connecting rods (10) are arranged between the connecting plates (9), and the connecting plates (9) are connected with the connecting rods (10). A connecting hinge (11) is fixedly installed at the place; Both sides of the folding plate (4) are rotatably connected with a fixing mechanism (12), the fixing mechanism (12) includes a fixing rod (13), and a second rotating rod (13) is installed on one end of the fixing rod (13). 14), a fixed groove rod (15) is connected to the end of the fixed rod (13) on the side away from the second rotating rod (14), and the fixed rod (13) is provided on the side away from the second rotating rod (14). There is a first groove (16), a second groove (17) is provided inside the fixing groove rod (15), and an insert (18) is installed on one side of the fixing groove rod (15). 2 . The IoT home takeaway receiving device according to claim 1 , wherein the connecting plate ( 9 ) and the connecting rod ( 10 ) are hinged through a connecting hinge ( 11 ). 3 . 3. The Internet of Things home takeaway receiving device according to claim 1, characterized in that: both the front plate (5) and the bottom plate (1) are rotatably connected to a connecting plate (9). 4. The IoT home takeaway receiving device according to claim 1, wherein a handle (19) is provided at the bottom of the cover plate (8). 5. The Internet of Things home takeaway collection device according to claim 4, wherein a spring (20) is provided at the bottom of the handle (19). 6. The Internet of Things home takeaway receiving device according to claim 5, wherein a third groove (21) is provided on the top of the handle (19).
