Abstract

The utility model discloses a drying device for plastic mold processing, which relates to the technical field of plastic mold processing equipment. The drying device for plastic mold processing includes a box body and a drying mechanism, wherein the box body is provided with a drying mechanism, and the drying mechanism includes a graphite water-absorbing plate, a desiccant, a motor protective cover, a motor, a rotating drum, a rotating rod, Sponge pad, air inlet pipe, air outlet pipe, air suction pump, ventilation plate, through pipe, installation box, air outlet pipe, bellows, heating plate, graphite water absorption plate is fixedly installed on the inner wall of the box body, and the inner wall of one side of the box body is rotated and installed There is a rotating rod, the rotating rod penetrates the graphite water absorption plate, a motor is fixedly installed on one side of the box body, the rotating shaft of the motor penetrates the box body through a coupling and is fixedly connected with the rotating rod, and a rotating drum is arranged in the box body. The utility model has a simple structure, is convenient for staff to operate, can perform rotary drying on the plastic mold, and effectively improves the drying efficiency and quality of the plastic mold.

Description

A drying device for plastic mold processing

technical field

The utility model relates to the technical field of plastic mold processing equipment, in particular to a drying device for plastic mold processing.

Background technique

Plastic mold is a tool that is matched with plastic molding machines in the plastic processing industry to give plastic products a complete configuration and precise size. After the plastic mold is formed, a series of treatments are required for the mold, including grinding and cleaning. After cleaning, the mold needs to be dried.

At present, some plastic mold drying devices on the market have complex structures, which are inconvenient for staff to operate, and cannot fully dry the molds, and at the same time, cannot collect water droplets generated in the box. It reduces the efficiency and quality of drying.

Utility model content

The purpose of this utility model is to provide a drying device for plastic mold processing, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the present utility model provides the following technical solutions: a drying device for plastic mold processing, comprising a box body and a drying mechanism, the box body is provided with a drying mechanism, and the drying mechanism includes a graphite water-absorbing plate, a drying mechanism, and a drying mechanism. agent, motor protective cover, motor, rotating drum, rotating rod, sponge pad, air intake pipe, air outlet pipe, air pump, ventilation plate, through pipe, installation box, air outlet pipe, bellows, heating plate, the inner wall of the box is fixed A graphite water-absorbing plate is installed, a rotating rod is installed on the inner wall of one side of the box, and the rotating rod penetrates the graphite water-absorbing plate. One side of the box is fixedly installed with a motor, and the rotating shaft of the motor penetrates the box through a coupling and is connected with the rotating rod. Fixed connection, a rotating drum is arranged in the box, one side of the rotating rod is fixedly connected to the rotating drum, there are multiple sets of air inlets on the rotating drum, the inner wall of the rotating drum is fixedly installed with a sponge pad, and there are multiple sets of air inlets on the sponge pad , the front outer wall of the drum is hinged with a first box door, one side of the graphite water absorption plate is fixedly installed with an installation box, one side of the installation box is welded and installed with a ventilation plate, and there are multiple sets of air inlets on the ventilation plate. A through pipe is welded and installed on one side, and the through pipe extends to the inside of the installation box. The bottom of the installation box is welded with an air intake pipe. One end of the intake pipe extends to the inside of the installation box. The other end runs through the graphite water absorbing plate and the box body and is fixedly connected with the intake end of the air pump. One side of the graphite water absorbing plate is fixedly installed with a bellows, and the air outlet end of the air pump is fixedly installed with an air outlet pipe, and one end of the air outlet pipe runs through the box body. And the graphite water absorption plate extends to the inside of the bellows, the two inner walls of the bellows are fixedly installed with heating sheets, and one side of the bellows is welded and installed with an air outlet pipe, and the air outlet pipe extends to the inside of the bellows.

Preferably, a second box door is hinged on the front side outer wall of the box body, a handle is welded on the front side outer wall of the second box door, and a glass observation window is inlaid and installed on the front side outer wall of the second box door.

Preferably, the bottom of the box body is welded and installed with support legs, the bottom of the support legs is rotatably installed with rollers, and the number of the support legs and the rollers is four.

Preferably, a motor protective cover is provided on the outside of the motor, one side of the motor protective cover is provided with a plurality of sets of heat dissipation holes, and the motor protective cover is fixedly connected to the box body.

Preferably, a desiccant is fixedly installed on both inner walls of the installation box.

Preferably, an inclined plate is fixedly installed on the graphite water absorbing plate, the number of inclined plates is two, a connecting plate is welded on the bottom of the inclined plate, a sliding block is slidably installed in the connecting plate, and a water collecting box is welded on one side of the sliding block. .

Compared with the prior art, the beneficial effects of the present utility model are:

(1) The drying device for plastic mold processing can let the hot air in The circulating circulation in the box can effectively fill the whole box with hot air, and effectively improve the effect and quality of mold drying.

(2) The drying device for plastic mold processing can rotate and dry the mold through the cooperation of the motor, the rotating rod, the sponge pad and the first box door, so that each side of the mold can be dried. The effect of mold drying is greatly improved, and the efficiency of mold drying is also significantly improved. The arrangement of the sponge pad can also protect the mold when the drum rotates, thereby improving the practicability of the drying device.

(3) The drying device for plastic mold processing is used in cooperation with the inclined plate, the connecting plate, the slide and the water collecting box, so that the water droplets condensed on the surface of the inclined plate can be collected, and the water droplets flow into the water collection. The box is convenient for the staff to carry out centralized processing, which significantly reduces the workload of the staff, and can also prevent water droplets from falling on the mold and affecting the drying effect.

Description of drawings

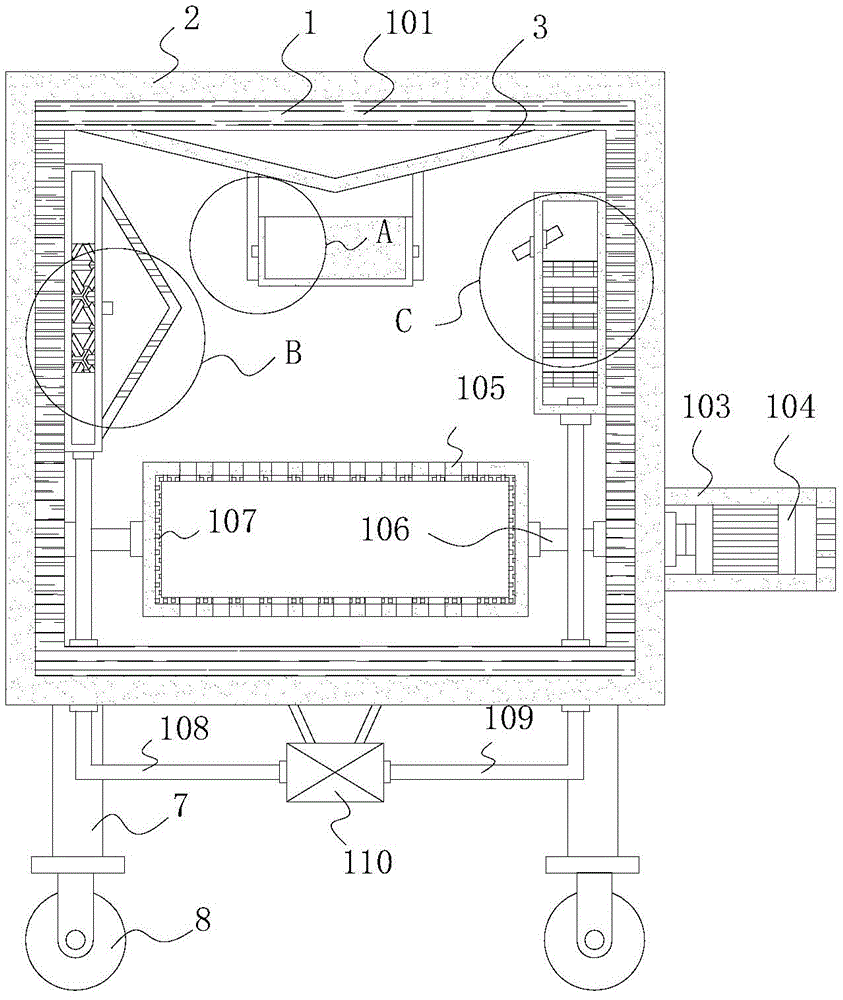

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the enlarged schematic diagram of A part in the utility model;

Fig. 3 is the enlarged schematic diagram of B part in the utility model;

Fig. 4 is the enlarged schematic diagram of C part in the utility model;

Fig. 5 is the front view of the utility model intermediate drum;

FIG. 6 is a front view of the utility model.

In the picture: 1 drying mechanism, 101 graphite water absorption plate, 102 desiccant, 103 motor protective cover, 104 motor, 105 drum, 106 rotating rod, 107 sponge pad, 108 air intake pipe, 109 air outlet pipe, 110 air pump, 111 Ventilation plate, 112 pipe, 113 installation box, 114 air outlet, 115 bellows, 116 heating plate, 2 boxes, 3 inclined plates, 4 connecting plates, 5 water collecting boxes, 6 sliding blocks, 7 supporting legs, 8 rollers , 9 first box door, 10 second box door, 11 glass observation window, 12 handle.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-6, the present utility model provides a technical solution: a drying device for plastic mold processing, comprising a box body 2 and a drying mechanism 1, the front side outer wall of the box body 2 is hinged with a second box door 10 , the front side outer wall of the second box door 10 is welded with a handle 12, the front side outer wall of the second box door 10 is inlaid and installed with a glass observation window 11, the bottom of the box body 2 is welded and installed with a support leg 7, and the bottom of the support leg 7 rotates There are rollers 8 installed, and the number of support legs 7 and rollers 8 is four. The arrangement of this structure is convenient for the staff to move the device, which significantly improves the practicability and flexibility of the device. Drying mechanism 1, the drying mechanism includes a graphite water absorbing plate 101, a desiccant 102, a motor protective cover 103, a motor 104, a rotating drum 105, a rotating rod 106, a sponge pad 107, an air intake pipe 108, an air outlet pipe 109, an air suction pump 110, ventilation The plate 111, the through pipe 112, the installation box 113, the air outlet pipe 114, the bellows 115, the heating plate 116, the graphite water absorption plate 101 is fixedly installed on the inner wall of the box body 2, and the setting of the graphite water absorption plate 101 can prevent the water flowing down from the plastic mold. For effective suction, a rotating rod 106 is installed on one side of the inner wall of the box body 2, and the rotating rod 106 penetrates the graphite water absorbing plate 101. One side of the box body 2 is fixedly installed with a motor 104, and the outside of the motor 104 is provided with a motor protective cover 103 , a side of the motor protective cover 103 is provided with a plurality of groups of heat dissipation holes, the motor protective cover 103 is fixedly connected with the box body 2, the rotating shaft of the motor 104 penetrates the box body 2 through the coupling and is fixedly connected with the rotating rod 106, the motor protective cover The setting of 103 can protect the motor 104 and prolong the service life of the motor 104 to a certain extent. A rotating drum 105 is arranged in the box body 2, and one side of the rotating rod 106 is fixedly connected with the rotating drum 105. 105 is provided with a plurality of groups of air inlets, the inner wall of the drum 105 is fixedly installed with a sponge pad 107, the sponge pad 107 is provided with a plurality of groups of air inlets, and the setting of the sponge pad 107 can prevent the plastic mold during the rotation of the drum 105. To play a protective role, the front outer wall of the drum 105 is hinged with a first box door 9, one side of the graphite water absorbing plate 101 is fixedly installed with an installation box 113, and one side of the installation box 113 is welded and installed with a ventilation plate 111, the ventilation plate A plurality of groups of air inlets are provided on the 111. One side of the installation box 113 is welded and installed with a through pipe 112, and the through pipe 112 extends to the inside of the installation box 113. The bottom is welded with an air intake pipe 108, one end of the air intake pipe 108 extends to the inside of the installation box 113, an air pump 110 is fixedly installed at the bottom of the box body 2, and the other end of the air intake pipe 108 penetrates the graphite water absorbing plate 101 and the box body 2 and is connected with The air inlet end of the air suction pump 110 is fixedly connected, a bellows 115 is fixedly installed on one side of the graphite water absorption plate 101, and an air outlet pipe 109 is fixedly installed on the air outlet end of the air suction pump 110, and one end of the air outlet pipe 109 penetrates the box body 2 and the graphite water absorption plate 101 and extends to Inside the bellows 115 , heating sheets 116 are fixedly installed on both inner walls of the bellows 115 , an air outlet duct 114 is welded and installed on one side of the bellows 115 , and the air outlet duct 114 extends to the interior of the bellows 115 , and the graphite water absorbing plate 101 is fixedly installed with a The inclined plate 3, the number of the inclined plate 3 is two, and the inclined plate 3 is provided with a water droplet that can allow the water droplets condensed by condensation to flow into the water collecting box 5 to prevent the water droplets from dripping on the plastic mold, thereby reducing the quality of drying, The bottom of the inclined plate 3 is welded with a connecting plate 4, a sliding block 6 is slidably installed in the connecting plate 4, and a water collecting box 5 is welded on one side of the sliding block 6. When the drying device is used, the first box door 9 and the second box can be opened. The second box door 10, then put the plastic mold to be dried into the rotating drum 105, start the air pump 110 and the motor 104, the heating sheet 116 heats the air in the bellows 115, and the heated air enters through the air outlet duct 114. In the box body 2, the air pump 110 draws out the air in the box body 2 through the air inlet pipe 108 and circulates it into the air box 115 through the air outlet pipe 109. The arrangement of this structure can circulate the hot air in the box body 2, which effectively improves the air flow rate of the box body 2. At the same time, the motor 104 drives the rotating drum 105 to rotate slowly, and the hot air enters through the air inlet on the rotating drum 105 and dries the plastic mold. The setting of the rotating drum 105 can make the plastic mold more fully accept drying. , effectively improve the drying effect and quality, the desiccant 102 set in the installation box can absorb the moisture in the air when the hot air circulates, and effectively increase the dryness of the air.

Working principle: When using the drying device, the first box door 9 and the second box door 10 can be opened, and then the plastic mold to be dried is put into the drum 105, the air pump 110 and the motor 104 are activated, and the heating plate 116 is activated. The air in the air box 115 is heated, and the heated air enters the box body 2 through the air outlet pipe 114. The air pump 110 draws out the air in the box body 2 through the air intake pipe 108 and circulates it into the air box 115 through the air outlet pipe 109. The arrangement of the structure can circulate the hot air in the box body 2, which effectively improves the drying efficiency. At the same time, the motor 104 drives the rotating drum 105 to rotate slowly, and the hot air enters through the air inlet on the rotating drum 105 and enters the plastic mold. Dry.

Although the embodiments of the present invention have been shown and described, it will be understood by those skilled in the art that various changes and modifications can be made to these embodiments without departing from the principles and spirit of the present invention , alternatives and modifications, the scope of the present invention is defined by the appended claims and their equivalents.

Claims (6)

1. A drying device for plastic mold processing, comprising a box body (2) and a drying mechanism (1), characterized in that: the box body (2) is provided with a drying mechanism (1), and the drying mechanism It includes a graphite absorbent plate (101), a desiccant (102), a motor protective cover (103), a motor (104), a rotating drum (105), a rotating rod (106), a sponge pad (107), an air intake pipe (108), Air outlet pipe (109), air suction pump (110), ventilation plate (111), through pipe (112), installation box (113), air outlet pipe (114), bellows (115), heating sheet (116), box body A graphite water absorbing plate (101) is fixedly installed on the inner wall of (2), a rotating rod (106) is rotatably installed on the inner wall of one side of the box body (2), and the rotating rod (106) penetrates the graphite water absorbing plate (101), and the box body ( 2) A motor (104) is fixedly installed on one side, the rotating shaft of the motor (104) penetrates through the box body (2) through the coupling and is fixedly connected with the rotating rod (106), and the box body (2) is provided with a rotating drum (105), one side of the rotating rod (106) is fixedly connected with the drum (105), the drum (105) is provided with a plurality of groups of air inlets, and the inner wall of the drum (105) is fixedly installed with a sponge pad (107) , the sponge pad (107) is provided with a plurality of groups of air inlets, the front outer wall of the drum (105) is hinged with a first box door (9), and one side of the graphite water absorbing plate (101) is fixedly installed with a mounting box (113) A ventilation plate (111) is welded and installed on one side of the installation box (113), a plurality of groups of air inlets are provided on the ventilation plate (111), and a through pipe (112) is welded and installed on one side of the installation box (113). (112) extends to the inside of the installation box (113), the bottom of the installation box (113) is welded with an air inlet pipe (108), and one end of the air inlet pipe (108) extends to the inside of the installation box (113), the box body (2) An air pump (110) is fixedly installed at the bottom of the air inlet pipe (108), and the other end of the air intake pipe (108) penetrates the graphite water absorption plate (101) and the box (2) and is fixedly connected with the air intake end of the air extraction pump (110). A bellows (115) is fixedly installed on one side of 101), an air outlet pipe (109) is fixedly installed on the air outlet end of the air pump (110), and one end of the air outlet pipe (109) penetrates the box body (2) and the graphite water absorbing plate (101). ) and extend to the inside of the bellows (115), the two inner walls of the bellows (115) are fixedly installed with heating sheets (116), and one side of the bellows (115) is welded with an air outlet pipe (114), and the air outlet pipe (114) ) extends to the inside of the bellows (115). 2. A drying device for plastic mould processing according to claim 1, characterized in that: a second box door (10) is hinged on the front side outer wall of the box body (2), and the second box door (10 A handle (12) is welded on the front side outer wall of the second box door (10), and a glass observation window (11) is inlaid and installed on the front side outer wall of the second box door (10). 3. A kind of drying device for plastic mold processing according to claim 1, characterized in that: the bottom of the box body (2) is welded and installed with a support leg (7), and the bottom of the support leg (7) is rotated and installed There are rollers (8), and the number of support legs (7) and rollers (8) is four. 4. A drying device for plastic mold processing according to claim 1, characterized in that: a motor protective cover (103) is provided outside the motor (104), and one side of the motor protective cover (103) is provided There are multiple sets of heat dissipation holes, and the motor protective cover (103) is fixedly connected with the box body (2). 5 . The drying device for plastic mold processing according to claim 1 , wherein a desiccant ( 102 ) is fixedly installed on the inner walls of both sides of the installation box ( 113 ). 6 . 6. A kind of drying device for plastic mould processing according to claim 1, is characterized in that: the inclined plate (3) is fixedly installed on the described graphite water absorption plate (101), and the quantity of the inclined plate (3) is two The bottom of the inclined plate (3) is welded with a connecting plate (4), a sliding block (6) is slidably installed in the connecting plate (4), and a water collecting box (5) is welded on one side of the sliding block (6).
