Abstract

The utility model provides a structure of a diamond-shaped sliding door shower room, which comprises a door frame and a movable glass door. A sliding track is installed on the top of the door frame, and a swing wheel and an obliquely hanging swing wheel are respectively slidably connected inside the sliding track; The upper two corners of the glass door are respectively connected with the swing wheel and the inclined swing wheel through bolts; the door frame and the right rear part of the sliding track are fixedly connected with a magnetic strip center column. By designing the horizontal double-hole fixing between the moving glass door and the swing wheel and the obliquely hanging swing wheel, the two-point positioning can prevent the main body from loosening, tilting, sagging, etc., thereby effectively reducing the safety of the moving glass door in use. ; By designing the spring positioning glue and the spring slider inside the sliding track, the spring positioning glue can be installed and removed from the guide rail by manually pressing the middle spring slider, which greatly improves the installation and removal efficiency of the diamond shower room.

Description

A structure of a diamond-shaped sliding door shower room

technical field

The utility model belongs to the technical field of a sliding door shower room, and more particularly, particularly relates to a structure of a diamond-shaped sliding door shower room.

Background technique

Shower room: separate shower cubicle. Modern homes have higher and higher requirements for bathroom facilities. Many families hope to have an independent bathing space. However, due to the limited sanitary space in the bedroom, bathing facilities and sanitary ware can only be placed together. room. The shower room makes full use of a corner of the room, and uses a fence to clearly divide the shower area to form a relatively independent bathing space.

For example, application number: CN201621313514.3 The utility model discloses a shower room with barrier-free connection with drainage and waterproof belts, which comprises a shower room body, glass and guide rails. The bottom of the shower room body is fixed on the ground, and the ground The inner side of the floor drain and the shower room body installed on the top is the inner floor of the shower room, and the outer side of the floor drain is the outer surface of the shower room. The bottom guide rail of the shower room is provided with one or more concave-convex grooves, the floor drain is provided with a water receiving groove, a drainage outlet is provided under the water receiving groove, a groove is provided between the guide rails, and the bottom of the groove is provided with a middle A water connection port, the bottom of the glass is gap-fitted with the groove between the shower room fixing block or the shower room sliding piece and the guide rail. The inner ground, the outer ground, the floor drain and the track of the shower room of the utility model are on the same plane, there is no stumbling during the use process, and barrier-free access is realized.

Based on the search of the above-mentioned patents, and combined with the equipment in the prior art, it is found that the existing diamond-shaped shower rooms still have the following deficiencies in the actual use process, such as: 1. Most of the existing diamond-shaped shower rooms have flat doors, When opening the door, it takes up a lot of open space, thus reducing the practicability of the diamond-shaped shower room; 2. The connection between the wheel structure and the moving door of the traditional diamond-shaped shower room sliding door is less stable, and it is easy to be used for a long time. The main body is loose, inclined, sagging and other phenomena, and then there is a potential safety hazard.

Therefore, in view of this, the existing structure and defects are studied and improved, and a structure of a diamond-shaped sliding door shower room is provided, in order to achieve a more practical purpose.

Utility model content

In order to solve the above-mentioned technical problems, the present utility model provides a structure of a diamond-shaped sliding door shower room to solve the following deficiencies in the actual use process of the existing diamond-shaped shower room, such as: 1. The existing diamond-shaped shower room has the following shortcomings. Most of the shower rooms have flat doors, which take up a lot of space when opening the door, thus reducing the practicability of the diamond-shaped shower room; 2. The connection between the wheel structure and the moving door of the traditional diamond-shaped shower room is less stable. , After long-term use, the main body is prone to loosening, tilting, sagging and other phenomena, and then there are potential safety hazards.

The purpose and effect of the structure of the diamond-shaped sliding door shower room of the present utility model are achieved by the following specific technical means:

A structure of a diamond-shaped sliding door shower room includes a door frame and a moving glass door, a sliding track is installed on the top of the door frame, and a swing wheel and an obliquely hanging swing wheel are respectively slidably connected inside the sliding track; Each of the included angles is respectively connected with the swing wheel and the inclined swing wheel through bolts; the door frame and the right rear part of the sliding track are fixedly connected with a magnetic strip center column.

Further, the door frame also includes a fixed glass, and the inner side of the door frame is fixed and inlaid with two fixed glasses in a left-right symmetrical shape, and the thickness and size of the two fixed glasses are equal, and the two fixed glasses are in the door frame. The insides are all bent backwards.

Further, the sliding track further includes a rectangular chute, a spring positioning glue and a spring slider, a rectangular chute is provided on the rear surface of the sliding track, and the interior of the rectangular chute is located at the upper corner of the left side of the moving glass door. A spring positioning glue, a swing wheel and an obliquely hanging swing wheel are slidably connected inside the rectangular chute, a spring slider is installed inside the spring positioning glue, and a pulling hole is opened on the upper part of the rear end surface of the spring slider. When the glass door is in the closed state, the side of the spring positioning glue is in contact with the side of the slanted swing wheel.

Further, the moving glass door also includes a magnetic strip and a mounting hole, the right edge of the moving glass door is provided with a magnetic strip, and the two upper corners of the rear end surface of the moving glass door are provided with swing wheels and The two installation holes connected to the swing wheel are hung obliquely, and the two installation holes are distributed laterally on the moving glass door, the included angle of the right rear part of the magnetic strip is set to be an oblique angle, and the oblique angle is The degree of design is forty-five degrees.

Further, the middle column of the magnetic strip also includes a bare magnetic strip, the shape of one side of the middle column of the magnetic strip is set to be inclined, and a bare magnetic strip is installed on the inclined surface of the column of the magnetic strip, and the shape of the bare magnetic strip is It is designed in the shape of a triangular column, and when the moving glass door is in a closed state, the bare magnetic strip and the magnetic strip are magnetically attracted.

Further, the rocking wheel also includes a first adjusting bolt, a first supporting plate, a first flower nut and a first clamping block, a threaded through hole is opened on the rear side of the upper end face of the rocking wheel bracket, and the rocking wheel bracket is threaded The through hole is connected with a first adjustment bolt, the rocking wheel is connected with a first support plate through the first adjustment bolt, and the rear end surface of the first support plate is provided with two threaded cylinders, and the rear side of the first support plate is connected with the thread. The two inner hexagon bolts connected with the cylinder are connected with a first clamping block, and the rear end surface of the first clamping block is provided with two countersunk holes. The bolts are rotatably connected with the connecting block on the front side of the first support plate. When the rocking wheel and the moving glass door are in the installed state, the front end surface of the first clamping block is closely attached to the rear end surface of the moving glass door.

Further, the obliquely hanging rocking wheel further includes a second adjusting bolt, a second supporting plate, a second flower nut and a second clamping block, and the rear side of the upper end face of the obliquely hanging rocking wheel bracket is also provided with a threaded through hole, and The inclined hanging rocking wheel bracket is connected with a second adjusting bolt through a threaded through hole, the inclined hanging rocking wheel is connected with a second supporting plate through the second adjusting bolt, and the inner rear side of the second supporting plate is provided with two threaded cylinders, so The rear side of the second support plate is connected with a second clamping block through two inner hexagonal bolts connected with the threaded cylinder, and the rear end surface of the second clamping block is also provided with two counterbores, and the upper end of the second adjusting bolt is threaded A second flower nut is connected, the connecting block on the right side of the second support plate is rotatably connected with the second adjustment bolt, and the second support plate is designed to be L-shaped.

Compared with the prior art, the utility model has the following beneficial effects:

Through the cooperation of the swing wheel, the inclined swing wheel and the sliding track, when the moving glass door needs to be opened, the moving glass door is slid to the left by moving the upper handle of the glass door. Under the sliding action of the swing wheel and the inclined swing wheel , so that the moving glass door smoothly slides to the rear side of the left fixed glass, and overlaps with the left fixed glass, so it does not occupy the inner and outer space of the room, and effectively improves the practicability of the diamond shower room.

By designing the horizontal double-hole fixing between the moving glass door and the swing wheel and the obliquely hanging swing wheel, the two-point positioning can prevent the main body from loosening, tilting, sagging, etc., thereby effectively reducing the safety of the moving glass door in use. ; By designing the spring positioning glue and the spring slider inside the sliding track, the spring positioning glue can be installed and removed from the guide rail by manually pressing the middle spring slider, which greatly improves the installation and removal efficiency of the diamond shower room.

Description of drawings

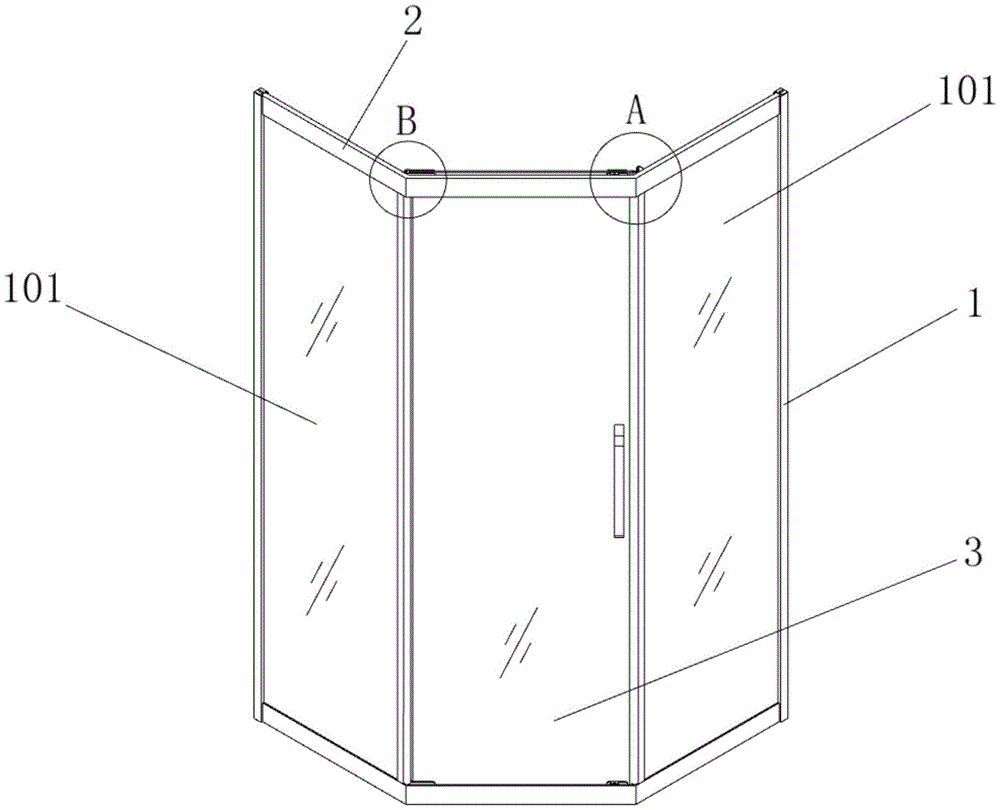

FIG. 1 is a schematic diagram of the axial view structure of the present invention.

FIG. 2 is a partial enlarged structural schematic diagram of part A in FIG. 1 of the present invention.

FIG. 3 is a schematic diagram of a partially enlarged structure at B in FIG. 1 of the present invention.

Figure 4 is a schematic diagram of the structure of the swing wheel of the present invention.

FIG. 5 is a schematic diagram of the structure of the inclined hanging swing wheel of the present invention.

6 is a schematic diagram of a cross-sectional structure of a column in the magnetic strip of the present invention.

FIG. 7 is a schematic top view of the structure of the present invention.

In the figure, the corresponding relationship between component names and drawing numbers is:

1, door frame; 101, fixed glass; 2, sliding track; 201, rectangular chute; 202, spring positioning glue; 203, spring slider; 3, moving glass door; 301, magnetic strip; 302, mounting hole; 4, Magnetic strip center column; 401, bare magnetic strip; 5, swing wheel; 501, first adjusting bolt; 502, first support plate; 503, first flower nut; 504, first clamp block; 6, inclined swing wheel ; 601, the second adjustment bolt; 602, the second support plate; 603, the second flower nut; 604, the second clamp.

Detailed ways

The embodiments of the present utility model will be described in further detail below with reference to the accompanying drawings and examples. The following examples are used to illustrate the present invention, but cannot be used to limit the scope of the present invention.

In the description of the present utility model, unless otherwise specified, "multiple" means two or more; the terms "upper", "lower", "left", "right", "inner", "outer" ", "front end", "rear end", "head", "tail" and other indications of orientation or positional relationship are based on the orientation or positional relationship shown in the accompanying drawings, only for the convenience of describing the present utility model and simplifying the description, Rather than indicating or implying that the indicated device or element must have a particular orientation, be constructed and operate in a particular orientation, it should not be construed as a limitation of the present invention. Furthermore, the terms "first," "second," "third," etc. are used for descriptive purposes only and should not be construed to indicate or imply relative importance.

In the description of the present invention, it should be noted that, unless otherwise expressly specified and limited, the terms "connected" and "connected" should be understood in a broad sense, for example, it may be a fixed connection or a detachable connection, or It can be connected integrally; it can be a mechanical connection or an electrical connection; it can be directly connected or indirectly connected through an intermediate medium. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

Example:

As shown in accompanying drawings 1 to 7:

The utility model provides a structure of a diamond-shaped sliding door shower room, comprising a door frame 1 and a movable glass door 3, a sliding track 2 is installed on the top of the door frame 1, and the sliding track 2 further comprises a rectangular sliding groove 201, a spring positioning glue 202 and a spring sliding Block 203, a rectangular chute 201 is opened on the rear surface of the sliding track 2, and a spring positioning glue 202 is arranged inside the rectangular chute 201 at the upper corner of the left side of the moving glass door 3, and a swing wheel is slidably connected to the inside of the rectangular chute 201. 5 and the slanted swing wheel 6, the spring block 203 is installed inside the spring positioning glue 202, and the upper part of the rear end surface of the spring block 203 is provided with a pull hole. The obliquely hanging swing wheel 6 is in contact with one side, and through the setting of the spring positioning glue 202, the movable glass door 3 can obtain an effective limit when it is closed, so as to avoid the violent collision between the magnetic strip 301 and the bare magnetic strip 401; the sliding track 2 The inside is slidably connected with a swing wheel 5 and an oblique hanging swing wheel 6. The swing wheel 5 also includes a first adjusting bolt 501, a first support plate 502, a first flower nut 503 and a first clamping block 504. The rear side of the end face is provided with a threaded through hole, and the bracket of the swing wheel 5 is connected with a first adjusting bolt 501 through the threaded through hole, and the swing wheel 5 is connected with a first supporting plate 502 through the first adjusting bolt 501, and the back of the first supporting plate 502 The end surface is provided with two threaded cylinders, the rear side of the first support plate 502 is connected with a first clamping block 504 through two hexagon socket bolts connected with the threaded cylinder, and the rear surface of the first clamping block 504 is provided with two countersunk holes, The upper end of the first adjusting bolt 501 is threadedly connected with a first flower nut 503, and the first adjusting bolt 501 is rotatably connected with the connecting block on the front side of the first support plate 502. When the swing wheel 5 and the moving glass door 3 are in the installed state, The front end surface of the first clamping block 504 is closely attached to the rear end surface of the moving glass door 3; the two upper corners of the moving glass door 3 are respectively connected with the swing wheel 5 and the inclined hanging swing wheel 6 through bolts, and the inclined hanging swing wheel 6 It also includes a second adjustment bolt 601, a second support plate 602, a second flower nut 603 and a second clamping block 604. The rear side of the upper end face of the support of the inclined swing wheel 6 is also provided with a threaded through hole, and the support of the inclined swing wheel 6 is also provided with a threaded through hole. A second adjusting bolt 601 is connected through the threaded through hole, the slanted swing wheel 6 is connected with a second supporting plate 602 through the second adjusting bolt 601, and two threaded cylinders are arranged on the inner rear side of the second supporting plate 602, and the second supporting plate 602 is The rear side of the plate 602 is connected with a second clamping block 604 through two inner hexagonal bolts connected with the threaded cylinder, and the rear surface of the second clamping block 604 is also provided with two countersunk holes, and the upper end of the second adjusting bolt 601 is threadedly connected with a The second flower nut 603, the connecting block on the right side of the second support plate 602 is rotatably connected with the second adjusting bolt 601, and the second support plate 602 is designed to be L-shaped; The center column 4 of the magnetic strip is designed by integrating the supporting center column of the sliding track 2 with the seat of the bare magnetic strip 401, which can not only play a role in supporting the bearing and force of the sliding track 2 The function can also fix the bare magnetic strip 401. The central column 4 of the magnetic strip also includes a bare magnetic strip 401. The shape of one side of the central column 4 of the magnetic strip is set to be inclined, and the inclined surface of the central column 4 of the magnetic strip is installed with the bare magnetic strip 401. The shape of the bare magnetic strip 401 is designed as a triangular column, and when the moving glass door 3 is in a closed state, the bare magnetic strip 401 and the magnetic strip 301 are magnetically attracted, so that the closed moving glass door 3 is not easy to loosen.

The door frame 1 further includes a fixed glass 101 . The inner side of the door frame 1 is fixedly inlaid with two fixed glasses 101 in a left-right symmetrical shape, and the thickness and size of the two fixed glasses 101 are equal. Back bend distribution.

Wherein, the moving glass door 3 also includes a magnetic strip 301 and a mounting hole 302, the right edge of the moving glass door 3 is provided with a magnetic strip 301, and the upper two corners of the rear end surface of the moving glass door 3 are provided with a swing wheel 5 and The two installation holes 302 connected to the swing wheel 6 are hung obliquely, and the two installation holes 302 are distributed laterally on the moving glass door 3. The degree is designed to be forty-five degrees. By designing the magnetic strip 301 and the bare magnetic strip 401 to cooperate with a forty-five-degree oblique angle, the magnetic strip 301 can effectively avoid the contact with the sliding track 2 when the glass door 3 is opened. Maximize open space.

The specific usage mode and function of this embodiment:

In the utility model, when the moving glass door 3 needs to be opened, the moving glass door 3 is slid to the left by moving the upper handle of the glass door 3. The movable glass door 3 can be smoothly slid to the rear side of the left fixed glass 101, and overlaps with the left fixed glass 101, so it does not occupy the space inside and outside the room, and effectively improves the practicability of the diamond-shaped shower room;

By designing the horizontal double-hole fixing between the moving glass door 3 and the swing wheel 5 and the obliquely hanging swing wheel 6, the two-point positioning can prevent the main body from loosening, tilting, sagging and other phenomena, thereby effectively reducing the use of the moving glass door 3. By designing the spring positioning glue 202 and the spring slider 203 inside the sliding track 2, the spring positioning glue 202 can be installed and removed from the guide rail by manually pressing the middle spring slider 203, which greatly improves the performance of the diamond. Efficiency of installation and removal of shower enclosures.

The embodiments of the present invention are presented for purposes of illustration and description, and are not intended to be exhaustive or to limit the invention to the form disclosed. Many modifications and variations will be apparent to those of ordinary skill in the art. The embodiment was chosen and described in order to better explain the principles of the invention and the practical application, and to enable others of ordinary skill in the art to understand the invention for the design of various embodiments with various modifications as are suited to the particular use.

Claims (7)

1. The structure of a diamond-shaped sliding door shower room is characterized in that: comprising a door frame (1) and a moving glass door (3), the top of the door frame (1) is provided with a sliding track (2), and the sliding track (2) ) are respectively slidably connected with a swing wheel (5) and an obliquely hung swing wheel (6); the upper two included angles of the moving glass door (3) are respectively connected to the swing wheel (5) and the inclined swing wheel (6) through bolts. 6) connected; a magnetic strip central column (4) is fixedly connected to the door frame (1) and the right rear part of the sliding track (2). 2. The structure of the diamond-shaped sliding door shower room according to claim 1, characterized in that: the door frame (1) further comprises a fixed glass (101), and the inner side of the door frame (1) is fixedly inlaid with two left-right symmetrical shapes. There are two fixed glasses (101), and the thickness and size of the two fixed glasses (101) are equal, and both of the two fixed glasses (101) are distributed in a backward bending shape on the inner side of the door frame (1). 3. The structure of the diamond-shaped sliding door shower room according to claim 1, wherein the sliding track (2) further comprises a rectangular chute (201), a spring positioning glue (202) and a spring slider (203) , a rectangular chute (201) is provided on the rear end surface of the sliding track (2), and a spring positioning glue (202) is provided inside the rectangular chute (201) at the upper corner of the left side of the moving glass door (3). A swing wheel (5) and an obliquely hanging swing wheel (6) are respectively slidably connected inside the rectangular chute (201), a spring slider (203) is installed inside the spring positioning glue (202), and the spring slider (203) The upper part of the rear end surface is provided with a pulling hole, and when the moving glass door (3) is in a closed state, one side of the spring positioning glue (202) is in contact with one side of the obliquely hanging swing wheel (6). 4. The structure of the diamond-shaped sliding door shower room according to claim 1, wherein the moving glass door (3) further comprises a magnetic strip (301) and a mounting hole (302), and the moving glass door (3) ) A magnetic strip (301) is arranged on the right edge, and two corners connected to the swing wheel (5) and the obliquely hanging swing wheel (6) are provided at the upper two corners of the rear end surface of the moving glass door (3). There are two mounting holes (302), and the two mounting holes (302) are distributed laterally on the moving glass door (3). And the degree of its oblique angle is designed to be forty-five degrees. 5. The structure of the diamond-shaped sliding door shower room according to claim 1, characterized in that: the middle column of the magnetic strip (4) further comprises a bare magnetic strip (401), and one side of the column (4) of the magnetic strip Its shape is set to be inclined, and a bare magnetic strip (401) is installed on the inclined surface of the central column (4) of the magnetic strip. ) is in the off state, the bare magnetic strip (401) is magnetically attracted to the magnetic strip (301). 6. The structure of the diamond-shaped sliding door shower room according to claim 1, wherein the swing wheel (5) further comprises a first adjusting bolt (501), a first support plate (502), a first flower nut (503) and the first clamping block (504), a threaded through hole is formed on the rear side of the upper end face of the support of the swing wheel (5), and the support of the swing wheel (5) is connected with a first adjustment bolt (501) through the threaded through hole , the swing wheel (5) is connected with a first support plate (502) through a first adjustment bolt (501), and the rear end surface of the first support plate (502) is provided with two threaded cylinders, the first support plate (502) 502) The rear side is connected with a first clamping block (504) through two inner hexagonal bolts connected with the threaded cylinder, and two counterbores are opened on the rear surface of the first clamping block (504), and the first adjusting bolt ( 501) A first flower nut (503) is threadedly connected to the upper end, and the first adjusting bolt (501) is rotatably connected to the front connecting block of the first support plate (502). When the rocking wheel (5) is connected to the moving glass When the door (3) is in the installed state, the front end surface of the first clamping block (504) closely adheres to the rear end surface of the moving glass door (3). 7. The structure of the diamond-shaped sliding door shower room according to claim 1, wherein the obliquely hanging swing wheel (6) further comprises a second adjusting bolt (601), a second support plate (602), a second The flower nut (603) and the second clamping block (604), the rear side of the upper end face of the support of the inclined swing wheel (6) is also provided with a threaded through hole, and the support of the inclined swing wheel (6) is connected with a threaded through hole. A second adjusting bolt (601), the obliquely hanging rocking wheel (6) is connected with a second supporting plate (602) through the second adjusting bolt (601), and the inner rear side of the second supporting plate (602) is provided with two A threaded cylinder, the rear side of the second support plate (602) is connected with a second clamping block (604) through two hexagon socket bolts connected with the threaded cylinder, and the rear surface of the second clamping block (604) is also provided with two a counterbore, the upper end of the second adjusting bolt (601) is threadedly connected with a second flower nut (603), and the connecting block on the right side of the second support plate (602) is rotatably connected to the second adjusting bolt (601). , and the second support plate (602) is designed to be L-shaped.
