Abstract

The utility model belongs to the technical field of sliding brace hinges, and in particular relates to a sliding brace hinge that is easy to install without a chute; specifically discloses a heavy-duty sliding brace hinge that is anti-falling, anti-falling, and dust-proof, comprising a frame connecting plate, a short support cantilever , support cantilever, long support cantilever, top support cantilever and combined slider; the front part of the frame connecting plate is hinged with one end of the short support cantilever, and the rear part of the frame connecting plate is connected to the long support cantilever. One end is hinged; the other end of the long support cantilever is hinged with the middle part of the top support cantilever; the front part of the top support cantilever is riveted with the other end of the short support cantilever. The utility model can adjust the sagging of the buffer window sash to prevent the head of the top supporting cantilever from being separated from the guiding apex; dustproof; the sliding brace hinge for casement windows suitable for various profiles and easy to install.

Description

A heavy-duty sliding brace hinge with anti-fall, anti-fall and dust-proof

technical field

The utility model belongs to the technical field of sliding brace hinges, in particular to a sliding brace hinge that is easy to install without a chute.

Background technique

The sliding brace hinge for casement windows is assembled by sliding rails, sliding blocks, guiding top angles and several supporting cantilevers: the sliding rails are open-shaped grooves formed by bending stainless steel sheets, and the sliding blocks are assembled in the openings. In the groove below the upper folded edge of the groove, the short bracket cantilever and one end of the bracket cantilever are hinged at the corresponding position of the slider; One end is hinged, the other end of the long support cantilever is hinged with the middle of the top support cantilever, and the head of the top support cantilever is hinged with the other end of the short support cantilever to form a link motion mechanism. The other end of the slide rail is provided with a guiding apex, which guides the opening and closing of the hinge. The sliding rail of the sliding support hinge and the corresponding position of the top support cantilever are provided with installation holes. During installation, the slide rail and the top support cantilever are respectively connected and fixed with the window frame and the window sash. When the window sash is pushed, the window sash passes through the top bracket installed on the window sash. The cantilever transmits the force to the link motion mechanism, and since the slider can slide in the slide rail, the motion mechanism moves under the force to open and close the window sash.

The weight of the window sash is supported by the top support cantilever on the short support cantilever and the long support cantilever, because the short support cantilever is stressed alone, while the long support cantilever is combined with the support cantilever (because the middle of the long support cantilever and the support cantilever. One end is hinged), so the force of the short bracket cantilever is larger than that of the bracket cantilever and the long bracket cantilever. While the slider bears the pressure of the short support cantilever and the support cantilever, it also needs to slide back and forth, and the stress situation is even worse.

The commonly used sliding brace hinges have the following disadvantages: 1. During the opening and closing process of the window sash, the bending or twisting of the sliding rail or the top support cantilever is caused by the change of force, so that the mounting screws are gradually loosened, and the window is used for a period of time. Afterwards, if it is not regularly cared for, especially if it is accidentally impacted by external force, the window sash will fall due to the loosening or failure of the screw, which will cause the window sash to detach from the top support cantilever or the sliding rail from the window frame. 2. After long-term use, the sliding block will deteriorate due to the long-term wear and tear, and the sash will be deformed or broken under the impact of external force, and it will be separated from the sliding rail, resulting in the inability to open and close the sash, and even the sash may occur. fall hazard. 3. For the sliding support hinge installed at the bottom end of the window sash, the short bracket cantilever is severely bent due to the large force, so that the head of the top bracket cantilever hinged with the short bracket cantilever is involved and bent down, resulting in the sash (and the top bracket). One end of the cantilever connection) hangs down. The sagging of one end of the sash makes the gap between the top of the sash and the window frame pull down and expand, which not only causes the window to not close tightly, but even causes the head of the top support cantilever of the sliding hinge connected to the top of the sash to be pulled down by the sagging sash and out of the guide. below the top corner. The sliding brace hinge cannot be opened or closed, resulting in the sash not being able to be opened and closed. 4. After a period of accumulation of dust falling on the sliding rail, it will hinder the sliding of the sliding block, making the window sash not open and closed smoothly or even unable to open and close.

In view of this, the present invention is proposed.

Utility model content

The purpose of this utility model is to provide a heavy-duty sliding brace hinge with anti-fall, anti-fall and dust-proof, which can adjust the sagging of the buffer sash to prevent the head of the top support cantilever from detaching from the guiding apex; dust-proof; suitable for various profiles And easy-to-install sliding brace hinges for casement windows.

In order to achieve the above purpose, the utility model provides a heavy-duty sliding support hinge with anti-fall, anti-fall and dust-proof, including a frame connecting plate, a short support cantilever, a support cantilever, a long support cantilever, a top support cantilever and a combined slider; The front part of the frame connecting plate is hinged with one end of the short bracket cantilever, the rear part of the frame connecting plate is hinged with one end of the long bracket cantilever; the other end of the long bracket cantilever is hinged with the top bracket The middle part of the cantilever is hinged; the front part of the top support cantilever is riveted with the other end of the short support cantilever;

The combined slider is assembled in the long hole groove on the top support cantilever, one end of the support cantilever is hinged with the combined slider, and the other end of the support cantilever is in contact with the middle of the long support cantilever. hinged;

The frame connecting plate is a three-stage platform structure, the first-stage platform is a top flat plate, and the second and third-stage platforms are downwardly protruding platforms; the second-stage platform of the frame connecting plate is equipped with an anti-falling block.

Further, a reinforcing pad is arranged between the top support cantilever and the short support cantilever, and the top support cantilever, the short support cantilever and the reinforcing pad are connected to each other by a lower support rivet or an upper support rivet. Together.

Further, the lower support rivet is a three-stage circular stepped structure, wherein the first circular step is riveted to the bottom end of the reinforcing pad, and the second circular step is inserted into the top support cantilever. inside the rivet hole.

Further, the end of the upper sliding rivet is provided with screw holes.

Further, an anti-loose positioning block is set on the outer surface of the lower support rivet, the upper end of the anti-loose positioning block is provided with a screw hole, and an adjusting screw or a locking screw is assembled in the screw hole for adjusting the sliding The gap between the step surface of the second circular step of the rivet and the top surface of the top bracket cantilever.

Further, the outer side of the short support cantilever is wrapped with a nylon cover.

Further, one side of the rear end of the support cantilever is provided with a V-shaped notch, which is used to limit the opening angle of the sliding support hinge.

Further, the top support cantilever is a two-level platform structure, the first level platform is a top flat plate, and the second level platform is a downwardly protruding platform.

The one provided by the utility model has the following beneficial effects:

1. The three-level platform structure of the frame connecting plate of the present invention can avoid the twisting of the frame connecting plate due to the force change during the opening and closing process of the window sash, thereby effectively preventing the mounting screws from loosening or failing due to vibration, thereby Avoid falling of the sash due to the frame connecting plate coming off the window frame.

2. The top plate of the frame connecting plate of the present invention is close to the top surface of the installation groove of the window frame, and the downward bending arranged at the tail of the frame connecting plate can effectively prevent dust from falling into the installation groove under the frame connecting plate , easy to clean.

3. The combined sliding block of the sliding support hinge of the present invention is assembled on the top support cantilever. Under the support of the support cantilever, compared with the force of the sliding block of the common sliding support hinge, the combination of the present invention is greatly improved. The force condition of the slider, so the window sash cannot be opened and closed due to the force deformation or breakage of the slider, separation from the slide rail, etc., and even avoids the possible danger of the window sash falling.

Description of drawings

Figure 1a is a schematic structural diagram of a heavy-duty sliding brace hinge of the present utility model in a closed state;

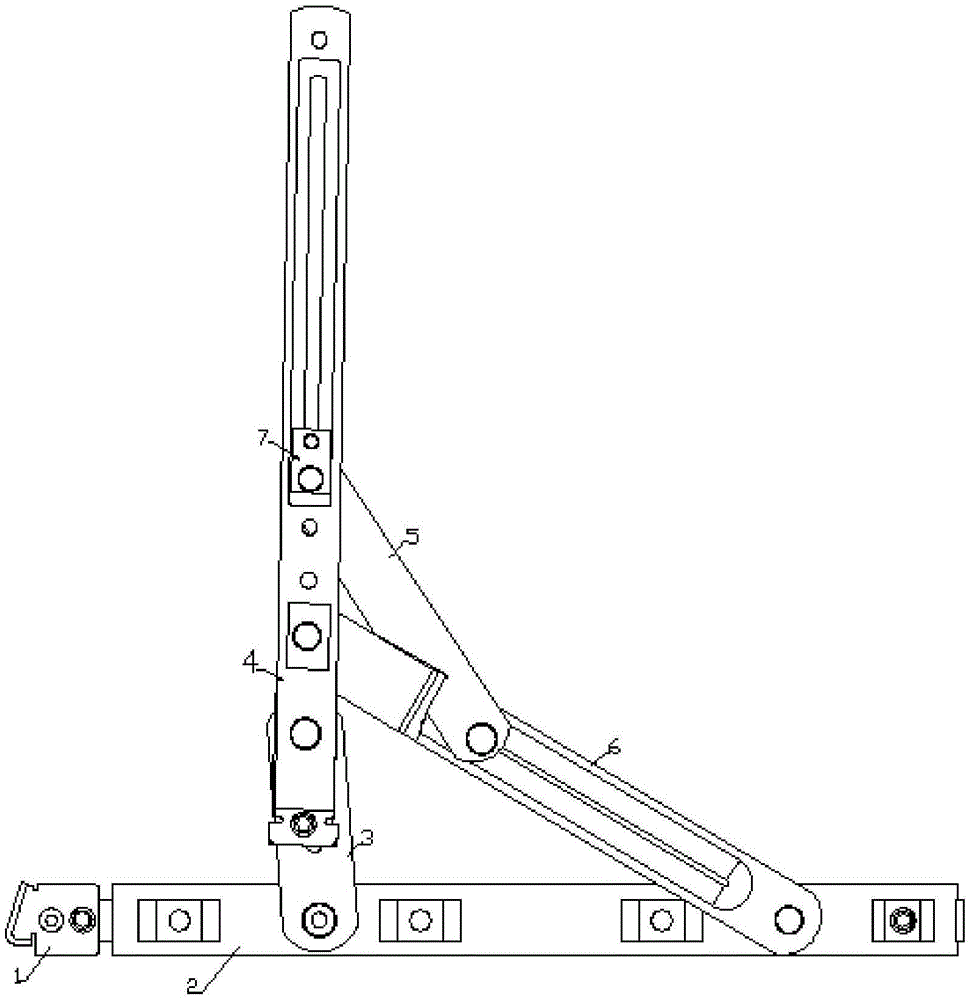

Fig. 1b is the structural schematic diagram of a kind of anti-falling, anti-falling and dust-bearing sliding brace hinge in the open state of the present invention;

Fig. 1c is a perspective view of a kind of anti-falling, anti-falling and dust-bearing sliding brace hinge of the present utility model in an open state;

Fig. 2 is the structural representation of the frame connecting plate;

Figure 3a is a schematic structural diagram of a short support cantilever;

Figure 3b is a cross-sectional view of the short bracket cantilever in Figure 3a;

Figure 3c is a top view of the short bracket cantilever in Figure 3a;

Fig. 4 is the structural schematic diagram of the top support cantilever;

Fig. 5 is the structural representation of the support cantilever;

6 is a schematic structural diagram of a reinforcing pad;

7 is a cross-sectional view of a slide down rivet;

Figure 8 is a cross-sectional view of the upper sliding support rivet;

Fig. 9a is the structural schematic diagram of the anti-loose/positioning block;

Figure 9b is a top view of the anti-loosening/positioning block of Figure 9a;

Figure 9c is a right side view of the anti-loosening/positioning block of Figure 9a;

Figure 9d is a cross-sectional view of the anti-loosening/positioning block of Figure 9a;

FIG. 10 is an assembly schematic diagram of the sliding brace hinge of the present invention when it is installed on a window frame and a window sash.

Detailed ways

In order to make those skilled in the art better understand the solution of the present invention, the present invention will be further described in detail below with reference to the specific embodiments.

Referring to Figures 1a to 9d, a heavy-duty sliding brace hinge with anti-fall, anti-fall and dust-proof of the present invention is composed of a guiding top corner 1, a frame connecting plate 2, a short supporting cantilever 3, a top supporting cantilever 4, a supporting Cantilever 5, long support cantilever 6, combined slider 7, reinforcement pad 8, lower support rivet 9 (or upper slide support rivet 10), anti-loosening/positioning block 11, adjusting screw 12 (or locking screw 13) and anti-fall Block 14 is assembled. The front part of the frame connecting plate 2 is hinged with one end of the short support cantilever 3, the rear part of the frame connecting plate 2 is hinged with one end of the long support cantilever 6; the other end of the long support cantilever 6 is hinged with the middle of the top support cantilever 4; The front end of the cantilever 4 is riveted to the other end of the short bracket cantilever 3 through a reinforcing pad 8 . The frame connecting plate 2, the short support cantilever 3, the top support cantilever 4 and the long support cantilever 6 form a motion mechanism.

The combined sliding block 7 is assembled in the long hole groove 4-3 at the rear of the top supporting cantilever. The combined sliding block 7 is hinged with one end of the supporting cantilever 5, and the other end of the supporting cantilever 5 is hinged with the middle of the long supporting cantilever 6, so that the supporting cantilever is hinged. 5 can be rotated together with the above-mentioned movement mechanism to enhance the bearing capacity of the sliding brace hinge of the present invention.

A V-shaped notch 5-1 is provided on one side of the rear end of the support cantilever 5, which is used to limit the opening angle of the sliding brace hinge. One end of the frame connecting plate 2 is equipped with a guiding apex 1 for guiding the opening and closing of the hinge. A lower support rivet 9 or an upper sliding support rivet 10 is assembled between the top bracket cantilever 4 and the reinforcing pad 8, and the anti-loose/positioning block 11 is fitted on the lower support rivet 9 or the upper sliding support rivet 10 through the circular hole 11-1 at the lower end thereof outside. The upper end of the anti-loosening/positioning block 11 is provided with a screw hole 11-2, and the anti-loosening screw 11-3 is screwed into the screw hole 11-2 through a threaded connection. shaped boss 11-4.

The main features of the present utility model are:

1. As shown in Figure 2, the frame connecting plate 2 is designed as a three-level platform structure: the first level platform is the top plate 2-1, and the top plate 2-1 is provided with rivet holes hinged with the support cantilever; the second and third The first-level platforms are all platforms that protrude downward; the second-level platforms 2-2 are located at both ends of the frame connecting plate 2, and in addition to being used to assemble the guide top corner 1, they are also equipped with anti-fall blocks 14 through rivets; the third-level platform The platform 2-3 is located in the middle of the frame connecting plate 2 and is provided with mounting screw holes. The rear end of the frame connecting plate 2 is also provided with a downward bending 2-4.

As shown in FIG. 10, when the frame connecting plate 2 is connected with the window frame 15, the third stage platform 2-3 of the frame connecting plate 3 is close to the bottom surface of the window frame mounting groove 15-1, and the top flat plate 2-1 (No. The first-level platform) is closely attached to the top surface of the window frame installation slot 15-1, so as to avoid the twisting of the frame connecting plate 2 due to the force change during the opening and closing process of the window sash, so that the force of the installation screws is stable, which can effectively It can prevent the mounting screws from loosening or failing due to vibration, so as to prevent the window sash from falling due to the frame connecting plate 2 being detached from the window frame 15 . The anti-falling block 14 (shown in Figure 1a) assembled in the second stage platform 2-2 (shown in Figure 2) of the frame connecting plate 2 is rotated and embedded in the flanges on both sides of the window frame installation groove 15-1 After the sash is down, even if the sash is accidentally impacted by external force and the screws become loose or fail, the frame connecting plate 2 will not be separated from the window frame 15, which plays a second safety role in preventing the sash from falling.

In addition, the top plate 2-1 is close to the top surface of the installation slot of the window frame, and the downward bending 2-4 (as shown in Figure 2) provided at the tail of the frame connecting plate 2 can effectively prevent dust from falling on the frame connection In the installation slot below the board 2, it is easy to clean.

Further, as shown in FIG. 4 , the top support cantilever is designed as a second-level platform: the first-level platform is a top plate 4-1, which is provided with screw mounting holes and rivet holes; the second-level platform is a downward protrusion The platforms 4-2(1), 4-2(2). As shown in Figures 1a and 1b, the second stage platform 4-2(1) in the middle of the top support cantilever 4 is hinged with the long support arm 6, and assembled in the second stage platform 4-2(2) at the rear end of the top support arm 4 There is a combined sliding block 7 , and the combined sliding block 7 is hinged with the support cantilever 5 . The front end of the top flat plate 4-1 of the top support cantilever 4 is equipped with a reinforcing pad 8 and an anti-loosening/positioning block 11 . As shown in FIG. 6 , the reinforcement pad 8 is designed as a second-level platform: a first-level platform 8-1 and a second-level platform 8-2, and the second-level platform 8-2 is located on the top flat plate 4-1 of the top support cantilever 4 below.

Referring to Fig. 10, during installation, the top plate 4-1 of the top support cantilever 4 is embedded in the C-shaped installation groove 16-1 of the window sash, and the second-level platforms 4-2(1), 4- 2(2) and the second-level platform 8-2 of the reinforcing pad are used to jump over the notch of the C-shaped installation slot 16-1 of the window sash; and the T-shaped boss 11-4 at the inner end of the anti-loosening/positioning block 11 is inserted into the window sash In the C-shaped installation groove of the side end, and locked on the side end of the window sash by the anti-loosening screw 11-3, it is used to prevent the top support cantilever 4 from running in the C-shaped installation groove. The above structure can not only make the top support cantilever 4 be firmly embedded in the C-shaped installation groove of the window sash to prevent the window sash from falling, and will not affect the hinged connection between the top support cantilever 4 and the support cantilever 5 and the long support cantilever 6 .

2. Referring to Figures 1a and 1b, the combined sliding block 7 of the sliding support hinge of the present invention is assembled on the top support cantilever 4, under the support of the support cantilever 5, compared with the sliding block of the common sliding support hinge. The force condition of the combined sliding block 7 of the present invention is greatly improved, so that the window sash cannot be opened and closed due to the force deformation or breakage of the sliding block, separation from the slide rail, etc., and even avoids the possibility of the window sash falling. danger.

3. Referring to Figure 1a and Figure 7, the lower support rivet 9 assembled between the end of the top support cantilever 4 and the reinforcing pad 8 is a structure of three-stage circular steps, and the first-stage circular step 9-1 passes through. The rivet hole at the end of the reinforcing pad is riveted to the bottom of the reinforcing pad 8, the second level circular step 9-2 is inserted into the rivet hole 4-4 of the top bracket cantilever 4 (as shown in Figure 4), and the second level There is a certain gap between the step surface of the circular step 9-2 and the top surface of the top support cantilever 4 . Adjusting screws are installed in the screw holes 11-2 at the upper end of the anti-loosening/positioning block 11 for adjusting the gap between the step surface of the second circular step 9-2 and the top surface of the top bracket cantilever 4 . When the short support cantilever 3 bends downward due to the gravity of the window sash, the reinforcing pad 8 on the short support cantilever 3 bends down accordingly, thereby driving the lower support rivet 9 to move downward. Since there is a certain gap between the step surface of the second circular step 9-2 of the lower support rivet 9 and the top surface of the top bracket cantilever 4, the lower bracket rivet 9 is bent down due to the force of the short bracket cantilever 3 and is When it is driven to move downward, the top support cantilever 4 is not involved and bends down until the step surface of the second circular step 9-2 of the lower support rivet 9 moves down and contacts the top surface of the top support cantilever 4 Only when the short support cantilever 3 continues to bend down, it can adjust and ease the installation on the top by adjusting the gap between the step surface of the second circular step 9-2 and the top surface of the top support cantilever 4 The hanging of the window sash above the supporting cantilever 4, thereby preventing the end of the top supporting cantilever 4 from being pulled down by the sagging window sash and away from the guide apex 1, so that the sliding hinge cannot be opened or closed and the window sash cannot be opened and closed.

Referring to Fig. 1a, the end of the upper sliding support rivet 10 assembled between the end of the top support cantilever 4 and the reinforcing pad 8 is provided with screw holes (as shown in Fig. 8), which can be used to prevent loosening/positioning by screws 13 The block 11 is locked to prevent the anti-loosening/positioning block 11 from disengaging from the upper sliding rivet 10 .

Further, as shown in Fig. 1a, the short support cantilever 3 is a thickened structure and is covered with a nylon sleeve 3-1 (as shown in Figs. 3a-3c), and the short support cantilever 3 and the top support cantilever 4 are assembled to strengthen The pad 8 is used to strengthen the bending resistance of the short support cantilever 3 and the top support cantilever 4, further reduce the sagging of one end of the window sash, and increase the bearing capacity of the sliding support hinge.

In addition to the above-mentioned main features, the utility model can also be applied to a variety of profiles, and the installation is convenient: as shown in Figure 1a-1c and Figure 2, the utility model is not only used for C-shaped groove profiles, when the original three-stage When the frame connecting plate 2 of the platform is replaced with the frame connecting plate of an ordinary flat plate, it can also be used for K-shaped groove profiles and ordinary groove profiles. During installation, the top support cantilever 4 can be positioned and installed on the window sash after the anti-loosening/positioning block 11 is placed on one side of the window sash, and then the frame connecting plate 2 can be installed by placing the guiding top corner 1 on the side of the window frame on the window frame. There is no need to measure and calculate the mounting hole position in advance, so the installation is fast and convenient.

Specific examples are used herein to describe the inventive concept in detail, and the descriptions of the above embodiments are only used to help understand the core idea of the present invention. It should be pointed out that for those skilled in the art, without departing from the inventive concept, any obvious modifications, equivalent replacements or other improvements made should be included within the protection scope of the present invention .

Claims (8)

1. A heavy-duty sliding support hinge with anti-fall, anti-fall and dust-proof, comprising a frame connecting plate, a short supporting cantilever, a supporting cantilever, a long supporting cantilever, a top supporting cantilever and a combined slider; One end of the short support cantilever is hinged, the rear part of the frame connecting plate is hinged with one end of the long support cantilever; the other end of the long support cantilever is hinged with the middle of the top support cantilever; the The front part of the top support cantilever is riveted with the other end of the short support cantilever; The combined slider is assembled in the long hole groove on the top support cantilever, one end of the support cantilever is hinged with the combined slider, and the other end of the support cantilever is in contact with the middle of the long support cantilever. Hinged; characterized by: The frame connecting plate is a three-stage platform structure, the first-stage platform is a top flat plate, and the second and third-stage platforms are downwardly protruding platforms; the second-stage platform of the frame connecting plate is equipped with an anti-falling block. 2 . The heavy-duty sliding support hinge for preventing falling, falling off and dust according to claim 1 , wherein a reinforcing pad is provided between the top support cantilever and the short support cantilever, and the top support cantilever, The short bracket cantilever and the reinforcing pad are connected together by lower support rivets or upper slide support rivets. 3. The anti-falling, anti-falling and dust-bearing bearing sliding support hinge according to claim 2, wherein the sliding support rivet is a three-stage circular stepped structure, wherein the first circular step is riveted At the bottom end of the reinforcing pad, a second circular step is inserted into the rivet hole of the top bracket cantilever. 4 . The heavy-duty sliding brace hinge for preventing falling, falling off and dustproof according to claim 2 , wherein the end of the upper sliding brace rivet is provided with screw holes. 5 . 5. The anti-falling, anti-falling and dust-bearing bearing sliding support hinge according to claim 3, wherein the sliding support rivet is sleeved with an anti-loosening positioning block, and the upper end of the anti-loosening positioning block is provided with an anti-loosening positioning block. A screw hole, an adjusting screw or a locking screw is installed in the screw hole, which is used to adjust the gap between the step surface of the second circular step of the lower stay rivet and the top surface of the top bracket cantilever. 6 . The heavy-duty sliding brace hinge for preventing falling, falling off, and dust prevention according to claim 1 , wherein the outer side of the short support cantilever is wrapped with a nylon sleeve. 7 . 7 . The heavy-duty sliding support hinge for preventing falling and falling off and dust according to claim 1 , wherein a V-shaped notch is provided on one side of the rear end of the supporting cantilever, which is used to limit the sliding support hinge. 8 . Open angle. 8. The heavy-duty sliding brace hinge for preventing falling, falling off and dustproof according to claim 1, wherein the top support cantilever is a two-level platform structure, the first-level platform is a top flat plate, and the second-level platform is a The platform is a platform that protrudes downward.
