Abstract

The utility model relates to a double-clamp pressure plate marking detection device, which is characterized in that: it comprises a worktable, a support frame, a driving cylinder and a pressure plate support seat; During the pressure detection, the pattern on the pressing block can be directly printed on the outer contour of the double-clamp pressure plate, which not only completes the pressure detection, but also realizes the labeling of the double-clamp pressure plate, which improves the production efficiency; in addition, A V-shaped reinforcing plate is arranged between the lower surface of the top plate of the pressing plate support base and the workbench, which increases the force strength of the top plate and ensures the stability and safety of the test.

Description

A double-clamp pressure plate marking detection device

technical field

The utility model relates to the technical field of double-clamp pressure plate production, in particular to a double-clamp pressure plate marking detection device.

Background technique

The general double clamp is equipped with a double clamp pressure plate, and the double clamp pressure plate has a hoop structure. In the double-clamp pressure plate, the force test of the force point needs to be carried out; in addition, the double-clamp generally needs to be marked after the test is completed; and this is generally completed in two steps; this increases the redundant process; It is necessary to complete the marking process at the same time when testing the force.

Utility model content

The technical problem to be solved by the utility model is to provide a double-clamp pressure plate marking and detection device, which can solve the problem that the general double-clamp pressure plate marking and pressure detection are carried out in separate procedures, resulting in low production efficiency.

In order to solve the above-mentioned technical problems, the technical scheme of the present utility model is: a double-clamp pressure plate marking detection device, the innovation of which is that it includes a workbench, a support frame, a driving cylinder and a pressure plate support seat;

The support frame includes a vertical column and a horizontal plate; the vertical column is vertically arranged on the workbench in a square array; the horizontal plate is fixedly arranged on the top of the vertical column in a horizontal shape, and the center of the horizontal plate is provided with an output end for accommodating the driving cylinder through the output hole;

The drive cylinder is installed on the upper surface of the horizontal plate, and the output end of the drive cylinder protrudes below the horizontal plate through the output hole of the horizontal plate; the output end of the drive cylinder is provided with a pressing block along the vertical direction, And the bottom end surface of the pressing block is provided with a logo pattern;

The pressure plate support base is an inverted U-shaped structure, including a side plate and a top plate; the side plates have a pair and are arranged parallel to each other and perpendicular to the workbench, the top plate is horizontally connected to the top of the side plate, and the direction of the side plate is horizontal. A connecting lug plate extends from the outside and the lug plate is connected to the workbench by bolts; the top plate is provided with a through groove along the horizontal direction for accommodating the pressure block to pass through, and the top plate on the outer sides of the two ends of the through groove is opened with a receiving plate. The groove at the end of the double-clamp pressure plate, and the two ends of the double-clamp pressure plate are placed in the groove, and the double-clamp pressure plate spans the through groove on the top plate; the driving cylinder drives the pressure block to be pressed against the double clamp Marking and force detection are realized on the pressure plate.

Further, the top plate is provided with a groove for accommodating the end of the double-clamp pressure plate, and a limit boss is arranged, and the limit boss is embedded in the bolt hole at the end of the double-clamp pressure plate to carry out the double-clamp pressure plate. limit.

Further, a V-shaped reinforcing plate is arranged on the lower surface of the top plate, and the top end of the V-shaped reinforcing plate is connected under the groove of the end portion of the double-clamp pressure plate on the top plate, and the bottom end of the V-shaped reinforcing plate is connected. on the bench top surface.

The advantages of the present utility model are:

1) In this utility model, by setting a logo pattern on the ground of the pressure block driven by the driving cylinder, when the pressure is detected, the pattern on the pressure block can be directly printed on the outer contour of the double-clamp pressure plate, which not only completes the pressure detection , and realizes the labeling of the double-clamp pressure plate, which improves the production efficiency; in addition, a V-shaped reinforcing plate is installed between the lower surface of the top plate of the pressure plate support base and the workbench, which increases the force strength of the top plate and ensures the test accuracy. Stability and security.

Description of drawings

The present utility model will be described in further detail below with reference to the accompanying drawings and specific embodiments.

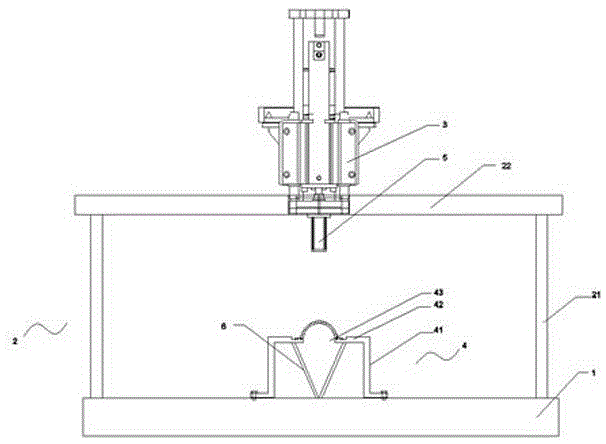

FIG. 1 is a schematic structural diagram of a double-clamp pressure plate marking detection device of the present invention.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present utility model clearer, the technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. The embodiments described above are a part of the embodiments of the present invention, but not all of the embodiments. The components of the embodiments of the invention generally described and illustrated in the drawings herein may be arranged and designed in a variety of different configurations.

Accordingly, the following detailed description of the embodiments of the invention provided in the accompanying drawings is not intended to limit the scope of the invention as claimed, but is merely representative of selected embodiments of the invention. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

It should be noted that like numerals and letters refer to like items in the following figures, so once an item is defined in one figure, it does not require further definition and explanation in subsequent figures.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner" and "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, or the orientation or positional relationship that is usually placed when the utility model product is used, only for the convenience of describing the present utility model and simplifying the description, not Indicates or implies that the referred device or element must have a particular orientation, be constructed and operate in a particular orientation, and therefore should not be construed as a limitation of the present invention. Furthermore, the terms "first", "second", "third", etc. are only used to differentiate the description and should not be construed as indicating or implying relative importance.

Furthermore, the terms "horizontal", "vertical" and the like do not imply that a component is required to be absolutely horizontal or overhang, but rather may be slightly inclined. For example, "horizontal" only means that its direction is more horizontal than "vertical", it does not mean that the structure must be completely horizontal, but can be slightly inclined.

In the description of the present invention, it should also be noted that, unless otherwise expressly specified and limited, the terms "arrangement", "installation", "connection" and "connection" should be understood in a broad sense, for example, it may be a fixed connection It can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection, or an indirect connection through an intermediate medium, or the internal communication between the two components. For those of ordinary skill in the art, the specific meanings of the above terms in the present invention can be understood in specific situations.

As shown in FIG. 1 , a double-clamp pressure plate marking detection device includes a worktable 1 , a support frame 2 , a driving cylinder 3 and a pressure plate support base 4 .

The support frame 2 includes a vertical column 21 and a horizontal plate 22; the vertical column 21 is vertically arranged on the workbench 1 in a square array; the horizontal plate 22 is fixedly arranged on the top of the vertical column 21 in a horizontal shape, and the center of the horizontal plate 22 is provided with an accommodating drive cylinder 3 Output holes through which the output ends pass.

The drive cylinder 3 is installed on the upper surface of the horizontal plate 22, and the output end of the drive cylinder 3 extends through the output hole of the horizontal plate 22 into the bottom of the horizontal plate 22; Block 5, and a logo pattern is provided on the bottom end surface of the pressing block 5.

The pressure plate support base 4 has an inverted U-shaped structure, including a side plate 41 and a top plate 42; the side plates 41 have a pair and are arranged parallel to each other and perpendicular to the workbench 1. The top plate 42 is horizontally connected to the top of the side plate 41. A connecting lug plate extends from the outside and the lug plate is connected to the workbench 1 by bolts; the top plate 42 is provided with a through groove 43 along the horizontal direction for accommodating the pressure block 5 to pass through, and the top plate on the outer sides of both ends of the through groove 43 is opened on the top plate 42 There is a groove for accommodating the end of the double-clamp pressure plate, and both ends of the double-clamp pressure plate are placed in the groove, and the double-clamp pressure plate spans the through groove 43 on the top plate 42; the driving cylinder 3 drives the pressure block 5 to press Tighten the double-clamp pressure plate to achieve marking and force detection.

The top plate 42 is provided with a groove for accommodating the end of the double-clamp pressure plate, and a limit boss is provided, and the limit boss is embedded in the bolt hole at the end of the double-clamp pressure plate to limit the position of the double-clamp pressure plate.

A V-shaped reinforcing plate 6 is arranged on the lower surface of the top plate 42, and the top end of the V-shaped reinforcing plate 6 is connected to the bottom of the groove on the top plate 42 for accommodating the end of the double-clamp pressure plate, and the bottom end of the V-shaped reinforcing plate 6 is connected to the working surface. on the upper surface of table 1.

The working principle of the utility model is as follows: by placing the two ends of the double-clamp pressure plate on the top plate of the pressure plate support seat, and the bolting hole lugs at both ends of the double-clamp pressure plate are embedded in the top plate in the groove and pass through the groove. The limit boss is used to limit the position; then the driving cylinder drives the pressing block to press down along the vertical direction to apply the test pressure, which is pressed on the double-clamp pressure plate and the logo pattern on the pressure block can be printed on the double-clamp pressure plate.

It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention There will also be various changes and improvements in the new model, which all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (3)

1. A double-clamp pressure plate marking detection device is characterized in that: comprising a workbench, a support frame, a driving cylinder and a pressure plate support seat; The support frame includes a vertical column and a horizontal plate; the vertical column is vertically arranged on the workbench in a square array; the horizontal plate is fixedly arranged on the top of the vertical column in a horizontal shape, and the center of the horizontal plate is provided with an output end for accommodating the driving cylinder through the output hole; The drive cylinder is installed on the upper surface of the horizontal plate, and the output end of the drive cylinder protrudes below the horizontal plate through the output hole of the horizontal plate; the output end of the drive cylinder is provided with a pressing block along the vertical direction, And the bottom end surface of the pressing block is provided with a logo pattern; The pressure plate support base is an inverted U-shaped structure, including a side plate and a top plate; the side plates have a pair and are arranged parallel to each other and perpendicular to the workbench, the top plate is horizontally connected to the top of the side plate, and the direction of the side plate is horizontal. A connecting lug plate extends from the outside and the lug plate is connected to the workbench by bolts; the top plate is provided with a through groove along the horizontal direction for accommodating the pressure block to pass through, and the top plate on the outer sides of the two ends of the through groove is opened with a receiving plate. The groove at the end of the double-clamp pressure plate, and the two ends of the double-clamp pressure plate are placed in the groove, and the double-clamp pressure plate spans the through groove on the top plate; the driving cylinder drives the pressure block to be pressed against the double clamp Marking and force detection are realized on the pressure plate. 2 . The double-clamp pressure plate marking detection device according to claim 1 , wherein the top plate is provided with a groove for accommodating the end of the double-clamp pressure plate, and a limit boss is provided, and the limit The position boss is embedded in the bolt hole at the end of the double-clamp pressure plate to limit the position of the double-clamp pressure plate. 3. A double-clamp pressure plate marking detection device according to claim 1, wherein a V-shaped reinforcing plate is provided on the lower surface of the top plate, and the top of the V-shaped reinforcing plate is connected to the top plate to accommodate Below the groove at the end of the double-clamp pressure plate, the bottom end of the V-shaped reinforcing plate is connected to the upper surface of the workbench.
