CN212040724U - A horizontal pulping and impurity removal integrated machine for kitchen waste - Google Patents

Abstract

The utility model discloses a horizontal pulping and impurity-removing integrated machine for kitchen waste, which comprises a base and a pulper cylinder. The pulper cylinder is installed on the base, and a pulper cylinder is installed inside the pulper cylinder. The pulper impeller is driven by the driving device; the left end of the pulper barrel is provided with a good pulp chamber, and the lower part of the good pulp chamber is provided with a good pulp outlet; the right end of the pulper barrel is provided with a slag lifting device, The slag-lifting device includes a geared motor and a slag-lifting auger. One end of the slag-lifting auger is inserted into the inside of the pulper cylinder and placed above the emptying port, and the other end is inclined upward and placed outside the pulper's cylinder. Driven by a geared motor, there is a slag discharge port below the upper end of the slag-lifting auger. The utility model enables the heavy slag in the kitchen ingredients to fall directly into the heavy slag mouth, avoids collision with the impeller of the pulping machine during the pulping process, reduces equipment damage, and can discharge the heavy slag into the pulping machine barrel It improves the efficiency of pulping and improves the quality of good pulp.

Description

A horizontal pulping and impurity removal integrated machine for kitchen waste

technical field

The utility model relates to the technical field of kitchen waste treatment, in particular to a horizontal pulping and impurity-removing integrated machine for kitchen waste.

Background technique

Since 2008, as my country's kitchen waste has entered the pilot stage, kitchen waste treatment equipment has been rapidly developed. At present, domestic kitchen waste pulping separators basically include roller hammer pulpers, single-roller or double-roller. The pulping machine and the vertical rotor kitchen pulping machine, the above three types of kitchen waste pulping all have the same common defect: the high-speed rotating rotor always rubs and punches out all the kitchen waste at high speed, causing a lot of plastic, The non-degradable organic and inorganic substances such as glass and shells are broken in contact with the rotor and enter the slurry, so that the separation of the slurry and impurities is unclear, and the rotor will be damaged, and the later maintenance costs are high.

Utility model content

The purpose of this utility model is to provide a kitchen waste horizontal pulping and impurity-removing integrated machine to solve the above problems.

In order to solve the above-mentioned technical problems, the utility model adopts the following technical solutions:

The utility model relates to a horizontal pulping and impurity-removing integrated machine for kitchen waste, comprising a base and a pulper cylinder, the pulper cylinder is mounted on the base, and the pulper cylinder is The upper end is provided with a kitchen material inlet, and the lower end is provided with an emptying port. A pulper impeller is laterally installed inside the pulper cylinder, and the pulper impeller is driven by a driving device; the pulper cylinder The left end of the pulper is provided with a good pulp chamber, the pulper cylinder is communicated with the good pulp chamber, and a good pulp outlet is provided below the good pulp chamber; the right end of the pulper cylinder is provided with a slag extraction The slag-lifting device includes a geared motor and a slag-lifting auger, one end of the slag-lifting auger is inserted into the inside of the pulper barrel and placed above the emptying port, and the other end is inclined It is placed upward on the outside of the pulper cylinder and driven by the deceleration motor, and a slag discharge port is provided below the upper end of the slag-lifting auger.

Further, the pulper barrel is mounted on the base through a support frame.

Further, the driving device includes a transmission motor, a small pulley, a large pulley and a transmission assembly, the transmission assembly is connected with the impeller of the pulper, the small pulley is installed on the transmission motor, and the The large pulley is installed on the transmission assembly, and the small pulley and the large pulley are connected by a belt.

Further, the transmission assembly is mounted on the good pulp chamber through a mounting frame.

Further, the driving device is mounted on the base through a mounting seat.

Further, a liquid level observation window is provided on the barrel of the pulping machine.

Compared with the prior art, the beneficial technical effects of the present utility model:

The kitchen material inlet of the utility model is perpendicular to the heavy slag port at the bottom of the pulper cylinder, so that the heavy slag in the kitchen material can directly fall into the heavy slag port, avoiding the pulping process with the pulper impeller. Collision occurs to reduce equipment damage, and the heavy slag can be discharged from the pulper barrel through the slag lifting device, which improves the pulping efficiency and improves the quality of the good pulp.

Description of drawings

The present utility model will be further described below in conjunction with the accompanying drawings.

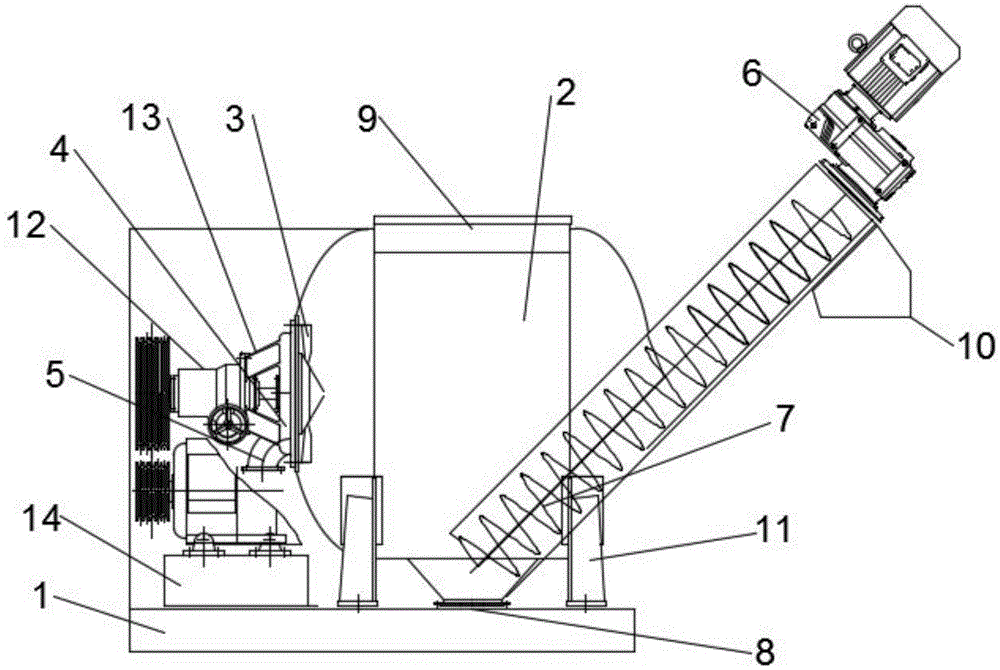

1 is a schematic structural diagram of a horizontal pulping and impurity-removing integrated machine for kitchen waste of the present utility model;

Description of reference numerals: 1. base; 2. pulper cylinder; 3. pulper impeller; 4. good pulp chamber; 5, good pulp outlet; 6, geared motor; 1. Evacuation port; 9. Kitchen material inlet; 10. Slag discharge port; 11. Support frame; 12. Transmission assembly; 13. Mounting frame; 14. Mounting seat.

Detailed ways

As shown in FIG. 1 , a kitchen waste horizontal pulping and impurity-removing integrated machine includes a base 1 and a pulper cylinder 2 , and the pulper cylinder 2 is installed on the base through a support frame 11 . 1, the upper end of the pulper barrel 2 is provided with a kitchen material inlet 9, and the lower end is provided with an emptying port 8, through which the residual material in the pulper barrel 2 can be discharged. Drain. The top of the emptying port 8 is a heavy slag port, so that after the cooking materials come in from the kitchen material inlet 9, the heavy slag material will directly drop into the heavy slag port, avoiding the process of pulping and other equipment. collision. The pulper barrel 2 is provided with a liquid level observation window, through which the liquid level changes of the food ingredients entering the pulper barrel 2 can be observed.

A pulper impeller 3 is laterally installed inside the pulper barrel 2, and the pulper impeller 3 is driven by a driving device. The driving device is mounted on the base 1 through a mounting seat 14. The The driving device includes a transmission motor, a small pulley, a large pulley and a transmission assembly 12, the transmission assembly 12 is connected with the pulper impeller 3, and is installed on the good pulp chamber 4 through the installation frame 13, so The small pulley is installed on the transmission motor, the large pulley is installed on the transmission assembly 12, and the small pulley and the large pulley are connected by a belt.

A good pulp chamber 4 is provided at the left end of the pulper barrel 2 , the pulper barrel 2 is communicated with the good pulp chamber 4 , and a good pulp outlet 5 is provided below the good pulp chamber 4 .

The right end of the pulper barrel 2 is provided with a slag lifting device, the slag lifting device includes a geared motor 6 and a slag lifting auger 7, and one end of the slag lifting auger 7 is inserted into the pulper barrel 2, and placed above the emptying port 8, the other end is placed obliquely upward outside the pulper cylinder 2 and driven by the deceleration motor 6, the upper end of the slag-lifting auger 7 There is a slag discharge port 10 below. The heavy slag material falling in the heavy slag port is lifted by the slag lifting auger 7 and discharged through the slag discharge port 10 .

The action process of the present utility model is as follows:

Feed the cooking ingredients from the cooking ingredients inlet 9, and observe the liquid level change from the liquid level observation window. When the liquid level of the cooking ingredients reaches a certain height, turn on the transmission motor to drive the impeller 3 of the pulper to start pulping. The heavy slag material in the material falls into the heavy slag port, and then the deceleration motor 6 is turned on to drive the slag-lifting auger 7 to lift the heavy slag material to be discharged through the slag discharge port 10 .

The above-mentioned embodiments are only to describe the preferred mode of the present invention, and do not limit the scope of the present invention. Under the premise of not departing from the design spirit of the present invention, those of ordinary skill in the art can make the technical solutions of the present invention. Various deformations and improvements made shall fall within the protection scope determined by the claims of the present utility model.

Claims (6)

1. The utility model provides a horizontal slurrying edulcoration all-in-one of kitchen garbage which characterized in that: the pulping machine comprises a base (1) and a pulping machine cylinder (2), wherein the pulping machine cylinder (2) is installed on the base (1), the upper end of the pulping machine cylinder (2) is provided with a kitchen material inlet (9), the lower end of the pulping machine cylinder is provided with a vent (8), a pulping machine impeller (3) is transversely installed in the pulping machine cylinder (2), and the pulping machine impeller (3) is driven by a driving device; a good pulp chamber (4) is arranged at the left end of the cylinder body (2) of the pulping machine, the cylinder body (2) of the pulping machine is communicated with the good pulp chamber (4), and a good pulp outlet (5) is arranged below the good pulp chamber (4); the right-hand member of slurrying machine barrel (2) is equipped with carries the sediment device, carry the sediment device and include gear motor (6) and carry sediment auger (7), the one end of carrying sediment auger (7) injects the inside of slurrying machine barrel (2) is arranged in the top of evacuation mouth (8), other end slope upwards arranges in the external world of slurrying machine barrel (2) passes through gear motor (6) drive, the upper end below of carrying sediment auger (7) is equipped with row cinder notch (10).

2. The horizontal pulping and impurity removing integrated machine for kitchen waste according to claim 1, characterized in that: the pulping machine cylinder (2) is arranged on the base (1) through a support frame (11).

3. The horizontal pulping and impurity removing integrated machine for kitchen waste according to claim 1, characterized in that: the driving device comprises a transmission motor, a small belt pulley, a large belt pulley and a transmission assembly (12), wherein the transmission assembly (12) is connected with the pulping machine impeller (3), the small belt pulley is installed on the transmission motor, the large belt pulley is installed on the transmission assembly (12), and the small belt pulley and the large belt pulley are connected through a belt.

4. The horizontal pulping and impurity removing integrated machine for kitchen waste according to claim 3, characterized in that: the transmission assembly (12) is installed on the good pulp chamber (4) through a mounting frame (13).

5. The horizontal pulping and impurity removing integrated machine for kitchen waste according to claim 1, characterized in that: the driving device is installed on the base (1) through an installation seat (14).

6. The horizontal pulping and impurity removing integrated machine for kitchen waste according to claim 1, characterized in that: and a liquid level observation window is arranged on the cylinder body (2) of the pulping machine.
