A multifunctional large infusion storage cabinet

technical field

The utility model belongs to the field of medical equipment, in particular to a multifunctional large infusion storage cabinet.

Background technique

Drug safety management has always been one of the most concerned issues in the medical industry, and medical accidents occur every year due to expired drugs. Bulk infusion is a large-volume injection, which refers to a one-time-use injection that is intravenously dripped or injected into the human body. With the continuous development of my country's medical level and the level of people's medication, infusion products are more and more widely used, and the dosage is also increasing. Infusion is a common and necessary drug used in hospitals to rescue and treat critically ill patients. Therefore, the responsibility and pressure of managing large infusions in hospital wards are also increasing. At present, in addition to relying on the original packaging of the pharmaceutical factory for the storage of large-scale infusion liquids, domestic hospitals do not have special storage devices during the storage process, and generally use cube or cuboid baskets without lids. The nurses in the ward need to check the validity period and quality of the large infusion liquid every day and replenish the quantity in time. Therefore, although a lot of manpower, time, and energy are spent on the management of a large amount of liquid, there are still situations such as storage conditions that do not meet the drug preservation specifications, and omissions in the monthly inspection of the validity period. When medical staff take the infusion, they often take it at random. They cannot follow the order of validity period, and cannot use it according to the production time of the drug, resulting in a large backlog of infusion, which leads to expiration and corresponding medical accidents or doctor-patient disputes. In addition, the large infusion drug storage containers in each department have various formats, which are neither beautiful nor convenient for inspection and storage, and it is not possible to use the department's spare drugs completely according to the principle of "drugs with near-expiration date". Chinese patent CN207590291U discloses a large clinical infusion storage cabinet, which includes a feeding port, a discharging port, a frame sealing plate and a baffle plate placed inside the sealing plate. The baffle plate is inclined from the feeding port end to the discharging port end Placement; the partition is inclined at an angle of 15-30° to the horizontal plane. When the large infusion is put in from the upper inlet end of the device, it slides on the partition to the lower discharge port, which is convenient for the storage and transmission of large infusion, and can Make sure that every large infusion delivered to the ward by the pharmacy is used first, and then used later. However, it has the following problems: the infusion from the inlet may accumulate on the infusion at the outlet, resulting in the backlog of the original infusion at the outlet, and friction back and forth at the infusion inlet, the heat generated will destroy the molecular stability of the infusion, and secondly, it can only be stored It is a kind of infusion, and there is a problem of serious waste of storage space, and the practicability is not enough.

SUMMARY OF THE INVENTION

The purpose of the utility model is to provide a multifunctional large infusion storage cabinet in view of the deficiencies of the prior art.

The utility model is realized through the following technical solutions:

A multifunctional large infusion storage cabinet, comprising a cabinet body and a cabinet door, the cabinet doors are symmetrically arranged along both sides of the cabinet body, the cabinet door and the cabinet body are connected by hinges, and the cabinet body is provided with a plurality of groups of shapes along the transverse direction Consistent track trolleys, the track trolleys are arranged horizontally with each other; the bottom of the track trolley is slidably connected to the bottom surface of the cabinet, each track trolley can be pulled out relative to the cabinet body, and the track trolley is connected to the cabinet body. not detached; the rail trolley is provided with at least four layers of partitions from top to bottom, the four layers of partitions are fixedly connected with a storage tank, and the storage tank is stored with an infusion bag; the rail A slideway is provided on the inner side wall of the trolley at the position corresponding to the partition plate, the partition plate is arranged in the slideway, and each partition plate can be drawn out relative to the track trolley.

The technical problem further solved by the present invention is that the storage tank is an oval structure, including an inner wall of the storage tank and an outer wall of the storage tank; multiple groups of chain plates are arranged in the storage tank, and adjacent chain plates A plurality of chain plates are hinged to form a ring shape and are arranged in the storage tank. The bottom of the chain plate is provided with a pulley, which can rotate along the circumferential direction of the storage tank; the chain plate is vertical A plurality of sets of baffles are directly arranged, and the baffles are evenly distributed in the storage slot, and the interior of the storage slot is divided into several card slots, and infusion bags are placed in the card slots.

The technical problem further solved by the present invention is that the bottom of the storage tank is provided with a sliding rail for the movement of the pulley along the circumferential direction.

The technical problem further solved by the present invention is that each card slot is provided with an expiration date label.

The technical problem further solved by the utility model is that the rail trolley is provided with four layers of partitions, and infusion bags with capacities of 100mL, 250mL, 500mL and 50mL are respectively placed from top to bottom.

The technical problem further solved by the present invention is that the slideway is provided with a block, which is used to prevent the partition plate from being completely pulled out from the track trolley.

Compared with the prior art, the utility model has the following advantages:

The multifunctional large infusion storage cabinet of the utility model is convenient for the hospital to manage the large infusion, including checking the large infusion base number, checking the validity period, etc., in the actual operation process, it is convenient for nurses to take and supplement the infusion bag, and can ensure The quality of the large infusion has, to a certain extent, realized the principle of using the department's spare drugs according to the principle of "use the drugs near the expiration date first".

Description of drawings

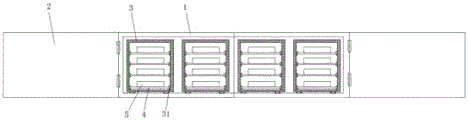

Figure 1 is a schematic diagram of the overall structure of the present invention.

Figure 2 is a schematic diagram of the structure of the storage tank of the present invention.

FIG. 3 is a top view of the storage tank of the present invention.

FIG. 4 is a cross-sectional view taken along the line A-A in FIG. 3 .

The serial number in the picture, 1-cabinet, 2-cabinet door, 3-track trolley, 4-partition, 5-storage tank, 6-infusion bag, 31-slide, 51-inner wall of storage tank, 52-storage The outer wall of the material slot, 53-chain plate, 54-connecting shaft, 55-pulley, 56-baffle plate, 57-card slot, 58-slide rail.

Detailed ways

The utility model will be further described below with reference to the accompanying drawings and embodiments.

A multifunctional large infusion storage cabinet, comprising a cabinet body 1 and a cabinet door 2, the cabinet door 2 is symmetrically arranged along both sides of the cabinet body 1, the cabinet door 2 and the cabinet body 1 are connected by hinges, and the cabinet door 2 can be relatively opened or closed; the cabinet body 1 is provided with multiple groups of track trolleys 3 with the same shape in the lateral direction, and the track trolleys 3 are arranged horizontally with each other. The colors of the group of track trolleys are different, which represent different types of infusions, specifically storing sodium chloride solution, glucose solution, glucose-sodium chloride solution and other solutions; Each track trolley 3 can be pulled out relative to the cabinet body 1, and the track trolley 3 is not separated from the cabinet body 1. Preferably, a pulley 55 track is provided at the bottom of the trolley, which is convenient for the track trolley to be pulled out, inspected and taken. Take supplementary infusion; the rail trolley 3 is provided with at least four layers of partitions 4 from top to bottom, the partitions 4 are fixedly connected with a storage tank 5, and the storage tank 5 stores an infusion bag 6; a slideway 31 is provided at the position of the inner side wall of the rail trolley 3 corresponding to the partition plate 4, the partition plate 4 is arranged in the slideway 31, and each partition plate 4 can be drawn out relative to the rail car 3, each One layer of partitions can be pulled out individually, so that the entire vehicle does not need to be pulled out when only one layer of infusion is needed.

Referring to FIGS. 2 and 4 , in this embodiment, the storage slot 5 is an oval structure, including an inner wall 51 of the storage slot and an outer wall 52 of the storage slot; the storage slot 5 is provided with multiple sets of chain plates 53. Adjacent chain plates 53 are hinged through the connecting shaft 54. After being hinged, a plurality of chain plates 53 are annular and are arranged in the storage slot 5. The bottom of the chain plates 53 is provided with a pulley 55, which can move along the storage tank 53. The storage slot 5 rotates in the circumferential direction; the chain plate 53 is vertically provided with a plurality of sets of baffles 56, and the baffles 56 are evenly distributed in the storage slot 5, dividing the interior of the storage slot 5 into several card slots 57. An infusion bag 6 is placed in the card slot 57; each card slot 57 is provided with an expiration date label. Preferably, according to the thickness of the outer packaging of the large infusion solution and the number of required bases, 30 card slots with a fixed width of 3cm are arranged in the storage tank, and one card slot corresponds to one bag of infusion, and at the same time, it can be seen at a glance when checking the infusion. to the number of infusion bags.

Referring to FIG. 3, in this embodiment, the bottom of the storage tank 5 is provided with a sliding rail 58 for the movement of the pulley 55 in the circumferential direction. At the end, wait for a new infusion bag to be replenished. At the same time, each card slot 57 is provided with an expiration date label to remind the medical staff of the order of using the infusion bag.

Referring to Fig. 1, in this embodiment, the described rail car is provided with four layers of partitions 4, the car is divided into four layers, each layer is 30cm high, and each layer is placed with different volumes of infusion, and the volumes are placed from top to bottom. 100mL, 250mL, 500mL and 50mL infusion bags 6.

In this embodiment, the slideway 31 is provided with a block to prevent the baffle 4 from being completely pulled out from the track trolley 3 .

Specific use process:

Refer to the multifunctional large infusion storage cabinet with the structure in Figure 1. The cabinet is 2.1m long, 1.4m high, and 0.5m deep. The maximum storage capacity is 480 bags of infusion bags. Four groups of track trolleys with different colors represent different infusion types. Each car stores sodium chloride solution, glucose solution, glucose sodium chloride solution and other solutions separately. Place different volumes of infusion, the first layer is 100mL solution, the second layer is 250mL solution, the third layer is 500mL solution, and the fourth layer is 50mL solution. Take out the infusion bag of the corresponding capacity from the tank for operation. At the same time, 30 bags of infusion bags are stored in each storage slot. According to the expiration date label, medical staff can choose the order of using the infusion bags to avoid waste of infusions that are about to expire. Moreover, because one card slot corresponds to one bag of infusion, it ensures that medical staff check During infusion, you can see the amount of infusion at a glance. When the infusion bag is removed, you can manually turn the empty card slot to the tail to wait for new infusion.

The above are only the preferred embodiments of the present utility model. It should be pointed out that for those of ordinary skill in the art, without departing from the inventive concept of the present utility model, several modifications and improvements can be made. It belongs to the protection scope of the present invention.

Claims (6)

1. The utility model provides a multi-functional big infusion cabinet, includes the cabinet body (1) and cabinet door (2), cabinet door (2) set up along cabinet body (1) bilateral symmetry, cabinet door (2) are connected its characterized in that through articulated with the cabinet body (1): a plurality of groups of rail trolleys (3) with the same shape are transversely arranged in the cabinet body (1), and the rail trolleys (3) are mutually horizontally arranged; the bottom of each small rail car (3) is connected with the bottom surface in the cabinet body (1) in a sliding manner, each small rail car (3) can be drawn out outwards relative to the cabinet body (1), and the small rail cars (3) are not separated from the cabinet body (1); the rail trolley (3) is provided with at least four layers of partition plates (4) from top to bottom, the partition plates (4) are fixedly connected with storage grooves (5), and infusion bags (6) are stored in the storage grooves (5); the rail trolley is characterized in that a slide way (31) is arranged on the inner side wall of the rail trolley (3) in a position corresponding to the partition plate (4), the partition plate (4) is arranged in the slide way (31), and each partition plate (4) can be pulled out outwards relative to the rail trolley (3).

2. The multifunctional large infusion storage cabinet according to claim 1, wherein: the storage tank (5) is of an oval structure and comprises a storage tank inner wall (51) and a storage tank outer wall (52); a plurality of groups of chain plates (53) are arranged in the storage groove (5), the adjacent chain plates (53) are hinged through a connecting shaft (54), the chain plates (53) are annular and arranged in the storage groove (5) after being hinged, and pulleys (55) are arranged at the bottom of the chain plates (53) and can rotate along the circumferential direction of the storage groove (5); the novel transfusion bag is characterized in that a plurality of groups of baffle plates (56) are vertically arranged on the chain plate (53), the baffle plates (56) are uniformly distributed in the storage groove (5), the interior of the storage groove (5) is divided into a plurality of clamping grooves (57), and the transfusion bag (6) is placed in the clamping grooves (57).

3. The multifunctional large infusion storage cabinet according to claim 2, wherein: the bottom of the storage groove (5) is provided with a sliding rail (58) used for the movement of the pulley (55) along the circumferential direction.

4. The multifunctional large infusion storage cabinet according to claim 2, wherein: and a validity period label is arranged in each clamping groove (57).

5. The multifunctional large infusion storage cabinet according to claim 2, wherein: four layers of partition plates (4) are arranged in the rail trolley, and infusion bags (6) with the volumes of 100mL, 250mL, 500mL and 50mL are respectively placed from top to bottom.

6. The multifunctional large infusion storage cabinet according to claim 1, wherein: and a stop block is arranged in the slide way (31) and used for preventing the partition board (4) from being completely drawn out and separated from the small rail car (3).
