CN212031031U - A river bottom mud sampling device - Google Patents

Abstract

The utility model discloses a river bottom mud sampling device, comprising a base, a support rod is installed on the base, a first wire take-up wheel and a second wire take-up wheel are symmetrically installed on the outer wall of the support rod, and the top of the support rod is installed There is a sleeve, and a telescopic rod is inserted into the sleeve; a first pulley and a second pulley are symmetrically installed at the extending end of the telescopic rod, and a mud mining device is arranged below the first pulley; The mud mining device includes an installation plate, and the wire group on the first take-up pulley is connected to the installation plate by bypassing the first pulley; the installation plate is fixedly plugged with a tube, and the bottom port of the tube is plugged with an inverted funnel. The mud mining pipe is provided with a piston above the mud mining pipe, a push rod is connected to the piston, and the wire group on the second wire take-up wheel bypasses the second pulley and is connected to the push rod. The utility model has the advantages of simple structure, reasonable design, light equipment weight, convenient portability, and can be disassembled and stored for on-site assembly, which greatly improves the sampling efficiency, does not require electricity, and is energy-saving and environmentally friendly.

Description

A river bottom mud sampling device

technical field

The utility model relates to the technical field of river bottom mud detection, in particular to a river bottom mud sampling device.

Background technique

The formation process of sediment in natural water bodies can reflect many elements such as local hydrology, physics, chemistry, biology, topography, and geological structure. Therefore, it is often necessary to collect sediment during scientific research or pollution control investigations on lakes or rivers. . The rapid and efficient collection of sediments determines the level and even the success or failure of scientific research. It can be seen that the development of scientific and efficient sediment collection device has dual significance of science and reality. In the prior art, it is a difficult problem to detect the sediment sampling of rivers and lakes. Usually, it is necessary to manually enter the water to sample the sediment, which is unsafe and inefficient.

Utility model content

The utility model provides a river bottom mud sampling device precisely aiming at the shortcomings of the prior art.

A river bottom mud sampling device includes a base, a support rod is installed on the base, a first wire take-up wheel and a second wire take-up wheel are symmetrically installed on the outer wall of the support rod, a sleeve is installed on the top of the support rod, and a sleeve is installed on the top of the support rod. A telescopic rod is inserted into the barrel. A first pulley and a second pulley are symmetrically installed at the projecting end of the telescopic rod, and a dredging device is arranged below the first pulley. The dredging device includes an installation plate, and the wire group on the first wire take-up wheel is connected to the installation plate by bypassing the first pulley. The installation plate is fixedly plugged with a tube, the bottom port of the tube is plugged with an inverted funnel-shaped mud mining pipe, a piston is arranged above the mud mining pipe, a push rod is connected to the piston, and the second take-up wheel The wire set on the upper is connected with the push rod around the second pulley.

Further, four corners of the base and the bottom plate of the mounting plate are provided with ground-inserting rods.

Further, a sealing rubber gasket is provided on the outer wall of the lower end of the mud extraction pipe.

Further, a limit ring made of rubber material is sleeved on the outer wall of the telescopic rod.

Compared with the prior art, the beneficial effects of the present utility model are as follows: the utility model has the advantages of simple structure, reasonable design, light weight of the equipment, convenient carrying, disassembly and storage, and on-site assembly, realizing single-person quick sampling, and greatly improving the sampling rate. High efficiency, no electricity, energy saving and environmental protection.

Description of drawings

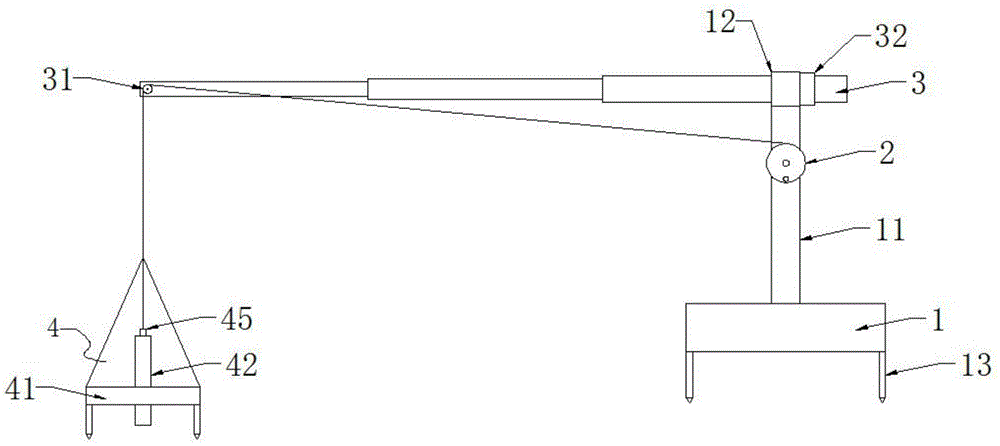

Fig. 1 is the structural representation of the utility model;

2 is a schematic diagram of the installation position of the pipe barrel and the mud mining pipe in the utility model;

3 is a schematic diagram of the installation positions of the first take-up wheel and the second take-up wheel and the support rod in the utility model;

4 is a schematic diagram of the installation positions of the first pulley, the second pulley and the telescopic rod in the present invention.

In the figure: base 1, support rod 11, sleeve 12, grounding rod 13, first take-up pulley 2, second take-up pulley 20, retractable rod 3, first pulley 31, second pulley 310, Limiting ring 32 , dredging device 4 , mounting plate 41 , tube 42 , dredging pipe 43 , sealing rubber pad 431 , piston 44 , push rod 45 .

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

1-4, a river bottom mud sampling device includes a base 1 on which a support rod 11 is installed, and a first take-up wheel 2 and a second take-up wheel 20 are symmetrically installed on the outer wall of the support rod 11 , a sleeve 12 is installed on the top of the support rod 11 , and a telescopic rod 3 is inserted into the sleeve 12 . A limit ring 32 made of rubber material is sleeved on the outer wall of the telescopic rod member 3 . The arrangement of the limit ring 32 can effectively prevent the telescopic rod 3 from sliding in the direction of the dredging device 4 in the sleeve 12 under the pulling force of the dredging device 4 .

A first pulley 31 and a second pulley 310 are symmetrically installed at the projecting end of the telescopic rod 3 , and a dredging device 4 is arranged below the first pulley 31 . The dredging device 4 includes a mounting plate 41 , and the wire group on the first wire take-up pulley 2 bypasses the first pulley 31 and is connected to the mounting plate 41 . The installation plate 41 is fixedly plugged with a tube 42 , the bottom port of the tube 42 is plugged with an inverted funnel-shaped dredging pipe 43 . A piston 44 is arranged above the dredging pipe 43 , a push rod 45 is connected to the piston 44 , and the wire group on the second wire take-up wheel 20 bypasses the second pulley 310 and is connected to the push rod 45 . The four corners of the bottom plate of the base 1 and the mounting plate 41 are provided with ground insertion rods 13 .

When in use, transport the disassembled device to the working point, assemble the device first, and insert the ground rod 13 on the base 1 tightly into the ground to ensure that the top plate of the base 1 is flush with the ground, and then Insert the telescopic rod 3 into the sleeve 12, put the upper limit ring 32 on the outer wall of the rear end of the telescopic rod 3, and then pass the wire set on the first wire take-up pulley 2 around the first pulley 31 and the mounting plate 41 Connect, tighten the wire group through the first take-up wheel 2, and finally connect the wire group on the second take-up wheel 20 around the second pulley 310 and connect with the push rod 45, and the collection personnel control the first wire-reel 2 slowly with one hand Paying off, the other hand stretches the retractable rod 3 to move the dredging device 4 to a suitable position on the river surface, and then the collector controls the first take-up wheel 2 to slowly pay off the line, so that the dredging device 4 falls to the water surface until the bottom of the river, The dredging device 4 falls on the river bed, the ground-inserting rod 13 under the mounting plate 41 is inserted into the mud, and the lower port of the pipe tube 42 also penetrates into the mud.

10-15 minutes after the dredging device 4 falls into the river bed, the collectors first tighten the line on the second take-up wheel 20 by rotating the second take-up wheel 20, and then rotate the second take-up wheel 20 to take up the line 1. Circle, the line group of the second take-up wheel 20 pulls the push rod 45, the push rod 45 drives the piston 44 to lift up a certain distance, and the river bottom mud is sucked into the tube 42 through the mud mining pipe 43, and then passes through the first take-up pulley 2. Carry out the reeling and lift the dredging device 4 out of the water surface. Since the dredging pipe 43 is in the shape of an inverted funnel, the collected silt is between the pipe 42 and the dredging pipe 43, and will not be lost in the process of lifting the dredging device 4 to the water surface. In the water body, after the dredging device 4 is at a certain distance from the water surface, the retractable rod 3 is retracted, and the first reel 2 continues to take up the line until the dredging device 4 reaches the shore, and finally the dredging pipe 43 is removed from the pipe 42 It is enough to remove the sludge in the tube 42 into the storage bottle.

The utility model is simple in structure, reasonable in design, light in weight, convenient to carry, can be disassembled, stored and assembled on site, realizes single-person quick sampling, greatly improves sampling efficiency, does not need electricity, saves energy and protects the environment.

Claims (4)

1. The utility model provides a river sediment sampling device, includes base (1), its characterized in that: a supporting rod (11) is mounted on the base (1), a first take-up pulley (2) and a second take-up pulley (20) are symmetrically mounted on the outer wall of the supporting rod (11), a sleeve (12) is mounted at the top of the supporting rod (11), and a telescopic rod piece (3) is inserted in the sleeve (12); a first pulley (31) and a second pulley (310) are symmetrically arranged at the end part of the extending end of the telescopic rod piece (3), and a mud collecting device (4) is arranged below the first pulley (31); the mud sampling device (4) comprises a mounting plate (41), and the wire group on the first take-up pulley (2) is wound around the first pulley (31) and is connected with the mounting plate (41); a pipe barrel (42) is fixedly inserted into the mounting plate (41), a mud collecting pipe (43) with an inverted funnel shape is inserted into a port at the bottom of the pipe barrel (42), a piston (44) is arranged above the mud collecting pipe (43), a push rod (45) is connected onto the piston (44), and a wire group on the second take-up pulley (20) is connected with the push rod (45) by winding around the second pulley (310).

2. The river sediment sampling device according to claim 1, wherein: four corners of the bottom plate of the base (1) and the mounting plate (41) are provided with ground inserting rod pieces (13).

3. The river sediment sampling device according to claim 1, wherein: and a sealing rubber pad (431) is arranged on the outer wall of the lower end of the mud collecting pipe (43).

4. The river sediment sampling device according to claim 1, wherein: the outer wall of the telescopic rod piece (3) is sleeved with a limiting ring (32) made of rubber materials.
