The utility model discloses a movable telescopic awning, which comprises a supporting base, a first beam and a cloth awning, wherein a cavity is arranged above the inner part of the first beam, two rotating shafts are fixedly arranged at the two ends of the lower bottom part of the first beam and are symmetrical, a threaded connector is arranged between the rotating shafts, the rotating shafts are connected with a second beam through telescopic arms, a front edge is fixedly arranged on the second beam, two central columns are arranged in the cavity, the central columns are sleeved with springs, the springs are provided with cloth drums, one ends of the cloth awning are fixed on the cloth drums, the other ends of the cloth awning are fixed on the second beam, the supporting base is provided with four universal wheels through four supporting rods, a cylindrical hollow telescopic rod is arranged above the supporting base, the top part of the cylindrical hollow telescopic rod is provided with a screw rod, a telescopic hydraulic cylinder is arranged inside the lowest end of, and a height switch and a telescopic switch are arranged on the outer wall of the cylindrical hollow telescopic rod.
Description
Technical Field
The utility model relates to a sunshade technical field, concretely relates to movable awning that stretches out and draws back.
Background
The awning has great significance from the viewpoint of energy saving and environmental protection, can reflect strong sunlight into the room in a diffused light mode while shielding hot summer days, enables the indoor light to be bright and not dazzling, does not influence the outside-window landscape seen from the room, extends the living space of people from the room to the outside, and creates a new living space; the special ultraviolet-proof function of the sunshade cloth of the sunshade not only prevents the skin of a human body from being invaded by ultraviolet rays, but also greatly prolongs the service life of indoor decoration and furniture. Most of sunshades on the market are fixed in position at present, the height of the sunshades cannot be adjusted according to actual conditions in use, the sun-shading cloth cannot be freely contracted, great troubles are brought to storage and installation, and the sunshades are often too heavy to move when needing to be moved.
Chinese patent application No. 201621325438.8 discloses a movable telescopic awning, which comprises a supporting base, a first beam and a cloth awning, wherein a cavity is arranged above the inside of the first beam, two rotating shafts are fixedly arranged at two ends of the lower bottom of the first beam and are symmetrical, a threaded connector is arranged between the rotating shafts, the rotating shafts are connected with a second beam through telescopic arms, a front edge is fixedly arranged on the second beam, two central columns are arranged in the cavity, a spring is sleeved on the central columns, a cloth cylinder is arranged on the spring, one end of the cloth awning is fixed on the cloth cylinder, the other end of the cloth awning is fixed on the second beam, the supporting base is provided with four universal wheels through four supporting rods, a cylindrical hollow telescopic rod is arranged above the supporting base, the topmost part of the cylindrical hollow telescopic rod is provided with a screw rod, and a telescopic hydraulic cylinder is arranged inside the bottommost, the outer wall of the cylindrical hollow telescopic rod is provided with a height switch and a telescopic switch; the utility model discloses a telescopic link that can freely stretch out and draw back can freely adjust the awning's height, adopts double cross beam and double crank structure, can freely adjust awning shaded area, and the area of reducible awning accomodates also very conveniently, and the gyro wheel of bottom is favorable to removing awning.
However, the movable telescopic awning has the following disadvantages:
the whole use and disassembly process of the whole equipment is completed manually, so that the equipment is troublesome and labor-consuming, and the awning is used in rainy days or when the sun is relatively strong, and the whole manual operation is not very humanized.
The awning can not be automatically contracted when not used, a gear box is required to be rotated, a cloth cylinder is rotated by one person, the contraction of the whole awning can not be completed by one person, the time and the manpower are wasted, the whole winding of the awning after the contraction is finished is exposed outside on the cloth cylinder, and accumulated dust is not used for a long time.
The single-fan awning is unstable in gravity center, easy to topple under the action of external force, potential safety hazards exist, and the use rate is low.
SUMMERY OF THE UTILITY MODEL
The utility model provides a movable flexible awning overcomes here utility model following shortcoming: the whole use of equipping is dismantled the whole manual work and is accomplished and take trouble and energy, and awning uses and all is when rainy day or sun are stronger, whole manual operation is very humanized not, awning can't automatic shrink when not using, must a rotation gearbox, a cloth section of thick bamboo alone rotates, one alone can't accomplish whole awning's shrink, the waste time, extravagant manpower, awning whole winding that the shrink finishes exposes externally on the cloth section of thick bamboo moreover, do not use the overstock dust for a long time.
In order to solve the technical problem, the utility model provides a following technical scheme:
the utility model relates to a movable telescopic awning, which comprises a supporting base, a first beam and a cloth awning, wherein a cavity is arranged above the inner part of the first beam, two rotating shafts are fixedly arranged at the two ends of the lower bottom part of the first beam and are symmetrical, a threaded connector is arranged between the rotating shafts, the rotating shafts are connected with a second beam through telescopic arms, a front edge is fixedly arranged on the second beam, two central columns are arranged in the cavity, the central columns are sleeved with springs, cloth tubes are arranged on the springs, one end of the cloth awning is fixed on the cloth tubes, the other end of the cloth awning is fixed on the second beam, the supporting base is provided with four universal wheels through four supporting rods, a cylindrical hollow telescopic rod is arranged above the supporting base, the top part of the cylindrical hollow telescopic rod is provided with a screw rod, a telescopic hydraulic cylinder is arranged inside the, and a height switch and a telescopic switch are arranged on the outer wall of the cylindrical hollow telescopic rod.
Furthermore, the cloth awning, the rotating shaft, the second cross beam and the telescopic arms are respectively provided with two parts, and the two parts are symmetrical along the first cross beam.
Further, the second beam is parallel to the first beam.
Furthermore, the telescopic arm and the telescopic hydraulic cylinder are connected with the hydraulic station through oil pipes.
Furthermore, the cloth awning is made of acrylic fibers.
Furthermore, the universal wheel is provided with brake teeth.
Compared with the prior art, the utility model discloses the beneficial effect who reaches is:
the utility model discloses a set up cylindrical hollow shrink pole, telescopic hydraulic cylinder, flexible arm, manual operation is troublesome and laboursome when solving the current use, saves the time of whole awning equipment.
The utility model discloses a set up center post, spring, a cloth section of thick bamboo, the cavity solves current whole awning unable automatic contraction when dismantling, occupies too much manpower, and a cloth section of thick bamboo is established in the cavity, effectively prevents piling up of dust on the puggaree.
The utility model discloses a set up two fan awning, effectively solved focus unstability, the problem that the rate of utilization is little.
Drawings
The accompanying drawings are included to provide a further understanding of the invention, and are incorporated in and constitute a part of this specification, illustrate embodiments of the invention, and together with the description serve to explain the invention and not to limit the invention.
In the drawings:

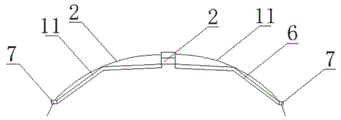

FIG. 1 is a schematic view of the internal frame structure of a movable retractable awning of the present invention;
FIG. 2 is a schematic view of a single-fan awning structure of the movable retractable awning of the present invention;
FIG. 3 is a schematic view of a movable retractable awning base of the present invention;
FIG. 4 is a schematic view of an automatic retractable structure of a cloth tube of the movable retractable awning of the present invention;
fig. 5 is a left side view structural schematic diagram of the movable telescopic awning of the present invention;
reference numbers in the figures: the device comprises a support base 1, a first cross beam 2, a cavity 3, a rotating shaft 4, a threaded connector 5, a telescopic arm 6, a second cross beam 7, a central column 8, a spring 9, a cloth cylinder 10, a cloth awning 11, a universal wheel 12, a cylindrical hollow telescopic rod 13, a screw rod 14, a telescopic hydraulic cylinder 15, a height switch 16, a telescopic switch 17 and a front edge 18.
Detailed Description
The preferred embodiments of the present invention will be described in conjunction with the accompanying drawings, and it will be understood that they are presented herein only to illustrate and explain the present invention, and not to limit the present invention.
The first embodiment is as follows:
as shown in figures 1-5, the utility model relates to a movable telescopic awning, which comprises a supporting base 1, a first beam 2 and a cloth awning 11, wherein a cavity 3 is arranged above the inside of the first beam 2, two rotating shafts 4 are fixedly arranged at two ends of the bottom of the first beam 2 and are symmetrical, a threaded connector 5 is arranged between the rotating shafts, the rotating shafts 4 are connected with a second beam 7 through telescopic arms 6, a front edge 18 is fixedly arranged on the second beam 7, two central columns 8 are arranged in the cavity 3, a spring 9 is sleeved on each central column 8, a cloth tube 10 is arranged on each spring 9, one end of the cloth awning 11 is fixed on the cloth tube 10, the other end of the cloth awning is fixed on the second beam 7, the supporting base 1 is provided with four universal wheels 12 through four supporting rods, a cylindrical hollow 13 is arranged above the supporting base 1, the topmost part of the cylindrical hollow telescopic rod 13 is provided with a screw rod 14, the inside of the bottommost end of the cylindrical hollow telescopic rod 13 is provided with a telescopic hydraulic cylinder 15, and the outer wall of the cylindrical hollow telescopic rod 13 is provided with a height switch 16 and a telescopic switch 17.
Through the above technical scheme of the utility model, put cylindrical hollow shrink pole 13, telescopic hydraulic cylinder 15, flexible arm 6, manual operation is troublesome and arduous when solving current use, save the time of whole awning equipment, set up center post 8, spring 9, cloth section of thick bamboo 10, cavity 3, solve current whole awning unable automatic shrink when dismantling, occupy too much manpower, cloth section of thick bamboo 10 is established in cavity 3, effectively prevent piling up of dust on the cloth is fluffy 11, set up two fans of awnings, there is the potential safety hazard effectively to have solved the focus unstability, the problem that the rate of utilization is little.
Example two:
referring to fig. 1-5, for the cloth awning 11, two cloth awnings 11, two rotating shafts 4, two second beams 7 and two telescopic arms 6 are respectively arranged, the two telescopic arms are symmetric pairwise along the first beam 2, the second beam 7 is parallel to the first beam 2, the telescopic arms 6 and the telescopic hydraulic cylinders 15 are connected with a hydraulic station through oil pipes, the cloth awning 11 is made of acrylic fibers, and the universal wheels 12 are provided with brake teeth.
Through the above technical scheme of the utility model, the utility model discloses the material that sets up cloth awning 11 is acrylic fibre environmental protection health, and shelters from the rain-proof water of ultraviolet ray, and setting up of brake tooth has effectually controlled the whole awning's flexibility.
In practical application, the threaded connection port 5 below the first beam 2 is aligned with the screw 14 at the upper part of the support base 1, the first beam 2 is rotated and screwed, the height switch 16 is pressed, the telescopic rod of the telescopic hydraulic cylinder 15 jacks up the cylindrical hollow telescopic rod 13, when the awning reaches the desired height, the high-low switch 16 is pressed, the telescopic hydraulic cylinder 15 is halted, simultaneously, the telescopic switch 17 is pressed down, the telescopic arm 6 extends out, the second beam 7 is jacked to extend outwards, the second beam 7 drives the whole awning 11 to extend outwards, the awning 11 drives the cloth cylinder 10 to rotate clockwise outwards, the internal spring 9 is stretched, the telescopic arm 6 is stretched to complete the assembly of the whole awning, the telescopic switch 17 and the height switch 16 are pressed down, the cylindrical hollow telescopic rod 13 is lowered, the spring 9 contracts the cloth cylinder 10 to rotate anticlockwise inwards, the awning 11 is driven, and finally the whole awning is wound on the cloth cylinder 10.
Finally, it should be noted that: although the present invention has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described in the foregoing embodiments, or equivalents may be substituted for elements thereof. Any modification, equivalent replacement, or improvement made within the spirit and principle of the present invention should be included in the protection scope of the present invention.
Claims (6)
1. The utility model provides a flexible awning of movable, includes support base (1), first crossbeam (2), awning in cloth (11), its characterized in that: a cavity (3) is arranged above the inner part of the first cross beam (2), two rotating shafts (4) are fixedly arranged at two ends of the lower bottom of the first cross beam (2) and are symmetrical, a threaded connector (5) is arranged between the rotating shafts, the rotating shafts (4) are connected with a second cross beam (7) through telescopic arms (6), a front edge (18) is fixedly arranged on the second cross beam (7), two central columns (8) are arranged in the cavity (3), springs (9) are sleeved on the central columns (8), a cloth barrel (10) is arranged on the springs (9), one end of the cloth awning (11) is fixed on the cloth barrel (10), the other end of the cloth awning is fixed on the second cross beam (7), the supporting base (1) is provided with four universal wheels (12) through four supporting rods, a cylindrical hollow telescopic rod (13) is arranged above the supporting base (1), the telescopic rod is characterized in that a screw rod (14) is arranged at the top of the cylindrical hollow telescopic rod (13), a telescopic hydraulic cylinder (15) is arranged in the bottom of the cylindrical hollow telescopic rod (13), and a height switch (16) and a telescopic switch (17) are arranged on the outer wall of the cylindrical hollow telescopic rod (13).
2. The movable telescopic awning as claimed in claim 1, wherein: the cloth awning (11), the rotating shaft (4), the second cross beam (7) and the telescopic arms (6) are respectively two, and are pairwise symmetrical along the first cross beam (2).
3. The movable telescopic awning as claimed in claim 1, wherein: the second cross beam (7) is parallel to the first cross beam (2).
4. The movable telescopic awning as claimed in claim 1, wherein: the telescopic arm (6) and the telescopic hydraulic cylinder (15) are connected with the hydraulic station through oil pipes.
5. The movable telescopic awning as claimed in claim 1, wherein: the cloth awning (11) is made of acrylic fibers.
6. The movable telescopic awning as claimed in claim 1, wherein: and brake teeth are arranged on the universal wheel (12).
