A nursing and disinfection device

technical field

The utility model belongs to the technical field of medical equipment, in particular to a nursing and disinfection device.

Background technique

In the treatment and care of patients, medical staff often use disinfection consoles. Generally, disinfection supplies, therapeutic appliances, treatment supplies and other items are placed on the disinfection console to facilitate the work of medical staff. The disinfection console is related to medical staff. Quality and efficiency of work. At present, the space of the traditional disinfection operation table is small, and medical staff need to take out medical supplies from the lockers in other places again. This not only increases the labor intensity of medical staff, but also delays time, which may cause untimely treatment and delay the patient's treatment. The best time for treatment, in addition, the need for sterilized medical equipment brings great inconvenience to medical staff.

Utility model content

In order to solve the above-mentioned existing problems, the utility model provides a nursing disinfection device which can sterilize the medical instruments in time and can lift the sterilized medical instruments so that the medical staff can take them out.

The technical scheme adopted by the utility model is as follows: The utility model is a nursing and disinfection device, comprising a base plate, a support, a potassium permanganate disinfection bin, a partition, a disinfection control device, a screw rod, a disinfection fixing device, a support frame plate, a flushing Warehouse and stirring device, the support is arranged on the bottom wall of the base plate, one end of the support frame plate is arranged on one side of the upper wall of the base plate, the potassium permanganate disinfection warehouse is arranged on the base plate, and the flushing warehouse is arranged on the base plate. On the base plate and close to the potassium permanganate sterilizing warehouse, the potassium permanganate sterilizing warehouse and the rinsing warehouse are arranged between the supporting frame plates, and the partition plate is arranged between the rinsing warehouse and the potassium permanganate sterilizing warehouse, so the The stirring device is arranged in the partition plate, the screw rod is arranged at the other end of the support frame plate, the disinfection control device is arranged at the other end of the support frame plate, the disinfection control device is connected with the screw rod, and the disinfection fixing device The sterilization fixing device is slidably arranged on the screw rod, and the disinfection fixing device is connected with the disinfection control device; The screw sleeve is slidably connected to the screw rod, one end of the rope fixing sleeve is set on the screw sleeve, the rope fixed sleeve is set on the disinfection control device, and the hydraulic press fixed end It is arranged on the rope fixing sleeve, the moving plate is arranged on the movable end of the hydraulic press, the spring chamber is arranged in the moving plate, the return spring is arranged in the spring chamber, and one end of the return spring is arranged on the side wall of the spring chamber One end of the clamping and fixing plate is arranged on the other end of the return spring through the spring chamber, the protruding block is arranged on the side wall of the clamping and fixing plate, and the cushion layer is arranged on the inner side wall of the clamping and fixing plate. The clamping and fixing plates are moved in a relatively distant direction through the protruding block, the clamping and fixing plates are separated, and the return spring is squeezed. The protruding block, the return spring restores the deformation and pushes the clamping and fixing plate to move in a relatively close direction, and the cushion layer fixes the medical equipment that needs to be cleaned.

Further, the support frame plate is provided with two groups of support frame plate 1 and support frame plate 2, the support frame plate 1 and the support frame plate 2 are respectively arranged on opposite sides of the upper wall of the base plate, and the screw rod The two ends are respectively arranged on the other ends of the first support frame plate and the other end of the second support frame plate.

Further, the disinfection control device comprises a control motor placement warehouse, a control motor, a rotating pulley one, a traction rope, a fixed frame, a fixed latch and a rotating pulley two, and the control motor placement warehouse is arranged on the other end of the support frame plate, The control motor is installed in the control motor placement bin, the first rotating pulley is connected to the output shaft end of the control motor, the fixed frame is installed on the other end of the second support frame plate, the fixing pin is installed on the fixing frame, the The second rotating pulley is rotatably arranged on the fixed latch, the traction rope is arranged on the first rotating pulley and the second rotating pulley, the rope is fixedly sleeved on the traction rope, and the operation of the control motor drives the rotating pulley to rotate, and the rotating pulley drives the second pulley. The traction rope moves, the traction rope drives the rotating pulley 2 to rotate under the limitation of the fixed latch, the traction rope drives the rope fixing sleeve to move, and the rope fixing sleeve drives the screw sleeve to slide on the screw rod, and at the same time drives the clamping fixed plate and the required Cleaned medical instruments are moved.

Further, the stirring device includes a driving motor, a transmission belt, a main shaft, a fan blade bin and a stirring fan blade, the driving motor is arranged on the inner bottom wall of the partition plate, the main shaft is rotatably arranged on the inner wall of the partition plate, and the The transmission belt is arranged on the output shaft end of the drive motor and the main shaft, the fan blade warehouse is arranged on the outer side wall of the clapboard, the fan blade warehouse is arranged in the potassium permanganate disinfection warehouse, and the stirring fan blade is rotatably arranged on the fan In the leaf warehouse, the stirring fan blade is connected with the main shaft, the driving motor works to drive the transmission belt to rotate, the transmission belt drives the main shaft to rotate, the main shaft drives the stirring fan blade to rotate, and the stirring fan blade stirs the disinfectant in the potassium permanganate.

Further, the side wall of the potassium permanganate disinfection chamber is provided with a drain port.

Further, the side wall of the flushing bin is provided with a water outlet.

Further, the spring compartment is arranged in the moving plate and two groups are arranged with the center line of the moving plate as the axis of symmetry, and the return spring is arranged in the spring compartment and two groups are arranged with the center line of the moving plate as the axis of symmetry, so The clamping and fixing plate is arranged at the other end of the return spring and two groups are arranged with the center line of the moving plate as the symmetrical axis, and the protruding blocks are arranged in two groups. The cushion layers are provided with two groups, and the two groups of cushion layers are respectively arranged on two opposite inner side walls of the clamping and fixing plate.

Further, the separator is provided as a hollow cavity.

The beneficial effects of the present utility model obtained by adopting the above structure are as follows: this scheme is a nursing and sterilizing device, the sterilizing fixing device can fix the medical instruments that need to be sterilized, and the setting of the cushion can protect the medical instruments from being damaged during the clamping process. , the disinfection control device can drive the disinfection fixing device to move on the screw rod, so that the medical equipment that needs to be disinfected can be disinfected and cleaned between the potassium permanganate disinfection chamber and the washing chamber.

Description of drawings

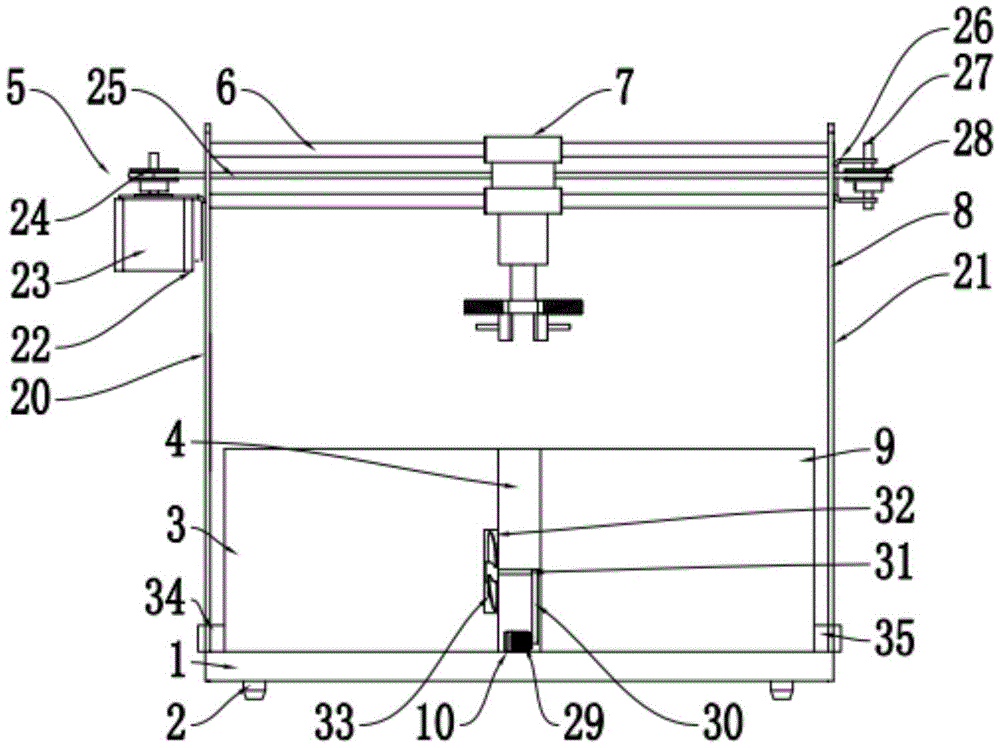

Fig. 1 is the overall structure schematic diagram of a kind of nursing disinfection device of the present utility model;

2 is a schematic structural diagram of a sterilizing fixture of a nursing and sterilizing device of the present utility model;

Among them, 1, base plate, 2, support, 3, potassium permanganate sterilization bin, 4, partition, 5, sterilization control device, 6, screw rod, 7, sterilization fixing device, 8, support frame plate, 9, Washing compartment, 10, stirring device, 11, screw cover, 12, hydraulic press, 13, rope fixing cover, 14, moving plate, 15, spring compartment, 16, return spring, 17, clamping and fixing plate, 18, protruding block , 19, cushion, 20, support frame plate one, 21, support frame plate two, 22, control motor placement bin, 23, control motor, 24, rotary pulley one, 25, traction rope, 26, fixed frame, 27, Fixed pin, 28, rotating pulley 2, 29, drive motor, 30, transmission belt, 31, main shaft, 32, fan blade bin, 33, stirring fan blade, 34, liquid drain, 35, drain.

Detailed ways

The technical solutions of the present invention will be described in further detail below in conjunction with specific implementations. The parts of the technical features or connection relationships described in the present invention that are not described in detail are the prior art used.

In conjunction with the accompanying drawings, the present utility model will be further described in detail.

As shown in Figures 1-2, a nursing and disinfection device of the present utility model comprises a base plate 1, a support 2, a potassium permanganate disinfection chamber 3, a partition 4, a disinfection control device 5, a screw rod 6, and a disinfection fixing device 7 , a support frame plate 8, a rinsing bin 9 and a stirring device 10, the support 2 is arranged on the bottom wall of the base plate 1, one end of the support frame plate 8 is arranged on one side of the upper wall of the base plate 1, the permanganate The potassium sterilization chamber 3 is arranged on the substrate 1, and the rinse chamber 9 is arranged on the substrate 1 and is close to the potassium permanganate sterilization chamber 3, and the potassium permanganate sterilization chamber 3 and the rinse chamber 9 are arranged on the support frame plate 8. During the time, the separator 4 is arranged between the flushing chamber 9 and the potassium permanganate disinfection chamber 3, the stirring device 10 is arranged in the separator 4, and the screw rod 6 is arranged on the other end of the support frame plate 8, so The disinfection control device 5 is arranged on the other end of the support frame plate 8, the disinfection control device 5 is connected with the screw rod 6, the disinfection fixing device 7 can be slidably arranged on the screw rod 6, and the disinfection fixing device 7 is connected to the screw rod 6. The control device 5 is connected; the disinfection fixing device 7 includes a screw sleeve 11, a hydraulic press 12, a rope fixing sleeve 13, a moving plate 14, a spring chamber 15, a return spring 16, a clamping and fixing plate 17, a protruding block 18 and a cushion layer 19 , the screw rod 6 is slidably connected to the screw rod 6, one end of the rope fixing sleeve 13 is set on the screw rod 6 sleeve, the rope fixing sleeve 13 is set on the disinfection control device 5, the hydraulic press 12 The fixed end is arranged on the rope fixing sleeve 13, the moving plate 14 is arranged on the movable end of the hydraulic press 12, the spring chamber 15 is arranged in the moving plate 14, the return spring 16 is arranged in the spring chamber 15, the One end of the return spring 16 is arranged on the side wall of the spring chamber 15 , one end of the clamping and fixing plate 17 is arranged on the other end of the return spring 16 through the spring chamber 15 , and the protruding block 18 is arranged on the side wall of the clamping and fixing plate 17 . The cushion layer 19 is arranged on the inner side wall of the clamping and fixing plate 17 .

The support frame plate 8 is provided with two groups of support frame plate 1 20 and support frame plate 2 21 respectively. The two ends of the screw rod 6 are respectively disposed on the other ends of the first support frame plate 20 and the second support frame plate 21 .

The disinfection control device 5 includes a control motor placement bin 22, a control motor 23, a rotating pulley one 24, a traction rope 25, a fixed frame 26, a fixed latch 27 and a rotating pulley two 28. The control motor placement bin 22 is provided on the support frame. On the other end of the first plate 20, the control motor 23 is set in the control motor placement bin 22, the rotating pulley 1 24 is connected with the output shaft end of the control motor 23, and the fixing frame 26 is set at the other end of the support frame plate 2 21 Above, the fixed latch 27 is set on the fixed frame 26, the second rotating pulley 28 is rotatably set on the fixed latch 27, the traction rope 25 is set on the rotating pulley 1 24 and the rotating pulley 2 28, the rope The fixing sleeve 13 is arranged on the traction rope 25 .

The stirring device 10 includes a driving motor 29, a transmission belt 30, a main shaft 31, a fan blade bin 32 and a stirring fan blade 33. The driving motor 29 is arranged on the inner bottom wall of the partition plate 4, and the main shaft 31 is rotatably arranged on the partition wall. On the inner wall of the plate 4, the transmission belt 30 is arranged on the output shaft end of the drive motor 29 and the main shaft 31, the fan blade warehouse 32 is arranged on the outer side wall of the partition plate 4, and the fan blade warehouse 32 is arranged on the potassium permanganate disinfection. In the chamber 3 , the stirring fan blade 33 is rotatably arranged in the fan blade chamber 32 , and the stirring fan blade 33 is connected with the main shaft 31 .

The side wall of the potassium permanganate disinfection chamber 3 is provided with a liquid drain 34 .

A drain port 35 is provided on the side wall of the flushing bin 9 .

The spring chamber 15 is arranged in the moving plate 14 and has two sets with the center line of the moving plate 14 as the axis of symmetry. The clamping and fixing plate 17 is arranged at the other end of the return spring 16 and two groups are arranged with the center line of the moving plate 14 as the axis of symmetry, and the two groups of the protruding blocks 18 are arranged respectively. On the clamping and fixing plate 17 , there are two sets of the cushion layers 19 , and the two groups of cushion layers 19 are respectively disposed on two opposite inner side walls of the clamping and fixing plate 17 .

The separator 4 is provided as a hollow cavity.

In specific use, the operator can move the clamping and fixing plate 17 in a relatively distant direction through the protruding block 18, separate the clamping and fixing plate 17, squeeze the return spring 16, and set the medical device to be cleaned in the clamping and fixing plate 17. In the cushion layer 19 between the fixed plates 17, the protruding block 18 is loosened, the return spring 16 restores the deformation and pushes the clamping and fixed plate 17 to move in a relatively close direction, the cushion layer 19 fixes the medical equipment to be cleaned, and controls the motor 23 The work drives the rotating pulley one 24 to rotate, the rotating pulley one 24 drives the traction rope 25 to move, the traction rope 25 drives the rotating pulley two 28 to rotate under the limitation of the fixed latch 27, the traction rope 25 drives the rope fixing sleeve 13 to move, and the rope fixing sleeve 13 Drive the screw sleeve 11 to slide on the screw 6, and at the same time drive the clamping and fixing plate 17 and the medical equipment to be cleaned to move, the driving motor 29 works to drive the transmission belt 30 to rotate, the transmission belt 30 drives the main shaft 31 to rotate, and the main shaft 31 drives the stirring The fan blade 33 rotates, the stirring fan blade 33 stirs the disinfectant in the potassium permanganate, the hydraulic press 12 extends and drives the clamping and fixing plate 17 to elongate, and the clamping and fixing plate 17 puts the medical equipment that needs to be cleaned into the permanganate. The potassium disinfection chamber 3 is sterilized or the flush chamber 9 is rinsed.

The present invention and the embodiments thereof have been described above, and the description is not restrictive, and what is shown in the accompanying drawings is only one of the embodiments of the present invention, and the actual structure is not limited thereto. All in all, if those of ordinary skill in the art are inspired by it, without departing from the purpose of the present invention, and without creatively designing the structural modes and embodiments similar to the technical scheme, all should belong to the protection of the present invention. scope.

Claims (8)

1. a nursing and sterilizing device is characterized in that: comprising a base plate, a support, a potassium permanganate sterilizing warehouse, a clapboard, a sterilizing control device, a screw rod, a sterilizing fixture, a support frame plate, a rinsing warehouse and a stirring device, The support is arranged on the bottom wall of the substrate, one end of the support frame is arranged on one side of the upper wall of the substrate, the potassium permanganate sterilization chamber is arranged on the substrate, and the flushing chamber is arranged on the substrate and is close to the high Potassium permanganate sterilization warehouse, the potassium permanganate sterilization warehouse and the rinsing warehouse are arranged between the support frame plates, the partition plate is arranged between the rinsing warehouse and the potassium permanganate sterilization warehouse, and the stirring device is arranged in the partition In the plate, the screw rod is arranged on the other end of the support frame plate, the disinfection control device is arranged on the other end of the support frame plate, the disinfection control device is connected with the screw rod, and the disinfection fixing device can be slidably arranged on the screw rod On the upper side, the disinfection fixing device is connected with the disinfection control device; the disinfection fixing device includes a screw sleeve, a hydraulic press, a rope fixing sleeve, a moving plate, a spring bin, a return spring, a clamping and fixing plate, a protruding block and a cushion, all of which The screw sleeve is slidably connected to the screw, one end of the rope fixing sleeve is set on the screw sleeve, the rope fixed sleeve is set on the disinfection control device, and the hydraulic press fixed end is set on the rope fixing sleeve , the moving plate is arranged on the movable end of the hydraulic press, the spring compartment is arranged in the moving plate, the return spring is arranged in the spring compartment, one end of the return spring is arranged on the side wall of the spring compartment, and the clamping is fixed. One end of the plate penetrates the spring chamber and is arranged on the other end of the return spring, the protruding block is arranged on the side wall of the clamping and fixing plate, and the cushion layer is arranged on the inner side wall of the clamping and fixing plate. 2. A nursing and disinfecting device according to claim 1, characterized in that: the support frame plate is provided with two groups of support frame plate 1 and support frame plate 2, the support frame plate 1 and the support frame plate The two are respectively arranged on opposite sides of the upper wall of the base plate, and the two ends of the screw rod are respectively arranged on the other ends of the first support frame plate and the second support frame plate. 3. A nursing and disinfection device according to claim 1, characterized in that: the disinfection control device comprises a control motor placement bin, a control motor, a rotating pulley one, a traction rope, a fixed frame, a fixed latch and two rotating pulleys, The control motor placement bin is set on the other end of the support frame plate one, the control motor is set in the control motor placement bin, the rotating pulley is connected to the output shaft end of the control motor, and the fixed frame is erected on the support frame plate two. On the other end, the fixed pin is set on the fixing frame, the second rotating pulley is rotatably set on the fixed plug, the traction rope is set on the rotating pulley 1 and the rotating pulley 2, and the rope is fixedly sleeved on the traction pulley. on the rope. 4. A nursing and disinfecting device according to claim 1, characterized in that: the stirring device comprises a driving motor, a transmission belt, a main shaft, a fan blade bin and a stirring fan blade, and the driving motor is arranged on the inner bottom wall of the partition plate The main shaft is rotatably arranged on the inner wall of the partition plate, the transmission belt is arranged on the output shaft end of the drive motor and the main shaft, the fan blade warehouse is arranged on the outer side wall of the partition plate, and the fan blade warehouse is arranged on the high manganese In the potassium acid disinfection chamber, the stirring fan blade can be rotatably arranged in the fan blade chamber, and the stirring fan blade is connected with the main shaft. 5. A nursing and disinfecting device according to claim 1, characterized in that: the side wall of the potassium permanganate disinfection chamber is provided with a drain port. 6 . The nursing and disinfection device according to claim 1 , wherein a drain port is provided on the side wall of the flushing bin. 7 . 7. A nursing and disinfecting device according to claim 1, characterized in that: the spring compartment is arranged in the moving plate and two groups are arranged with the center line of the moving plate as the axis of symmetry, and the return spring is arranged in the spring compartment Inside and with the center line of the moving plate as the axis of symmetry, there are two groups, the clamping and fixing plate is located at the other end of the return spring and the center line of the moving plate is the axis of symmetry, there are two groups, and the protruding block is provided with two groups, The two sets of protruding blocks are respectively arranged on the clamping and fixing plate, and the two sets of cushion layers are respectively arranged on two opposite inner side walls of the clamping and fixing plate. 8 . The nursing and disinfection device according to claim 1 , wherein the baffle is a hollow cavity. 9 .
