Abstract

The utility model provides a mobile nursing and rehabilitation treatment frame structure. The mobile nursing and rehabilitation treatment frame structure includes a bottom plate, a shoulder pressing mechanism and a pull-up mechanism. A vertically arranged support rod is fixedly installed on the bottom plate, and a threaded section is arranged on the support rod, and the shoulder pressing mechanism is installed on the screw thread through an adjuster. The regulator includes a first threaded ring, a second threaded ring and a sliding sleeve, the first threaded ring and the second threaded ring are both threadedly sleeved on the threaded segment, and the sliding sleeve is sleeved on the threaded segment and is in the Between the first threaded ring and the second threaded ring, and the side wall of the sliding sleeve is fixedly connected with one end of the connecting rod, the pull-up mechanism is installed on the cross rod, and the cross rod is fixedly installed on the top of the support rod and is connected to the support rod. Vertical setting. The mobile nursing and rehabilitation treatment frame structure provided by the utility model has the advantages of convenient adjustment.

Description

A mobile nursing and rehabilitation treatment frame structure

technical field

The utility model relates to the technical field of medical equipment, in particular to a mobile nursing and rehabilitation treatment frame structure.

Background technique

Traction is to use the principle of action force and reaction force to act on the human spine or the joints of the limbs through the external force generated by manipulation, equipment or electric device, so that the tissue is separated to a certain extent, and the soft tissue around the joint is properly stretched, so as to achieve the purpose of treatment. Specifically, cervical traction is mainly to relieve neck muscle spasm, relieve pain symptoms, enlarge the intervertebral space and intervertebral foramen, and is conducive to the reset of the protruded nucleus pulposus and annulus fibrosus tissue, and relieve and relieve nerve root compression and irritation. Promote the absorption of nerve root edema, relieve the compression of the vertebral artery, promote blood circulation, help local congestion, swelling and hyperplasia to subside, loosen the adhesion of the joint capsule, improve and restore the uncinate joint, adjust facet joint dislocation and spondylolisthesis, adjust and Restore the internal and external balance of the damaged cervical spine and restore the normal function of the cervical spine.

However, the existing cervical traction nursing mechanism is difficult to adjust flexibly, and at the same time, cervical traction is difficult to fix and adjust the patient's shoulder, resulting in an imbalance between the left and right shoulders of the patient during traction.

Therefore, it is necessary to provide a mobile nursing and rehabilitation treatment frame structure to solve the above technical problems.

Utility model content

The technical problem solved by the utility model is to provide a mobile nursing and rehabilitation treatment frame structure with convenient adjustment.

In order to solve the above-mentioned technical problems, the mobile nursing and rehabilitation treatment frame structure provided by the utility model includes: a base plate, on which a vertically arranged support rod is fixedly installed, and a section of thread section is arranged on the support rod; a shoulder pressing mechanism, a shoulder pressing mechanism The adjuster is installed on the threaded section, and the shoulder pressing mechanism includes a connecting rod, a mounting plate, a sliding rod, an adjusting ring, a threaded locking rod, a mounting bracket and an arc-shaped plate, one end of the connecting rod is connected with the adjuster, and the connecting rod The other end is fixedly connected with the middle part of the mounting plate, the two ends of the mounting plate are fixedly installed with sliding rods, and each sliding rod is sleeved with an adjusting ring for sliding connection, and one side wall of the adjusting ring is provided with a threaded through hole , and a threaded locking rod is inserted into the threaded through hole, the other side wall of the adjustment ring is fixedly installed with a mounting frame, and the other end of the mounting frame is fixedly installed with an arc-shaped plate; the pull-up mechanism, the pull-up mechanism is installed On the cross bar, the cross bar is fixedly installed on the top of the support bar and is vertically arranged on the support bar.

Preferably, the adjuster includes a first threaded ring, a second threaded ring and a sliding sleeve, the first threaded ring and the second threaded ring are both threadedly sleeved on the threaded section, and the sliding sleeve is sleeved on the threaded section and is in the first threaded section. Between a threaded ring and a second threaded ring, and the side wall of the sliding sleeve is fixedly connected with one end of the connecting rod, the adjuster can flexibly adjust the height of the shoulder pressing mechanism, so that the shoulder pressing mechanism can be adjusted according to the height of the patient.

Preferably, the pull-up mechanism includes a lower jaw plate, an elastic cloth belt and a fixed pulley, elastic cloth belts are fixedly sewn on both sides of the lower jaw plate, and the tops of the two elastic cloth belts are fixedly connected with the steel wire, and the plurality of fixed pulleys The support rod is installed on the support rod through the bracket, and the steel wire passes through the fixed pulley in turn and is connected to the rotating rod, and the rotating rod is connected with the rod wall of the support rod. Since the patient's shoulder is restricted by the shoulder pressing mechanism, the rehabilitation care for the patient's neck, shoulder, etc. is strengthened.

Preferably, the connecting rod, the mounting bracket and the cross rod are parallel to each other, and the sliding rods on both sides of the mounting plate are coaxial, so that the shoulder pressing mechanism and the pull-up mechanism on the cross rod maintain balance.

Preferably, the upper surface of the lower jaw plate is fitted with a silicone pad conforming to the lower jaw of the human body, so as to improve the comfort of the patient during traction.

Preferably, a plurality of locking universal wheels are installed on the bottom of the base plate, which is convenient for moving or braking the device.

Compared with the related art, the mobile nursing and rehabilitation treatment frame structure provided by the present utility model has the following beneficial effects:

1. The utility model winds the steel wire by rotating the rotating rod, so the lower jaw plate pulls the patient's neck upward, because the patient's shoulder is restricted by the shoulder pressing mechanism, and the rehabilitation care for the patient's neck, shoulder, etc. is strengthened;

2. The adjuster in the utility model can flexibly adjust the height of the shoulder pressing mechanism, so that the shoulder pressing mechanism can be adjusted according to the height of the patient, and the arc plate on the shoulder pressing mechanism can be adjusted with the adjustment ring, so it can be adjusted according to the patient's shoulder. Wide arc plate for flexible adjustment of shoulder pressing mechanism.

Description of drawings

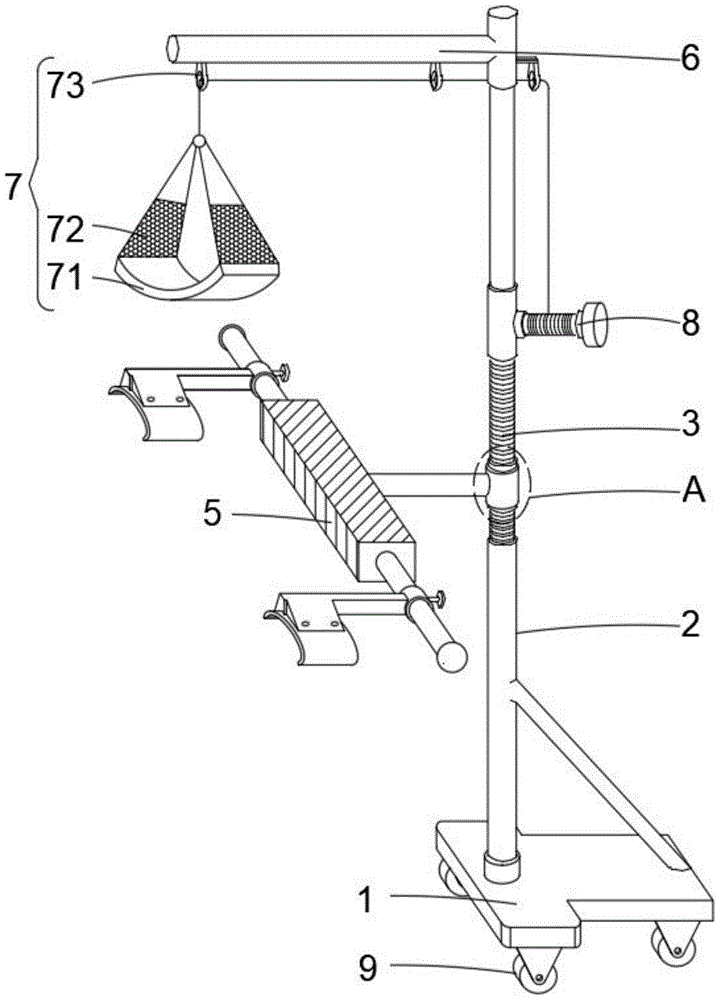

Fig. 1 is the structural representation of a kind of preferred embodiment of the mobile nursing rehabilitation treatment frame structure provided by the utility model;

Fig. 2 is the enlarged structure schematic diagram of the place A shown in Fig. 1;

FIG. 3 is a schematic structural diagram of the shoulder pressing mechanism shown in FIG. 1 .

Labels in the figure: 1. Bottom plate, 2. Support rod, 3. Threaded segment, 4. Adjuster, 41. First threaded ring, 42, Second threaded ring, 43. Sliding sleeve, 5. Shoulder pressing mechanism, 51 , connecting rod, 52, mounting plate, 53, sliding rod, 54, adjusting ring, 55, threaded locking rod, 56, mounting bracket, 57, curved plate, 6, cross bar, 7, pull-up mechanism, 71, lower jaw Plate, 72, elastic cloth belt, 73, fixed pulley, 8, rotating rod, 9, locking universal wheel.

Detailed ways

The present utility model will be further described below with reference to the accompanying drawings and embodiments.

Please refer to FIG. 1, FIG. 2 and FIG. 3 in conjunction, wherein, FIG. 1 is a schematic structural diagram of a preferred embodiment of the mobile nursing and rehabilitation treatment frame structure provided by the present invention; An enlarged schematic view of the structure; FIG. 3 is a schematic view of the structure of the shoulder pressing mechanism shown in FIG. 1 . The structure of the mobile nursing and rehabilitation treatment frame includes: a bottom plate 1 , a shoulder pressing mechanism 5 and a pull-up mechanism 7 .

In the specific implementation process, as shown in FIG. 1 and FIG. 2 , a vertically arranged support rod 2 is fixedly installed on the base plate 1 , and a threaded section 3 is provided on the support rod 2 , and the shoulder pressing mechanism 5 is installed on the On the threaded section 3, the adjuster 4 includes a first threaded ring 41, a second threaded ring 42 and a sliding sleeve 43. Both the first threaded ring 41 and the second threaded ring 42 are threadedly sleeved on the threaded section 3, and the sliding sleeve The tube 43 is sleeved on the threaded section 3 and is between the first threaded ring 41 and the second threaded ring 42, and the side wall of the sliding sleeve 43 is fixedly connected with one end of the connecting rod 51, and the shoulder pressing mechanism 5 includes the connecting rod. 51. Mounting plate 52, sliding rod 53, adjusting ring 54, threaded locking rod 55, mounting bracket 56 and arc-shaped plate 57, one end of the connecting rod 51 is connected to the adjuster 4, and the other end of the connecting rod 51 is connected to the mounting plate 52 The middle part of the mounting plate 52 is fixedly connected, the two ends of the mounting plate 52 are fixedly installed with sliding rods 53, and each sliding rod 53 is sleeved with a sliding connection adjustment ring 54, and one side wall of the adjustment ring 54 is provided with a threaded through hole. , and a threaded locking rod 55 is inserted into the threaded through hole, the other side wall of the adjusting ring 54 is fixedly mounted with a mounting bracket 56 , and the other end of the mounting bracket 56 is fixedly mounted with an arc-shaped plate 57 .

It should be noted that: the patient sits on a chair, pushes the device to the front of the patient, and rotates the first threaded ring 41 and the second threaded ring 42 to the highest and lowest points of the threaded section 3 respectively, and then move the sliding sleeve 43 So that the two arc-shaped plates 57 can be erected on the shoulders of both sides of the patient, after rotating the second threaded ring 42 and sliding up until it contacts with the sliding sleeve 43, the sliding adjustment ring 54 enables the two arc-shaped plates 57 to be stable. Set on the patient's shoulder, rotate and tighten the threaded locking rod 55 to fix the arc plate 57, rotate the first threaded ring 41 and slide down to fix the sliding sleeve 43 between the first threaded ring 41 and the second threaded ring 42, thus completing The shoulder pressing mechanism 5 can fix the shoulder of the patient, and the adjuster 4 can flexibly adjust the height of the shoulder pressing mechanism 5, so that the shoulder pressing mechanism 5 can be adjusted according to the height of the patient, and the arc plate 57 on the shoulder pressing mechanism 5 can be adjusted. It can be adjusted along with the adjustment ring 54, so the arc plate 57 of the shoulder pressing mechanism 5 can be flexibly adjusted according to the shoulder width of the patient.

Referring to FIG. 1, the pull-up mechanism 7 is installed on the cross bar 6, and the cross bar 6 is fixedly installed on the top of the support rod 2 and is vertically arranged on the support rod 2. The pull-up mechanism 7 includes a lower jaw plate 71 and an elastic cloth belt 72. And the fixed pulley 73, elastic cloth belts 72 are fixedly sewn on both sides of the lower jaw plate 71, and the tops of the two elastic cloth belts 72 are fixedly connected with the steel wire, and a plurality of fixed pulleys 73 are installed on the support rod 2 through brackets , and the steel wire passes through the fixed pulley 73 in turn and is wound and connected with the rotating rod 8 , and the rotating rod 8 is rotatably connected with the rod wall of the support rod 2 .

It should be noted that: the patient places the lower jaw on the lower jaw plate 71, and the elastic cloth belts 72 on both sides of the patient's face, so that the medical staff winds the steel wire by rotating the rotating rod 8, so the lower jaw plate 71 pulls the patient's neck upward, Since the patient's shoulder is restricted by the shoulder pressing mechanism 5, the rehabilitation care for the patient's neck, shoulder and the like is enhanced.

Among them, the connecting rod 51, the mounting frame 56 and the cross rod 6 are parallel to each other, and the sliding rods 53 on both sides of the mounting plate 52 are coaxial, so that the shoulder pressing mechanism 5 and the pulling mechanism 7 on the cross rod 6 maintain a balance, while the lower jaw The upper surface of the plate 71 is fitted with a silicone pad conforming to the lower jaw of the human body, so as to improve the comfort of the patient during traction.

Among them, a plurality of locking universal wheels 9 are installed at the bottom of the base plate 1, which is convenient for moving or braking the equipment.

The working principle of the mobile nursing and rehabilitation treatment frame structure provided by the utility model is as follows:

The patient sits on the chair, pushes the device in front of the patient, rotates the first threaded ring 41 and the second threaded ring 42 to the highest point and the lowest point of the threaded segment 3 respectively, at this time, move the sliding sleeve 43 to make the two arcs The plate 57 can be installed on the shoulders of both sides of the patient. After rotating the second threaded ring 42 and sliding up until it is in contact with the sliding sleeve 43, the adjusting ring 54 is slid so that the two arc-shaped plates 57 can be stably installed on the shoulders of the patient. , rotate and tighten the threaded locking rod 55 to fix the arc-shaped plate 57, rotate the first threaded ring 41 to slide down to fix the sliding sleeve 43 between the first threaded ring 41 and the second threaded ring 42, thus completing the 5 pairs of shoulder pressing mechanisms Fixed pressing of the patient's shoulder, and the adjuster 4 can flexibly adjust the height of the shoulder pressing mechanism 5, so that the shoulder pressing mechanism 5 can be adjusted according to the height of the patient, and the arc plate 57 on the shoulder pressing mechanism 5 can follow the adjustment ring. 54 is adjusted, so the arc plate 57 of the shoulder pressing mechanism 5 can be flexibly adjusted according to the shoulder width of the patient. The rotating rod 8 is wound around the steel wire, so the lower jaw plate 71 pulls the patient's neck upward. Since the patient's shoulder is restricted by the shoulder pressing mechanism 5, the rehabilitation care for the patient's neck and shoulder is enhanced.

In the description of the present invention, it should be noted that the terms "center", "upper", "lower", "left", "right", "vertical", "horizontal", "inner" and "outer" The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the accompanying drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation, with a specific orientation. Therefore, it should not be construed as a limitation on the present invention.

The above are only the embodiments of the present invention, and are not intended to limit the patent scope of the present invention. Any equivalent structure or equivalent process transformation made by using the contents of the description and accompanying drawings of the present invention, or directly or indirectly applied to other Relevant technical fields are similarly included in the scope of patent protection of the present invention.

Claims (6)

1. The utility model provides a portable nursing rehabilitation frame structure which characterized in that includes:

the support device comprises a bottom plate (1), wherein a support rod (2) which is vertically arranged is fixedly arranged on the bottom plate (1), and a section of thread section (3) is arranged on the support rod (2);

shoulder pressing mechanism (5), shoulder pressing mechanism (5) is installed on screw thread section (3) through regulator (4), and shoulder pressing mechanism (5) includes connecting rod (51), mounting panel (52), slide bar (53), adjustable ring (54), screw thread locking lever (55), mounting bracket (56) and arc (57), the one end and the regulator (4) of connecting rod (51) are connected, and the other end of connecting rod (51) and the middle part fixed connection of mounting panel (52), the equal fixed mounting in both ends of mounting panel (52) has slide bar (53), and all overlaps on each slide bar (53) and is equipped with sliding connection's adjustable ring (54), the screw thread through-hole has been seted up to a lateral wall of adjustable ring (54), and screw thread through-hole interpolation is equipped with screw thread locking lever (55) of threaded connection, another lateral wall fixed mounting bracket (56) of adjustable ring (54), the other end of the mounting rack (56) is fixedly provided with an arc-shaped plate (57);

the upper pulling mechanism (7) is installed on the cross rod (6), and the cross rod (6) is fixedly installed at the top of the supporting rod (2) and is vertically arranged on the supporting rod (2).

2. The mobile nursing rehabilitation frame structure according to claim 1, characterized in that the adjuster (4) comprises a first threaded ring (41), a second threaded ring (42) and a sliding sleeve (43), the first threaded ring (41) and the second threaded ring (42) are both threaded on the threaded section (3), the sliding sleeve (43) is sleeved on the threaded section (3) and between the first threaded ring (41) and the second threaded ring (42), and the side wall of the sliding sleeve (43) is fixedly connected with one end of the connecting rod (51).

3. The mobile nursing rehabilitation frame structure according to claim 1, wherein the pull-up mechanism (7) comprises a lower jaw plate (71), an elastic cloth belt (72) and fixed pulleys (73), the elastic cloth belt (72) is fixedly sewn on both sides of the lower jaw plate (71), the tops of the two elastic cloth belts (72) are fixedly connected with a steel wire, the fixed pulleys (73) are mounted on the support rod (2) through a bracket, the steel wire sequentially passes through the fixed pulleys (73) to be wound and connected with the rotating rod (8), and the rotating rod (8) is rotatably connected with the rod wall of the support rod (2).

4. The mobile nursing rehabilitation frame structure according to claim 1, characterized in that the connecting rod (51), the mounting frame (56) and the cross bar (6) are parallel to each other, and the sliding rods (53) on both sides of the mounting plate (52) are coaxial.

5. The mobile nursing rehabilitation frame structure according to claim 3, characterized in that the upper surface of the lower jaw plate (71) is embedded with a silica gel pad conforming to the lower jaw of the human body.

6. The mobile nursing rehabilitation frame structure according to claim 1, characterized in that the bottom of the bottom plate (1) is mounted with a plurality of locking universal wheels (9).
