Abstract

The utility model proposes a 3D three-dimensional in-mold label, which comprises a plastic plate layer, a raised portion is arranged on the upper side of the plastic plate layer, and the raised portion is arranged at intervals from the edge of the plastic plate layer, so that the The upper side of the plastic board layer is provided with an annular adhesive layer around the raised portion, the adhesive layer is provided with an annular first release paper layer, and the lower part of the plastic board layer is provided with an annular adhesive layer. A first film layer is arranged on the side, a pattern layer is printed on the upper side of the first film layer, a paper layer is arranged on the lower side of the first film layer, and the lower side of the paper layer is A second film layer is provided, a number of through holes are distributed on the second film layer, a cloth layer is arranged on the lower side of the second film layer, and a hot melt is arranged on the lower side of the cloth layer The adhesive layer is provided with a second release paper layer on the lower side of the hot-melt adhesive layer.

Description

A 3D three-dimensional in-mold label

technical field

The utility model relates to a 3D three-dimensional in-mold label.

Background technique

Labels commonly used at home and abroad are generally mainly made of paper and film materials. Most of these labels are flat labels. Although they can show people the information of the product well, the sticky notes also need to consider the effect of their decoration, so the labels will also be designed as much as possible.

Utility model content

In view of the problems pointed out in the background art, the present invention proposes a 3D three-dimensional in-mold label with better display effect.

The technical scheme of the present utility model is achieved in this way:

A 3D three-dimensional in-mold label, comprising a plastic board layer, a raised portion is provided on the upper side of the plastic board layer, the raised portion is spaced apart from the edge of the plastic board layer, and the plastic board layer An annular adhesive layer is arranged around the raised portion on the upper side of the upper side, the adhesive layer is provided with an annular first release paper layer, and the lower side of the plastic plate layer is provided with a first release paper layer. A film layer, a pattern layer is printed on the upper side of the first film layer, a paper layer is arranged on the lower side of the first film layer, and a second film is arranged on the lower side of the paper layer There are several through holes distributed on the second film layer, a cloth layer is arranged on the lower side of the second film layer, a hot melt adhesive layer is arranged on the lower side of the cloth layer, and the The lower side of the hot melt adhesive layer is provided with a second release paper layer.

The utility model is further provided that the plastic plate layer and the raised portion are both transparent.

The utility model is further provided that the plastic plate layer has a circular structure.

The utility model is further provided that the thickness of the plastic plate layer is 0.8-2mm, and the thickness of the protruding portion is 3-6mm.

According to the present invention, the thickness of the first thin film layer and the second thin film layer is 0.6-1.2 mm.

The utility model is further provided that the paper layer is kraft paper.

Having adopted the above-mentioned technical scheme, the beneficial effects of the present utility model are:

In the 3D three-dimensional in-mold label provided by the utility model, the arrangement of the protruding part makes the label have a 3D three-dimensional texture, the protruding part can enhance the decorative display performance of the label, and can also form the effect of a magnifying lens, which is convenient for observing the sticky note. pattern information.

Description of drawings

In order to more clearly illustrate the embodiments of the present utility model or the technical solutions in the prior art, the following briefly introduces the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are just some embodiments of the present invention, and for those of ordinary skill in the art, other drawings can also be obtained from these drawings without any creative effort.

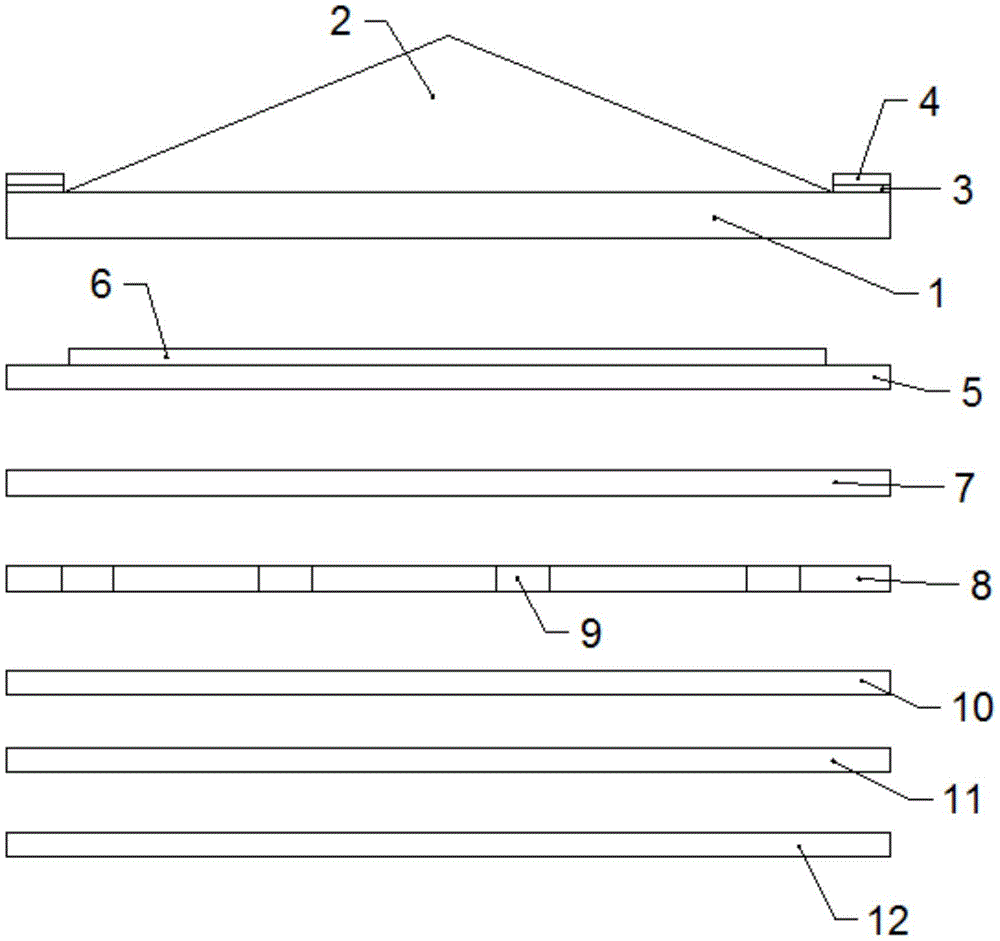

Fig. 1 is the exploded structure schematic diagram of the present utility model;

FIG. 2 is a top view of the utility model.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

The utility model is described below with reference to Figures 1-2:

A 3D three-dimensional in-mold label, comprising a plastic sheet layer 1, a raised portion 2 is provided on the upper side of the plastic sheet layer 1, and the raised portion 2 is arranged at intervals from the edge of the plastic sheet layer 1, so that the The upper side of the plastic sheet layer 1 is provided with an annular adhesive layer 3 around the raised portion 2, and the adhesive layer 3 is provided with an annular first release paper layer 4. 3 It is convenient to stick the sticky note on the inner side of the mold.

The lower side of the plastic plate layer 1 is provided with a first film layer 5, the upper side of the first film layer 5 is printed with a pattern layer 6, and the lower side of the first film layer 5 is provided with a pattern layer 6. There is a paper layer 7, a second film layer 8 is arranged on the lower side of the paper layer 7, and a plurality of through holes 9 are distributed on the second film layer 8. The lower side of the second film layer 8 A cloth layer 10 is provided on the top, a hot melt adhesive layer 11 is provided on the lower side of the cloth layer 10 , and a second release paper layer 12 is provided on the lower side of the hot melt adhesive layer 11 .

Wherein, the plastic plate layer 1 and the raised portion 2 are both transparent.

Wherein, the plastic sheet layer 1 has a circular structure.

Wherein, the thickness of the plastic plate layer 1 is 0.8-2 mm, and the thickness of the protruding portion 2 is 3-6 mm.

Wherein, the thickness of the first film layer 5 and the second film layer 8 is 0.6-1.2mm.

Wherein, the paper layer 7 is kraft paper.

Having adopted the above-mentioned technical scheme, the beneficial effects of the present utility model are:

In the 3D three-dimensional in-mold label provided by the present invention, the arrangement of the protruding part 2 makes the label have a 3D three-dimensional texture. The protruding part 2 can enhance the decorative display performance of the label, and can also form the effect of a magnifying lens, which is convenient for observation Pattern information on sticky notes.

The above are only preferred embodiments of the present invention, and are not intended to limit the present invention. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present invention shall include within the scope of protection of the present invention.

Claims (6)

1. A3D three-dimensional in-mold label is characterized in that: including the plastics sheet layer, the last side on plastics sheet layer on be equipped with the bellying, the marginal interval on bellying and plastics sheet layer set up, the last side on plastics sheet layer on encircle the bellying be equipped with annular viscose layer, viscose layer on be equipped with annular first type paper layer, the downside on plastics sheet layer on be equipped with first thin layer, the last side on first thin layer on the printing have a pattern layer, the downside on first thin layer on be equipped with the ply, the downside of ply on be equipped with the second thin layer, the second thin layer on distribute and have a plurality of through-holes, the downside on second thin layer on be equipped with the cloth layer, the downside on cloth layer on be equipped with the hot melt adhesive layer, the downside of hot melt adhesive layer on be equipped with the second and leave type paper layer.

2. A 3D stereoscopic in-mold label according to claim 1, characterized in that: the plastic plate layer and the protruding portion are arranged in a transparent mode.

3. A 3D stereoscopic in-mold label according to claim 1, characterized in that: the plastic plate layer is of a circular structure.

4. A 3D stereoscopic in-mold label according to claim 1, characterized in that: the thickness of the plastic plate layer is 0.8-2mm, and the thickness of the protruding part is 3-6 mm.

5. A 3D stereoscopic in-mold label according to claim 1, characterized in that: the thickness of the first film layer and the second film layer is 0.6-1.2 mm.

6. A 3D stereoscopic in-mold label according to claim 1, characterized in that: the paper layer is kraft paper.
