Abstract

The utility model discloses a reinforced collecting tube type air cooler, which relates to the technical field of air refrigeration. The utility model comprises a base and a serpentine pipe, a high-pressure water pump is fixed on one surface of the base, a connecting component is fixedly connected to both ends of the serpentine pipe, one end of the liquid outlet of the high-pressure water pump is fixedly connected with a liquid inlet pipe, and the other end of the liquid inlet pipe passes through a The connecting component is in fixed communication with one end of the serpentine tube, and the other end of the other connecting component is in fixed communication with an infusion tube. The utility model supports the outer wall of the serpentine tube through a plurality of radiating fins arranged on the fixing plate, so that the strength of the outer wall of the serpentine tube can be increased, so that the stability during heat exchange is stronger, and to a certain extent, it greatly improves the The service life of the serpentine tube reduces the probability of the serpentine tube cracking during the heat exchange process, so as to better meet the needs of actual production.

Description

A reinforced manifold air cooler

technical field

The utility model belongs to the technical field of air refrigeration, in particular to a reinforced manifold type air cooler.

Background technique

The air cooler is a heat exchanger that uses air to cool the hot fluid. The hot fluid in the tube exchanges heat with the air outside the tube through the tube wall and fins. The air used is usually supplied by a fan. The air cooler can be used for cooling or condensation. It is widely used in oil refining, condensation of petrochemical tower overhead vapor, cooling of tower bottom oil, cooling of various reaction products, cooling of circulating gas and condensation of exhaust gas from steam turbines of power plants.

When the manifold air cooler is in use, due to the lack of necessary protective structures for auxiliary support, the stability of the manifold air cooler during cold and heat exchange is poor, and the phenomenon of pipe cracking is prone to occur. At the same time, because the outer wall of the pipe is The contact area with the air is small, resulting in low heat exchange efficiency and increased heat exchange time, which is not conducive to the rapid cooling of the liquid in the pipeline and cannot meet the needs of practical applications.

Utility model content

The purpose of the present utility model is to provide a reinforced manifold type air cooler. The outer wall of the serpentine tube is supported by a number of radiating fins arranged on the fixing plate, so that the strength of the outer wall of the serpentine tube can be increased, so that the heat exchange can be improved. The stability is stronger, and to a certain extent, the service life of the serpentine tube is greatly improved, and the probability of cracking of the serpentine tube during the heat exchange process is reduced, so as to better meet the needs of actual production.

In order to solve the above-mentioned technical problems, the utility model is realized through the following technical solutions:

The utility model relates to a reinforced manifold type air cooler, comprising a base and a serpentine tube, a high-pressure water pump is fixed on one surface of the base, and connecting components are fixedly connected to both ends of the serpentine tube, and the high-pressure water pump is connected with each other. One end of the liquid outlet is fixedly connected with a liquid inlet pipe, the other end of the liquid inlet pipe is fixedly connected with one end of the serpentine pipe through a connecting component, and the other end of the other connecting component is fixedly connected with an infusion pipe;

One surface of the base is provided with a card slot, the inner wall of the card slot is fixed with a fixing plate, a surface of the fixing plate is fixed with a number of radiating fins arranged linearly, and the serpentine tube is located inside the plurality of radiating fins and is connected with the radiating fins. The inner wall is fixedly connected.

Further, the cross-section of the heat sink is a "U"-shaped structure.

Further, a baffle plate is fixed on one surface of the base, the baffle plate has an "L"-shaped structure in cross section, and the baffle plate is located between the high-pressure water pump and the serpentine tube.

Further, an inner cavity is opened inside the base, an air pump is fixed on an inner wall of the inner cavity, a surface of the base is provided with a plurality of air inlet holes, and the plurality of air inlet holes are connected with the interior of the inner cavity.

Further, an air supply channel is fixed through a surface of the base, and one end of the air supply channel is communicated with the interior of the inner cavity.

Further, a plurality of feet are fixed on the bottom of the base, and the feet are of a suction cup type structure.

The utility model has the following beneficial effects:

1. The utility model supports the outer wall of the serpentine tube through a number of radiating fins arranged on the fixed plate, so that the strength of the outer wall of the serpentine tube can be increased, so that the stability is stronger during heat exchange, and to a certain extent, greatly The service life of the serpentine tube is improved, and the probability of cracking of the serpentine tube during the heat exchange process is reduced, so as to better meet the use requirements of actual production.

2. The utility model increases the efficiency of liquid heat conduction in the serpentine tube through a number of fins arranged on the outer wall of the serpentine tube, so that the heat exchange efficiency of the liquid in the serpentine tube is improved, thereby reducing the liquid heat transfer in the serpentine tube. The time length of the air cooler reduces the footprint of the air cooler and better meets its needs in actual use.

Of course, any product implementing the present invention does not necessarily need to simultaneously achieve all of the above-mentioned advantages.

Description of drawings

In order to illustrate the technical solutions of the embodiments of the present invention more clearly, the accompanying drawings required for the description of the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only some embodiments of the present invention. For those of ordinary skill in the art, other drawings can also be obtained from these drawings without creative effort.

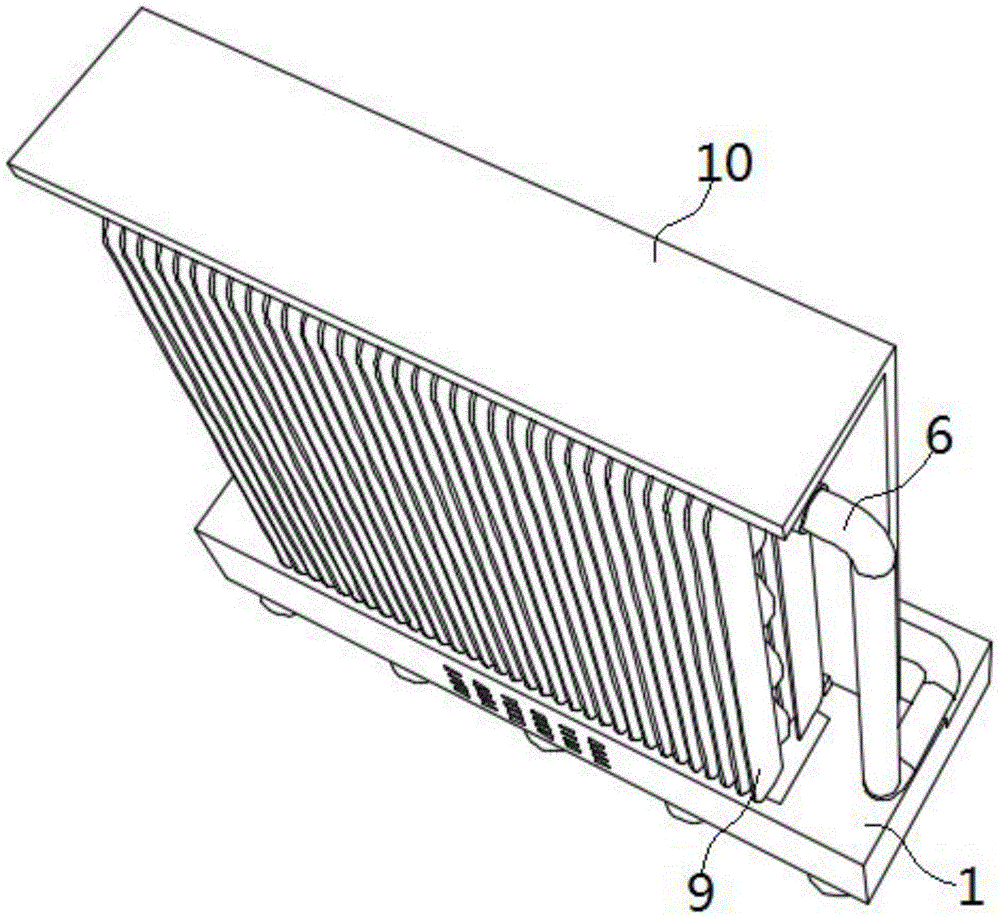

Fig. 1 is the structural representation of a kind of reinforced manifold type air cooler of the present invention;

Fig. 2 is the front view of the structure of Fig. 1;

Fig. 3 is the right side view of the structure of Fig. 1;

FIG. 4 is a schematic structural diagram of a fixed plate and a heat sink;

5 is a schematic structural diagram of a serpentine tube, a connecting assembly, an infusion tube and a liquid inlet tube;

Figure 6 is a schematic structural diagram of a base, an inner cavity, an air pump and an air supply duct;

In the accompanying drawings, the list of components represented by each number is as follows:

1-base, 2-high pressure water pump, 3-serpentine tube, 4-connection assembly, 5-infusion tube, 6-liquid inlet tube, 7-card slot, 8-fixed plate, 9-radiator fin, 10-baffle plate , 11-inner cavity, 12-air inlet, 13-air pump, 14-air supply duct, 15-foot.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to FIGS. 1-6 , the present utility model is a reinforced manifold type air cooler, comprising a base 1 and a serpentine tube 3, a high-pressure water pump 2 is fixed on one surface of the base 1, and both ends of the serpentine tube 3 are A connecting component 4 is fixedly communicated with, one end of the liquid outlet of the high-pressure water pump 2 is fixedly connected with a liquid inlet pipe 6, the other end of the liquid inlet pipe 6 is fixedly connected with one end of the serpentine tube 3 through a connecting assembly 4, and the other end of the other connecting assembly 4 is fixed. An infusion tube 5 is communicated with;

One surface of the base 1 is provided with a card slot 7, the inner wall of the card slot 7 is fixed with a fixed plate 8, one surface of the fixed plate 8 is fixed with forty cooling fins 9 in a linear arrangement, and the serpentine tube 3 is located inside the forty cooling fins 9 And it is fixed with the inner wall of the heat sink 9 by welding.

As shown in FIG. 3 , the cross-section of the heat sink 9 is a “U”-shaped structure.

As shown in FIGS. 3 and 5 , a baffle 10 is fixed on one surface of the base 1 . The baffle 10 has an “L”-shaped structure in cross section.

As shown in FIG. 6 , an inner cavity 11 is opened inside the base 1 , an air pump 13 is fixed on an inner wall of the inner cavity 11 , and twenty-four air intake holes 12 are opened on a surface of the base 1 , and the twenty-four air intake holes 12 are all It communicates with the interior of the inner cavity 11 , and an air supply duct 14 is fixed through one surface of the base 1 , and one end of the air supply duct 14 communicates with the interior of the inner cavity 11 .

As shown in FIG. 2 , ten feet 15 are fixed at the bottom of the base 1 , and the feet 15 are of a suction cup type structure.

A specific application of this embodiment is as follows: first, place the air cooler on the level ground at a designated position, use ten feet 15 to make the air cooler firmly adsorb on the ground, and then feed the high-pressure water pump 2 into the liquid One end of the port is fixedly connected with one end of the hot fluid supply pipe, and one end of the infusion pipe 5 is fixedly connected with one end of the liquid inlet of the liquid storage tank, and the high-pressure water pump 2 and the air pump 13 are energized, and the high-pressure water pump 2 continuously feeds the hot fluid to be cooled into the snake. In the shape tube 3, the thermal fluid in the serpentine tube 3 uses the outer wall of the serpentine tube 3 and the forty fins 9 to export its own heat, and the air pump 13 blows out the cold air from the outside along the air supply duct 14, and the serpentine shape is blown out. The outer wall of the tube 3 and the forty fins 9 are cooled to complete the heat exchange between the air and the thermal fluid in the serpentine tube 3, so that the thermal fluid inside the serpentine tube 3 is cooled, and finally discharged along the infusion tube 5 to be collected.

In the description of this specification, description with reference to the terms "one embodiment", "example", "specific example", etc. means that a specific feature, structure, material or characteristic described in connection with the embodiment or example is included in the present invention. in at least one embodiment or example. In this specification, schematic representations of the above terms do not necessarily refer to the same embodiment or example. Furthermore, the particular features, structures, materials or characteristics described may be combined in any suitable manner in any one or more embodiments or examples.

The preferred embodiments of the present invention disclosed above are only used to help illustrate the present invention. The preferred embodiments do not describe all the details, nor do they limit the invention to only the described embodiments. Obviously, many modifications and variations are possible in light of the contents of this specification. This specification selects and specifically describes these embodiments in order to better explain the principle and practical application of the present invention, so that those skilled in the art can well understand and utilize the present invention. The present invention is limited only by the claims and their full scope and equivalents.

Claims (6)

1. The utility model provides a strenghthened type collecting pipe air cooler, includes base (1), its characterized in that: the device is characterized by further comprising a coiled pipe (3), wherein a high-pressure water pump (2) is fixed on one surface of the base (1), two ends of the coiled pipe (3) are fixedly communicated with connecting assemblies (4), one end of a liquid outlet of the high-pressure water pump (2) is fixedly communicated with a liquid inlet pipe (6), the other end of the liquid inlet pipe (6) is fixedly communicated with one end of the coiled pipe (3) through one connecting assembly (4), and the other end of the other connecting assembly (4) is fixedly communicated with a liquid conveying pipe (5);

the base (1) one surface is opened there is draw-in groove (7), draw-in groove (7) inner wall is fixed with fixed plate (8), fixed plate (8) one surface is fixed with a plurality of fin (9) that are linear arrangement, coiled pipe (3) are located inside a plurality of fin (9) and with fin (9) inner wall fixed connection.

2. An enhanced manifold air cooler according to claim 1, characterized in that the cross section of the cooling fins (9) is of a "U" shape.

3. A reinforced manifold type air cooler according to claim 1, characterized in that a baffle (10) is fixed on one surface of the base (1), the cross section of the baffle (10) is of an L-shaped structure, and the baffle (10) is positioned between the high pressure water pump (2) and the serpentine pipe (3).

4. A reinforced manifold type air cooler according to claim 1, wherein an inner cavity (11) is formed inside the base (1), an air pump (13) is fixed on one inner wall of the inner cavity (11), a plurality of air inlets (12) are formed in one surface of the base (1), and the plurality of air inlets (12) are communicated with the inside of the inner cavity (11).

5. An enhanced manifold type air cooler according to claim 1, characterized in that an air supply duct (14) is fixed on one surface of the base (1) in a penetrating manner, and one end of the air supply duct (14) is communicated with the inside of the inner cavity (11).

6. An enhanced manifold air cooler according to claim 1, characterized in that a plurality of foot pads (15) are fixed on the bottom of the base (1), and the foot pads (15) are of a sucker type structure.
