Abstract

本实用新型公开一种正反烧结合燃煤炉具,包括底座和安装于底座上方的炉体,底座和炉体之间设置有炉排,炉体后部连接有烟箱,炉体内部设置有用于分隔内部空间的竖直的隔板,形成前部的热解室和后部的炊事火道,隔板的上端连接炉体,隔板的下端与炉排之间设置有连通热解室和炊事火道并用于半焦物通过的间隙,热解室上方设置有加煤口,并设置有加煤门,炊事火道上方设置有炊事口。兼有反烧消烟、正烧炊事火力强的优点,且消除了反烧炊事弱、正烧黑烟多的缺陷。供暖时段长,要求火力适中、稳定;炊事时段短,要求火力旺盛。炊事前将半焦物送入正烧区域,可快速提升火力;而正烧区域较小,半焦物燃尽后火力迅速下降,不会浪费燃料。

Figure 201922101691

The utility model discloses a coal-fired stove combined with forward and reverse combustion, which comprises a base and a furnace body installed above the base, a grate is arranged between the base and the furnace body, a smoke box is connected to the rear of the furnace body, and a furnace body is arranged inside the furnace body. There is a vertical partition for separating the inner space, forming a pyrolysis chamber at the front and a cooking fire channel at the rear, the upper end of the partition is connected to the furnace body, and a connected pyrolysis chamber is arranged between the lower end of the partition and the grate. A coal feeding port is arranged above the pyrolysis chamber and a coal feeding door, and a cooking port is arranged above the cooking fire channel. It has the advantages of anti-burning and eliminating smoke, and strong firepower for cooking, and eliminates the defects of weak anti-burning and more black smoke. The heating period is long, and the firepower is moderate and stable; the cooking period is short, and the firepower is strong. Sending the semi-char to the burning area before cooking can quickly increase the firepower; while the hot-burning area is small, the firepower will drop rapidly after the semi-char is burnt out, and no fuel will be wasted.

Figure 201922101691

Description

一种正反烧结合燃煤炉具A kind of forward and reverse combustion combined coal-fired stove

技术领域technical field

本实用新型涉及炊事炉具领域,特别是涉及一种正反烧结合燃煤炉具。The utility model relates to the field of cooking stoves, in particular to a coal-fired stove combined with forward and reverse combustion.

背景技术Background technique

在我国农村和城郊地区,仍有大量家庭采用相对分散的燃煤供热方式,不仅效率低、污染严重,而且对环境的影响数倍于其燃料消耗所占的比例。目前我国每年消费大量煤炭,其中民用部分基本上全部为分散式焚烧,没有采取除尘、脱硫等环保措施,散煤燃烧排放的污染物量是火电燃煤排放的5至10倍。In my country's rural and suburban areas, there are still a large number of households that use relatively scattered coal-fired heating methods, which are not only inefficient and polluting, but also have an impact on the environment several times the proportion of their fuel consumption. At present, my country consumes a large amount of coal every year, of which the civil part is basically all incinerated in a decentralized manner, and no environmental protection measures such as dust removal and desulfurization are taken.

家用燃煤炉具的燃烧过程具有周期性,燃烧初期容易空气不足,煤热解气化产生的煤气不能充分燃烧,大量毒害和可燃成分随烟气排放,造成环境污染和能量损失;燃烧后期煤层减薄,过量的空气又会降低炉温和传热效率,并增大排烟热损失。部分炉型仅通过高温富氧的方式来提高煤的燃烧效率,但却会加大氮氧化物(NOx)排放。另外,提高燃烧温度还会增大脱硫逆反应,降低炉内脱硫效率。The combustion process of household coal-fired stoves is cyclical. In the early stage of combustion, air is easily insufficient, and the gas produced by coal pyrolysis and gasification cannot be fully burned, and a large number of toxic and combustible components are discharged with the flue gas, causing environmental pollution and energy loss; the coal seam in the later stage of combustion Thinning, excess air will reduce furnace temperature and heat transfer efficiency and increase exhaust heat loss. Some furnace types only improve the combustion efficiency of coal by means of high temperature oxygen enrichment, but will increase the emission of nitrogen oxides (NOx). In addition, increasing the combustion temperature will also increase the reverse reaction of desulfurization and reduce the desulfurization efficiency in the furnace.

现有的炉具分为两种类型,分为正烧式的反烧式的,其中正烧最普遍的直燃方式。固体燃料燃烧时,火焰顺热烟气自然流动方向传播,优点是燃烧强度高,火力旺,能满足用户炊事需求,缺点是挥发份析出速度快,容易产生黑烟,适用于无烟煤等挥发份低的燃料。反烧固体燃料燃烧时,火焰逆热烟气自然流动方向传播,优点是能延缓挥发分析出速度的特点,炉温高、燃烧充分,可基本消除黑烟,颗粒物排放浓度低,缺点是燃烧强度低,火力较弱,不宜用于炊事,适用于烟煤等挥发份高的燃料。Existing stoves are divided into two types, which are positive-firing and reverse-firing, among which positive-firing is the most common direct-firing method. When the solid fuel burns, the flame spreads along the natural flow direction of the hot flue gas. The advantage is that the combustion intensity is high and the firepower is strong, which can meet the cooking needs of users. of fuel. When the anti-burning solid fuel is burned, the flame spreads against the natural flow direction of the hot flue gas. The advantage is that it can delay the speed of volatilization analysis. The furnace temperature is high and the combustion is sufficient, which can basically eliminate black smoke. Low, weak firepower, not suitable for cooking, suitable for high volatile fuel such as bituminous coal.

目前,家用燃煤炉具大都使用普通正烧原理,空气从炉具底部进入,通过整个炉膛,其燃烧过程具有周期性,燃烧初期容易空气不足,煤热解气化产生的煤气不能充分燃烧,大量毒害和可燃成分随烟气排放,造成环境污染和能量损失;燃烧后期煤层减薄,过量的空气又会降低炉温和传热效率,并增大排烟热损失。At present, most household coal-fired stoves use the common burning principle. Air enters from the bottom of the stove and passes through the entire furnace. The combustion process is periodic. At the initial stage of combustion, air is easily insufficient, and the gas produced by coal pyrolysis and gasification cannot be fully burned. A large number of toxic and combustible components are discharged with the flue gas, causing environmental pollution and energy loss; the coal seam is thinned in the later stage of combustion, and the excess air will reduce the furnace temperature and heat transfer efficiency, and increase the heat loss of exhaust gas.

因此,如何提供一种能够克服上述缺陷的燃煤炉具是本领域技术人员目前需要解决的技术问题。Therefore, how to provide a coal-fired stove that can overcome the above-mentioned defects is a technical problem that those skilled in the art need to solve at present.

实用新型内容Utility model content

本实用新型的目的是提供一种正反烧结合燃煤炉具,在炉体内部设置有热解室和炊事火道,分别进行正烧和反烧,兼具两种燃烧方式的优点,克服现有技术存在的缺陷。The purpose of this utility model is to provide a coal-fired stove combined with forward and reverse combustion. A pyrolysis chamber and a cooking fire channel are arranged inside the furnace body, and the forward and reverse combustion are carried out respectively, which has the advantages of both combustion methods and overcomes the Defects in the prior art.

为解决上述技术问题,本实用新型提供一种正反烧结合燃煤炉具,包括底座和安装于所述底座上方的炉体,所述底座和所述炉体之间设置有炉排,所述炉体后部连接有烟箱,所述炉体内部设置有用于分隔内部空间的竖直的隔板,形成前部的热解室和后部的炊事火道,所述隔板的上端连接所述炉体,所述隔板的下端与所述炉排之间设置有连通所述热解室和所述炊事火道并用于半焦物通过的间隙,所述热解室上方设置有加煤口,并设置有加煤门,所述炊事火道上方设置有炊事口。In order to solve the above technical problems, the utility model provides a coal-fired stove combined with forward and reverse combustion, comprising a base and a furnace body installed above the base, and a grate is arranged between the base and the furnace body, so The rear part of the furnace body is connected with a smoke box, and the furnace body is provided with a vertical partition plate for separating the internal space, forming a pyrolysis chamber in the front part and a cooking fire channel in the rear part, and the upper end of the partition plate is connected to In the furnace body, a gap is provided between the lower end of the partition plate and the grate, which communicates the pyrolysis chamber and the cooking fire channel and is used for the passage of semi-char, and a heater is arranged above the pyrolysis chamber. The coal port is provided with a coal feeding door, and a cooking port is provided above the cooking fire channel.

优选地,所述炉体及所述烟箱的外壳包括相互间隔的内胆和外胆,在所述内胆和所述外胆之间形成水套夹层,所述烟箱上部设置有连通所述水套夹层的出水口,所述炉体下部设置有连通所述水套夹层的回水口。Preferably, the furnace body and the outer shell of the smoke box include an inner tank and an outer tank that are spaced apart from each other, a water jacket interlayer is formed between the inner tank and the outer tank, and the upper part of the smoke box is provided with a communication The water outlet of the water jacket interlayer, and the lower part of the furnace body is provided with a water return port that communicates with the water jacket interlayer.

优选地,所述烟箱包括竖直的连接部和水平的过渡部,所述过渡部的一端连通所述炊事火道的上部,所述过渡部的另一端连通所述连接部的下端,所述连接部的上端连通烟囱,所述过渡部的底部设置有底部清灰门,所述连接部的两侧设置有侧部清灰门。Preferably, the smoke box includes a vertical connection part and a horizontal transition part, one end of the transition part is connected to the upper part of the cooking fire channel, and the other end of the transition part is connected to the lower end of the connection part, so The upper end of the connecting portion communicates with the chimney, the bottom of the transition portion is provided with a bottom ash cleaning door, and both sides of the connecting portion are provided with side ash cleaning doors.

优选地,所述热解室的容积大于所述炊事火道的容积。Preferably, the volume of the pyrolysis chamber is larger than the volume of the cooking fire.

优选地,所述底座内安装有可抽拉的灰斗。Preferably, a drawable ash hopper is installed in the base.

优选地,所述隔板内设置有连通所述水套夹层的水槽。Preferably, a water tank communicating with the water jacket interlayer is provided in the separator.

优选地,所述炊事口设置于所述炊事火道正上方,所述加煤口设置于所述热解室斜上方,靠近所述热解室前端。Preferably, the cooking port is disposed just above the cooking fire channel, and the coal feeding port is disposed obliquely above the pyrolysis chamber, close to the front end of the pyrolysis chamber.

优选地,所述烟箱内设置有连通所述水套夹层的换热水管。Preferably, the smoke box is provided with a heat exchange pipe that communicates with the water jacket interlayer.

优选地,所述连接部内的多个所述换热水管由前向后延伸,并向上倾斜,所述过渡部内的多个所述换热水管横向延伸。Preferably, the plurality of the heat exchange tubes in the connecting portion extend from front to rear and are inclined upward, and the plurality of the heat exchange tubes in the transition portion extend laterally.

优选地,所述连接部设置有连通所述水套夹层的防爆阀。Preferably, the connecting portion is provided with an explosion-proof valve communicating with the water jacket interlayer.

本实用新型提供一种正反烧结合燃煤炉具,包括底座和安装于底座上方的炉体,底座和炉体之间设置有炉排,炉体后部连接有烟箱,炉体内部设置有用于分隔内部空间的竖直的隔板,形成前部的热解室和后部的炊事火道,隔板的上端连接炉体,隔板的下端与炉排之间设置有连通热解室和炊事火道并用于半焦物通过的间隙,热解室上方设置有加煤口,并设置有加煤门,炊事火道上方设置有炊事口。The utility model provides a coal-fired stove combined with forward and reverse combustion. There is a vertical partition for separating the inner space, forming a pyrolysis chamber at the front and a cooking fire channel at the rear, the upper end of the partition is connected to the furnace body, and a connected pyrolysis chamber is arranged between the lower end of the partition and the grate. A coal feeding port is arranged above the pyrolysis chamber and a coal feeding door, and a cooking port is arranged above the cooking fire channel.

通过在炉体内部设置热解室和炊事火道,热解室为反烧区域,炊事火道为正烧区域,燃料加入后在热解室堆积,通过炉排供给一次风,炉排之上、热解室及炊事火道下部为主燃烧区域,燃煤配合供风量的调节燃烧产生热量,小部分热量供上部燃料在贫氧状态下热解产生热解气和半焦,大部分热量随烟气前行。在主燃烧区,热解气、半焦共同燃烧;由于烟囱抽力形成的负压作用,煤的热解产物必须通过高温半焦燃烧层充分燃烧,可有效消除烟煤燃烧时产生的黑烟,并降低氮氧化物生产。燃烧火焰经炊事口、烟箱进入烟囱,沿途加热炊具,完成供暖。炊事火道主要容存热解室热解完毕的半焦物,通过摇动炉排、火钩操作等方式进入炊事火道。半焦物采用正烧方式燃烧已不存在挥发分集中析出的问题,还可提升炊事火力。By setting a pyrolysis chamber and a cooking fire channel inside the furnace body, the pyrolysis chamber is the reverse burning area, and the cooking fire channel is the normal burning area. After the fuel is added, it is accumulated in the pyrolysis chamber, and the primary air is supplied through the grate. , The lower part of the pyrolysis chamber and the cooking fire is the main combustion area. Coal combustion is combined with the adjustment of the air supply to generate heat, and a small part of the heat is used for the upper fuel to be pyrolyzed in an oxygen-depleted state to generate pyrolysis gas and semi-coke. Smoke moves forward. In the main combustion area, the pyrolysis gas and semi-coke are co-burned; due to the negative pressure formed by the chimney's pulling force, the pyrolysis products of coal must be fully burned through the high-temperature semi-coke combustion layer, which can effectively eliminate the black smoke produced by the burning of bituminous coal. and reduce nitrogen oxide production. The burning flame enters the chimney through the cooking port and the smoke box, and heats the cooker along the way to complete the heating. The cooking fire channel mainly stores the semi-char after pyrolysis in the pyrolysis chamber, and enters the cooking fire channel by shaking the grate and operating the fire hook. The semi-char is burned by the normal burning method, and there is no problem of concentrated precipitation of volatile matter, and it can also improve the cooking firepower.

兼有反烧消烟、正烧炊事火力强的优点,且消除了反烧炊事弱、正烧黑烟多的缺陷。更符合用户使用习惯,用户使用暖炊两用炉具,供暖时段长,要求火力适中、稳定;炊事时段短,要求火力旺盛。炊事前将半焦物送入正烧区域,可快速提升火力;而正烧区域较小,半焦物燃尽后火力迅速下降,不会浪费燃料。It has the advantages of anti-burning and eliminating smoke, and strong firepower for cooking, and eliminates the defects of weak anti-burning and more black smoke. It is more in line with the user's usage habits. The user uses a dual-purpose stove for heating and cooking. The heating period is long, and the firepower is required to be moderate and stable; the cooking period is short, and the firepower is required. Sending the semi-char to the burning area before cooking can quickly increase the firepower; while the hot-burning area is small, the firepower will drop rapidly after the semi-char is burnt out, and no fuel will be wasted.

附图说明Description of drawings

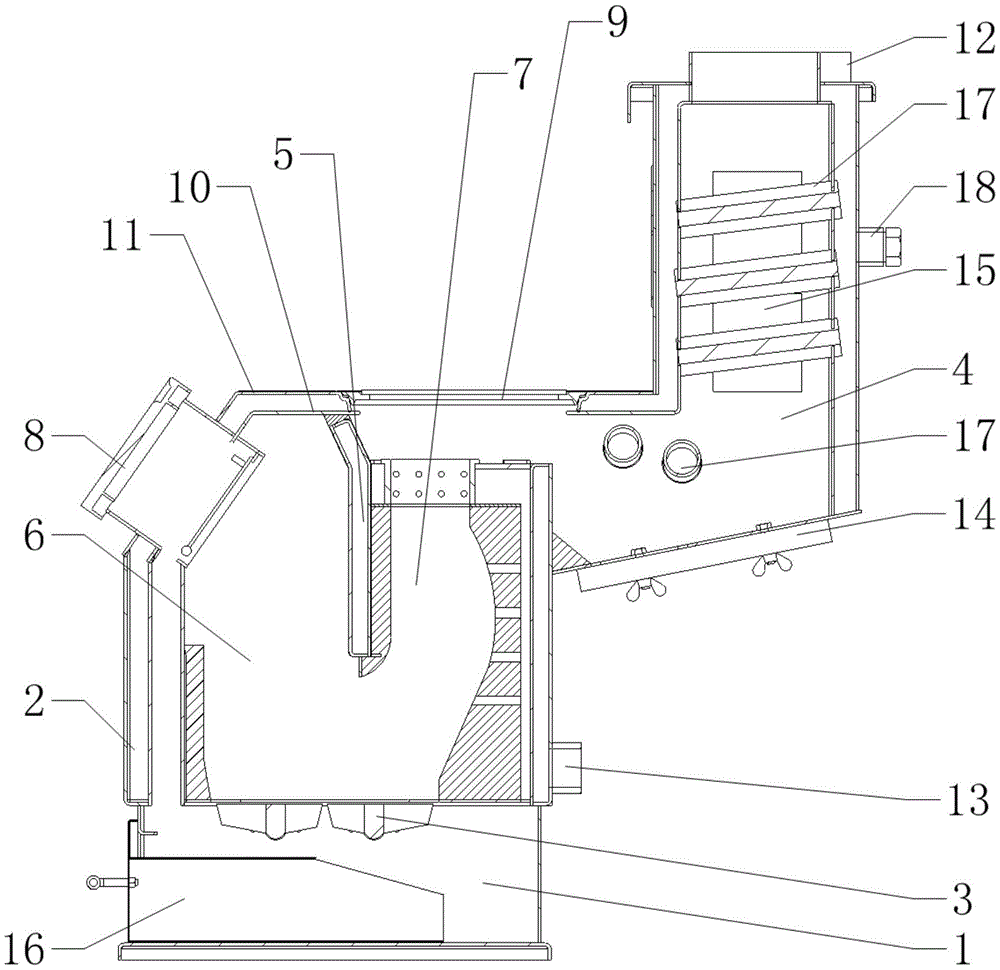

图1为本实用新型所提供的正反烧结合燃煤炉具的一种具体实施方式的结构示意图。FIG. 1 is a schematic structural diagram of a specific embodiment of a coal-fired stove combined with forward and reverse combustion provided by the present invention.

具体实施方式Detailed ways

本实用新型的核心是提供一种正反烧结合燃煤炉具,在炉体内部设置有热解室和炊事火道,分别进行正烧和反烧,兼具两种燃烧方式的优点,克服现有技术存在的缺陷。The core of the utility model is to provide a coal-fired stove combined with forward and reverse combustion. A pyrolysis chamber and a cooking fire channel are arranged inside the furnace body, and the forward and reverse combustion are carried out respectively. Defects in the prior art.

为了使本技术领域的人员更好地理解本实用新型方案,下面结合附图和具体实施方式对本实用新型作进一步的详细说明。In order to make those skilled in the art better understand the solution of the present invention, the present invention will be further described in detail below with reference to the accompanying drawings and specific embodiments.

请参考图1,图1为本实用新型所提供的正反烧结合燃煤炉具的一种具体实施方式的结构示意图。Please refer to FIG. 1 . FIG. 1 is a schematic structural diagram of a specific embodiment of a coal-fired stove combined with forward and reverse combustion provided by the present invention.

本实用新型具体实施方式提供一种正反烧结合燃煤炉具,包括底座1和炉体2,炉体2安装于底座1上方,在底座1和炉体2之间设置有炉排3,炉体2后部连接有烟箱4,即连接有烟箱4的一端为后方,相对的一端为前方。在炉体2内部设置有用于分隔内部空间的竖直的隔板5,形成前部的热解室6和后部的炊事火道7,隔板5的上端连接炉体2,隔板5的下端与炉排3之间设置间隙,这一间隙用于连通热解室6和炊事火道7,同时用于半焦物通过,在热解室6上方设置有加煤口,用于加入燃料,并设置有加煤门8,炊事火道7上方设置有炊事口9,用于放置并加入炊具。The specific embodiment of the present utility model provides a coal-fired stove combined with forward and reverse combustion, comprising a base 1 and a furnace body 2, the furnace body 2 is installed above the base 1, and a grate 3 is arranged between the base 1 and the furnace body 2, A smoke box 4 is connected to the rear of the furnace body 2 , that is, the end connected with the smoke box 4 is the rear, and the opposite end is the front. Inside the furnace body 2, a vertical partition plate 5 for separating the internal space is arranged to form a pyrolysis chamber 6 at the front and a cooking fire channel 7 at the rear. The upper end of the partition plate 5 is connected to the furnace body 2, and the A gap is set between the lower end and the grate 3. This gap is used to communicate the pyrolysis chamber 6 and the cooking fire 7, and at the same time, it is used for the passage of semi-coke. A coal feeding port is set above the pyrolysis chamber 6 for adding fuel. , and a coal feeding door 8 is provided, and a cooking port 9 is provided above the cooking fire channel 7 for placing and adding cooking utensils.

通过在炉体2内部设置热解室6和炊事火道7,热解室6为反烧区域,炊事火道7为正烧区域,燃料加入后在热解室6堆积,通过炉排3供给一次风,炉排3之上、热解室6及炊事火道7下部为主燃烧区域,燃煤配合供风量的调节燃烧产生热量,小部分热量供上部燃料在贫氧状态下热解产生热解气和半焦,大部分热量随烟气前行。在主燃烧区,热解气、半焦共同燃烧;由于烟囱抽力形成的负压作用,煤的热解产物必须通过高温半焦燃烧层充分燃烧,可有效消除烟煤燃烧时产生的黑烟,并降低氮氧化物生产。燃烧火焰经炊事口9、烟箱4进入烟囱,沿途加热炊具,完成供暖。炊事火道7主要容存热解室6热解完毕的半焦物,通过摇动炉排3、火钩操作等方式进入炊事火道7。半焦物采用正烧方式燃烧已不存在挥发分集中析出的问题,还可提升炊事火力。By arranging a pyrolysis chamber 6 and a cooking fire channel 7 inside the furnace body 2, the pyrolysis chamber 6 is a back-burning area, and the cooking fire channel 7 is a normal-burning area. Primary air, above the grate 3, the pyrolysis chamber 6 and the lower part of the cooking fire channel 7 are the main combustion areas. Coal combustion is combined with the adjustment of the air supply to generate heat, and a small part of the heat is used for the upper fuel to be pyrolyzed in an oxygen-depleted state to generate heat. Degassing and semi-coke, most of the heat goes forward with the flue gas. In the main combustion area, the pyrolysis gas and semi-coke are co-burned; due to the negative pressure formed by the chimney's pulling force, the pyrolysis products of coal must be fully burned through the high-temperature semi-coke combustion layer, which can effectively eliminate the black smoke produced by the burning of bituminous coal. and reduce nitrogen oxide production. The combustion flame enters the chimney through the cooking port 9 and the smoke box 4, and heats the cooker along the way to complete the heating. The cooking fire channel 7 mainly stores the semi-char after pyrolysis in the pyrolysis chamber 6 , and enters the cooking fire channel 7 by shaking the grate 3 and operating the fire hook. The semi-char is burned by the normal burning method, and there is no problem of concentrated precipitation of volatile matter, and it can also improve the cooking firepower.

兼有反烧消烟、正烧炊事火力强的优点,且消除了反烧炊事弱、正烧黑烟多的缺陷。热解室6的容积大于炊事火道7的容积,更符合用户使用习惯,用户使用暖炊两用炉具,供暖时段长,要求火力适中、稳定;炊事时段短,要求火力旺盛。炊事前将半焦物送入正烧区域,可快速提升火力;而正烧区域较小,半焦物燃尽后火力迅速下降,不会浪费燃料。It has the advantages of anti-burning and eliminating smoke, and strong firepower for cooking, and eliminates the defects of weak anti-burning and more black smoke. The volume of the pyrolysis chamber 6 is larger than that of the cooking fire channel 7, which is more in line with the user's usage habits. The user uses a dual-purpose stove for heating and cooking, and the heating period is long, requiring moderate and stable firepower; the cooking period is short, requiring strong firepower. Sending the semi-char to the burning area before cooking can quickly increase the firepower; while the hot-burning area is small, the firepower will drop rapidly after the semi-char is burnt out, and no fuel will be wasted.

还可在底座1内安装有可抽拉的灰斗16,通过灰斗16开合的大小调节供风量。炊事口9设置于炊事火道7正上方,便于放置炊具,加煤口设置于热解室6斜上方,靠近热解室6前端,便于操作加煤。或根据情况调整各部件的安装连接方式及布置方式,均在本实用新型的保护范围之内。A pullable ash hopper 16 can also be installed in the base 1, and the air supply volume can be adjusted by the size of the ash hopper 16 opening and closing. The cooking port 9 is arranged just above the cooking fire 7, which is convenient for placing cooking utensils, and the coal feeding port is arranged obliquely above the pyrolysis chamber 6, close to the front end of the pyrolysis chamber 6, so as to facilitate the operation of coal feeding. Or adjust the installation, connection and arrangement of each component according to the situation, all within the protection scope of the present invention.

在本实用新型具体实施方式提供的正反烧结合燃煤炉具中,为了提高供暖效果,可以增加水暖系统,炉体2及烟箱4的外壳包括相互间隔的内胆10和外胆11,在内胆10和外胆11之间形成水套夹层,烟箱4上部设置有连通水套夹层的出水口12,炉体2下部设置有连通水套夹层的回水口13。炉具使用过程中燃烧火焰经炊事口9、烟箱4进入烟囱,沿途加热炊具,并将水套夹层内的水加热,通过出水口12和回水口13将热量传递给循环水,完成供暖。In the forward and reverse combustion combined coal-fired stove provided by the specific embodiment of the present invention, in order to improve the heating effect, a water heating system can be added, and the outer casings of the furnace body 2 and the smoke box 4 include an inner tank 10 and an outer tank 11 spaced apart from each other, A water jacket interlayer is formed between the inner liner 10 and the outer liner 11 , the upper part of the smoke box 4 is provided with a water outlet 12 which communicates with the water jacket interlayer, and the lower part of the furnace body 2 is provided with a water return port 13 which communicates with the water jacket interlayer. During the use of the stove, the combustion flame enters the chimney through the cooking port 9 and the smoke box 4, heats the cooker along the way, heats the water in the water jacket interlayer, and transfers the heat to the circulating water through the water outlet 12 and the water return port 13 to complete the heating.

进一步地,烟箱4包括竖直的连接部和水平的过渡部,过渡部的一端连通炊事火道7的上部,过渡部的另一端连通连接部的下端,连接部的上端连通烟囱,便于烟气正常排出。为了快速清理烟箱中的灰尘,过渡部的底部设置有底部清灰门14,连接部的两侧设置有侧部清灰门15,并通过手拧螺栓进行固定。或调整烟箱4结构,不设置水平部分,直接连通炉体2。Further, the smoke box 4 includes a vertical connection part and a horizontal transition part, one end of the transition part is connected to the upper part of the cooking fire 7, the other end of the transition part is connected to the lower end of the connection part, and the upper end of the connection part is connected to the chimney, which is convenient for smoke. Air is discharged normally. In order to quickly clean the dust in the smoke box, the bottom of the transition part is provided with a bottom dust cleaning door 14, and the two sides of the connecting part are provided with side dust cleaning doors 15, which are fixed by hand-tightening bolts. Or adjust the structure of the smoke box 4, and directly connect the furnace body 2 without setting the horizontal part.

在上述各具体实施方式提供的正反烧结合燃煤炉具的基础上,为了提高换热效果,烟箱4内设置有连通水套夹层的换热水管17。可以增加换热水管17的数量,连接部内的多个换热水管17由前向后延伸,并向上倾斜,过渡部内的多个换热水管17横向延伸,即两部分中换热水管17的延伸方向相互垂直,有效提高与高温烟气的接触。进一步地,隔板5内设置有连通水套夹层的水槽,增加在炉内对供暖水的加热。On the basis of the forward and reverse combustion combined coal-fired stoves provided by the above-mentioned specific embodiments, in order to improve the heat exchange effect, the smoke box 4 is provided with a heat exchange pipe 17 that communicates with the water jacket interlayer. The number of hot water exchange pipes 17 can be increased. The plurality of hot water exchange pipes 17 in the connecting portion extend from front to back and are inclined upward, and the plurality of hot water exchange pipes 17 in the transition portion extend laterally, that is, the extension of the hot water exchange pipes 17 in the two parts. The directions are perpendicular to each other, which effectively improves the contact with the high temperature flue gas. Further, the partition plate 5 is provided with a water tank connected to the water jacket interlayer, so as to increase the heating of the heating water in the furnace.

还可以在连接部设置连通水套夹层的防爆阀18,提高炉具安全性。An explosion-proof valve 18 that communicates with the water jacket interlayer can also be provided at the connection part to improve the safety of the furnace.

以上对本实用新型所提供的正反烧结合燃煤炉具进行了详细介绍。本文中应用了具体个例对本实用新型的原理及实施方式进行了阐述,以上实施例的说明只是用于帮助理解本实用新型的方法及其核心思想。应当指出,对于本技术领域的普通技术人员来说,在不脱离本实用新型原理的前提下,还可以对本实用新型进行若干改进和修饰,这些改进和修饰也落入本实用新型权利要求的保护范围内。The coal-fired stove combined with forward and reverse combustion provided by the present utility model has been introduced in detail above. The principles and implementations of the present invention are described herein by using specific examples, and the descriptions of the above embodiments are only used to help understand the method and the core idea of the present invention. It should be pointed out that for those of ordinary skill in the art, without departing from the principles of the present utility model, some improvements and modifications can also be made to the present utility model, and these improvements and modifications also fall into the protection of the claims of the present utility model. within the range.

Claims (10)

1.一种正反烧结合燃煤炉具,包括底座(1)和安装于所述底座(1)上方的炉体(2),所述底座(1)和所述炉体(2)之间设置有炉排(3),所述炉体(2)后部连接有烟箱(4),其特征在于,所述炉体(2)内部设置有用于分隔内部空间的竖直的隔板(5),形成前部的热解室(6)和后部的炊事火道(7),所述隔板(5)的上端连接所述炉体(2),所述隔板(5)的下端与所述炉排(3)之间设置有连通所述热解室(6)和所述炊事火道(7)并用于半焦物通过的间隙,所述热解室(6)上方设置有加煤口,并设置有加煤门(8),所述炊事火道(7)上方设置有炊事口(9)。1. A coal-fired stove combined with forward and reverse combustion, comprising a base (1) and a furnace body (2) installed above the base (1), between the base (1) and the furnace body (2); A grate (3) is arranged between the furnace body (2), a smoke box (4) is connected to the rear of the furnace body (2), and it is characterized in that a vertical partition plate for separating the interior space is arranged inside the furnace body (2). (5), forming a front pyrolysis chamber (6) and a rear cooking fire channel (7), the upper end of the partition plate (5) is connected to the furnace body (2), and the partition plate (5) Between the lower end of the fire grate (3) and the grate (3), there is a gap connecting the pyrolysis chamber (6) and the cooking fire channel (7) and used for the passage of semi-cokes, above the pyrolysis chamber (6) A coal feeding port is provided, and a coal feeding door (8) is provided, and a cooking port (9) is provided above the cooking fire channel (7). 2.根据权利要求1所述的正反烧结合燃煤炉具,其特征在于,所述炉体(2)及所述烟箱(4)的外壳包括相互间隔的内胆(10)和外胆(11),在所述内胆(10)和所述外胆(11)之间形成水套夹层,所述烟箱(4)上部设置有连通所述水套夹层的出水口(12),所述炉体(2)下部设置有连通所述水套夹层的回水口(13)。2 . The combined forward and reverse combustion coal-fired stove according to claim 1 , wherein the furnace body ( 2 ) and the outer shell of the smoke box ( 4 ) comprise an inner tank ( 10 ) and an outer shell spaced apart from each other. 3 . A bladder (11), a water jacket interlayer is formed between the inner bladder (10) and the outer bladder (11), and the upper part of the smoke box (4) is provided with a water outlet (12) that communicates with the water jacket sandwich The lower part of the furnace body (2) is provided with a water return port (13) that communicates with the water jacket interlayer. 3.根据权利要求2所述的正反烧结合燃煤炉具,其特征在于,所述烟箱(4)包括竖直的连接部和水平的过渡部,所述过渡部的一端连通所述炊事火道(7)的上部,所述过渡部的另一端连通所述连接部的下端,所述连接部的上端连通烟囱,所述过渡部的底部设置有底部清灰门(14),所述连接部的两侧设置有侧部清灰门(15)。3 . The coal-fired stove combined with forward and reverse combustion according to claim 2 , wherein the smoke box ( 4 ) comprises a vertical connecting part and a horizontal transition part, and one end of the transition part communicates with the In the upper part of the cooking fire channel (7), the other end of the transition part communicates with the lower end of the connection part, the upper end of the connection part communicates with the chimney, and the bottom of the transition part is provided with a bottom ash cleaning door (14), so Side ash cleaning doors (15) are arranged on both sides of the connecting portion. 4.根据权利要求3所述的正反烧结合燃煤炉具,其特征在于,所述热解室(6)的容积大于所述炊事火道(7)的容积。4 . The coal-fired stove combining forward and reverse combustion according to claim 3 , wherein the volume of the pyrolysis chamber ( 6 ) is larger than the volume of the cooking fire channel ( 7 ). 5 . 5.根据权利要求4所述的正反烧结合燃煤炉具,其特征在于,所述底座(1)内安装有可抽拉的灰斗(16)。5 . The coal-fired stove combined with forward and reverse combustion according to claim 4 , wherein a drawable ash hopper ( 16 ) is installed in the base ( 1 ). 6 . 6.根据权利要求5所述的正反烧结合燃煤炉具,其特征在于,所述隔板(5)内设置有连通所述水套夹层的水槽。6 . The coal-fired stove combined with forward and reverse combustion according to claim 5 , characterized in that, a water tank communicating with the water jacket interlayer is provided in the partition plate ( 5 ). 7 . 7.根据权利要求6所述的正反烧结合燃煤炉具,其特征在于,所述炊事口(9)设置于所述炊事火道(7)正上方,所述加煤口设置于所述热解室(6)斜上方,靠近所述热解室(6)前端。7. The coal-fired stove combined with forward and reverse combustion according to claim 6, characterized in that, the cooking port (9) is arranged just above the cooking fire channel (7), and the coal feeding port is arranged at the The pyrolysis chamber (6) is obliquely above and close to the front end of the pyrolysis chamber (6). 8.根据权利要求3至7任意一项所述的正反烧结合燃煤炉具,其特征在于,所述烟箱(4)内设置有连通所述水套夹层的换热水管(17)。8. The coal-fired stove combined with forward and reverse combustion according to any one of claims 3 to 7, wherein a hot water exchange pipe (17) communicating with the water jacket interlayer is provided in the smoke box (4) . 9.根据权利要求8所述的正反烧结合燃煤炉具,其特征在于,所述连接部内的多个所述换热水管(17)由前向后延伸,并向上倾斜,所述过渡部内的多个所述换热水管(17)横向延伸。9 . The coal-fired stove combined with forward and reverse combustion according to claim 8 , characterized in that, the plurality of said hot water exchange pipes ( 17 ) in the connecting portion extend from front to rear and are inclined upward, and the transition The plurality of said hot water exchange pipes (17) in the interior extend laterally. 10.根据权利要求9所述的正反烧结合燃煤炉具,其特征在于,所述连接部设置有连通所述水套夹层的防爆阀(18)。10. The coal-fired stove combined with forward and reverse combustion according to claim 9, characterized in that, the connection part is provided with an explosion-proof valve (18) communicating with the water jacket interlayer.
