Abstract

The utility model discloses an outgoing wire management device for electric construction, which comprises a box body; the top side of the box body is in the shape of an opening; On the left and right sides of the body, the outer ring of the shaft rod is provided with a wire take-up cylinder, the outer ring of the wire take-up cylinder is wound with a cable body, the right end of the shaft rod is fixedly installed with a torsion block, and the shaft rod The left side of the outer ring is provided with an external thread, the shaft is screwed with the shaft sleeve through the external thread, the middle and lower side of the front side of the box is provided with an outlet, and the side of the cable body away from the take-up reel penetrates for export. In the utility model, since the right end of the shaft is fixedly installed with a torsion block, and the shaft is screwed with the shaft sleeve through the external thread at the left end, it is convenient to replace the spool, the shaft sleeve can be removed first, and then the shaft can be removed from the box. Pull out, and finally take out the take-up spool, and replace it according to the reverse operation of the above process, which is more practical and suitable for widespread promotion and use.

Description

Outgoing line management device for electric power construction

technical field

The utility model relates to the technical field, in particular to an outgoing line management device for electric power construction.

Background technique

In the process of electric power construction, it is often necessary to prepare cables of various specifications and full turns at the construction site for use in the construction process.

The existing patent (publication number: CN208249555U) is an outlet management device for electric power construction, including a box body, a rotating shaft, a connecting shaft and a bearing seat. The top of the box body is provided with an opening, and the side wall of the box body is provided with an opening. Outlet holes, the bottom of the box is provided with rollers, the two ends of the rotating shaft are respectively detachably connected to the connecting shaft, the connecting shaft is provided with a baffle plate, the bearing seat is arranged in the box, the connecting shaft There is a rolling bearing matched with the bearing seat, the rolling bearing is arranged on the bearing seat, and the side wall of the box body is also provided with a loading plate for loading spare cables. This kind of outlet management device for electric construction can carry spare cables by itself. After the cables in the box are used up, the spare cables can be replaced directly, so as to avoid untimely retrieval of cables and affect construction efficiency.

In the process of implementing the present invention, the inventor found that at least the following problems have not been solved in the prior art: the process of replacing cables in the above-mentioned utility model is too cumbersome, which affects the work efficiency.

Utility model content

The purpose of the utility model is to provide an outgoing line management device for electric power construction, which solves the problems raised in the background art.

In order to achieve the above purpose, the utility model provides the following technical solutions: an outlet management device for electric power construction, comprising a box body;

The top side of the box body is in the shape of an opening, the middle end of the box body is provided with a shaft rod, and the two ends of the shaft rod respectively penetrate through the left and right sides of the box body, and the outer ring of the shaft rod is provided with a wire take-up reel , the outer ring of the take-up barrel is wound with a cable body, the right end of the shaft rod is fixedly installed with a torsion block, the left side of the outer ring of the shaft rod is provided with an external thread, and the shaft rod is connected with the external thread through the external thread. The shaft sleeves are screwed together, the middle and lower sides of the front side of the box body are provided with an outlet, and the side of the cable body away from the take-up reel runs through the outlet;

Support rods are installed vertically on the left and right sides of the inner wall of the inner end of the box, elastic sheets are fixedly installed at the top ends of the two support rods, and the rear ends of the two elastic sheets are attached to the lower sides of the left and right ends of the front side of the take-up reel. combine;

The top side of the box body is provided with a box cover, the four corners of the bottom end of the box body are fixedly mounted with universal wheels, and the upper left end of the box body is fixedly mounted with a push rod.

As a preferred embodiment of the present invention, the middle end of the left side of the box body is provided with a chute, and the right side of the shaft sleeve is slidably connected to the chute.

As a preferred embodiment of the present invention, a handle is fixedly installed on the upper side of the left inner wall of the wire take-up reel.

As a preferred embodiment of the present invention, the upper sides of the inner walls of the left and right sides of the box body are fixedly installed with limit blocks.

As a preferred embodiment of the present invention, a storage box is fixedly mounted on the lower end of the rear side of the box body, and the top side of the storage box is open.

Compared with the prior art, the beneficial effects of the present utility model are as follows:

1. The utility model is an outlet management device for electric power construction. Since the right end of the shaft rod is fixedly installed with a torsion block, and the shaft rod is screwed with the shaft sleeve through the external thread on the left end, it is convenient to replace the wire take-up reel. Remove the sleeve, then pull out the shaft from the box, and finally take out the take-up spool and replace it in the reverse operation of the above process. When pulling the cable body, the two shrapnel are also conducive to increasing the take-up spool. The resistance during rotation prevents the cable body from being pulled out too much, which is more convenient and effectively improves the work efficiency.

2. The utility model is an outgoing wire management device for electric construction. Since the upper side of the left inner wall of the wire take-up reel is fixedly installed with a handle, when the wire take-up reel is easily removed, the wire take-up reel can be supported by the handle, and then the shaft The rod is pulled out, which is more convenient.

3. The utility model is an outgoing wire management device for electric power construction. Since the upper sides of the left and right inner walls of the box are fixedly installed with limit blocks, it is convenient to limit the position of the wire take-up reel and prevent the wire take-up reel from moving on the shaft.

Description of drawings

Other features, objects and advantages of the present invention will become more apparent by reading the detailed description of non-limiting embodiments with reference to the following drawings:

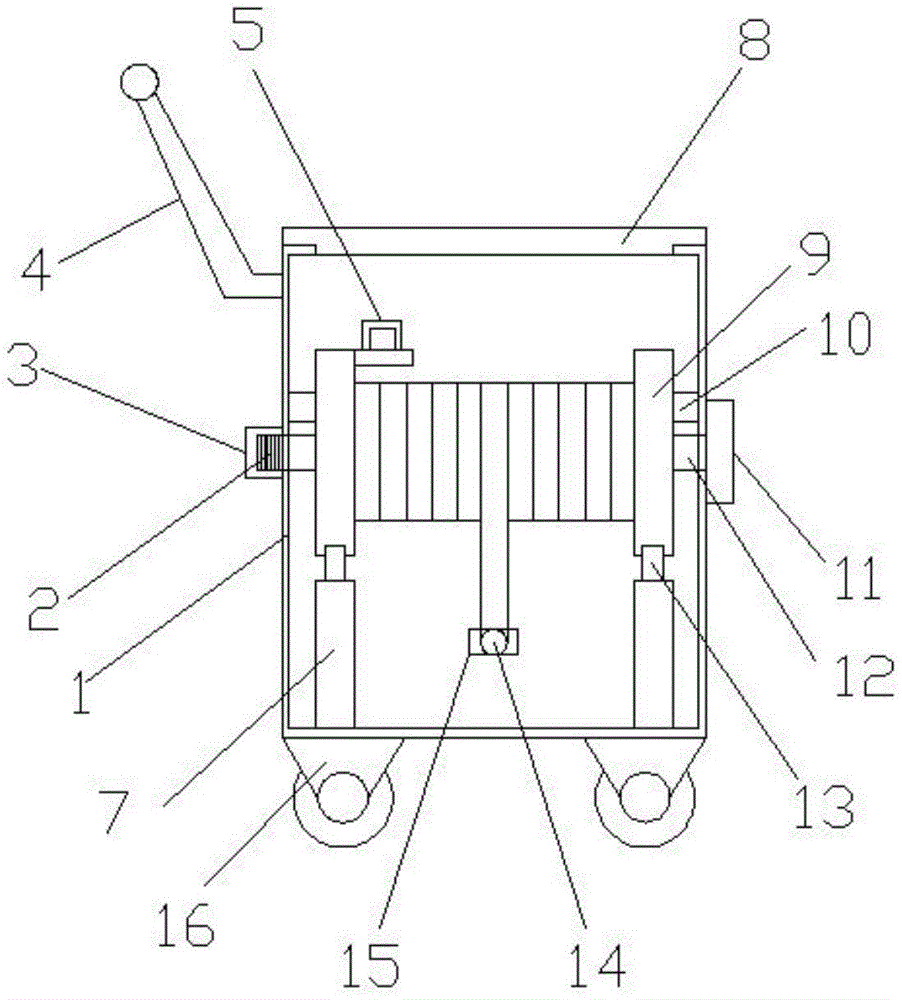

Fig. 1 is the front view of a kind of electric power construction outlet management device of the present invention;

Figure 2 is a side view of a twisted block of a power construction outlet management device of the present invention;

FIG. 3 is a left side view of the box body of an outgoing line management device for electric power construction according to the present invention.

In the figure: box 1, external thread 2, bushing 3, push rod 4, handle 5, chute 6, support rod 7, box cover 8, take-up reel 9, limit block 10, torsion block 11, shaft rod 12, the elastic piece 13, the cable body 14, the opening 15, the universal wheel 16, the storage box 17.

Detailed ways

In order to make the technical means, creation features, achievement goals and effects of the present invention easy to understand and understand, the present invention will be further described below with reference to the specific embodiments.

Please refer to Fig. 1-2, the present utility model provides a technical solution: an outlet management device for electric power construction, comprising a box body 1;

The top side of the box body 1 is in the shape of an opening, the middle end of the box body 1 is provided with a shaft rod 12 , and the two ends of the shaft rod 12 respectively penetrate through the left and right sides of the box body 1 . A wire take-up barrel 9 is arranged on the outer ring of the wire take-up barrel 9, a cable body 14 is wound around the outer ring of the wire take-up barrel 9, a torsion block 11 is fixedly installed on the right end of the shaft rod 12, and the left side of the outer ring of the shaft rod 12 is arranged There is an external thread 2 , the shaft rod 12 is screwed with the shaft sleeve 3 through the external thread 2 , an outlet 15 is provided on the middle and lower side of the front side of the box body 1 , and the cable body 14 is away from one end of the take-up reel 9 . The side runs through the outlet 15;

The left and right sides of the inner wall of the inner end of the box body 1 are vertically installed with support rods 7 , the top ends of the two support rods 7 are fixedly installed with elastic pieces 13 , and the rear ends of the two elastic pieces 13 are both connected to the front of the take-up reel 9 . The lower sides of the left and right ends of the side are fitted together;

The top side of the box body 1 is provided with a box cover 8 , the four corners of the bottom end of the box body 1 are fixedly mounted with universal wheels 16 , and the upper left end of the box body 1 is fixedly mounted with a push rod 4 .

In this embodiment (as shown in FIGS. 1 and 2 ), since the right end of the shaft rod 12 is fixedly installed with the torsion block 11 , and the shaft rod 12 is screwed with the shaft sleeve 3 through the external thread 2 at the left end, it is convenient to replace the wire take-up reel At 9 o’clock, you can first remove the shaft sleeve 3, then pull out the shaft rod 12 from the box 1, and finally take out the wire take-up spool 9, and perform the reverse operation of the above process to replace, and pull the cable body 14 The two elastic pieces 13 are also beneficial to increase the resistance when the wire take-up reel 9 rotates, and prevent the cable body 14 from being pulled out too much, which is more convenient and effectively improves the work efficiency.

In this embodiment (refer to FIG. 3 ), the middle end of the left side of the box body 1 is provided with a chute 6 , and the right side of the shaft sleeve 3 is slidably connected with the chute 6 , so as to limit the position of the shaft sleeve 3 .

In this embodiment (refer to FIG. 1 ), a handle 5 is fixedly installed on the upper side of the inner wall of the left side of the wire take-up reel 9 , so that when the wire take-up reel 9 is removed, the wire take-up reel 9 can be held by the handle 5 . It is more convenient to pull out the shaft 12 again.

In this embodiment (please refer to FIG. 1 ), the upper sides of the inner walls of the left and right sides of the box body 1 are fixedly installed with limit blocks 10 , which are convenient to limit the position of the wire take-up 9 and prevent the wire take-up 9 from being on the shaft 12 . move.

In this embodiment (refer to FIG. 3 ), a storage box 17 is fixedly installed at the lower end of the rear side of the box body 1 , and the top side of the storage box 17 is open, which is convenient for storing other wire take-up reels 9 .

It should be noted that the utility model is an outlet management device for electric construction, comprising a box body 1, an external thread 2, a shaft sleeve 3, a push rod 4, a handle 5, a chute 6, a support rod 7, a box cover 8, The reel 9, the limit block 10, the torsion block 11, the shaft 12, the elastic piece 13, the cable body 14, the opening 15, the universal wheel 16, the storage box 17, the components are all common standard parts or known to those skilled in the art The structure and principle are all known to the technical personnel through technical manuals or through conventional experimental methods. When working, when replacing the take-up reel 9, the shaft sleeve 3 can be removed first, and then the handle 5 Hold the take-up reel 9, then pull out the shaft 12 from the box 1, and finally take out the take-up reel 9, and replace it by the reverse operation of the above process. When the cable body 14 is pulled, the two elastic pieces 13 It is also beneficial to increase the resistance when the wire take-up reel 9 rotates, and prevent the cable body 14 from being pulled out too much.

The basic principles and main features of the present invention and the advantages of the present invention have been shown and described above. For those skilled in the art, it is obvious that the present invention is not limited to the details of the above-mentioned exemplary embodiments, and does not deviate from the present invention. The present invention can be implemented in other specific forms under the condition of the spirit or basic features. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

In addition, it should be understood that although this specification is described in terms of embodiments, not each embodiment only includes an independent technical solution, and this description in the specification is only for the sake of clarity, and those skilled in the art should take the specification as a whole , the technical solutions in each embodiment can also be appropriately combined to form other implementations that can be understood by those skilled in the art.

Claims (5)

1. The outgoing line management device for power construction is characterized by comprising a box body (1);

the cable winding box is characterized in that the top side of the box body (1) is open, a shaft lever (12) is arranged at the middle end inside the box body (1), two ends of the shaft lever (12) penetrate through the left side and the right side of the box body (1) respectively, a winding drum (9) is arranged on the outer ring of the shaft lever (12), a cable body (14) is wound on the outer ring of the winding drum (9), a torsion block (11) is fixedly installed at the right end of the shaft lever (12), an external thread (2) is arranged on the left side of the outer ring of the shaft lever (12), the shaft lever (12) is in spiral connection with a shaft sleeve (3) through the external thread (2), an outlet (15) is formed in the middle lower side of the front side of the box body (1), and one side, far away from;

supporting rods (7) are vertically arranged on the left side and the right side of the inner wall of the inner end of the box body (1), elastic pieces (13) are fixedly arranged at the top ends of the two supporting rods (7), and the rear ends of the two elastic pieces (13) are attached to the lower sides of the left end and the right end of the front side of the wire collecting cylinder (9);

the top side of box (1) is provided with case lid (8), the equal fixed mounting in bottom four corners of box (1) has universal wheel (16), the left side upper end fixed mounting of box (1) has push rod (4).

2. The outgoing line management device for electric power construction according to claim 1, characterized in that: the middle end of the left side of the box body (1) is provided with a sliding groove (6), and the right side of the shaft sleeve (3) is in sliding connection with the sliding groove (6).

3. The outgoing line management device for electric power construction according to claim 1, characterized in that: and a handle (5) is fixedly arranged on the upper side of the inner wall of the left side of the wire rewinding cylinder (9).

4. The outgoing line management device for electric power construction according to claim 1, characterized in that: the upper sides of the inner walls of the left side and the right side of the box body (1) are fixedly provided with limit blocks (10).

5. The outgoing line management device for electric power construction according to claim 1, characterized in that: the top side that the rear side lower extreme fixed mounting of box (1) had receiver (17) and receiver (17) is the opening form.
