Abstract

The utility model discloses a convenient English card storage device, comprising a support plate, one side of the support plate and one side of a cover plate are connected to each other, and a fixing patch is attached to the inner side of the connection between the support plate and the cover plate, The support plate and the cover plate are foldable, the inner side of the support plate is provided with a receiving groove, the English cards are stacked in the receiving groove, and two spring grooves are arranged on one side of the supporting plate on the receiving groove. , a spring is fixedly embedded in the spring groove, the upper end of the spring is fixedly connected with a pressure plate, the lower surface of the pressure plate is pressed on the English card, the middle part of the cover plate is provided with an open groove, and the open groove is A transparent plastic layer is formed, and the area of the transparent plastic layer covers the area of the groove. The utility model is convenient to carry, easy to store cards, and improves the efficiency of English learning.

Description

A convenient English card storage device

technical field

The utility model relates to the technical field of teaching, in particular to a convenient English card storage device.

Background technique

English cards written with words or sentences are one of the important auxiliary props in English teaching and learning. It can help English learners to learn and memorize English anytime, anywhere. In actual use, English cards are used in a large number and stored It has become a headache for teachers and students. There are many English cards, which are difficult to store. Moreover, the existing storage device is inconvenient to carry, and the content of the cards cannot be seen after storage. Therefore, a convenient English card storage is invented. It is necessary to have a device to solve the above problems.

Utility model content

The purpose of the present invention is to provide a convenient English card storage device to solve the problems raised in the above background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a convenient English card storage device, comprising a support plate, one side of the support plate and one side of the cover plate are connected to each other, and the support plate and the cover plate are open to each other. The cover plate can cover the support plate in the style of a notebook, which is convenient to carry. A fixed patch is attached to the inner side of the connection between the support plate and the cover plate, and the support plate and the cover plate can be folded. The fixed patch provided can strengthen the structural strength of the folded part of the support plate and the cover plate, and is not easy to be broken. The inner side of the support plate is provided with a receiving groove, the English cards are stacked in the receiving groove, and two spring grooves are arranged on one side of the supporting plate on the receiving groove, and a spring is fixedly embedded in the spring groove, and the spring is The upper end is fixedly connected with a pressure plate, the lower surface of the pressure plate is pressed on the English card, the pressure plate is connected by a spring, has a certain elasticity, can move up and down, and the elasticity of the spring can limit the downward force of the pressure plate to facilitate the English card. Press tightly to prevent English cards from falling off. The middle part of the cover plate is provided with an opening groove, a transparent plastic layer is bonded in the open groove, and the area of the transparent plastic layer covers the area of the groove, and the transparent plastic layer is arranged so that when the cover plate is covered, it can be Through the transparent plastic layer to learn the content of the top English card, you can learn at any time and improve the efficiency of learning.

Preferably, the fixing patch is made of leather, and the fixing patch, the support plate and the cover plate are bonded and fixed by glue.

Preferably, a fixed buckle is bonded on the outer surface of the support plate, and a buckle is glued on the outer surface of the cover plate, and the fixing buckle and the buckle are mutually clipped.

Preferably, one side of the groove is provided with a groove, and the shape of the groove is a circular arc.

Preferably, the support plate is provided with an embedding groove just below the pressing plate, and the pressing plate can be embedded in the embedding groove.

Preferably, a spring fixing column is fixedly connected below the pressing plate, and the upper end of the spring is fixedly sleeved on the outer side of the spring fixing column.

Preferably, a sponge layer is provided on the lower surface of the pressing plate.

Compared with the prior art, the beneficial effects of the present utility model are as follows: the convenient English card storage device has reasonable design and simple structure, the support plate and the cover plate are mutually open and closed, and the provided cover plate can cover the support plate. In the style of a notebook, it is easy to carry. The fixed patch can strengthen the structural strength of the support plate and the fold of the cover, and it is not easy to break. The set pressure plate is connected by a spring and has a certain elasticity. It can move up and down, and the elastic force of the spring It can limit the downward force of the pressure plate to press the English card tightly and prevent the English card from falling. The transparent plastic layer is set so that when the cover is covered, the content of the uppermost English card can be learned through the transparent plastic layer. The utility model can carry out learning at any time and improve the efficiency of learning. The utility model is convenient to carry, convenient to store cards, and improves the efficiency of English learning.

Description of drawings

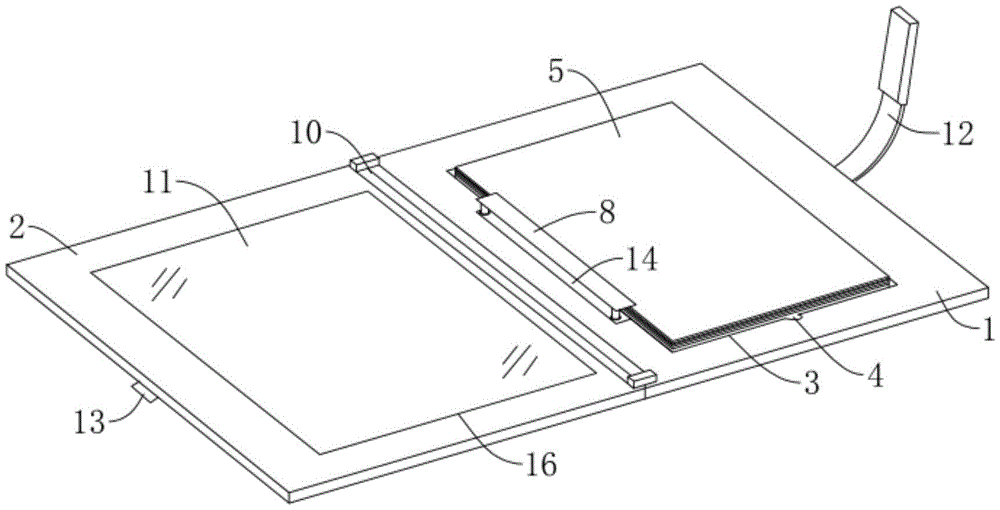

Fig. 1 is the structural representation of the utility model;

FIG. 2 is a schematic diagram of a partial structure of the present invention.

In the figure: 1. Support plate; 2. Cover plate; 3. Storage slot; 4. Groove; 5. English card; 6. Spring slot; 7. Spring; 8. Pressure plate; 9. Spring fixing column; 10. Fix Patch; 11, transparent plastic layer; 12, fixed buckle; 13, buckle; 14, embedded groove; 15, sponge layer; 16, open groove.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Fig. 1-2, a convenient English card storage device, including a support plate 1, one side of the support plate 1 and one side of the cover plate 2 are connected to each other, and the support plate 1 and the cover plate 2 are open and closed with each other , the provided cover plate 2 can cover the support plate 1 in the style of a notebook, which is convenient for carrying. The fixed patch 10 can be folded between them, and the fixed patch 10 can strengthen the structural strength of the folded position of the support plate 1 and the cover plate 2, and is not easy to be broken.

The inner side of the support plate 1 is provided with a receiving slot 3, and the English card 5 is stacked in the storage slot 3. The support plate 1 is provided with two spring slots 6 on one side of the storage slot 3, and the spring slots 6 are fixed inside. A spring 7 is embedded, the upper end of the spring 7 is fixedly connected with a pressure plate 8, the lower surface of the pressure plate 8 is pressed on the English card 5, and the set pressure plate 8 is connected by the spring 7, has a certain elasticity, and can move up and down, Moreover, the elastic force of the spring 7 can limit the downward force of the pressing plate 8 to facilitate pressing the English card 5 and prevent the English card 5 from falling.

The middle of the cover plate 2 is provided with an opening groove 16, and a transparent plastic layer 11 is bonded in the opening groove 16. The area of the transparent plastic layer 11 covers the area of the groove 4. When the cover plate 2 is put on, the content of the uppermost English card 5 can be learned through the transparent plastic layer 11 , which can be learned at any time and improve the efficiency of learning.

Specifically, the fixing patch 10 is made of leather material, and the fixing patch 10 is fixed with the support plate 1 and the cover plate 2 by glue bonding, and the outer side of the support plate 1 is bonded with a fixing tape Buckle 12, a buckle 13 is bonded on the outer surface of the cover plate 2, the fixed buckle 12 and the buckle 13 are mutually clamped, and the fixed buckle 12 and the buckle 13 can be closed after The supporting plate 1 and the cover plate 2 are fixed, one side of the groove 4 is provided with a groove 4, the shape of the groove 4 is arc-shaped, and the groove 4 provided is convenient to take out the English card 5, and the support The plate 1 is provided with a slot 14 just below the pressure plate 8, the pressure plate 8 can be embedded in the slot 14, the lower part of the pressure plate 8 is fixedly connected with a spring fixing column 9, and the upper end of the spring 7 is fixedly sleeved on the spring A sponge layer 15 is provided on the lower surface of the pressing plate 8 on the outer side of the fixing column 9 .

It should be noted that the convenient English card storage device has a reasonable design and a simple structure. The support plate 1 and the cover plate 2 can be opened and closed with each other, and the set cover plate 2 can cover the support plate 1 in the style of a notebook, which is convenient Carrying, the fixed patch 10 provided can strengthen the structural strength of the folded position of the support plate 1 and the cover plate 2, and is not easy to break, the provided pressure plate 8 is connected by the spring 7, has a certain elasticity, can move up and down, and the elastic force of the spring 7 The pressure plate 8 can be restricted from exerting downward force to press the English card 5 tightly and prevent the English card 5 from falling. The transparent plastic layer 11 is provided so that when the cover plate 2 is covered, the uppermost learning can be learned through the transparent plastic layer 11 The content of the English card 5 can be learned at any time, and the efficiency of learning is improved. The utility model is convenient to carry, convenient for the storage of cards, and improves the efficiency of English learning.

The basic principles, main features and advantages of the present invention are shown and described above. It should be understood by those skilled in the art that the present invention is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the present invention. Without departing from the spirit and scope of the present invention, the present invention There will also be various changes and improvements in the new model, which all fall within the scope of the claimed invention. The claimed scope of the present invention is defined by the appended claims and their equivalents.

Claims (7)

1. A portable English card storage device, comprising a support plate (1), characterized in that: one side of the support plate (1) is connected to one side of a cover plate (2), and the support plate (1) A fixing patch (10) is attached to the inner side of the connection with the cover plate (2), the support plate (1) and the cover plate (2) can be folded and arranged, and the inner side of the support plate (1) is provided with a storage A slot (3), an English card (5) is stacked in the storage slot (3), and two spring slots (6) are provided on one side of the support plate (1) on the storage slot (3). A spring (7) is fixedly embedded in the groove (6), the upper end of the spring (7) is fixedly connected with a pressure plate (8), and the lower surface of the pressure plate (8) is pressed on the English card (5). An opening groove (16) is provided in the middle of the plate (2), a transparent plastic layer (11) is bonded in the opening groove (16), and the area of the transparent plastic layer (11) covers the area of the groove (4). . 2. A convenient English card storage device according to claim 1, characterized in that: the fixing patch (10) is made of leather, and the fixing patch (10) is connected to the support plate (1) and the The cover plates (2) are bonded and fixed by glue. 3. A convenient English card storage device according to claim 1, characterized in that: the outer surface of the support plate (1) is bonded with a fixed buckle (12), and the cover plate (2) A buckle (13) is bonded on the outer side of the belt, and the fixing belt buckle (12) and the buckle (13) are mutually clipped. 4. A convenient English card storage device according to claim 1, wherein a groove (4) is provided on one side of the groove (4), and the shape of the groove (4) is circle. 5. A convenient English card storage device according to claim 1, characterized in that: the support plate (1) is provided with a slot (14) directly below the pressure plate (8), and the pressure plate (8) ) can be embedded in the insert groove (14). 6. A convenient English card storage device according to claim 1, characterized in that: a spring fixing column (9) is fixedly connected to the lower part of the pressing plate (8), and an upper end fixing sleeve of the spring (7) is fixedly connected. On the outside of the spring fixing post (9). 7. A convenient English card storage device according to claim 1, characterized in that: a sponge layer (15) is provided on the lower surface of the pressing plate (8).
