Abstract

A cleaning and storage box for a three-dimensional negative ultrasound probe belongs to the technical field of medical equipment; the utility model is designed according to the shape of a three-dimensional negative ultrasound probe, and is inserted into a sieve cylinder during cleaning, and a nano-sponge in the sieve cylinder wraps the three-dimensional negative ultrasound probe, which is driven by The motor drives the sieve cylinder to rotate to complete the cleaning of the 3D negative ultrasound probe, and the cleaning effect is complete; the device has drying and disinfection functions. The probe is sterilized as a whole, which improves the safety of using the 3D cathodic ultrasound probe; the coordinated design of the slide rail and the winding roller can effectively clean and display 3D cathodic ultrasound probes with different wire lengths, which improves the aesthetics of the equipment display. After cleaning, the cleaning cylinder can be placed on the lower half of the main box through the slide rail. The upper half of the sliding door has transparent glass, and the lower half is opaque to cover the lower cleaning structure, making the whole more beautiful.

Description

A cleaning storage box for a three-dimensional negative ultrasound probe

technical field

The utility model belongs to the technical field of medical equipment, in particular to a cleaning and storage box for a three-dimensional negative ultrasound probe.

Background technique

In the field of medical imaging, the ultrasonic probe is an indispensable key part of the ultrasonic diagnostic instrument. It can apply ultrasonic energy to the diseased part of the human body to achieve the purpose of diagnosing diseases and promoting the recovery of the body. Since the medical ultrasonic probe needs to be in contact with the patient's skin during use, medical institutions have strict requirements on its use and storage. The most important point is that the ultrasonic probe for ultrasonic diagnosis and treatment must be used by one person and cleaned. Sterilize or sterilize.

During the current use of the existing 3D cathodic ultrasound probe, because the medical cleaning device or the medical faucet is far away from the position where the probe is used, and the medical cleaning device is generally too large, the cost of cleaning a certain probe alone is too high. Considering cost and improving work efficiency, when most medical staff use a three-dimensional negative ultrasound probe, they simply wipe the probe with toilet paper or disinfectant wipes and then apply the disinfectant couplant directly, and directly act on the next one. Although the patient inspection can also achieve the purpose of disinfection, due to the lack of strict and comprehensive cleaning, it is inevitable that there will be impurities left behind, or due to the bacteria left in the process of wiping with toilet paper or disinfectant wipes, it is easy to cause cross-infection. adverse effects on physical health.

SUMMARY OF THE INVENTION

The utility model mainly solves the technical problems existing in the above-mentioned prior art, and provides a cleaning storage box for cleaning and storing a three-dimensional negative ultrasound probe.

The above-mentioned technical problems of the present invention are mainly solved by the following technical solutions: a cleaning storage box for a three-dimensional negative ultrasound probe, comprising a main box body, a cleaning liquid storage box, a waste liquid storage box and a cleaning cylinder. The liquid storage tank is located in the lower right corner of the main box, the middle of the right side of the cleaning liquid storage tank is provided with a water injection port, the waste liquid storage tank is located in the lower left corner of the main tank, the waste liquid storage tank The middle and lower part of the left side is provided with a faucet, the top of the cleaning liquid storage tank is provided with a micro water pump, the lower side of the micro water pump is provided with a first water inlet, and the left end of the micro water pump is provided with a first water outlet, so The cleaning cylinder is arranged in the middle of the main box body, the right end of the bottom of the cleaning cylinder is provided with a second water inlet, the left end of the bottom of the cleaning cylinder is provided with a second water outlet, and the middle part of the right side of the waste liquid storage tank is provided with a second water inlet. There is a third water inlet, a first water delivery pipe is arranged between the cleaning cylinder and the micro water pump, the lower end of the first water delivery pipe is connected with the first water outlet, and the upper end of the first water delivery pipe is connected with the second water inlet A second water delivery pipe is arranged between the cleaning cylinder and the waste liquid storage tank, the lower end of the second water delivery pipe is connected with the waste liquid storage tank, and the upper end of the second water delivery pipe is connected with the second water outlet, The upper end of the first water delivery pipe is provided with a first solenoid valve, the upper end of the second water delivery pipe is provided with a second solenoid valve, the middle of the cleaning cylinder is provided with a screen cylinder, and the surface of the screen cylinder is provided with a sieve cylinder. There are several through holes, the inner surface of the screen cylinder is provided with nano sponge, the right side of the end of the cleaning cylinder is provided with a liquid level gauge, the lower end of the cleaning cylinder is provided with a driving motor, and the center of the driving motor is provided with a liquid level gauge. The drive shaft is connected and fixed with the sieve cylinder through the cleaning cylinder, the upper side of the fastening part of the driving shaft and the sieve cylinder is provided with a first sealing ring, and the upper side of the fastening part of the driving shaft and the cleaning cylinder is provided with a first sealing ring. There is a second sealing ring, a third sealing ring is provided on the lower side of the fastening part of the drive shaft and the cleaning cylinder, the left side of the cleaning cylinder is provided with a first slide rail, and the right side of the cleaning cylinder is provided with a third sealing ring. Two slide rails, the left side of the cleaning cylinder is provided with a first connecting piece, the lower side of the first connecting piece is provided with a first sliding block, and the first sliding block is fastened to the lower part of the left end of the first connecting piece The right end of the first connecting piece is connected and fixed with the cleaning cylinder, the first sliding block is slidably connected with the first sliding rail, and the right side of the cleaning cylinder is provided with a second connecting piece, the second connecting piece The lower side is provided with a second sliding block, the second sliding block is fastened to the lower side of the second connecting piece, the left end of the second connecting piece is connected and fixed with the cleaning cylinder, and the second sliding block is connected to the second connecting piece. The slide rails are slidably connected, a reeling roller is arranged above the cleaning drum, a handle clip is arranged above the reeling roller, an ultraviolet disinfection lamp is arranged on the lower surface of the top of the main box, and the ultraviolet disinfection lamp is The bottom is provided with a drying lamp, the left ends of the ultraviolet disinfection lamp and the drying lamp are provided with a first fixing member, the right ends of the ultraviolet disinfection lamp and the drying lamp are provided with a second fixing member, and the first fixing member is The upper end is fixedly connected with the top of the main box body, the right side of the first fixing piece is connected and fixed with the left ends of the ultraviolet disinfection lamp and the drying lamp, and the upper end of the second fixing piece is connected and fixed with the top of the main box body, so the The left side of the second fixing piece is connected with the UV disinfection lamp and The right end of the drying lamp is connected and fixed, the middle and upper part of the right side of the main box is provided with a control switch, the left half of the front side of the main box is provided with a first sliding door, and the middle and upper part of the first sliding door A first transparent glass is provided, the middle part of the right side of the first sliding door is provided with a first handle, the right half of the front side of the main box is provided with a second sliding door, and the middle and upper part of the second sliding door There is a second transparent glass, the middle part of the left side of the second sliding door is provided with a second handle, the left end of the bottom of the main box is provided with a first universal wheel, and the right end of the bottom of the main box is provided with a second handle. Two universal wheels, the micro water pump, the first solenoid valve, the second solenoid valve, the driving motor, the ultraviolet disinfection lamp and the drying lamp are all electrically connected to the power supply through a control switch.

Preferably, the nano-sponge is arranged around the inner surface of the sieve cylinder, and the diameter of the circle formed by the nano-sponge is the same as the diameter of the three-dimensional negative ultrasound probe.

The beneficial effects of the utility model are as follows: (1) After the traditional three-dimensional negative ultrasound probe is used, the couplant on the surface is generally wiped with toilet paper. This operation is not very thorough and has no disinfection effect. Besides, the couplant has viscosity, and the surface remains seriously. The utility model is designed according to the shape of the three-dimensional negative ultrasound probe. When cleaning, the sieve cylinder is inserted into the sieve cylinder. The nano sponge in the sieve cylinder wraps the three-dimensional negative ultrasound probe. The drive motor drives the screen cylinder to rotate to complete the cleaning of the three-dimensional negative ultrasound probe. And it has the function of protecting the three-dimensional negative ultrasound probe; (2) the device has the functions of drying and disinfection. The drying lamp dries the probe when the cleaning work is completed, and the ultraviolet disinfection lamp sterilizes the cleaned three-dimensional negative ultrasound probe as a whole. (3) The matching design of the slide rail and the winding roller can effectively clean and display the three-dimensional cathodic ultrasound probes with different wire lengths, which improves the aesthetics of the equipment display. After cleaning, the cleaning cylinder can be placed in the lower half of the main box through the slide rail. The upper half of the sliding door has transparent glass, and the lower half is opaque to cover the lower cleaning structure, making the whole more beautiful; (4) The device The universal wheel is set, which increases the portability, reduces the manpower and physical strength of handling, and improves the work efficiency.

Description of drawings

Fig. 1 is a kind of external structure schematic diagram of the present utility model;

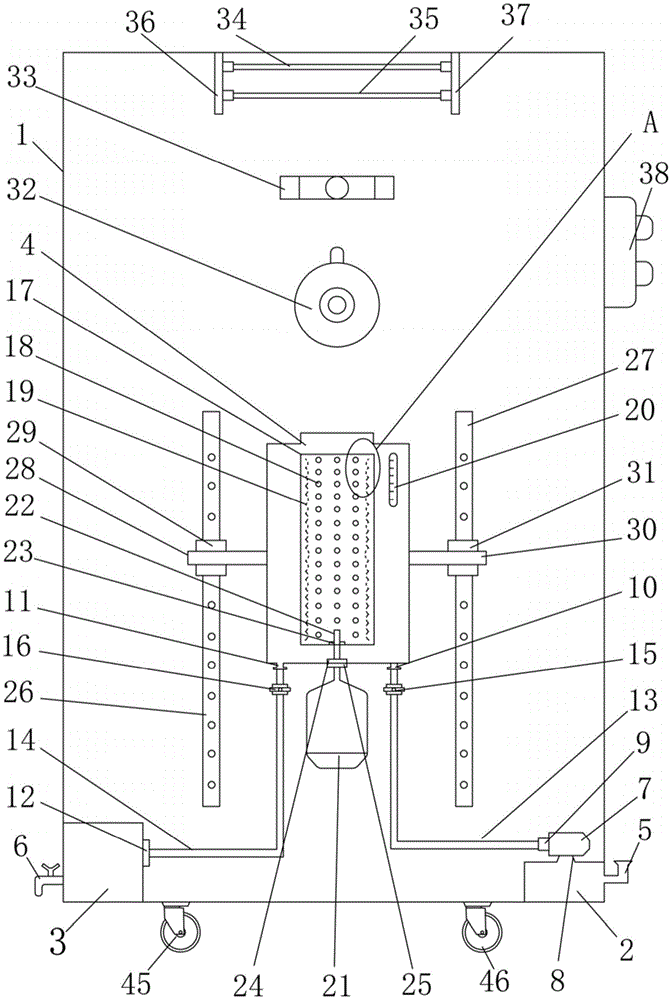

Fig. 2 is a kind of internal structure schematic diagram of the present utility model;

Fig. 3 is a kind of enlarged structural representation of A part in Fig. 2;

FIG. 4 is a schematic structural diagram of the handle clip of the present invention.

In the figure: 1. Main box; 2. Cleaning liquid storage tank; 3. Waste liquid storage tank; 4. Cleaning cylinder; 5. Water injection port; 6. Faucet; 7. Micro water pump; , the first water outlet; 10, the second water inlet; 11, the second water outlet; 12, the third water inlet; 13, the first water pipe; 14, the second water pipe; 15, the first solenoid valve; 16, The second solenoid valve; 17, the sieve cylinder; 18, the through hole; 19, the nano sponge; 20, the liquid level gauge; 21, the drive motor; 22, the drive shaft; 23, the first sealing ring; 24, the second sealing ring; 25, the third sealing ring; 26, the first slide rail; 27, the second slide rail; 28, the first connecting piece; 29, the first sliding block; 30, the second connecting piece; 31, the second sliding block; 32 , winding roller; 33, handle clip; 34, ultraviolet disinfection lamp; 35, drying lamp; 36, first fixing part; 37, second fixing part; 38, control switch; 39, first sliding door; 40, The first transparent glass; 41, the first handle; 42, the second sliding door; 43, the second transparent glass; 44, the second handle; 45, the first universal wheel; 46, the second universal wheel.

Detailed ways

The technical solutions of the present utility model will be further described in detail below through embodiments and in conjunction with the accompanying drawings.

Example: a cleaning storage box for a three-dimensional negative ultrasound probe, as shown in Figure 1-Figure 4, a cleaning storage box for a three-dimensional negative ultrasound probe, including a main box, a cleaning liquid storage box, a waste liquid storage box and a cleaning The cleaning liquid storage tank is located in the lower right corner of the main box, the middle part of the right side of the cleaning liquid storage tank is provided with a water injection port, and the waste liquid storage tank is located in the lower left corner of the main box, so The middle and lower part of the left side of the waste liquid storage tank is provided with a faucet, the top of the cleaning liquid storage tank is provided with a micro water pump, the lower side of the micro water pump is provided with a first water inlet, and the left end of the micro water pump is provided with a second water inlet. A water outlet, the cleaning cylinder is located in the middle of the main box, the right end of the bottom of the cleaning cylinder is provided with a second water inlet, the left end of the bottom of the cleaning cylinder is provided with a second water outlet, the waste liquid storage tank The middle part of the right side is provided with a third water inlet, a first water delivery pipe is arranged between the cleaning cylinder and the micro water pump, the lower end of the first water delivery pipe is connected with the first water outlet, and the upper end of the first water delivery pipe Connected to the second water inlet, a second water delivery pipe is arranged between the cleaning cylinder and the waste liquid storage tank, the lower end of the second water delivery pipe is connected to the waste liquid storage tank, and the upper end of the second water delivery pipe is connected to the second water delivery pipe. The two water outlets are connected, the upper end of the first water pipe is provided with a first solenoid valve, the upper end of the second water pipe is provided with a second solenoid valve, the middle of the cleaning cylinder is provided with a screen cylinder, the The surface of the sieve drum is provided with a number of through holes, the inner surface of the sieve drum is provided with nano sponges, the right side of the end of the cleaning drum is provided with a liquid level gauge, the lower end of the cleaning drum is provided with a driving motor, the There is a drive shaft in the center of the drive motor, the drive shaft is connected and fixed with the screen cylinder through the cleaning cylinder, a first sealing ring is arranged on the upper side of the fastening part of the drive shaft and the screen cylinder, and the drive shaft is fastened with the cleaning cylinder A second sealing ring is provided on the upper side of the cleaning cylinder, a third sealing ring is provided on the lower side of the fastening point between the drive shaft and the cleaning cylinder, and a first sliding rail is provided on the left of the cleaning cylinder. The right side is provided with a second slide rail, the left side of the cleaning cylinder is provided with a first connecting piece, the lower side of the first connecting piece is provided with a first sliding block, and the first sliding block is fastened to the first sliding block. The lower side of the left end of the connecting piece, the right end of the first connecting piece is connected and fixed with the cleaning cylinder, the first sliding block is slidably connected with the first sliding rail, and the right side of the cleaning cylinder is provided with a second connecting piece, so The lower side of the second connecting piece is provided with a second sliding block, the second sliding block is fastened to the lower side of the second connecting piece, the left end of the second connecting piece is connected and fixed with the cleaning cylinder, and the second sliding block is fastened to the lower side of the second connecting piece. The slider is slidably connected to the second slide rail, a reel roller is arranged above the cleaning drum, a handle clip is arranged above the reel roller, and an ultraviolet disinfection lamp is arranged on the lower surface of the top of the main box, so The ultraviolet disinfection lamp is provided with a drying lamp below the ultraviolet disinfection lamp, the left end of the ultraviolet disinfection lamp and the drying lamp is provided with a first fixing member, and the right end of the ultraviolet disinfection lamp and the drying lamp is provided with a second fixing member. The upper end of the first fixing member is fixedly connected with the top of the main box body, the right side of the first fixing member is connected and fixed with the left ends of the ultraviolet disinfection lamp and the drying lamp, and the upper end of the second fixing member is connected and fixed with the upper end of the main box body. The top is connected and fixed, and the left side of the second fixing piece is connected with the ultraviolet disinfection lamp and the oven. The right end of the dry lamp is connected and fixed, the middle and upper part of the right side of the main box is provided with a control switch, the left half of the front side of the main box is provided with a first sliding door, and the middle and upper part of the first sliding door is provided with a control switch. There is a first transparent glass, the middle part of the right side of the first sliding door is provided with a first handle, the right half of the front side of the main box is provided with a second sliding door, and the middle and upper part of the second sliding door is provided with a second sliding door. There is a second transparent glass, the middle part of the left side of the second sliding door is provided with a second handle, the left end of the bottom of the main box is provided with a first universal wheel, and the right end of the bottom of the main box is provided with a second handle. The universal wheel, the micro water pump, the first solenoid valve, the second solenoid valve, the driving motor, the ultraviolet disinfection lamp and the drying lamp are all electrically connected to the power supply through a control switch.

The nano-sponge is arranged around the inner surface of the sieve cylinder. The diameter of the circle formed by the nano-sponge is the same as the diameter of the three-dimensional negative ultrasound probe. Due to the viscosity of the couplant, it is difficult to clean. This design can make the three-dimensional negative ultrasound probe. Fitted with nano sponge, the drive motor drives the screen cylinder to rotate, so that the cleaning is more thorough.

The operating principle of the utility model: when the three-dimensional negative ultrasound probe needs to be cleaned, open the sliding door, first insert the three-dimensional negative ultrasound probe into the sieve cylinder, wrap the wire on the winding roller, and when the length is suitable, snap the handle into the handle Clamp on, turn on the switch, the micro water pump introduces the cleaning liquid into the cleaning cylinder, the cleaning liquid soaks the nano sponge through the through holes on the screen cylinder, and the driving motor drives the screen cylinder to rotate to clean the three-dimensional negative ultrasound probe. After cleaning, the cleaning cylinder passes through The slide rail slides down, the 3D negative ultrasound probe is pulled out, the 3D negative ultrasound probe is dried and sterilized by the drying lamp and the ultraviolet disinfection lamp, and the used waste liquid is discharged into the waste liquid storage tank through the second water delivery pipe. When it is full, it can be collected and collected through the faucet. When it needs to be moved, the universal wheel can make the handling work more time-saving and labor-saving.

Finally, it should be pointed out that the above embodiments are only representative examples of the present invention. Obviously, the present invention is not limited to the above-mentioned embodiments, and many modifications are possible. Any simple modifications, equivalent changes and modifications made to the above embodiments according to the technical essence of the present invention shall be considered to belong to the protection scope of the present invention.

Claims (2)

1. a cleaning storage box for a three-dimensional negative ultrasound probe, comprising a main box, a cleaning solution storage tank, a waste liquid storage box and a cleaning cylinder, it is characterized in that the cleaning solution storage box is located in the lower right corner inside the main box, The middle part of the right side of the cleaning liquid storage tank is provided with a water injection port, the waste liquid storage tank is arranged at the lower left corner inside the main box, the middle and lower part of the left side of the waste liquid storage tank is provided with a faucet, and the cleaning liquid The top of the storage tank is provided with a micro water pump, the lower side of the micro water pump is provided with a first water inlet, the left end of the micro water pump is provided with a first water outlet, the cleaning cylinder is arranged in the middle of the main box, the The right end of the bottom of the cleaning cylinder is provided with a second water inlet, the left end of the bottom of the cleaning cylinder is provided with a second water outlet, the middle of the right side of the waste liquid storage tank is provided with a third water inlet, the cleaning cylinder and the micro water pump There is a first water delivery pipe in between, the lower end of the first water delivery pipe is connected with the first water outlet, the upper end of the first water delivery pipe is connected with the second water inlet, and between the cleaning cylinder and the waste liquid storage tank There is a second water delivery pipe, the lower end of the second water delivery pipe is connected with the waste liquid storage tank, the upper end of the second water delivery pipe is connected with the second water outlet, and the upper end of the first water delivery pipe is provided with a first Solenoid valve, the upper end of the second water pipe is provided with a second solenoid valve, the middle of the cleaning cylinder is provided with a screen cylinder, the surface of the screen cylinder is provided with a number of through holes, and the inner surface of the screen cylinder is provided with There is a nano sponge, a liquid level gauge is arranged on the right side of the end of the cleaning cylinder, a driving motor is arranged at the lower end of the cleaning cylinder, and a driving shaft is arranged in the center of the driving motor, and the driving shaft passes through the cleaning cylinder and the sieve cylinder. The connection is fixed, the upper side of the fastening part of the drive shaft and the screen cylinder is provided with a first sealing ring, the upper side of the fastening part of the driving shaft and the cleaning cylinder is provided with a second sealing ring, and the driving shaft and the cleaning cylinder are provided on the upper side. The lower side of the fastening part is provided with a third sealing ring, the left side of the cleaning cylinder is provided with a first sliding rail, the right side of the cleaning cylinder is provided with a second sliding rail, and the left side of the cleaning cylinder is provided with a second sliding rail. A first connecting piece, the lower side of the first connecting piece is provided with a first sliding block, the first sliding block is fastened to the lower side of the left end of the first connecting piece, and the right end of the first connecting piece is connected to the cleaning cylinder The connection is fixed, the first sliding block is slidably connected with the first sliding rail, the right side of the cleaning cylinder is provided with a second connecting piece, the lower side of the second connecting piece is provided with a second sliding block, the first Two sliding blocks are fastened to the lower side of the second connecting piece, the left end of the second connecting piece is connected and fixed with the cleaning cylinder, the second sliding block is slidably connected with the second sliding rail, and a cleaning cylinder is provided above the cleaning cylinder. A reel, a handle clip is arranged above the reel, an ultraviolet sterilizing lamp is arranged on the lower surface of the top of the main box, a drying lamp is arranged below the ultraviolet sterilizing lamp, and the ultraviolet sterilizing lamp is The left end of the drying lamp is provided with a first fixing member, the right end of the ultraviolet disinfection lamp and the drying lamp are provided with a second fixing member, the upper end of the first fixing member is fixedly connected with the top of the main box, and the first fixing member is fixedly connected to the top of the main box. The right side of a fixing member is connected and fixed with the left ends of the ultraviolet disinfection lamp and the drying lamp, the upper end of the second fixing member is connected and fixed with the top of the main box, and the left side of the second fixing member is connected with the ultraviolet disinfection lamp and the drying lamp. The right end of the drying lamp is connected and fixed, and the middle and upper part of the right side of the main box is There is a control switch, the left half of the front side of the main box is provided with a first sliding door, the middle and upper part of the first sliding door is provided with a first transparent glass, and the middle part of the right side of the first sliding door is provided with a first transparent glass. There is a first handle, the right half of the front side of the main box is provided with a second sliding door, the middle and upper part of the second sliding door is provided with a second transparent glass, and the middle part of the left side of the second sliding door is provided with a second transparent glass. There is a second handle, the left end of the bottom of the main box is provided with a first universal wheel, the right end of the bottom of the main box is provided with a second universal wheel, the micro water pump, the first solenoid valve, the second solenoid The valve, the driving motor, the ultraviolet disinfection lamp and the drying lamp are all electrically connected with the power source through the control switch. 2. the cleaning storage box of a kind of three-dimensional negative ultrasound probe according to claim 1, is characterized in that described nano-sponge surrounds and is arranged on the inner surface of sieve cylinder, and the circle diameter size that described nano-sponge surrounds is formed with three-dimensional negative ultrasound. The diameters of the probes are the same.
