CN211989292U - Wood floor painting device - Google Patents

Abstract

The utility model specifically relates to a wood floor painting device, which belongs to the technical field of wood floor manufacturing. The technical problem to be solved is to provide a wood floor painting device that can automatically complete the double-sided painting of wood panels. The adopted scheme is as follows: A wooden floor holding part is slidably arranged on the frame, a turning motor is connected to the wooden floor holding part, a horizontal frame is fixed above the middle part of the base frame, and the horizontal frame is perpendicular to the lateral movement direction of the wooden floor holding part, and the painting nozzle is arranged Above the base frame, the nozzle of the paint spray head is arranged downward, the paint spray head is connected with a connecting rod, the other end of the connecting rod is connected with a connecting rod traverse driving part, the connecting rod traverse driving part is connected with the horizontal frame, and the connecting rod is connected to the horizontal frame. The traverse driving component is used to drive the connecting rod and the paint spray head to reciprocate along the horizontal frame; the utility model completes the automatic paint work of the wooden floor by moving the wooden floor and the paint spray head horizontally.

Description

A wood floor painting device

technical field

The utility model belongs to the technical field of wood floor manufacturing, in particular to a wood floor painting device.

Background technique

With the development of the economy, modern people's living standards are getting better and better, and the pursuit of quality of life is also getting higher and higher. Wooden floors are widely used in indoor floor covering materials. In existing wood floor processing enterprises, when painting the wood floor, the staff generally sprays the wood with a paint spray gun. After painting one side, the wood floor needs to be turned over manually, and then the other side of the wood floor is painted, which not only costs a lot of money The manpower and material resources are time-consuming and labor-intensive, and there will be repeated spraying and missing spraying, and the processing effect is not good.

Utility model content

The utility model overcomes the deficiencies of the prior art and provides a wood floor painting device, which can automatically complete the painting work on both sides of the wood board, and the painting is uniform, without repeated painting and leakage, and the painting effect is good.

In order to solve the above-mentioned technical problems, the technical scheme adopted by the present utility model is: a wood floor painting device, comprising: a base frame, a wood floor clamping part, a turning motor, a painting nozzle, a connecting rod, and a connecting rod traverse driving part and a horizontal frame, the square base frame is slidably provided with the wooden floor clamping part, the wooden floor clamping part can move back and forth horizontally along the base frame, and the wooden floor clamping part is connected with a The turning motor is used to drive the wooden floor clamping part and the wooden floor to turn over, the horizontal frame is fixed above the middle part of the base frame, and the horizontal frame is clamped with the wooden floor The transverse movement direction of the component is vertical, the paint spray head is arranged above the base frame, the spray nozzle of the paint spray head is arranged downward, the paint spray head is connected with the connecting rod, and the other side of the connecting rod is connected. One end is connected with the connecting rod traverse driving part, the connecting rod traverse driving part is connected with the cross frame, and the connecting rod traverse driving part is used to drive the connecting rod and the paint spraying head along the The horizontal frame moves back and forth.

The wooden floor painting device also includes: a driving rod, a driving rod traversing driving part, a chute and a slider, one side of the base frame is provided with the horizontal chute, and the chute is clamped with a The sliding block can move back and forth along the chute, the sliding block is connected with one end of the driving rod, and the other end of the driving rod is connected with the driving rod traverse driving component, so The wooden floor clamping part is fixed above the driving rod.

The wooden floor clamping component includes: a connecting column, a cross bar, a two-way telescopic cylinder and a clamping bar. The horizontal connecting column is sleeved with the horizontal bar, and the horizontal bar is coaxial with the connecting column. The cross bar is rotatable relative to the connecting column, one end of the cross bar is fixed to the cylinder of the two-way telescopic cylinder, the piston rod of the two-way telescopic cylinder is arranged in parallel with the chute, the The end of the piston rod of the two-way telescopic cylinder is fixed with the clamping rod perpendicular to the piston rod, and the clamping rod is used for clamping both ends of the wooden floor.

The connecting rod traverse driving component includes: No. 2 motor, No. 2 screw rod and No. 2 nut, a hole groove is arranged inside the horizontal frame, and a horizontal strip slot is arranged on the hole groove, and the The No. 2 screw rod is arranged in the hole and slot, the No. 2 screw rod can rotate relative to the horizontal frame, the No. 2 screw rod is coaxially fixed with the output shaft of the No. 2 motor, and the No. 2 screw rod is fixed coaxially with the output shaft of the No. 2 motor. The motor is fixed to the horizontal frame, the No. 2 nut is sleeved on the No. 2 screw rod, and the connecting rod penetrates the strip slot and is fixed to the No. 2 nut.

The drive rod traverse driving component includes: a No. 1 screw rod, a No. 1 motor and a No. 1 nut, the No. 1 screw rod is arranged inside the base frame parallel to the chute, and one end of the No. 1 screw rod is It is coaxially fixed with the output shaft of the No. 1 motor, the No. 1 motor is fixed to the base frame, the other end of the No. 1 screw rod is connected to the bearing of the base frame, and the No. 1 screw rod is sleeved The No. 1 nut is provided, and the No. 1 nut is fixed with the driving rod.

The clamping rod is connected with a V-shaped clamping groove, the V-shaped clamping groove is a long strip, the V-shaped clamping grooves on the two clamping rods are opposite to each other, and the V-shaped clamping groove is used for clamping Hold the wooden floor.

An anti-skid layer is fixed on the inner surface of the V-shaped groove of the V-shaped clip groove.

The cross bar is connected with the connecting column bearing.

The No. 2 screw rod is arranged in parallel with the horizontal frame, and the No. 2 screw rod is connected with the bearing of the horizontal frame.

How to use: The two ends of the wooden floor are clamped in the wooden floor holding parts, the wooden floor is set to a horizontal state, the No. 1 motor is turned on, and the wooden floor moves slowly to the other end of the base frame. When the wooden floor moves to the painting nozzle When it is down, the painting nozzle sprays paint to the wooden floor, and the painting nozzle moves laterally above the wooden floor. The lateral movement direction of the painting nozzle is perpendicular to the lateral movement direction of the wooden floor. During this process, the side of the wooden floor is painted. Work, when the wooden floor moves to the other end of the base frame, the flip motor is turned on, and the wooden floor is rotated 180 degrees. Then, the No. 1 motor is reversed, the wooden floor moves back, and the paint sprayer sprays the other side of the wooden floor, and the wooden floor Finish painting the wood floors when moving back to the original end of the base frame.

Compared with the prior art, the utility model has the following beneficial effects.

1. The utility model completes the automatic painting work of the wood floor by moving the wood floor and the painting nozzles horizontally, without repeated painting and leakage, and the painting is uniform.

2. The wooden floor clamping part of the present utility model is also provided with a flipping motor. When the painting action on one side of the wooden floor is completed, the wooden floor is turned 180 degrees under the drive of the flipping motor, and the painting on the other side of the wooden floor is automatically completed. The action saves manpower and reduces the workload of the staff.

Description of drawings

The utility model will be further described below in conjunction with the accompanying drawings.

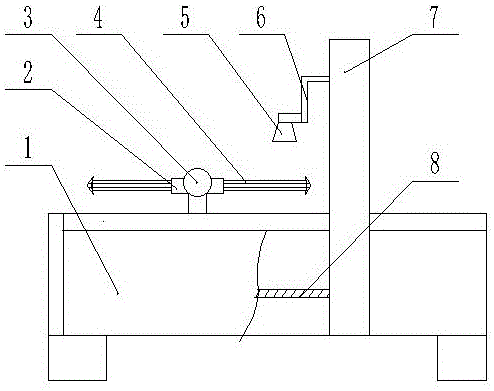

Figure 1 is a front view of the utility model wood floor painting device.

FIG. 2 is a partial cross-sectional view of the top plan view of the wood floor painting device of the present invention.

Figure 3 is a left side view of the wood floor painting device of the present invention.

FIG. 4 is a left partial cross-sectional view of the wooden floor painting device of the present invention.

FIG. 5 is a left side view of the wooden floor clamping part of the present invention.

Figure 6 is a cross-sectional view of the utility model A-A.

In the picture: 1 is the base frame, 2 is the wooden floor clamping part, 3 is the turning motor, 4 is the wooden floor, 5 is the painting nozzle, 6 is the connecting rod, 7 is the horizontal frame, 8 is the No. 1 screw, 9 No. 1 motor, 10, No. 2 motor, 11, No. 2 lead screw, 12, drive rod, 13, slider, 14, chute, 15, connecting column, 16, two-way telescopic cylinder, 17, clamp rod, 18 For the V-clamp groove.

Detailed ways

Further description will be given below in conjunction with specific embodiments.

A wood floor painting device, comprising: a base frame 1, a wood floor clamping part 2, a turning motor 3, a paint spraying head 5, a connecting rod 6, a connecting rod traverse driving part and a cross frame 7, the square base The wooden floor clamping part 2 is slidably arranged on the frame 1, the wooden floor clamping part 2 can move horizontally and reciprocatingly along the base frame 1, and the wooden floor clamping part 2 is connected with the turning motor 3 , the turning motor 3 is used to drive the wooden floor clamping part 2 and the wooden floor 4 to turn over, the horizontal frame 7 is fixed above the middle of the base frame 1, and the horizontal frame 7 is connected to the wooden floor. The lateral movement direction of the floor clamping member 2 is vertical, the paint spraying head 5 is arranged above the base frame 1, the spray nozzle of the painting spraying head 5 is arranged downward, and the paint spraying head 5 is connected with the connecting rod. Rod 6, the other end of the connecting rod 6 is connected with the connecting rod traverse driving part, the connecting rod traverse driving part is connected with the cross frame 7, and the connecting rod traverse driving part is used to drive all The connecting rod 6 and the paint spraying head 5 reciprocate along the horizontal frame 7 .

The wooden floor painting device further comprises: a driving rod 12, a driving rod traversing driving part, a chute 14 and a sliding block 13. One side of the base frame 1 is provided with the horizontal chute 14, and the sliding The sliding block 13 is clamped in the groove 14 , the sliding block 13 can reciprocate along the sliding groove 14 , the sliding block 13 is connected with one end of the driving rod 12 , and the other end of the driving rod 12 The driving rod traverse driving member is connected, and the wooden floor clamping member 2 is fixed above the driving rod 12 .

The wooden floor clamping part 2 includes: a connecting column 15, a cross bar, a two-way telescopic cylinder 16 and a clamping bar 17. The horizontal connecting column 15 in the axial direction is sleeved with the cross bar, and the cross bar is connected to the The connecting column 15 is coaxially arranged, the transverse rod can rotate relative to the connecting column 15, one end of the transverse rod is fixed to the cylinder of the two-way telescopic cylinder 16, and the piston rod of the two-way telescopic cylinder 16 is connected to the cylinder body of the two-way telescopic cylinder 16. The chute 14 is arranged in parallel, the end of the piston rod of the two-way telescopic cylinder 16 is fixed with the clamping rod 17 perpendicular to the piston rod, and the clamping rod 17 is used to clamp both ends of the wooden floor 4 .

The connecting rod traverse driving component includes: the No. 2 motor 10, the No. 2 screw rod 11 and the No. 2 nut, the transverse frame 7 is provided with a hole groove, and the hole groove is provided with a horizontal strip slot. , the No. 2 screw rod 11 is arranged in the hole groove, the No. 2 screw rod 11 can rotate relative to the horizontal frame 7, the No. 2 screw rod 11 and the output shaft of the No. 2 motor 10 Coaxially fixed, the No. 2 motor 10 and the cross frame 7 are fixed, the No. 2 nut is sleeved on the No. 2 screw rod 11, the connecting rod 6 penetrates through the strip slot and the The second nut is fixed.

The drive rod traverse driving component includes: a No. 1 lead screw 8, a No. 1 motor 9 and a No. 1 nut. The No. 1 lead screw 8 is disposed inside the base frame 1 parallel to the chute 14, One end of the No. 1 screw 8 is coaxially fixed with the output shaft of the No. 1 motor 9 , the No. 1 motor 9 is fixed to the base frame 1 , and the other end of the No. 1 screw 8 is fixed to the base frame 1 Bearing connection, the No. 1 screw rod 8 is sleeved with the No. 1 nut, and the No. 1 nut is fixed with the driving rod 12 .

The clamping rod 17 is connected with a V-shaped clamping groove 18, the V-shaped clamping groove 18 is a long strip, and the V-shaped clamping grooves 18 on the two clamping rods 17 are opposite to each other. The clamping groove 18 is used for clamping the wooden floor 4 .

An anti-skid layer is fixed on the inner surface of the V-shaped groove of the V-shaped clip groove 18 .

The cross bar is bearing-connected with the connecting column 15 .

The No. 2 screw rod 11 is arranged in parallel with the cross frame 7 , and the No. 2 screw rod 11 is connected with the cross frame 7 in a bearing.

The above-mentioned embodiments merely illustrate the principles and effects of the present invention, and are not intended to limit the present invention. Those skilled in the art can modify or improve the above embodiments without departing from the spirit and scope of the present invention. Therefore, all equivalent modifications or changes made by those with ordinary knowledge in the technical field without departing from the spirit and technical idea disclosed by the present invention shall still be covered by the claims of the present invention.

Claims (9)

1. A wood floor painting device is characterized by comprising: the wood floor painting device comprises a base frame (1), a wood floor clamping component (2), a turnover motor (3), a painting sprayer (5), a connecting rod (6), a connecting rod transverse moving driving component and a cross frame (7), wherein the square wood floor clamping component (2) is arranged on the base frame (1) in a sliding mode, the wood floor clamping component (2) can horizontally reciprocate along the base frame (1), the wood floor clamping component (2) is connected with the turnover motor (3), the turnover motor (3) is used for driving the wood floor clamping component (2) and the wood floor (4) to turn over, the cross frame (7) is fixed above the middle of the base frame (1), the cross frame (7) is perpendicular to the transverse moving direction of the wood floor clamping component (2), the painting sprayer (5) is arranged above the base frame (1), and a nozzle of the painting sprayer (5) is arranged downwards, the connecting rod (6) is connected to the painting nozzle (5), the other end of the connecting rod (6) is connected with the connecting rod transverse moving driving part, the connecting rod transverse moving driving part is connected with the cross frame (7), and the connecting rod transverse moving driving part is used for driving the connecting rod (6) and the painting nozzle (5) to reciprocate along the cross frame (7).

2. The wood flooring varnishing apparatus according to claim 1, further comprising: the wood floor clamping device comprises a driving rod (12), a driving rod transverse moving driving part, a sliding groove (14) and a sliding block (13), wherein one side of the base frame (1) is provided with the horizontal sliding groove (14), the sliding block (13) is connected in the sliding groove (14) in a clamping mode, the sliding block (13) can move in a reciprocating mode along the sliding groove (14), the sliding block (13) is connected with one end of the driving rod (12), the other end of the driving rod (12) is connected with the driving rod transverse moving driving part, and the wood floor clamping part (2) is fixed above the driving rod (12).

3. The wood flooring varnishing apparatus according to claim 2, wherein the wood flooring clamping member (2) comprises: spliced pole (15), horizontal pole, two-way stretch out and draw back cylinder (16) and clamping bar (17), axial horizontally the spliced pole (15) endotheca is equipped with the horizontal pole, the horizontal pole can for spliced pole (15) rotate, the one end of horizontal pole with the barrel of two-way stretch out and draw back cylinder (16) is fixed, the piston rod of two-way stretch out and draw back cylinder (16) with spout (14) parallel arrangement, the tailpiece of the piston rod portion of two-way stretch out and draw back cylinder (16) is fixed with the perpendicular the piston rod clamping bar (17), clamping bar (17) are used for pressing from both sides tightly the both ends of timber apron (4).

4. The wood flooring varnishing apparatus of claim 3, wherein the link traverse drive member comprises: no. two motor (10), No. two lead screw (11) and No. two nuts, the inside hole groove that is provided with of crossbearer (7), just be provided with horizontally bar notch on the hole groove, No. two lead screw (11) set up in the hole inslot, No. two lead screw (11) can for crossbearer (7) rotation, No. two lead screw (11) with the output shaft coaxial fixation of No. two motor (10), No. two motor (10) with crossbearer (7) are fixed, No. two nut cover are located on No. two lead screw (11), connecting rod (6) run through the bar notch with No. two nuts are fixed.

5. The wood flooring varnishing apparatus of claim 4, wherein the driving-bar-traverse-driving part comprises: a lead screw (8), a motor (9) and a nut, a lead screw (8) is parallel spout (14) set up in inside bed frame (1), the one end of a lead screw (8) with the output shaft coaxial fixation of a motor (9), a motor (9) with bed frame (1) is fixed, the other end of a lead screw (8) with bed frame (1) bearing is connected, the cover is equipped with on a lead screw (8) a nut, a nut with actuating lever (12) are fixed.

6. The wood floor painting device according to claim 5, characterized in that V-shaped clamping grooves (18) are connected to the clamping bars (17), the V-shaped clamping grooves (18) are long-strip-shaped, the notches of the V-shaped clamping grooves (18) on the two clamping bars (17) are opposite, and the V-shaped clamping grooves (18) are used for clamping the wood floors (4).

7. The wood floor painting device according to claim 6, characterized in that an anti-slip layer is fixed on the inner surface of the V-shaped groove of the V-shaped clamping groove (18).

8. Wood floor painting device according to claim 7, characterized in that said cross bar is bearing-connected to said connecting column (15).

9. The wood floor painting device according to claim 8, characterized in that the second screw rod (11) is arranged in parallel with the cross frame (7), and the second screw rod (11) is in bearing connection with the cross frame (7).
