Abstract

A urine sampling device for gynecological examination relates to a gynecological examination device. Both ends of the urine collector are open structures, and one end of the urine collector is provided with a urine collecting port, the urine collecting port The side of the outer end is an arc-shaped side that matches with the female perineal part, the other end of the urine collection port is provided with a urinary port, and the inner side wall of the urinary port is provided with an inner fold, so The diameter of the urine collection bottle is adapted to the catheter opening, a diameter expansion snap ring is arranged on the upper part of the bottle mouth of the urine collection bottle, and the bottom of the urine collection bottle passes through the catheter opening and is clamped by the expansion collar. The upper edge of the inner folded edge placed on the inner side of the urinary catheter, the inner side wall of the expanded diameter snap ring is an inclined surface that is wide at the top and narrow at the bottom, and an arc-shaped handle is provided on the upper side of the outer wall of the urine collector; The utility model effectively avoids the problem that the traditional hand-held bottle body sampling is easy to cause urine to spill on the hands, greatly facilitates the urine collection and sampling of the patient, and ensures the cleanliness of the urine sampling.

Description

Urine sampling device for gynecological examination

technical field

The utility model relates to a gynecological examination device, in particular to a urine sampling device for gynecological examination.

Background technique

It is well known that gynecological urine examination is an indispensable detection method in traditional gynecological medical examination and disease analysis. Urine test is very valuable for clinical diagnosis, judging curative effect and prognosis. At present, when collecting urine, medical staff usually give patients a sample cup, and the patient holds the sample cup in the toilet to carry out the test. Urine collection, however, due to the physiological structure of women and the small diameter of the sample cup, it is easy to spill urine on the hands or the outer wall of the sample cup during urine collection and sampling, which causes great harm to patients. In order to avoid this problem, the curved mouth is often used to assist in urine collection. However, since the curved mouth and the sample cup are two separate individuals, the patient’s hands are required to operate and cooperate with each other during sampling. , not only greatly increases the difficulty of urine sampling, but also the sampling effect is not ideal.

SUMMARY OF THE INVENTION

In order to overcome the deficiencies in the background technology, the present utility model discloses a urine sampling device for gynecological examination. The utility model effectively avoids the problem that the traditional hand-held bottle sampling is easy to cause urine to spill on the hands, and greatly It is convenient for patients to collect and sample urine, and ensures the cleanliness of urine sampling.

The technical scheme that realizes the utility model is as follows:

A urine sampling device for gynecological examination, comprising a urine collector and a urine collection bottle, both ends of the urine collector are open structures, one end of the urine collector is provided with a urine collection port, the urine collection The side of the outer end of the mouth is an arc-shaped side that matches with the female perineal part, the other end of the urine collection mouth is provided with a urinary catheter, and the inner side wall of the urinary catheter is provided with an inner fold, The diameter of the urine collection bottle is adapted to the urine guide opening, and a diameter expansion snap ring is arranged on the upper part of the bottle mouth of the urine collection bottle. The upper edge of the inner folded edge is clamped on the inner side of the urinary catheter, the inner side wall of the diameter-expanding snap ring is an inclined surface that is wide at the top and narrow at the bottom, and an arc-shaped handle is arranged on the upper side of the outer side wall of the urine collector.

In the urine sampling device for gynecological examination, the lower side wall of the urine collector is a thickened side wall.

In the urine sampling device for gynecological examination, a rubber ring is provided on the outer side wall of the diameter-expanding snap ring on the urine collection bottle, and the rubber ring is in interference fit with the inner side wall of the lower end of the urine collector.

In the urine sampling device for gynecological examination, a diameter reducing ring adapted to the bottom surface of the expanding diameter snap ring is arranged on the lower edge of the inner side wall of the rubber ring.

The urine sampling device for gynecological examination is provided with a bottle cap on the urine collection bottle, and a snap ring adapted to the diameter expansion snap ring on the bottom surface of the bottle cap. The cover is in interference fit with the rubber ring on the outer side of the diameter-enlarging snap ring on the upper part of the urine collecting bottle through the snap ring.

In the urine sampling device for gynecological examination, corresponding threads are respectively provided on the inner side wall of the snap ring and the outer side of the rubber ring on the bottom surface of the bottle cap.

In the urine sampling device for gynecological examination, the diameter of the urine collecting port on the upper end of the urine collecting device is larger than the diameter of the urine guiding port, and the side wall of the urine collecting device between the urine collecting port and the urinary guiding port is inclined. wall.

In the urine sampling device for gynecological examination, the urine collector and the arc-shaped handle are made of disposable medical plastic materials.

The beneficial effect of the utility model is that the urine sampling device for gynecological examination described in the utility model can make the urine collector closely and effectively fit on the female perineum by setting the urine collecting port on the side of the arc. , to achieve effective collection of urine, which greatly facilitates the urine collection operation of patients.

By setting the arc-shaped handle, the patient can control the urine collector by grasping the arc-shaped handle, which effectively lengthens the distance between the patient's hand and the urine, and greatly reduces the patient's psychological state. burden.

By arranging the diameter-expanding snap ring and the inner folded edge, the urine collecting bottle and the urine collecting device can be conveniently and effectively snapped together, and urine can be effectively collected into the urine collecting bottle through the urine collecting device without the need for the patient to hold the urine collecting bottle.

By setting the rubber ring, the gap between the urine collection bottle and the catheter can be sealed and filled, which not only ensures the stable and effective clamping of the urine collection bottle, but also effectively avoids the flow of urine from the gap between the urine collection bottle and the catheter. Sprinkle on the outer wall of the urine collection bottle to cause pollution.

By arranging the bottle cap, the urine collection bottle can be effectively sealed, which not only facilitates the patient to carry the urine collection bottle, but also effectively prevents the urine from shaking and spilling out during the carrying process and causing pollution.

By setting the inclined wall and the inclined surface, the urine can effectively and accurately flow into the urine collection bottle.

The utility model effectively avoids the problem that the traditional hand-held bottle body sampling is easy to cause urine to spill on the hand, not only greatly facilitates the patient to collect and sample urine, but also greatly lengthens the distance between the hand and the urine, ensuring that The clean and hygienic urine sampling reduces the psychological burden of patients and provides strong support for urine collection and sampling.

Description of drawings

The present utility model will be further described below in conjunction with the accompanying drawings and embodiments.

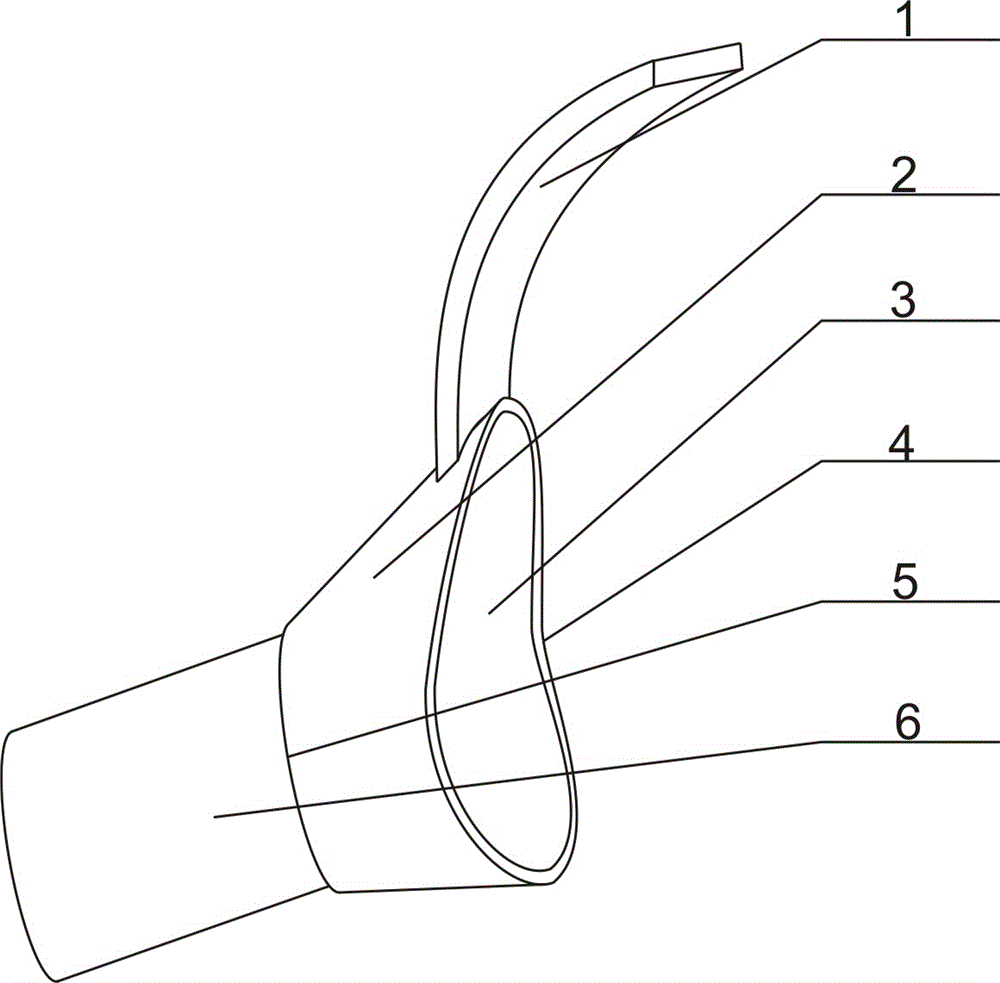

Figure 1 is a schematic structural diagram of the present invention.

Figure 2 is a sectional view of the urine collector of the present invention.

Figure 3 is a schematic structural diagram of the urine collection bottle of the present invention.

In the picture: 1. Curved handle, 2. Urine collector, 3. Urine collecting port, 4. Curved side, 5. Urinary catheterization port, 6. Urine collecting bottle, 7. Inclined wall, 8. Inner fold , 9. Bottle cap, 10. Snap ring, 11. Rubber ring, 12. Neck ring, 13. Expanding snap ring, 14. Inclined surface.

Detailed ways

The present utility model will now be described in further detail in conjunction with the accompanying drawings. These drawings are all simplified schematic diagrams, and only illustrate the basic structure of the present invention in a schematic manner, so they only show the structures related to the present invention.

With reference to the urine sampling device for gynecological examination given in the accompanying drawings 1 to 3, both ends of the urine collector 2 are open structures, and one end of the urine collector 2 is provided with a urine collection port 3, so The outer side of the urine collecting port 3 is an arc-shaped side 4 that matches the female perineal part, and the other end of the urine collecting port 3 is provided with a urinary catheter 5, and the upper end of the urine collecting device 2 is provided. The diameter of the urine collection port 3 is larger than the diameter of the urine catheter port 5, and the side wall of the urine collector 2 between the urine collection port 3 and the urine catheter port 5 is an inclined wall 7, on the inner side wall of the urine catheter port 5 There is an inner folded edge 8, the diameter of the urine collection bottle 6 is adapted to the urine catheter port 5, and a diameter expansion snap ring 13 is arranged on the upper part of the bottle mouth of the urine collection bottle 6, and the bottom of the urine collection bottle 6 is pierced. Through the catheter port 5 and through the diameter expansion snap ring 13, it is clamped on the upper edge of the inner folded edge 8 inside the catheter port 5. Further, in order to make the urine collection bottle 6 firmly clamped on the catheter port 5 , to prevent urine from spilling along the inclined wall 7 from the gap between the urine collection bottle 6 and the catheter port 5 to the outer wall of the urine collection bottle 6 to cause pollution. The rubber ring 11 has an interference fit with the inner side wall of the lower end of the urine collector 2. Further, in order to enable the rubber ring 11 to be firmly and effectively sleeved on the outer side wall of the diameter-expanding snap ring 13, in the The lower edge of the inner side wall of the rubber ring 11 is provided with a diameter reducing ring 12 which is adapted to the bottom surface of the expanding diameter snap ring 13. The upper side of the outer side wall of the urinal 2 is provided with an arc-shaped handle 1, and further, in order to make the lower side of the catheter port 5 at the front end of the urine collector 2 effectively fit the patient's perineum when the arc-shaped handle 1 is held with one hand. Deformation side leakage, the lower side wall of the urine collector 2 is a thickened side wall; further, in order to facilitate the patient to carry the urine collection bottle 6 that stores urine, a bottle cap 9 is provided on the urine collection bottle 6, A snap ring 10 is provided on the bottom surface of the bottle cap 9 that is adapted to the diameter expansion snap ring 13 . The outer rubber ring 11 has an interference fit, in order to effectively prevent the bottle cap 9 from falling off during the carrying process, the inner side wall of the snap ring 10 on the bottom surface of the bottle cap 9 and the outer surface of the rubber ring 11 are respectively provided with appropriate fittings. The urine collector 2 and the arc-shaped handle 1 are all made of disposable medical plastic.

When the urine sampling device for gynecological examination according to the present invention is implemented, when the patient collects urine, the patient holds the curved handle 1 and puts the urine collection bottle 6 into the urine collection port 3 at the upper end of the urine collector 2 and makes the urine collection bottle 6 . The bottom of the urine collection bottle 6 is exposed from the catheter port 5, and as the urine collection bottle 6 continues to be put into the urine collection bottle 6, the diameter expansion snap ring 13 at the upper end of the urine collection bottle 6 is just clamped on the inner folded edge 8 on the inner side of the urine collection port 5 at the lower end of the urine collection device 2. Along the surface, there is an interference fit between the rubber ring 11 on the outer side wall of the diameter expansion snap ring 13 and the inner side wall of the lower end of the urine collector 2 to seal the gap between the urine collector 2 and the urine collection bottle 6; After the completion, the patient holds the curved handle 1 and aligns the urine collecting port 3 on the upper end of the urine collector 2 with the perineal part, so that the urethra is located inside the urine collecting port 3, and the collection of urine through the urine collecting port 3 will not occur when the patient urinates. The urine flows along the inclined wall 7 of the urine collector 2 to the upper edge of the diameter-expanding snap ring 13 on the urine collecting bottle 6 at the lower end of the urine collector 2, and then flows down with the inclined surface 14 inside the diameter-expanding snap ring 13. In the urine collection bottle 6, the collection and sampling of urine is realized; after the sampling is completed, the patient holds the curved handle 1 and places the urine collection bottle 6 stuck on the urine collection device 2 on the plane, and then presses the urine collection device 2 downward. After the urine collection bottle 6 is exposed from the urine collection port 3 at the upper end of the urine collection device 2, cover the bottle cap 9 and lift the urine collection bottle 6 containing the urine sample to the urine collection device 2 by lifting the bottle cap 9. The patient carries the urine collection bottle. 6. Send it to medical personnel for urine detection, and the urine collector 2 can be discarded into a trash can for centralized recycling; the utility model effectively avoids the problem that the traditional hand-held bottle sampling is easy to cause urine to spill on the hands, not only It greatly facilitates patients to collect and sample urine, and greatly lengthens the distance between hands and urine, ensures the cleanliness and hygiene of urine sampling, reduces the psychological burden of patients, and provides strong support for urine collection and sampling.

Taking the above ideal embodiments according to the present invention as inspiration, through the above description, those skilled in the art can make various changes and modifications without departing from the technical idea of the present invention. The technical scope of the present utility model is not limited to the content in the description, and its technical scope must be determined according to the scope of the claims.

Claims (8)

1. The utility model provides a urine sampling device for gynecological examination, includes urine collection ware (2) and collection urine bottle (6), characterized by: both ends of the urine collector (2) are of an open structure, one end of the urine collector (2) is provided with a urine collecting port (3), the side edge of the outer end of the urine collecting port (3) is an arc side edge (4) which is matched with the female perineum part, a urine guide port (5) is arranged at the other end of the urine collection port (3), an inner folded edge (8) is arranged on the inner side wall of the urine guide port (5), the diameter of the urine collecting bottle (6) is matched with the urine guiding opening (5), an expanding snap ring (13) is arranged at the upper part of the mouth of the urine collection bottle (6), the bottom of the urine collection bottle (6) passes through the urine guide port (5) and is clamped on the upper edge of an inner folding edge (8) at the inner side of the urine guide port (5) through the expanding snap ring (13), the inner side wall of the expanding snap ring (13) is an inclined surface (14) with a wide upper part and a narrow lower part, an arc-shaped grab handle (1) is arranged on the upper side of the outer side wall of the urine collector (2).

2. The urine sampling device for gynecological examination as set forth in claim 1, wherein: the side wall of the lower part of the urine collector (2) is a thickened side wall.

3. The urine sampling device for gynecological examination as set forth in claim 2, wherein: the outer side wall of an expanding snap ring (13) on the urine collection bottle (6) is provided with a rubber ring (11), and the rubber ring (11) is in interference fit with the inner side wall of the lower end of the urine collection device (2).

4. The urine sampling device for gynecological examination as set forth in claim 3, wherein: and a reducing ring (12) matched with the bottom surface of the expanding snap ring (13) is arranged on the lower edge of the inner side wall of the rubber ring (11).

5. The urine sampling device for gynecological examination as set forth in claim 3, wherein: the urine collection bottle (6) is provided with a bottle cap (9), the lower bottom surface of the bottle cap (9) is provided with a clamping ring (10) matched with the diameter expansion snap ring (13), and the bottle cap (9) is in interference fit with a rubber ring (11) on the outer side of the diameter expansion snap ring (13) on the upper portion of the urine collection bottle (6) through the clamping ring (10).

6. The urine sampling device for gynecological examination as set forth in claim 5, wherein: the inner side wall of the clamping ring (10) on the lower bottom surface of the bottle cap (9) and the outer side surface of the rubber ring (11) are respectively provided with matched threads.

7. The urine sampling device for gynecological examination as set forth in claim 1, wherein: the diameter of the urine collection port (3) at the upper end of the urine collection device (2) is larger than that of the urine guide port (5), and the side wall of the urine collection device (2) between the urine collection port (3) and the urine guide port (5) is an inclined wall (7).

8. The urine sampling device for gynecological examination as set forth in claim 1, wherein: the urine collector (2) and the arc-shaped grab handle (1) are made of disposable medical plastic materials.
