A government service information collection device

technical field

The utility model relates to the technical field of collection devices, in particular to a government service information collection device.

Background technique

Government services refer to the licensing, confirmation, adjudication, reward, punishment and other administrative services provided by governments at all levels, relevant departments and institutions in accordance with laws and regulations for social groups, enterprises, institutions and individuals. Government services include matters of administrative power. And public service matters, the transparent setting of government affairs allows people to express their opinions freely, and government departments take people's opinions for their own use, so that government affairs can be better carried out.

In today's life, most of the opinion storage boxes set up by the government are closed boxes for people to deliver their opinions, but this box is not convenient for people to deliver their opinions in daily use. People still need to write a good opinion letter at home and take it to the government for delivery , it is extremely inconvenient, so a government service information collection device is needed to solve the above problems.

Utility model content

The purpose of the present invention is to provide a government service information collection device, so as to solve the problem of inconvenience for people to deliver proposals in the above-mentioned background art.

In order to achieve the above purpose, the present invention provides the following technical solutions: a government service information collection device, comprising a collection box body, a sealing plate is inserted inside the left side of the collection box body, and the upper and lower ends of the sealing plate are fixedly connected There is a third slider, the inner wall of the collection box body is fixedly connected with a blocking net, a support plate is inserted in the front of the bottom end of the collection box body, and the left and right sides of the support plate are inserted with clamping rods, the card The right side of the rod is fixedly connected with a pull block, the surface of the clamping rod is sleeved with a first spring, the surface of the clamping rod is fixedly connected with a limit block, and the top right end of the collection box body is fixedly connected with a support rod , and a pressing rod is fixedly connected to the right side of the support rod, a second spring is fixedly connected to the left side of the pressing rod near the support rod, and the left side of the second spring is fixedly connected to the surface of the collection box body, the said The left bottom end of the pressing rod is fixedly connected with a clamping block, and the clamping block is inserted on the surface of the supply box, the supply box is inserted in the inside of the collection box body, and the top left side of the supply box is fixedly connected with a first A sliding block, a storage box is placed inside the collection box body, a sealing door is hinged on the left side of the collection box body, and a delivery port is opened on the surface of the sealing door, and a pull button is fixedly connected to the right side of the supply box, so A second sliding block is fixedly connected to the left and right sides of the support plate.

Preferably, the inner wall of the collection box body is provided with a bar-shaped chute at a position corresponding to the first slider, and the inner wall of the chute is in contact with the surface of the first slider, and the collection box body is connected to the first slider. The connection relationship of the slider is a sliding connection.

Preferably, the inner wall of the collection box body is provided with a bar-shaped chute at the position corresponding to the second sliding block, and the inner wall of the chute is in contact with the surface of the second sliding block, and the second sliding block is connected to the collecting block. The connection relationship of the box body is a sliding connection.

Preferably, the surface of the support plate is provided with a clamping groove, and the inner wall of the clamping groove is in contact with the surface of the clamping rod, and the connection relationship between the clamping rod and the supporting plate is a clamping connection.

Preferably, the third sliding block has a trapezoidal structure, and a chute is provided at a position corresponding to the inner wall of the collection box body and the third sliding block, and the inner wall of the chute is in contact with the surface of the third sliding block, The connection relationship between the collection box body and the third sliding block is a sliding connection.

Preferably, the delivery ports are provided with four groups, and the positions of the delivery ports on the surface of the sealing door correspond to the positions of the storage boxes.

Compared with the prior art, the beneficial effect of the present utility model is that: the utility model is provided with a supply box and a support plate, by taking out the pen and paper from the supply box, so as to write on the surface of the support plate, and the information will be delivered through the storage box. Classification, so as to facilitate the relevant staff to collect;

1. The utility model is provided with a supply box and a support plate. By pulling the pull button, the supply box is driven to move outward, and the pen and paper are taken out from the supply box. Write, you can deliver it after writing, avoiding the problem of inconvenient delivery due to distance problems in traditional delivery;

2. By setting a delivery port and a storage box, the storage box will deliver and classify the information, so as to facilitate the relevant staff to collect and improve work efficiency.

Description of drawings

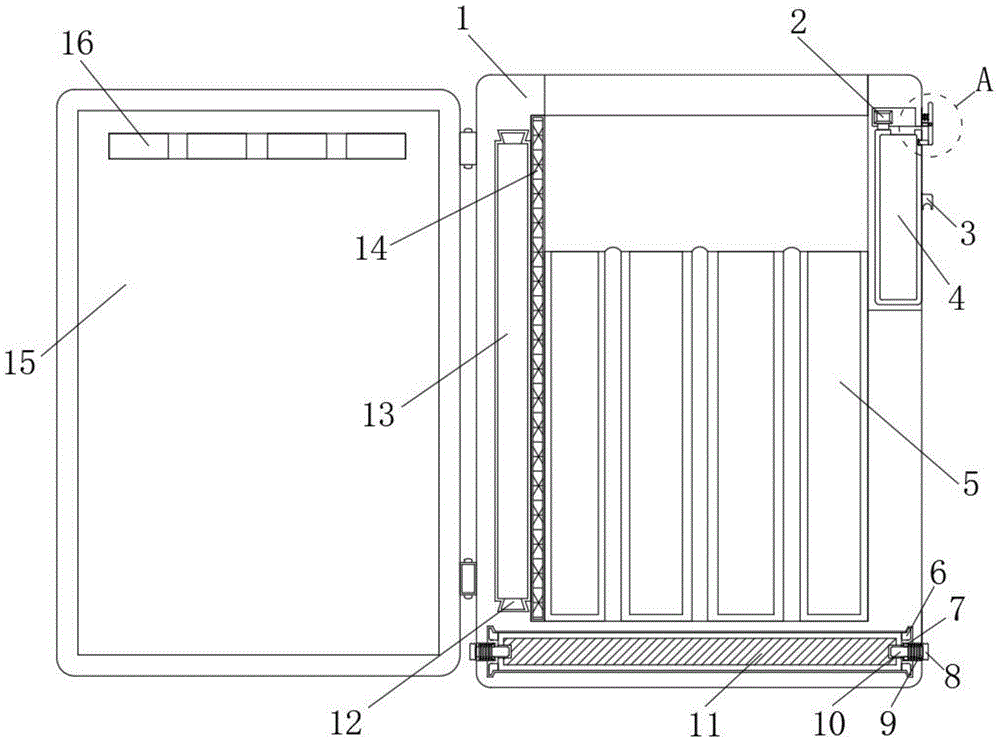

Fig. 1 is the structural front view schematic diagram of the present utility model;

Fig. 2 is the structural enlarged schematic diagram of A in Fig. 1 of the present utility model;

3 is a schematic top view cross-sectional view of the support plate and the main body structure of the collection box of the present invention;

FIG. 4 is a schematic top view sectional view of the structure of the baffle net and the collecting box body of the present invention.

In the figure: 1. Collecting box body; 2. First slider; 3. Pull button; 4. Supply box; 5. Storage box; 6. Second slider; 7. Limit block; 8. Pull block; 9 , first spring; 10, clamping rod; 11, supporting plate; 12, third slider; 13, sealing plate; 14, blocking net; 15, sealing door; 16, delivery port; 17, pressing rod; 18, second Spring; 19, block; 20, support rod.

Detailed ways

The technical solutions in the embodiments of the present utility model will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present utility model. Obviously, the described embodiments are only a part of the embodiments of the present utility model, rather than all the implementations. example. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative work fall within the protection scope of the present invention.

Please refer to Figures 1-4, an embodiment provided by the present utility model:

A government service information collection device, comprising a collection box body 1, a sealing plate 13 is inserted in the left side of the collection box body 1, and a third sliding block 12 is fixedly connected to the upper and lower ends of the sealing plate 13. The third sliding block 12 is a trapezoidal structure, a chute is provided at the position corresponding to the inner wall of the collection box body 1 and the third slider 12, and the inner wall of the chute is in contact with the surface of the third slider 12, the collection box body 1 and the third slider 12 are The connection relationship of the sliders 12 is a sliding connection, and the third slider 12 slides on the inner wall of the chute, thereby pulling out the sealing plate 13 and putting the desiccant into the collection box body 1, so as to prevent the submissions from not being collected in time and causing the submissions to get wet The inner wall of the collection box body 1 is fixedly connected with a blocking net 14 , the bottom end of the collection box body 1 is inserted with a support plate 11 , and the left and right sides of the support plate 11 are inserted with clamping rods 10 .

The surface of the support plate 11 is provided with a clamping groove, and the inner wall of the clamping groove is in contact with the surface of the clamping rod 10. The connection relationship between the clamping rod 10 and the supporting plate 11 is a clamping connection. After the supporting plate 11 is pulled out, it is clamped by the clamping rod 10. There is a groove on the surface of the support plate 11 to fix the support plate 11, so that people can write on the surface of the support plate 11. The pull block 8 is fixedly connected to the right side of the clamp rod 10, and the surface of the clamp rod 10 is sleeved with a first spring. 9. The surface of the clamping rod 10 is fixedly connected with the limiting block 7, the right top end of the collection box body 1 is fixedly connected with a support rod 20, and the right side of the support rod 20 is fixedly connected with a pressing rod 17, and the left side of the pressing rod 17 is fixedly connected A second spring 18 is fixedly connected to the position close to the support rod 20 , and the left side of the second spring 18 is fixedly connected to the surface of the collection box body 1 , and the left bottom end of the pressing rod 17 is fixedly connected with a clamping block 19 , and the clamping block 19 is inserted on the surface of the supply box 4, the supply box 4 is inserted in the inside of the collection box body 1, and the top left side of the supply box 4 is fixedly connected with the first slider 2.

The inner wall of the collection box body 1 is provided with a bar-shaped chute at the position corresponding to the first slider 2, and the inner wall of the chute is in contact with the surface of the first slider 2. The collection box body 1 and the first slider 2 The connection relationship is a sliding connection, the first slider 2 slides on the chute, so as to pull out the supply box 4, and it is convenient to take out the paper inside the supply box 4, so as to write, the inside of the collection box body 1 is placed with a storage box 5, The left side of the collection box body 1 is hinged with a sealing door 15, and the surface of the sealing door 15 is provided with a delivery port 16, the delivery port 16 is provided with four groups, and the position of the delivery port 16 on the surface of the sealing door 15 corresponds to the position of the storage box 5 , From the classification and delivery at the time of delivery, it is convenient for relevant staff to collect and save the time of classification. The right side of the supply box 4 is fixedly connected with a pull button 3, and the left and right sides of the support plate 11 are fixedly connected with a second slider 6. The inner wall of the collection box body 1 is provided with a bar-shaped chute at the position corresponding to the second slider 6 , and the inner wall of the chute is in contact with the surface of the second slider 6 , and the second slider 6 is connected to the collection box body 1 . The connection relationship is a sliding connection, and the chute provides a movement track for the movement of the second slider 6 to avoid shaking during use.

Working principle: When in use, according to Figure 1, Figure 2 and Figure 3, when needed, press the pressing rod 17 to the left to compress and deform the second spring 18. The pressing rod 17 takes the support rod 20 as a fulcrum, and The blocking block 19 is lifted up, so that the blocking block 19 is separated from the inside of the groove of the supply box 4. At this time, the supply box 4 is moved by the pull button 3. During the movement of the supply box 4, the first slider 2 slides on the strip of the collection box body 1. The slot slides, so that the paper and pen are taken out from the supply box 4, and the support plate 11 is pulled out at the same time. When sliding to a certain position, the clamping rod 10 is clamped on the surface of the clamping rod 10 under the elastic force of the first spring 9, thereby fixing the support plate 11, so that the position of the support plate 11 is stable, and it is convenient for people to write on the surface of the support plate 11. , the paper is put into the relevant delivery port 16, and the paper is dropped into the storage box 5 for storage. When the desiccant needs to be replaced, the capsule sealing plate 13 is pulled out, and new desiccant is put in, so that the third slider 12 is in the The chute of the collection box body 1 slides, so that the sealing plate 13 is inserted into the collection box body 1 , and the operation ends.

It will be apparent to those skilled in the art that the present invention is not limited to the details of the above-described exemplary embodiments, and that the present invention can be implemented in other specific forms without departing from the spirit or essential characteristics of the present invention. Therefore, the embodiments are to be considered in all respects as exemplary and not restrictive, and the scope of the present invention is defined by the appended claims rather than the foregoing description, and it is therefore intended that the All changes within the meaning and range of the required equivalents are embraced within the present invention. Any reference signs in the claims shall not be construed as limiting the involved claim.

Claims (6)

1. A government affairs service information collection device, includes collecting box body (1), its characterized in that: a sealing plate (13) is inserted into the left side of the collecting box body (1), third sliding blocks (12) are fixedly connected to the upper end and the lower end of the sealing plate (13), a blocking net (14) is fixedly connected to the inner wall of the collecting box body (1), a supporting plate (11) is inserted into the front side of the bottom end of the collecting box body (1), clamping rods (10) are inserted into the left side and the right side of the supporting plate (11), a pull block (8) is fixedly connected to the right side of each clamping rod (10), a first spring (9) is sleeved on the surface of each clamping rod (10), a limiting block (7) is fixedly connected to the surface of each clamping rod (10), a supporting rod (20) is fixedly connected to the top end of the right side of the collecting box body (1), a pressing rod (17) is fixedly connected to the right side of each supporting rod (20), a second spring (18) is fixedly connected to the position, and the left side fixed connection of second spring (18) is on the surface of collecting box body (1), press left side bottom fixedly connected with fixture block (19) of depression bar (17), and fixture block (19) insert and establish on the surface of supplying with box (4), supply with box (4) and insert and establish in the inside of collecting box body (1), supply with the first slider (2) of top left side fixedly connected with of box (4), receiver (5) have been placed to the inside of collecting box body (1), the left side of collecting box body (1) articulates there is sealing door (15), and sealing door (15) surface seted up delivery opening (16), the right side fixedly connected with of supplying with box (4) draws button (3), the left and right sides fixedly connected with second slider (6) of backup pad (11).

2. A government service information collecting apparatus according to claim 1, wherein: the inner wall of the collecting box body (1) is provided with a strip-shaped sliding groove at a position corresponding to the first sliding block (2), the inner wall of the sliding groove is in contact with the surface of the first sliding block (2), and the collecting box body (1) is in sliding connection with the first sliding block (2).

3. A government service information collecting apparatus according to claim 1, wherein: the inner wall of the collecting box body (1) is provided with a strip-shaped sliding groove at a position corresponding to the second sliding block (6), the inner wall of the sliding groove is in contact with the surface of the second sliding block (6), and the second sliding block (6) is in sliding connection with the collecting box body (1).

4. A government service information collecting apparatus according to claim 1, wherein: the surface of the supporting plate (11) is provided with a clamping groove, the inner wall of the clamping groove is in contact with the surface of the clamping rod (10), and the clamping rod (10) is connected with the supporting plate (11) in a clamping manner.

5. A government service information collecting apparatus according to claim 1, wherein: the third sliding block (12) is of a trapezoidal structure, a sliding groove is formed in the position, corresponding to the third sliding block (12), of the inner wall of the collecting box body (1), the inner wall of the sliding groove is in contact with the surface of the third sliding block (12), and the collecting box body (1) is in sliding connection with the third sliding block (12).

6. A government service information collecting apparatus according to claim 1, wherein: four groups of delivery openings (16) are arranged, and the positions of the delivery openings (16) on the surface of the sealing door (15) correspond to the positions of the storage boxes (5).
